- Free 30-day Returns
$138.25
Meet Your Seller
DIYmalls Nextion Intelligent 4.3 inch HMI Display 5V Capacitive Touch Screen 480x272 TFT LCD w/Enclosure Case for Arduino (NX4827P043-011C-Y)
- -Compared with Basic nextion display and nextion enhanced screen, Nextion Intelligent display has more powerful hardware in terms of MCU, Flash storage and SRAM. Audio, video and animation play functions enrich your project HMI interaction.

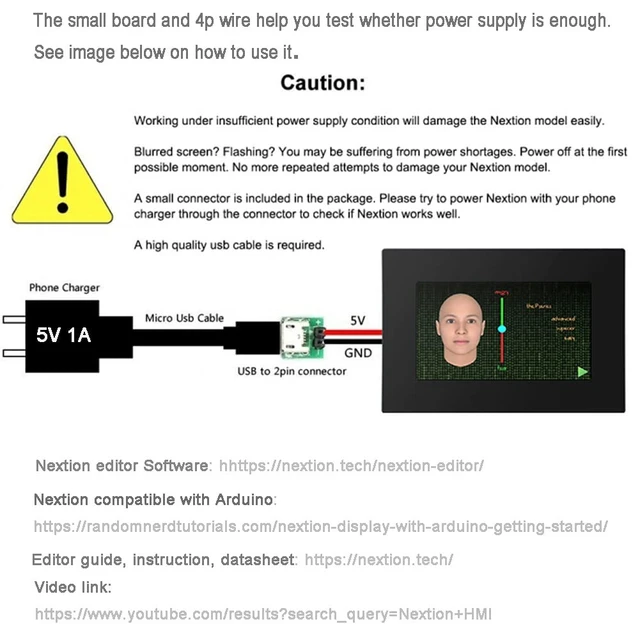

- -Nextion intelligent 4.3 capacitive display is a 5V device, but many development boards are 3.3V. It won't make the display power up.
- -To ensure Nextion 4.3 intelligent capacitive display work as expected, it's recommended to supply power via power adapter, not usb to ttl or boards.
- -If you supply power for NX4827P043-011C-Y via PC, the nextion display may works not as expected even though your PC is 5V.
- -Uploading TFT file via sd card is faster than the usb to ttl, but pls ensure card: FAT32 format, only one tft file(no folder), and no more than 32GB.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Feature
4.3" LCD-TFT HMI display module
480 x 272 screen resolution
RGB 65K true-to-life colours
Capacitive touch panel
300 nit Brightness
Onboard 200MHz MCU
512 KB of SRAM
128 MB of Flash memory
1024 Byte EEPROM

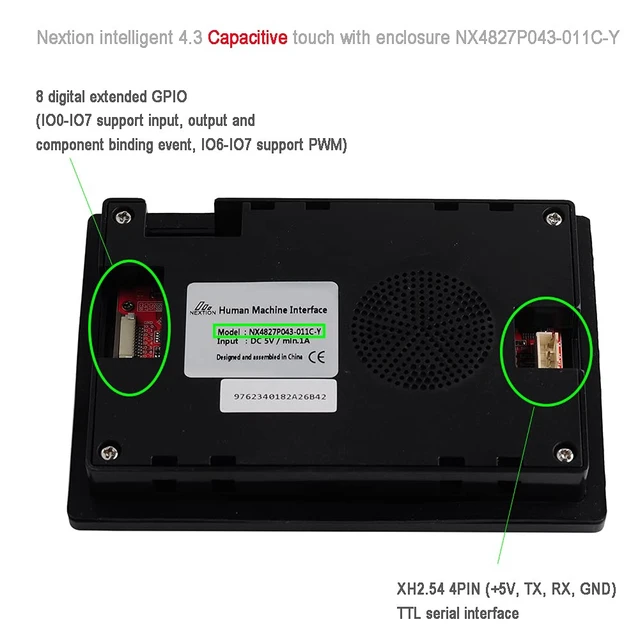

XH2.54 4 Pins (+5V, TX, RX, GND) TTL serial interface
1.25T-2-2A Audio port for external speaker connection
16 0.5W power for speaker (speaker NOT included)
8 Digital extended GPIO
(IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM)

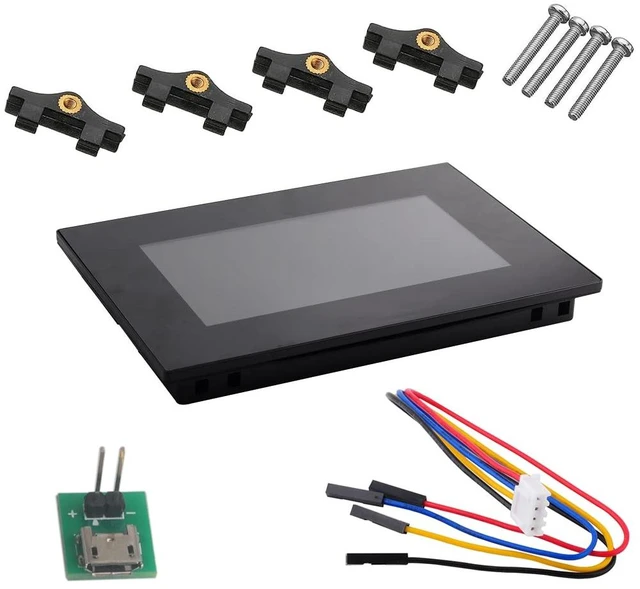

Package Included:
1 x Nextion NX4827P043-011C-Y
1 x micro USB to 2pin male board
1 x 4pin 2.54mm to female cable
