Mesh Node T114 V2 LoRaWAN Meshtastic Development Board AYWHP Meshtastic Tracker Nordic nRF52480 with SX1262 Chip 1.9-inch TFT Display 902-928MHz with BLE WiFi Compatible with Arduino/Meshtastic
- High Compatibility: Compatible with Meshtastic and Arduino, this mesh node T114 V2 development board uses the powerful LoRaWAN SX1262 chip for long-range communication. Perfect for low-power applications.
- Power Efficiency: With deep sleep current as low as 11uA, this mesh node T114 V2 board is designed for optimal power efficiency, making it ideal for battery and solar-powered projects.
- Multiple Interfaces: Equipped with USB 2.0, LiPo battery connectors (21.25mm), solar panel connectors (21.25mm), and GNSS module connectors (81.25mm), offering strong expandability and compatibility.

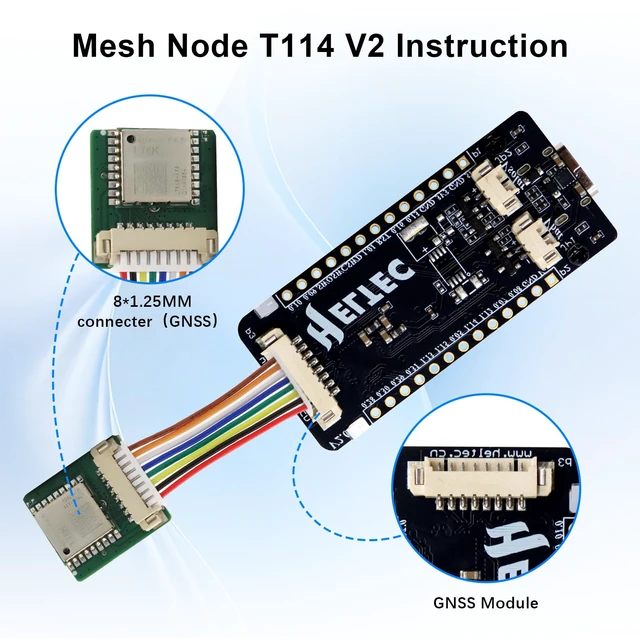

- Easy to Connect: Simple plug-and-play GNSS connectors allow for fast and easy connections and disconnections, enhancing the versatility of your project setups.
- Versatile Display: Features a 1.14" high-resolution TFT-LCD display (optional), offering clear visuals with a 135(H)RGBx240(V) resolution and 262K colors.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
The mesh Node T114 v2 is a development board based on LoRaWAN technology, using the NRF family of chips and supporting low-power communication protocols, especially for remote wireless networks and Internet of Things (IoT) applications.It is compatible with Meshtastic software and also supports the Arduino development environment.
Specifications
MCUnRF52840
LoRa Node ChipSX1262
Max. TX Power21±1dBm
Max. Receiving sensitivity-135dBm@SF12 BW=125KHz
BluetoothBluetooth LE: Bluetooth 5, Bluetooth mesh

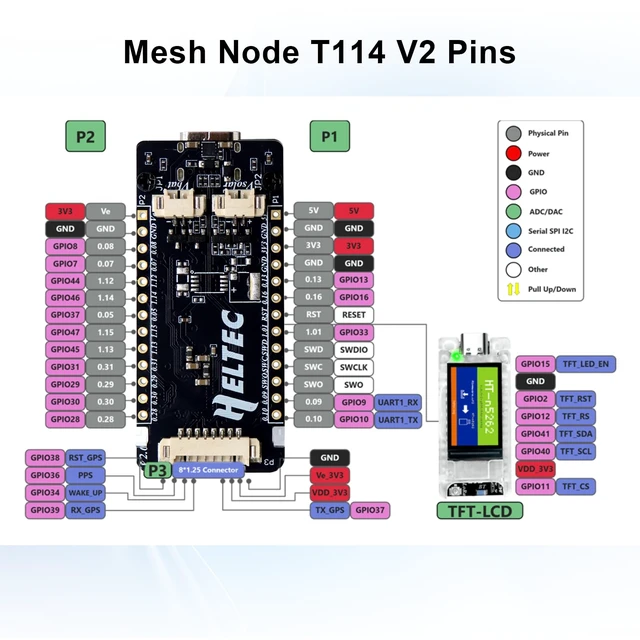

Hardware ResourceUSB 2.0, 4 * SPI, 2 * TWI, 2 * UART, 4 * PWM, QPSI, 12S, PDM, QDEC Etc.
Memory1M ROM; 256KB SRAM

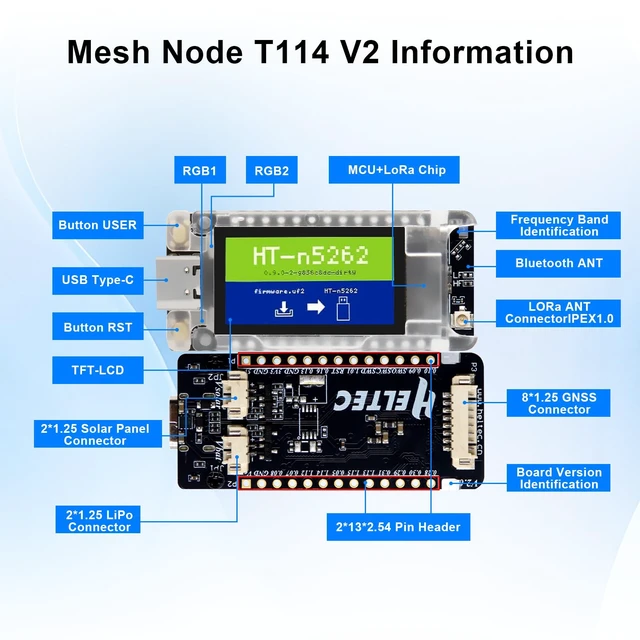

InterfaceType-C USB; 2*1.25 lithium battery connector; 2*1.25 solar panel connector; LoRa ANT (IPEX1.0); 8*1.25 GPS module connector; 2*13*2.54 Header Pin.
Battery3~4.2V battery power supply and charge.
Operating Temperature-20 ~ 70

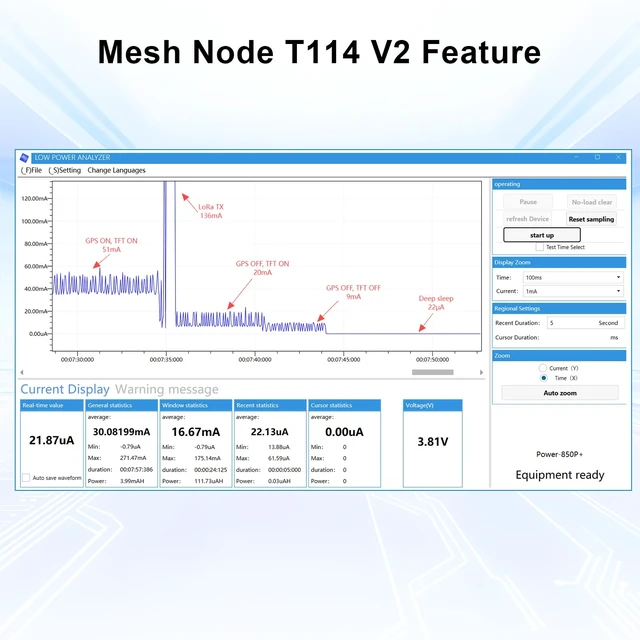

Electrical characteristicsDeep Sleep: ~11uA; Tracker mode sleep: ~22uA; GPS OFF, TFT OFF: ~9mA; GPS OFF, TFT ON: ~20mA; GPS ON, TFT ON: ~51mA.
Displayonboard 1.14 inch TFT-LCD display

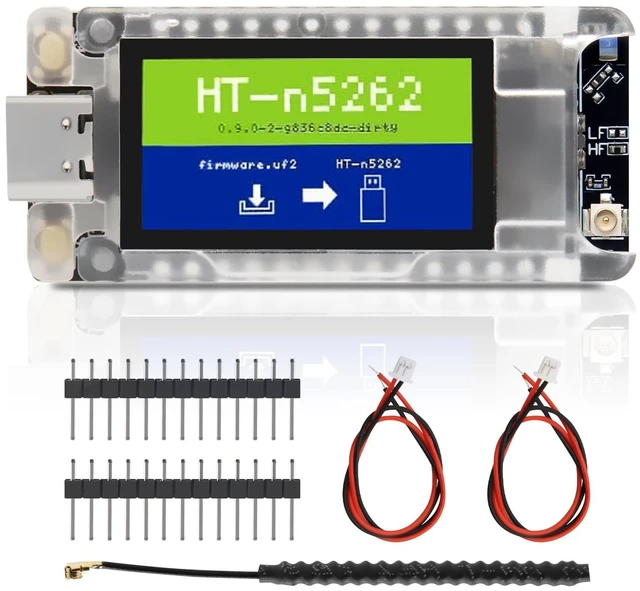

Packing list
1 X Mesh Node T114 V2 for Meshtastic
1 X LoRa Antenna
2 X SH1.25×2 Battery Connector
2 X 2.54 *13 Header Pi
