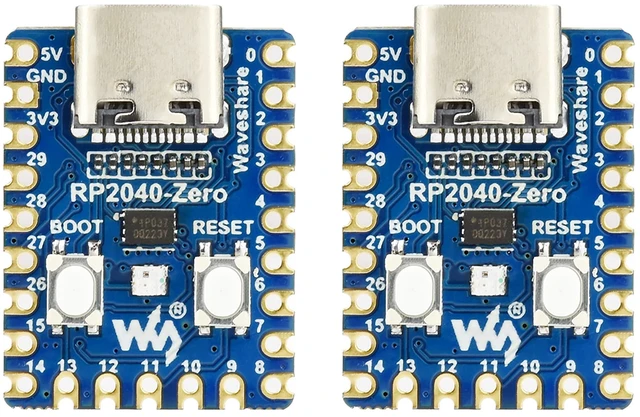

2PCS RP2040-Zero Mini Board, Pico-Like MCU Board Based on Raspberry Pi MCU RP2040, Dual-Core Arm Cortex M0+ Processor, Onboard 2MB Flash Memory, Type-C USB Connector, Support C/C++MicroPython

Overview

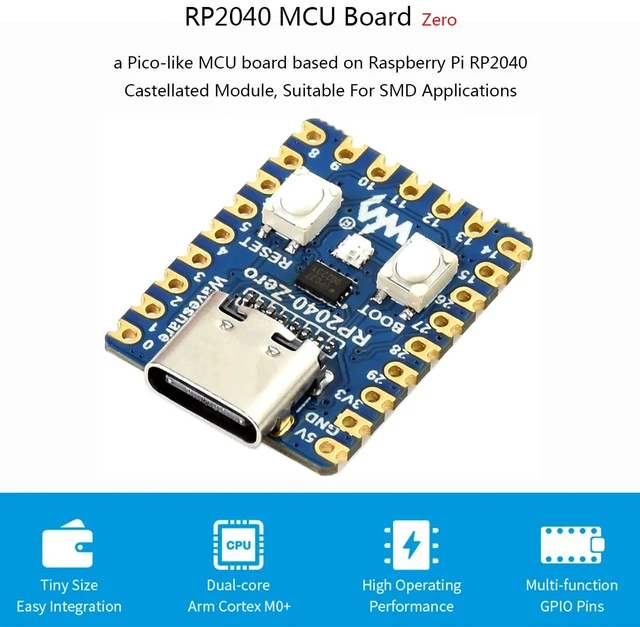

RP2040-Zero Mini Version, Pico-Like MCU Board Based on Raspberry Pi MCU RP2040, Castellated module, suitable for SMD applications.

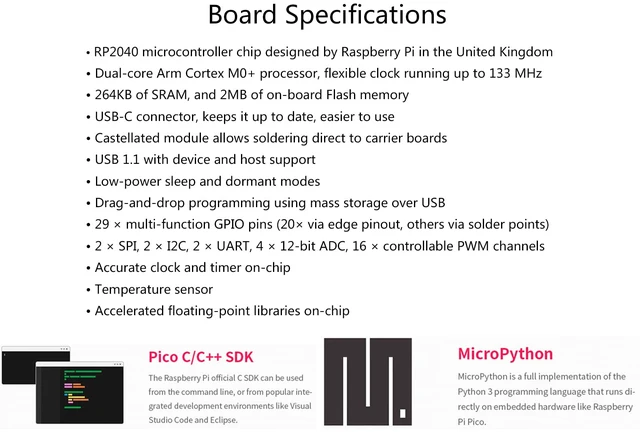

Features

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom.

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz.

Onboard 264KB of SRAM, and 2MB Flash memory.

Type-C USB Connector, keeps it up to date, easier to use.

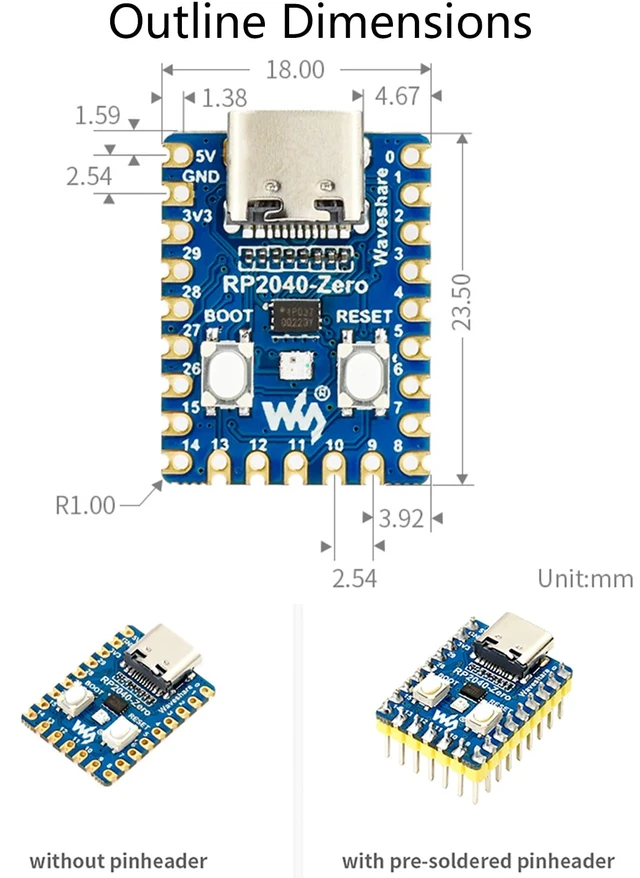

Castellated module allows soldering direct to carrier boards.

USB 1.1 with device and host support.

Low-power sleep and dormant mode.

Drag-and-drop programming using mass storage over USB.

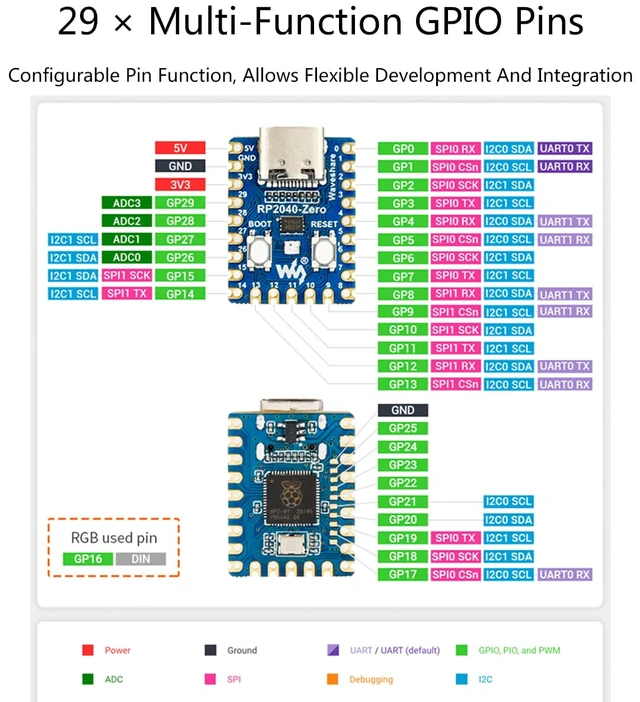

29 x multi-function GPIO pins (20x via edge pinout, others via solder points).

2 x SPI, 2 x I2C, 2 x UART, 4 x 12-bit ADC, 16 x controllable PWM channels.

Accurate clock and timer on-chip.

Temperature sensor.

Accelerated floating-point libraries on-chip.

8 x Programmable I/O (PIO) state machines for custom peripheral support.

Support C/C++MicroPython.

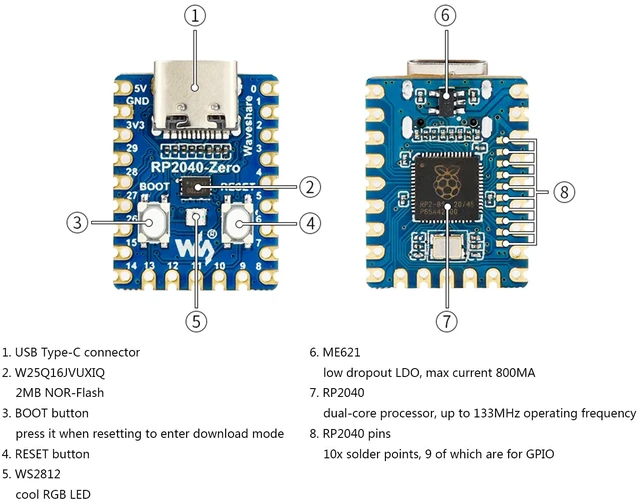

What's On Board

1.USB Type-C connector

2.W25Q16JVUXIQ:2MB NOR-Flash

3.BOOT button:press it when resetting to enter download mode

4.RESET button

5.WS2812:cool RGB LED

6.ME621:low dropout LDO, max current 800MA

7.RP2040:dual-core processor, up to 133MHz operating frequency

8.RP2040 pins:10x solder points, 9 of which are for GPIO

Development Resource/ User Manual:bit.ly/WaveshareRP2040-Zero

Package Content

RP2040-Zero x2
