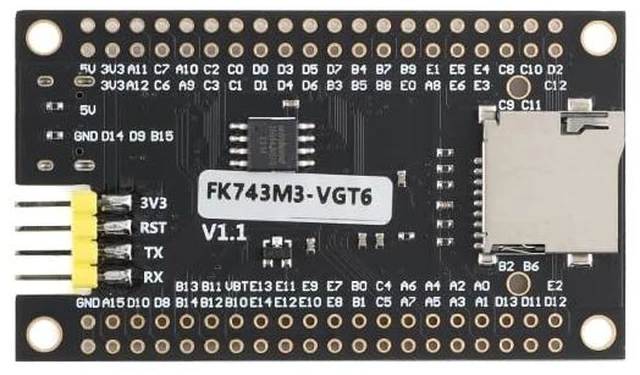

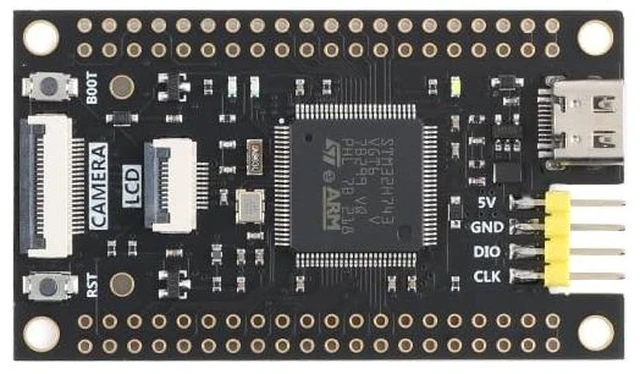

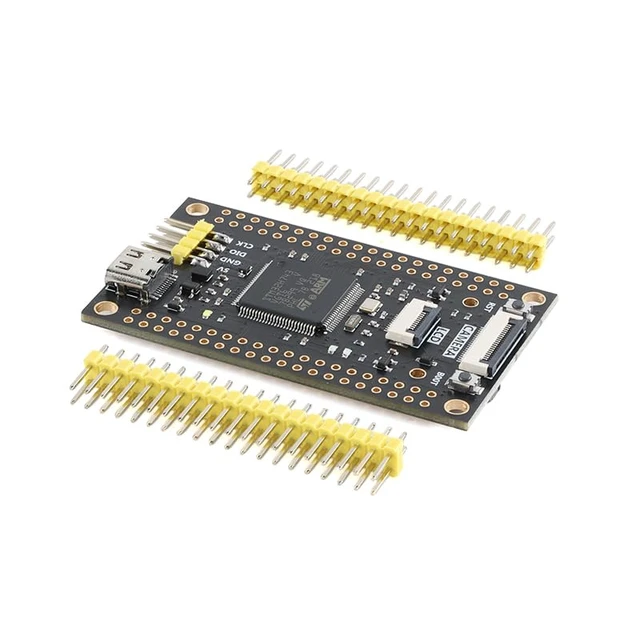

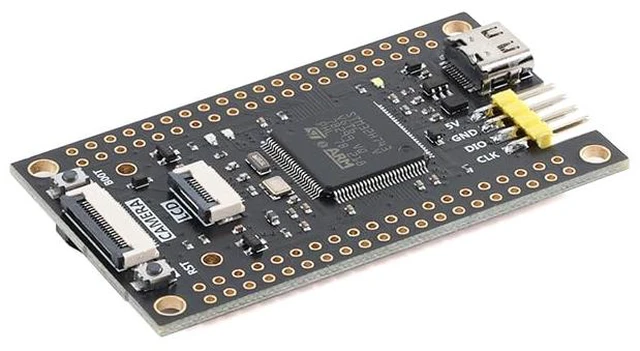

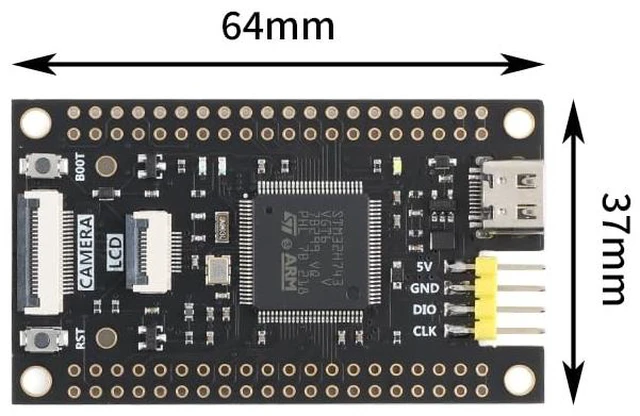

STM32H743VGT6 Core Board System Board STM32H743 Learning Board STM32 Development Board for Display Development Module
- Experience lightning-fast processing with a high-frequency 480MHz STM32H743VGT6 Core Board, equipped with 1M Flash and 1M SRAM for seamless operation in your STM32H743 Learning Board projects
- Expand your capabilities effortlessly with an 8M-byte W25Q64 external memory on the System Board, enhancing the storage capacity for your STM32 Development Board applications while ensuring smooth performance
- Seamlessly connect peripherals using the versatile Type C interface on the STM32 Development Board, enabling direct USB connectivity to the STM32 for efficient data transfer and communication in your projects
- Unlock endless possibilities with the SPI LCD and camera interface on the System Board, allowing for easy integration of display and imaging modules to enhance the functionality of your STM32 Development Module applications
- Ensure robust performance in any environment with a wide operating temperature range of -40~85 on the STM32H743 Learning Board, providing reliability and stability for your projects in various conditions
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Main frequency 480MHz
1M Flash in the film, 1M SRAM
External expansion W25Q64, capacity 8M bytes
1 reset button, 1 user button
1 BOOT button
1 user LED
1 Type C interface
1 SPI LCD and camera interface
Introduce 73 IO ports
Working environment temperature -40~85
Main clock crystal oscillator 25MHz
RTC crystal oscillator 32.768KHz
2 * 4P pin arrangement, leading out SWD and serial port
Type C interface, directly connected to STM32 USB
Screen interface
Using SPI driver, there are multiple screens to choose from
FPC10P, 0.5mm spacing
The camera interface uses an 8-bit DCM1 driver
FPC 20P, 0.5mm spacing
8M bytes W25Q64
QSPI driver
