915MHz LoRa Mesh Node T114 V2 Dev-Board + Antenna for Meshtastic | DIYmalls 915MHz LoRa Mesh Node T114 V2 Development Board w/1.14 inch TFT LCD Display + 915 MHz Antenna for Meshtastic LoRaWAN

Desciprion:

Mesh Node T114 is a development board based on nRF52840 and SX1262, supports LoRa and BLE 5.0 . which integrated various power interfaces (5V USB, li battery and solar panel) , and has powerful long-distance communication capabilities, scalability, and low power design.

With Heltec nRF52 development environment and libraries. you can use it for LoRa/LoRaWAN development work, and also use it to run some open source projects, such as for Meshtastic.

Feature:

-MCU nRF52840 (BLE), LoRa chipset SX1262.

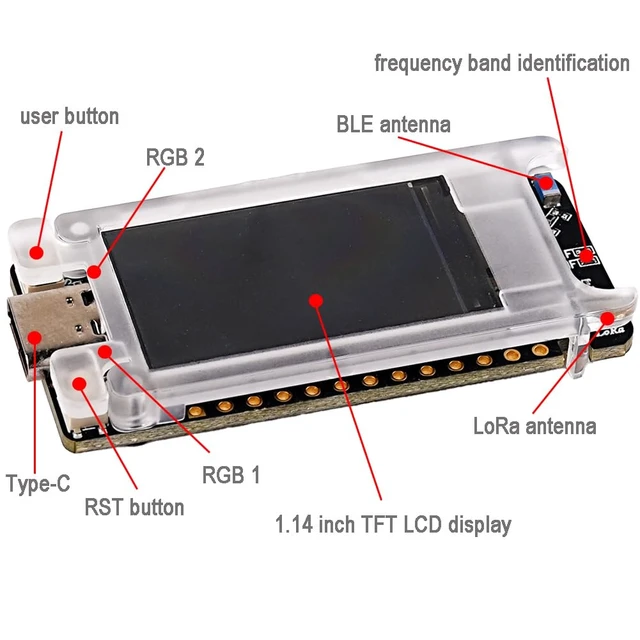

-Powerful display function, onboard 1.14 inch TFT-LCD display contains 135(H)RGB x240(V) dots and itt can display up to 262k colors.

-Low power consumption, 11 uA in deep sleep.

-Operation condition: -20 ~ 70, 90%RH(No condensing).

-Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures.

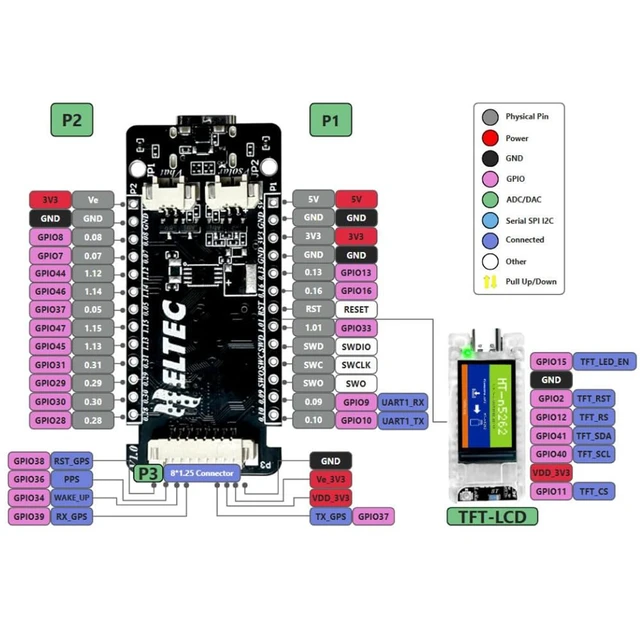

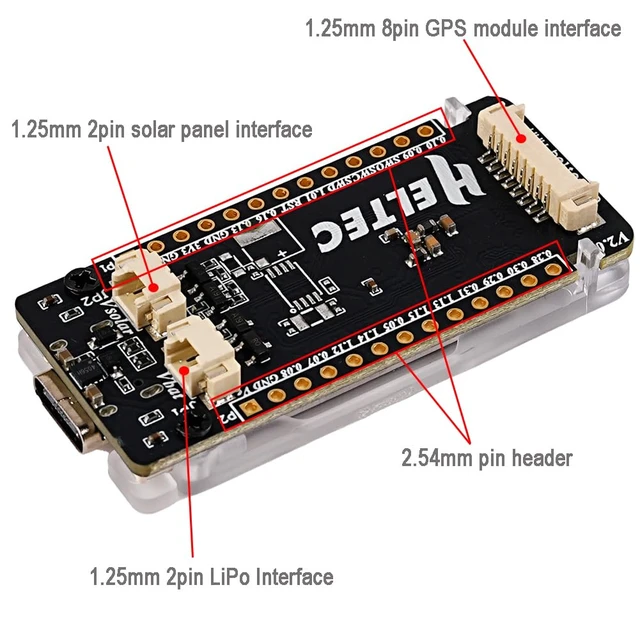

-Various Interfaces: 1.25*2P LiPo connector, 1.25*2P Solar panel connector, 1.25*8P GNSS module connector, which greatly increase the extensibility of the board.

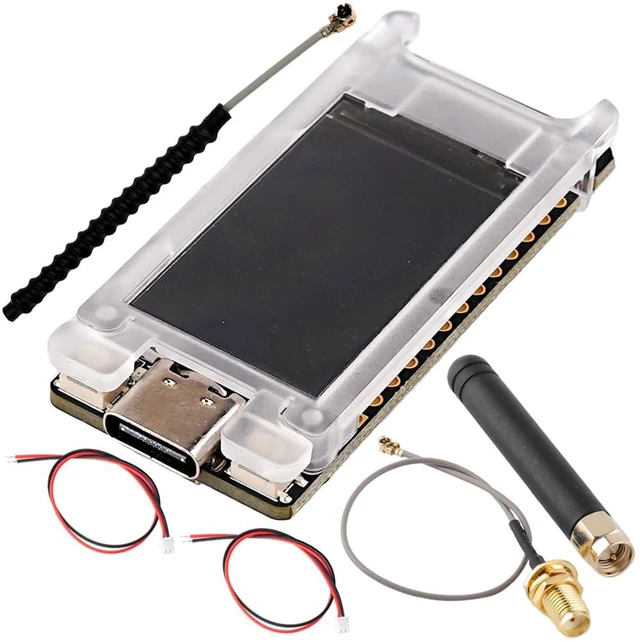

Package List:

1 x 915MHz Mesh Node T114 Board (pin headers NOT soldered)

1 x Small LoRa Antenna 915MHz

1 x 915MHz Big Antenna LoRa with SMA Wire

2 x 1.25mm 2pin Cable
