AITRIP 2 Pack 2.8" ESP32 Display ILI9341 Driver with Acrylic Case, 2.8inch ESP32-2432S028R ESP32 Display 240x320 Resistive Touchscreen TFT LCD, ESP32 Development Board for Arduino IDE
- The ESP32 display screen is controllable and can be used for APP remote control, remote environmental data collection and remote. Data , remote parameter setting and other batch development applications.
- ESP32-2432S028 development board is based on the ESP32-DOWDQ6 controller, low-power, dual-core CPU, clock frequency up to 240MHZ, integrates a wealth of resource peripherals, high-speed SDIO,SPI, UART and other functions
- Application: Home smart device image transmission, Wireless monitoring, Smart agriculture QR wireless recognition, Wireless positioning system signal, And other IoT applications(User manual available if do as follow: click "AITRIP"(you can find "Sold by AITRIP" under Buy Now button), in the new page, click "Ask a question".)we will send you the manual asap
- ESP32 WIFI&Bluetooth Development Board 2.8 " 240*320 Smart Display Screen 2.8inch LCD TFT Module With Touch WROOM; Support: 1: UART/SPI/I2C/PWM/ADC/DAC and other interfaces 2:OV2640 and OV7670 cameras, built-in flash 3:picture WiFI upload 4:TF card 5:multiple sleep modes 6:Embedded Lwip and FreeRTOS 7:STA/AP/STA+AP working mode 8:Smart Config 9:AirKiss one-click network configuration 10:secondary development
- The ESP32-24325028 development board is based on the company's ESP32-D0WDQ6 controller, with dual core CPU and clock frequency up to 240MHz. It integrates peripherals, high-speed SDO, SP, UART and other functions, and supports automatic download.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Description

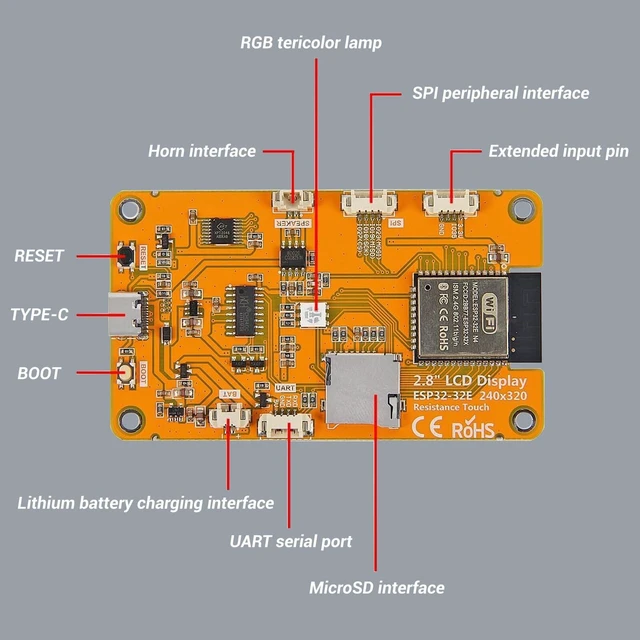

Comes with ESP32-32E module, easy development, sufficient development resources
2.8-inch color screen, 240x320 resolution ,the maximum support is 262K color (RGB666), display rich color
Rich interface, easy to connect a variety of peripherals (SPI, UART,etc.)
Supports external speakers to play audio
Comes with RGB three-color indicator, indicating rich status
Comes with resistive touch screen, easy man-machine interaction
Standard TYPE-C interface for easy program download and power supply
Equipped with micro TF card slot for easy storage expansion
Support external lithium battery, lightweight and portable
Equipped with battery charging management circuit to ensure safe battery charging and discharging
Provide rich example learning programs, easy to learn
Provide low-level driver technical support, and update WIKI information online
Multiple tests for module aging can meet military level standards, supporting long-term stable work
Feature:
Display Color: RGB 65K color
Model: ESP32-2432S028R
Type: TFT
Touch: Resistive touch
Driver chip: ILI9341
Resolution: 320x240(Pixel)
Effective Display Area: 43.2 x 57.6 (mm)

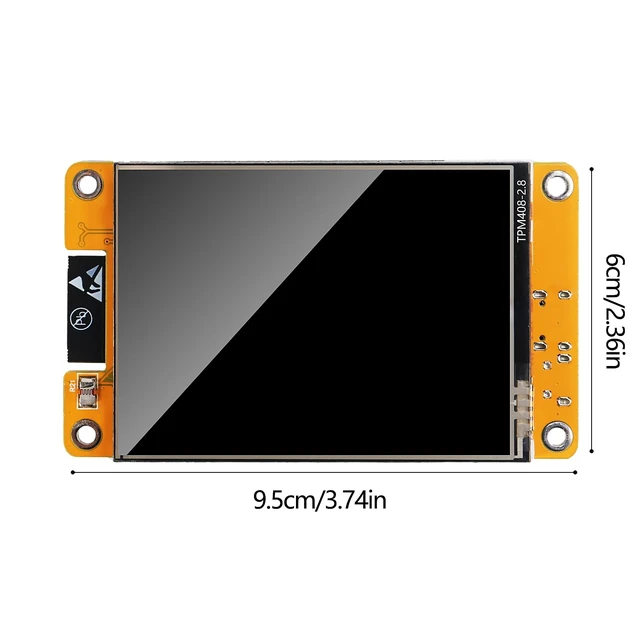

Module Size: 50.0 x 86.0 (mm)
Operating Voltage: 5V
Power Consumption: About 115mA

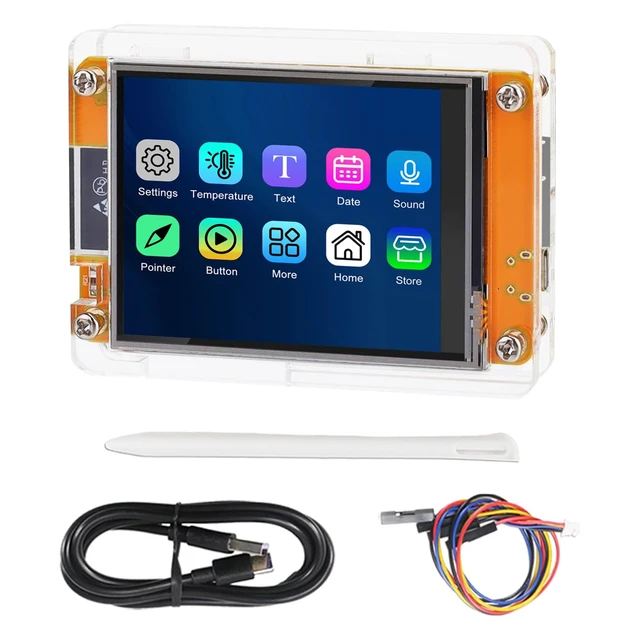

Acrylic Case for ESP32-2432S028R

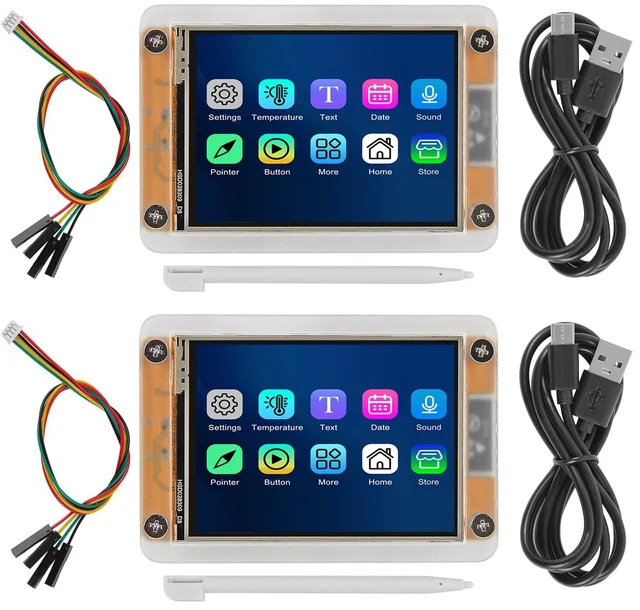

Package: 2PCS 2.8inch ESP32-32E Display Driver chip: ILI9341 with Case
