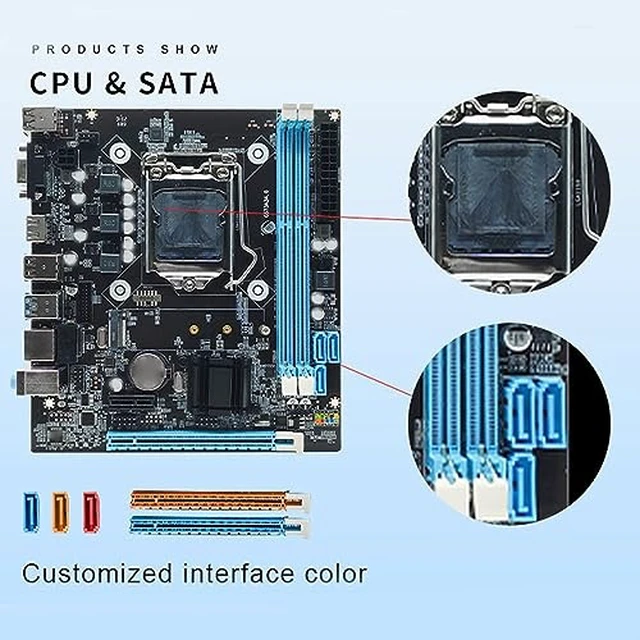

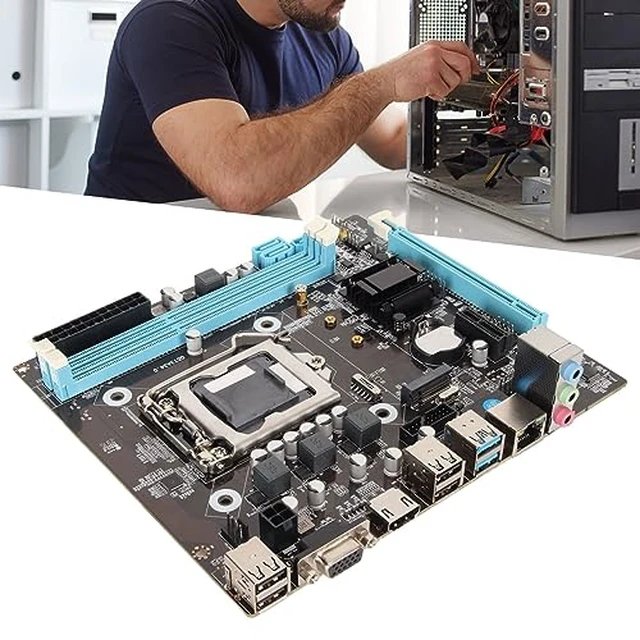

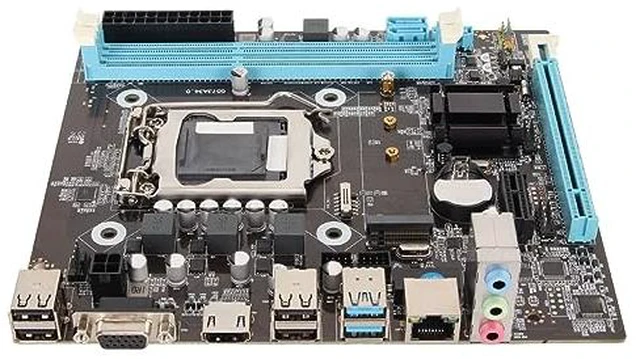

Yunir Computer Motherboard, H81 Gaming Motherboard Channel Ddr3 M.2 Nvme Ngff Sata Pcie Slot Lga 1150 Micro ATX Pc Motherboard for 4Th Generation

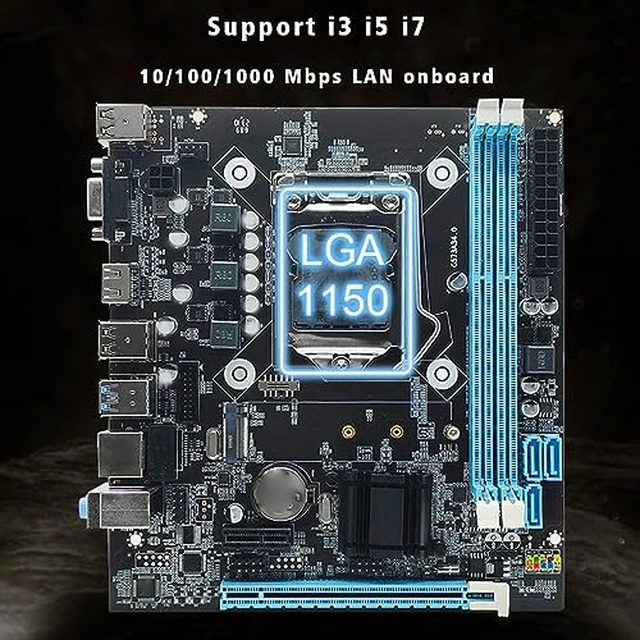

- FOR LGA 1150 SLOT: H81 M ATX motherboard supporting for 4th generation for Core i3 i5 i7, for E3 V3 series, for G series and for G series processors (such as for Core i7 4790K i5 4690K i3 4160T, for E3 1280 v3, for G3260T, for G1830, etc).
- CHANNEL DDR3: Gaming motherboard, two 240 pin DDR3 SDRAM desktop memory slots, unbuffered, supports effective frequency 1066, 1333, 1600MHz, maximum capacity 16GB. 8 layer PCB sturdy material, not easy to bend, to ensure stable of each circuit.
- HIGH SPEED M.2 INTERFACE: Computer motherboard for the upgraded version of the H81 M.2 motherboard, has high speed M.2 hard disk interface, with its own jumper cable, support for mode NVME with NGFF, you can freely choose the high and low, high speed PCIE hard disk switching and SATA2.0, 3.0 channel.

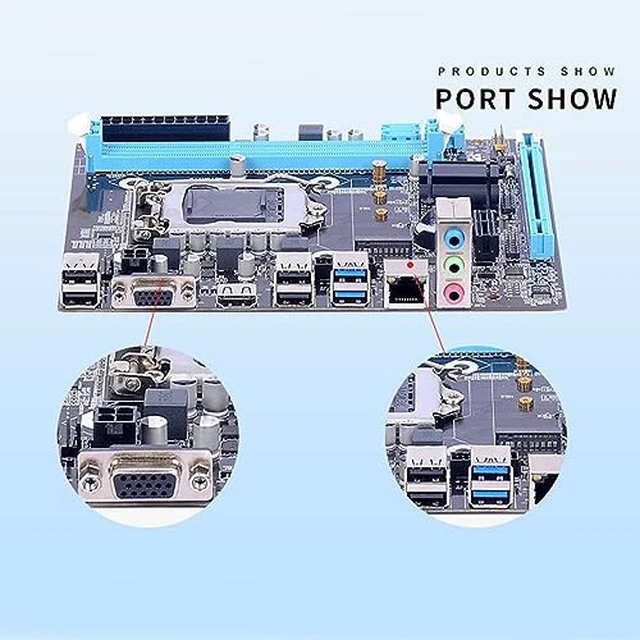

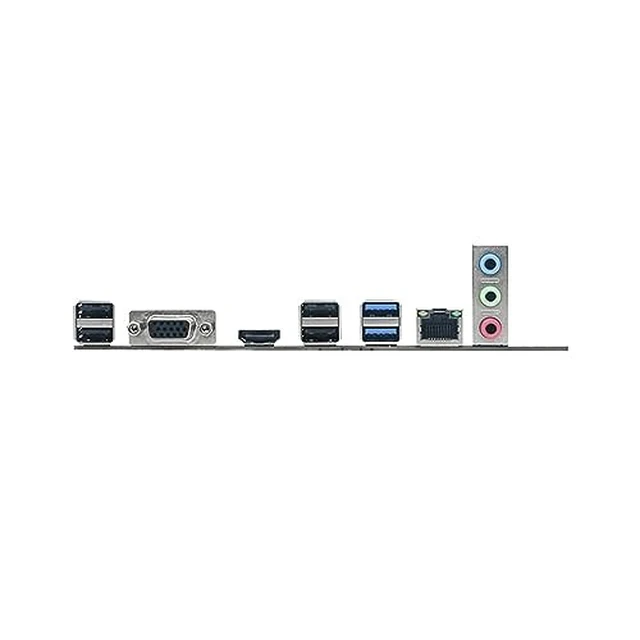

- I, O INTERFACES: Desktop computer motherboard, provides a variety of I, O interfaces, including 4 USB 2.0 ports, 2 USB 3.0 ports, 1 VGA port, 1 HD Multimedia Interface compatible interface, 1 RJ45 port, 1 3 in 1 interface sound interface (line in, line out, microphone).
- STORAGE AND EXPANSION SLOTS: The PC motherboard has 2 SATA 2.0 (3GB/s) ports and 1 SATA 3.0 (6GB/s) port allowing you to connect multiple storage devices. Expansion slots include 1 PCI Express x16 slot, 1 PCI Express x1 slot, and 1 M.2 slot supporting NVMe and NGFF interfaces.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Spec:
Item Type: Gaming Motherboard
Product Material: PCB
Model: H81
Battery: CR2032 (Built in), Capacity: 240mAh

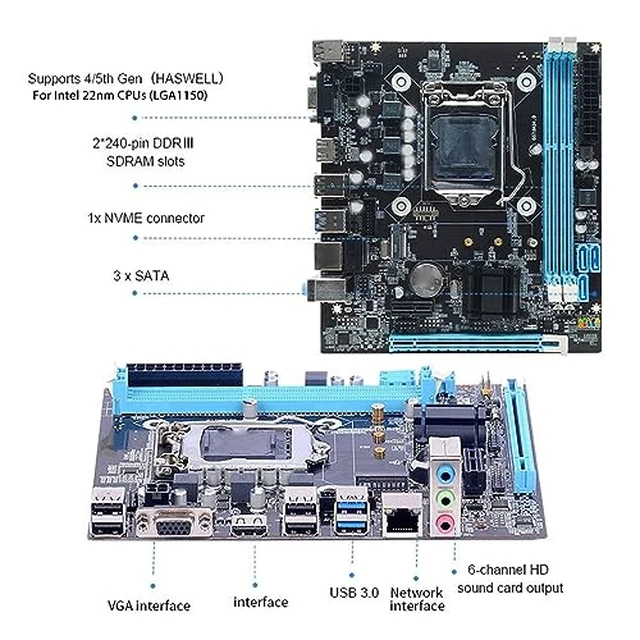

CPU: 4th Generation LGA1150 Support 4th Generation (for HASWELL), 5th Generation (Such As for Core I3 I5 I7, for E3 V3, for G Series)
Memory: 2 x 240 Pin DDR3 SDRAM Slots; Memory Up to 16GB; Supports Channel DDR3 1066, 1333, 1600MHz
Storage: 2 x SATA 2.0 (3GB/s) Ports, 1 x SATA 3.0 (6GB/s) Port
LAN: 10/100 Mbps LAN (1000Mbps Optional)
Expansion Slots: 1x PCI Express x16 Slot; 1x PCI Express x1 Slot; 1x M.2 NVMe, NGFF Slot
Architecture: Micro ITX Architecture (17x19cm/ 6.69x7.48in)
Packing List:
1 x Gaming Motherboard
Note
1. Manual measurement, please allow some errors.
2. You need to turn on the toggle switch on the mainboard and flip it to the nvme side to start normally.
3. The motherboard does not support for Windows 11 of direct installation. If you want to install to support for Windows 11, you need to insert the TPM module through the tpm pin to support for Windows 11 installation.
