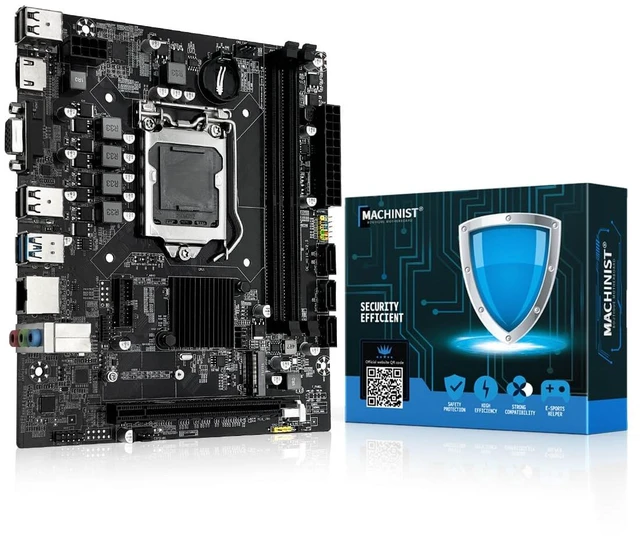

MACHINIST H110 LGA 1151 Motherboard for Intel Core 6th 7th i3/i5/i7, Pentium, Celeron Series CPUs (DDR4, NVME/SATA M.2, PCIe 2.0, SATA 6Gb/s)

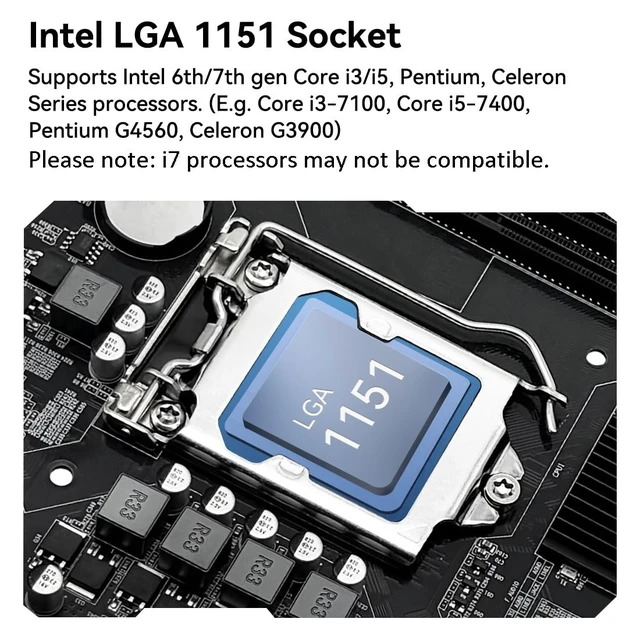

- LGA 1151 socket: Perfectly compatible with Intel 6th/7th gen Core i3/i5/i7, Pentium, Celeron Series processors. (Eg Core i3-7100, Core i5-7400, Pentium G4560, Celeron G3900.) It may not be compatible with Core i7 processors; confirm your processor model compatibility before purchasing

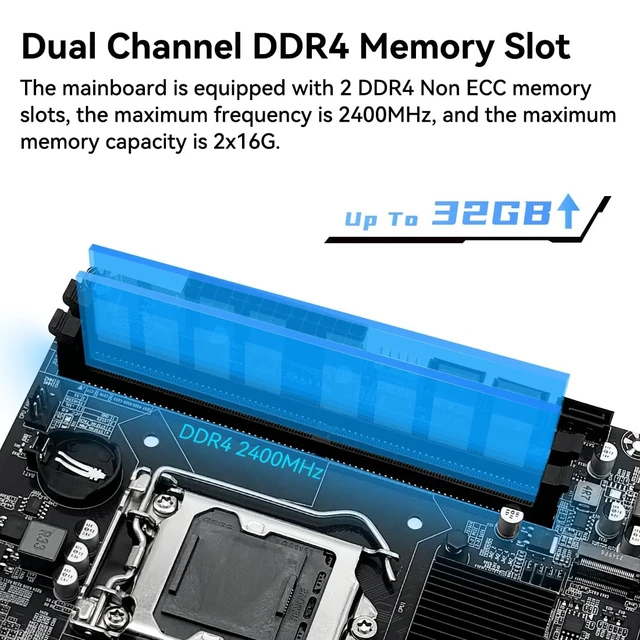

- Dual Channel DDR4 Slot: H110 mainboard is equipped with 2 DDR4 Non ECC memory slots, the maximum frequency is 2400MHz, and the maximum memory capacity is 32GB (Each memory slot supports 16GB)

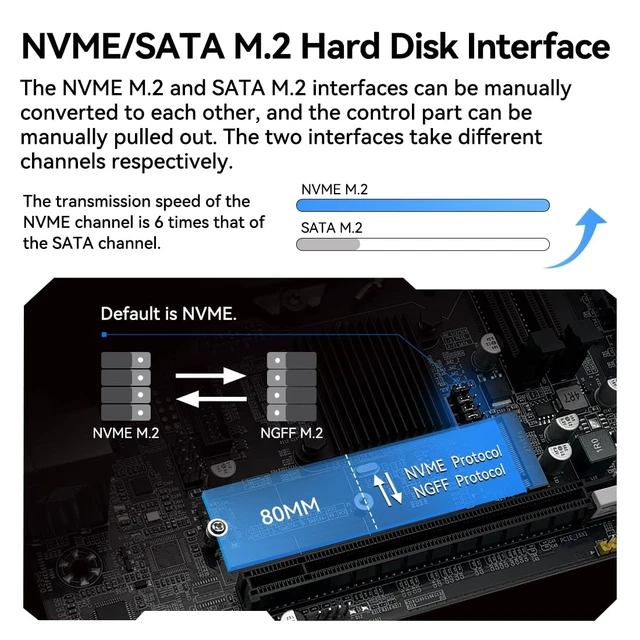

- NVME/NGFF M.2 Interface: The M.2 interface can be manually converted to NVME and NFFF mode, and the control part can be manually pulled out. The two slots use different channels, the NVME M.2 slot uses the PCIe channel, and the SATA M.2 slot uses the SATA channel

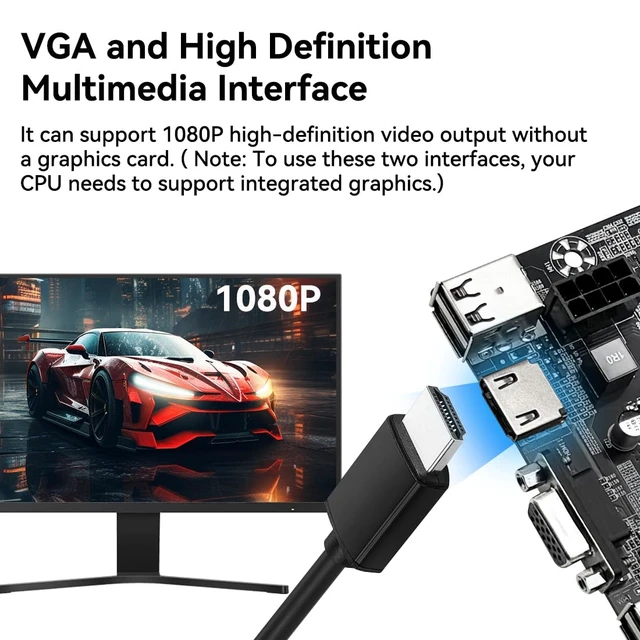

- Other Interface: PCIe 2.0 X16 Slot, SATA 3.0, USB 3.0, VGA and High Definition Multimedia Interface, which can support 1080P high-definition video output without a graphics card.
- The package Includes: 1*SATA cable, 1*I/O baffle, 1*motherboard. The motherboard does not include a battery. User manual is not included in the package, you can download the user manual file on the product details page. If you need to download the driver, it is recommended to download: Driver Talent, or use Win 10 system
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Features
Integrated graphics: This motherboard is equipped with VGA and HD Multimedia interfaces, so you can start videos without plugging in a graphics card.
DDR4 memory: This desktop motherboard adopts dual channel DDR4 SDRAM, and it supports up to 32GB.
NVME M.2: This computer motherboard is equipped with M.2 hard disk interface which supports 32Gb/s transmission speed.
Specification
Item Type: Desktop Motherboard
Material: PCB
Chipset: H110
Supported CPU: LGA1151, Pentium/Celeron/Core 6, 7, 8, 9 generations
Motherboard Size: Approx. 197 x 170mm / 7.5 x 6.7in
CPU Slot Type: LGA 1151
Network card: 100M LAN Port
Graphics Card Slot: PCI E X16 Gen 2.0
Supported Memory Type: 2 x DDR4
Maximum Memory Capacity: 2 x 16GB, 2400MHz frequency
SATA Interface: SATA3.0 x 3
USB Interface:USB3.0 x 2, USB2.0 x 4
Sound card: Realtek ALC887 2.1 channel
Power Supply: 24 Pin x 1, 8 Pin x 1

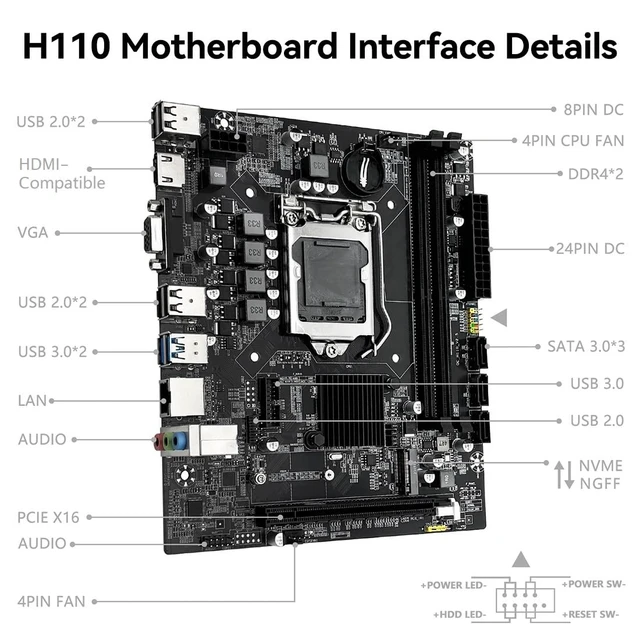

Expansion Interface: 1 x HD Multimedia Interface, 1 x VGA, M.2 Interface(NGFF, NVME Protocol Supported)
Startup item shortcut key: F7

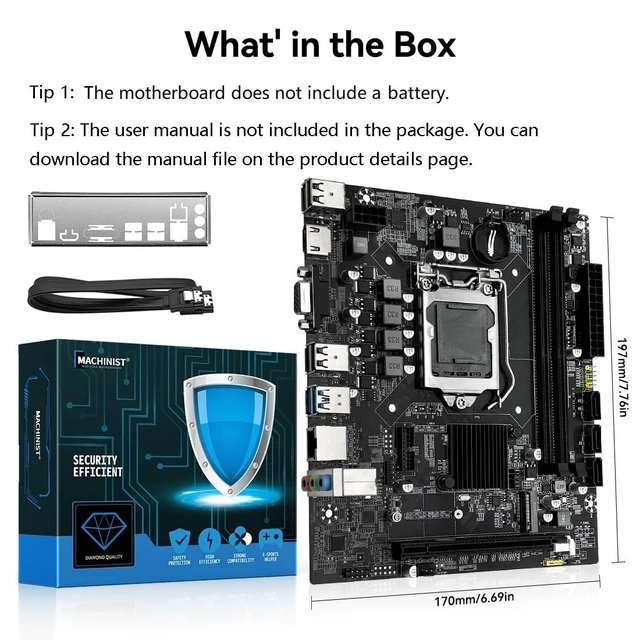

Package List
1 x Desktop Motherboard
1 x I/O Baffle
1 x SATA Cable
