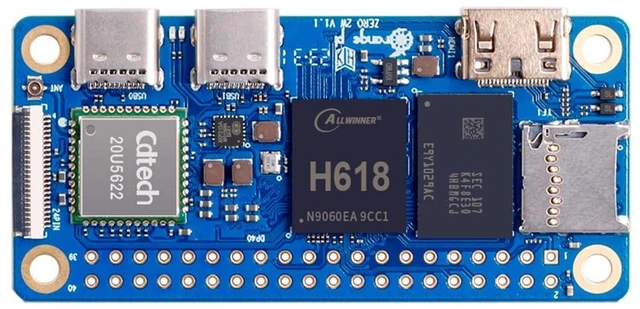

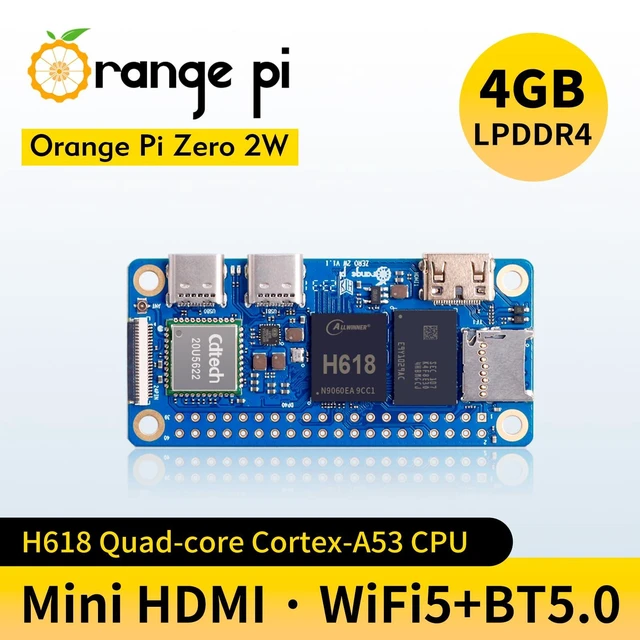

Orange Pi Zero 2W 4GB 40 Pin Allwinner H618 LPDDR4 Quad Core 64 Bit Single Board Computer, 1.5GHz Frequency WiFi 5.0 Bluetooth 5.0 onboard Antenna Support 4K Display Run Android Ubuntu (Zero 2W 4G)
- Orange Pi Zero 2W is powered by Allwinner H618 high-performance quad-core Cortex-A53 processor with up to 1.5GHz, integrated Mali G31 MP2 graphics processor, supporting OpenGL ES 1.0/2.0/3.2, OpenCL 2.0, Vulkan 1.1. It has 1GB /1.5GB / 2GB /4GB LPDDR4 memory specification options, supports 16MB SPI Flash. Outperform the Raspberry Pi Zero 2W.
- Orange Pi Zero 2W mini pc can be extended with USB2.0, 100M Ethernet, IR receiver, audio output, TV-out, power button, etc. via 24Pin connector with adapter board. In addition, the 40Pin expansion port on the board further enriches the motherboard's functional interfaces and enhances the development potential.
- Orange Pi Zero 2W 4G adheres to the compact and exquisite design concept of the Zero series, with a PCB size of 30mm X 65mm X 1.2mm, and can be widely used in TV boxes, smart screen casting devices, smart home, smart gateway, IoT and other fields.
- Wi-Fi5+BT 5.0, with BLE support: 2.4G/5G dual-band Wi-Fi5 and Bluetooth 5.0 w
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

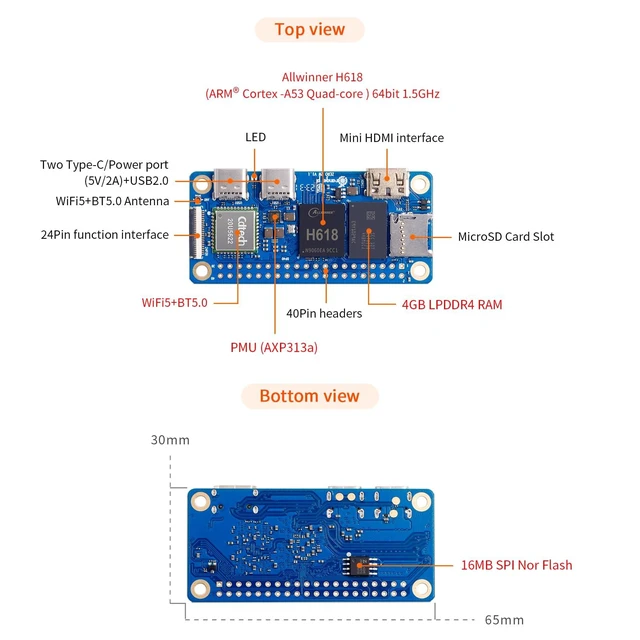

Hardware Specification Parameter
CPU: Allchi H618 high-performance quad-core Cortex-A53 processor 1.5GH z
GPU: Mali G31 MP2
Support OpenGL ES 1.0 / 2.0 / 3.2, OpenCL 2.0, Vulkan 1.1
Memory: LPDDR 4:1 GB/ 1.5GB /2GB/4GB (optional)
Storage: SPI Flash: 16MB
Wi-Fi+ Bluetooth: WiFi+ Bluetooth two-in-one module
Wi-fi 5.0 +BT 5.0, BLE
The interface is 1x Mini HDMI TX 2.0, 4K@60FPS is supported
USB: Type-C USB 2.0 x 2
SD card interface: 1x MicroSD card interface
Expansion interface: 24Pin
expansion interface: USB 2.0 *2, 100M Ethernet interface, infrared receiving interface, audio output, video TV-OUT output, power button, user-defined button *2

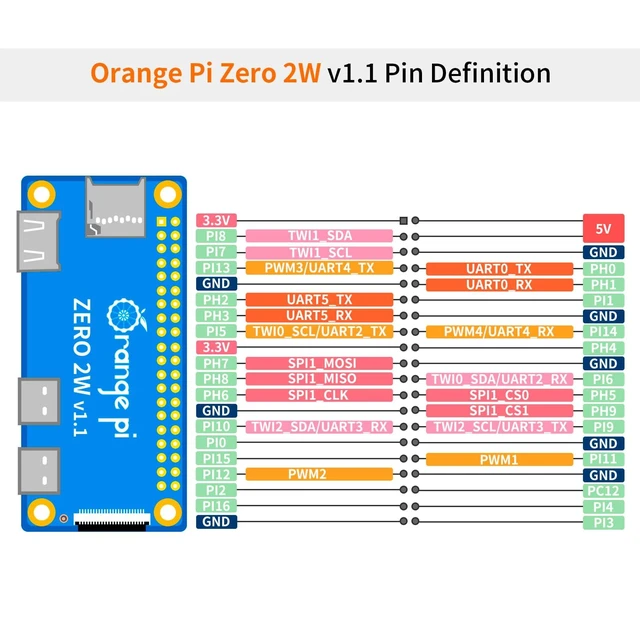

40Pin: The 40Pin function extension interface supports the following interface types:
GPIO, UART, I2C, SPI, PWM
Power supply: Type-C 5V3A
Supported OS: Android 12 TV, Debian11, Debian12, Ubuntu 22.04, Ubuntu 20.04, Orange Pi OS (Arch)
PCB size: 30mm x 65mm x 1.2 mm
Weight: 12.5 g
