BPI-R4 WiFi 7 Wireless Dual-Band WiFi Router Board OpenWRT, with MediaTek MT7988A (Filogic 880) SoC, Support 2X 10GbE SFP and 4X GbE Gigabit Ethernet for NAS Smart Home Gateway (Bundle2)

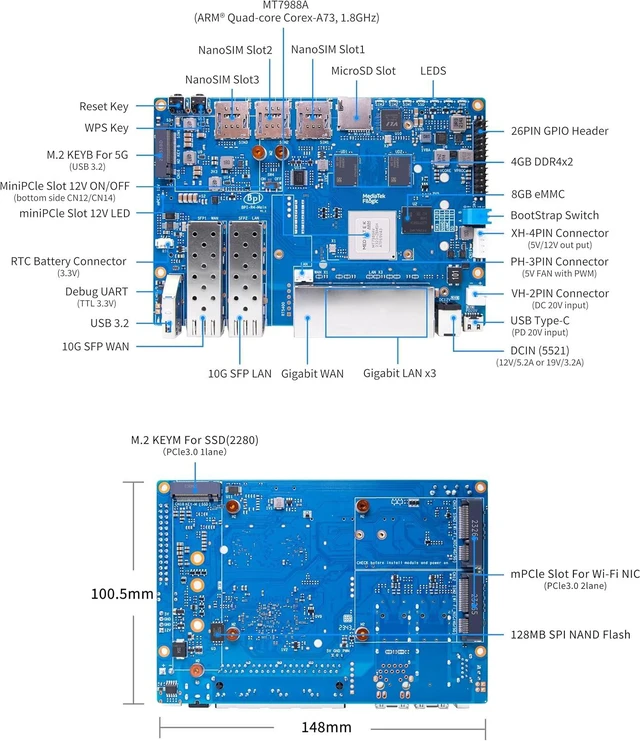

1. [Rich Peripheral interfaces] Banana Pi BPI-R4 wireless router board onboard 2x 10Gbe SFP Optical ports, 4x Gbe Gigabit LAN ports, 1x USB3.2 port, 3x Nano SIM Slot, 1x M.2 KEY-B connector for 5G, 1x M.2 KEY-M connector for 2280 NVME SSD, mPCle Slot for Wi-Fi NIC, 1x MicroSD Slot(TF), 1x Debug UART port, 1x 26 Pin GPIO, supports UART, I2C, SPI, PWM, I2S.
2. [Application Scenarios] Banana Pi BPI-R4 Router Board can be applied to Internet service Router, Wifi 7 Wireless Router, 4G/5G Wireless Router, Wireless Repeater, Home security Gateway, Home Automation, Nas device, Gaming Wifi Routers, Network and Communication Applications. It can be used as 36Gbps Wi-Fi 7 Access Point Router Gateway.

1. Banana Pi BPI-R4 router board using MediaTek MT7988A (Filogic 880) quad-core ARM Corex-A73 program design, on-board 4GB/8GB DDR4 RAM, 8GB eMMC storage, 128MB SPI-NAND flash memory, but also has two 10Gbe SFP photoelectric ports, M.2 interface support 4G/5G/NVME SSD.2x miniPCIe slot with PCIe3.0 2lane interface, supports Wi-Fi 7 iPA NIC network interface card (Network interface Card). It is a very high performance open source router development board.
2. The MediaTek MT7988A is a world-Leading network processing platform for high-performance and reliable networking experiences,both in wired and wireless applications. The MT7988A comprises a rich connection interface sets include 4 Gigabit Ethernet ports. 2x UNXGMII interfaces. 4x PCIe Interfaces,and 2x USB 3.2 Ports
3. The MT7988A further enables seamless Wi-Fi 7 tri-band,2.4 GHz, 5GHz and 6GHz,connectivity,with its Wi-Fi 7 companion chip that features 320-MHz bandwidth,4096-QAM ,MLO,MRU,and AFC. Mediatek Filogic 880 chip support the 36Gbps Wi-Fi 7 access point/router/gateway platform delivers the fastest and most reliable connection experience
4. To answer the need of fast-evolving tunneling applications,the MT7988A comes with MediaTek Tunnel offload processor System(TOPS),which facilitates the processing of a wide range of tunneling protocols.The MT7988A optimizes networking performance with exquistitely tuned ISA of MediaTek TOPS,and is dedicated to lifting networking offloading performance to premium level.

Application Scenarios:

1. Internet Service Router
2. Wifi 7 Tri-band Wireless Router
3. 4G/5G Wireless Router
4. Home Security Gateway
5. Smart Home Control Gateway
6. Nas Gateway
7. Network Communication Applications
8. Wireless/Wired Relay Communication Gateway

1. Internet Service Router
2. Wifi 7 Wireless Router
3. 4G/5G Wireless Router
4. Wireless Repeater
5. Home security Gateway
6. Home Automation
7. Nas device
8. Network and Communication Applications

1. OpenWRT MTK MP4.0 wifi SDK wifi driver for BE14000 Wifi Card
2. OpenWRT MTK MP3.1 wifi SDK or MT76 wifi driver for BE14000 Wifi Card
3. OpenWRT MTK MP3.0 SDK for BE19000 Wifi Card
4. Support SFP replaced with 2.5Gbps version using images
5. POE function customizable (present version not support POE function)
6. If you want to use POE function, you can customize it. You need to replace the 10G SFP LAN with 2.5Gbps RJ45 and solder the RT5400B module.

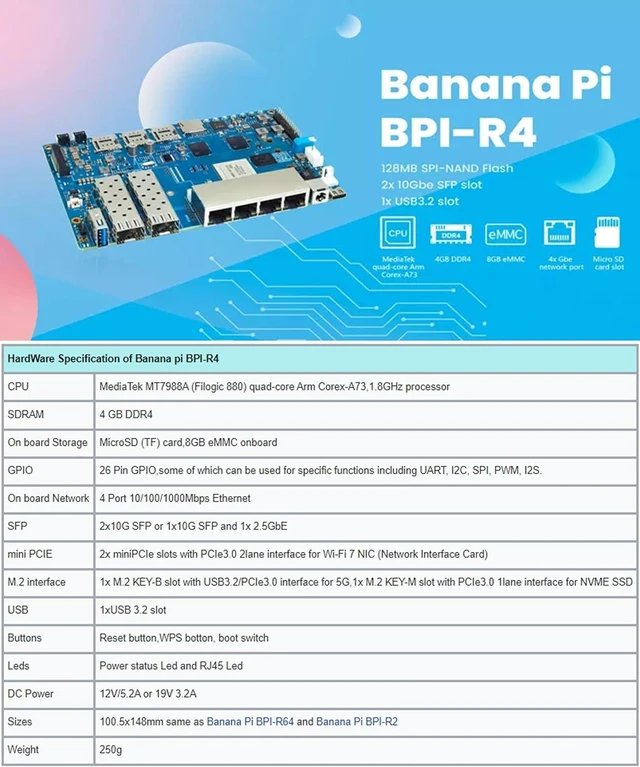

CPU: MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor

SDRAM: 4GB/8GB DDR4

On board Storage: MicroSD (TF) card,8GB eMMC onboard

GPIO: 26 Pin GPIO,some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.

On board Network: 4 Port 10/100/1000Mbps Ethernet

SFP: 2x10G SFP or 1x10G SFP and 1x 2.5GbE

(option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)

Wifi: support Wifi6/Wifi6E/Wifi 7

mini PCIE: 2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi 7 NIC module (Network Interface Card), or Wifi6/Wifi6E module

M.2 interface: 1x M.2 KEY-B slot with USB3.2/PCIe3.0 interface for 5G,1x M.2 KEY-M slot with PCIe3.0 1lane interface for NVME SSD

USB: 1xUSB 3.2 slot

Buttons: Reset button,WPS botton, boot switch

Leds: Power status Led and RJ45 Led

DC Power:12V/5.2A or 19V 3.2A

Sizes:100.5x148mm same as Banana Pi BPI-R64 and Banana Pi BPI-R2, Weight: 250g
