Wukong2040 Expansion Board Adapter for Raspberry Pi Pico Breakout Board with Buzzer/Rainbow Lights/Motor Interface/IO Interface Expansion

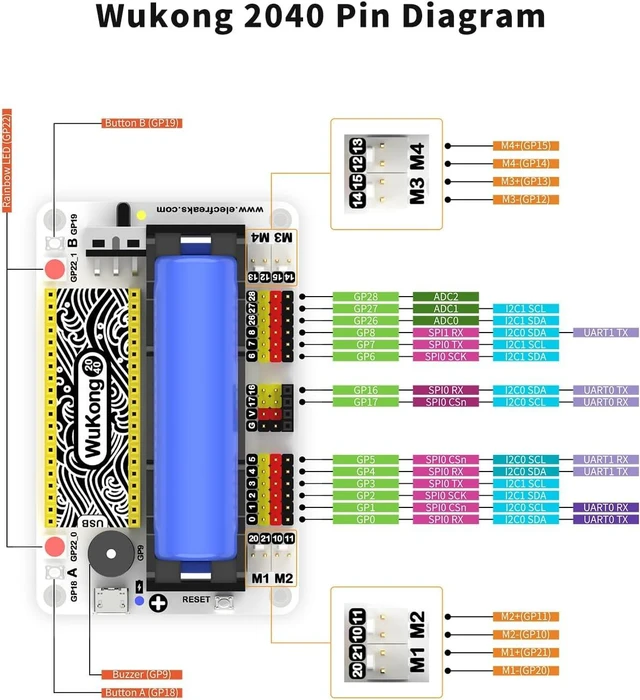

- Small Size and Big Power: The wukong 2040 Pico breakout board does not take up space and is more flexible.Onboard practical hardware such as buzzer, A/B button, rainbow light, reset button, etc. Expand up to 14 general-purpose IO pins, 4 motor drive interfaces, and lead out the IIC interface separately, which is powerful.
- With a Standard Building Block Base: Wukong 2040 pico expansion board uses a standard 7x11 square block frame as the base.You can build blocks on it to create interesting cases and realize your great ideas easily.

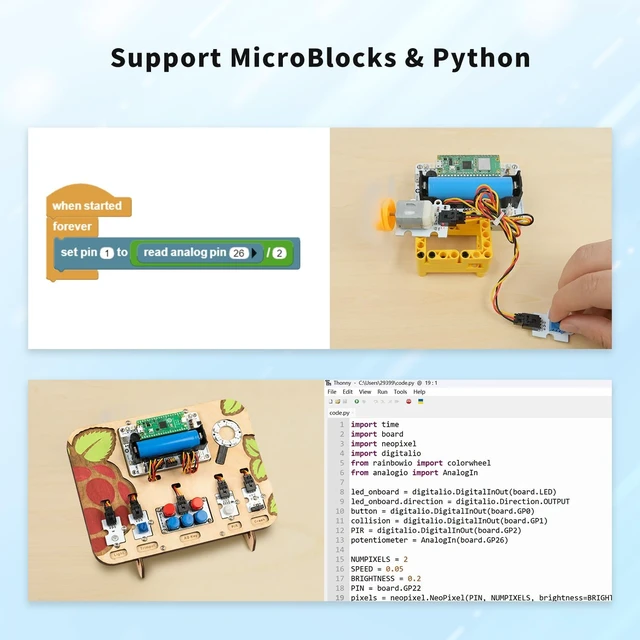

- Support MicroBlocks & CircuitPython Programming: You can program through MicroBlocks graphics, which is very easy to learn and operate. You can also realize your interesting ideas and purposes through circuit python programming.
- Powerful Extension: All Octopus sensors from ELECFREAKS can be combined with Wukong2040.It can drive multiple motors and steering gears at the same time.
- Wiki Learning MaterialsPlease enter "wiki.elecfreaks.com/en/pico/extension-module/wukong2040-pico/" to learn. In addition, the 18650 battery is not included, it needs to be purchased separately!!!
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
The wukong 2040 Pico breakout board does not take up space and is more flexible.Onboard practical hardware such as buzzer, A/B button, rainbow light, reset button, etc. Expand up to 14 general-purpose IO pins, 4 motor drive interfaces, and lead out the IIC interface separately, which is powerful.

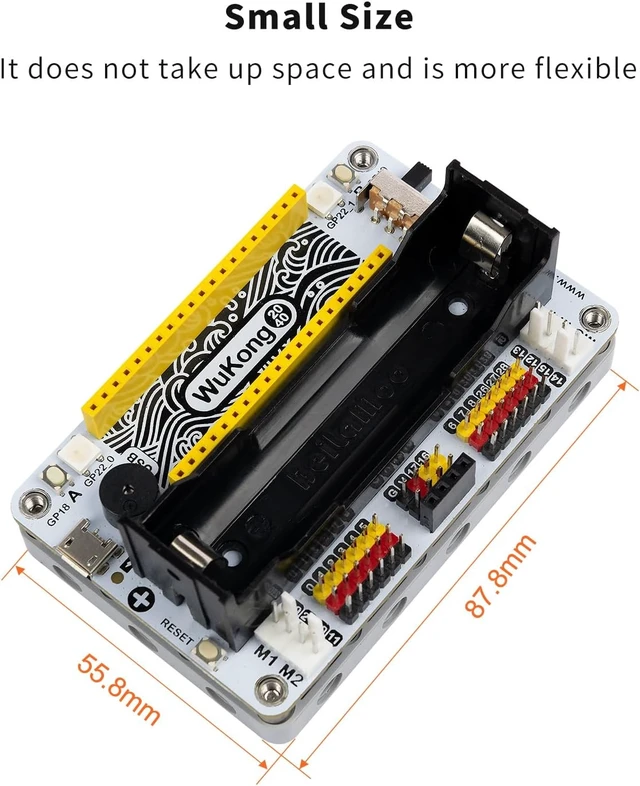

| Size | 87.8 × 55.8 × 36.3mm |
| Net Weight | 50g (Exclude the battery and Pico) |
| Power Switch | Switch on/off |
| Reset Button | Support |
| Power Supply | 18650 Lithium Battery (not include) |
| Charging Current | 1000 mA |
| Charging Time | About 120 minutes |
| Working Voltage | 2.8V~4.2V |
| Overall Battery Life | 60 minutes |
| Expansion GPIO Ports | 14 ways |
| IIC Ports/SPI Ports/UART Ports | Support |
| Onboard Components | 2 x Rainbow LEDs;2 x Buttons;1 x Buzzer |
| Motor Driving | 4 ways(M1M2M3M4) |
| Motor Working Voltage | 3.7V |
| Fixing Method | Include a 11 x 7 square brick, available for connection with bricks |
