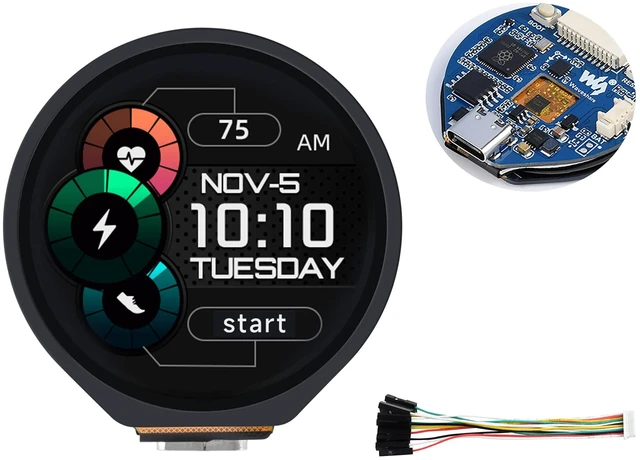

RP2040-Touch-LCD-1.28 Development Board 1.28 Inch Round Capacitive Touch LCD 240x240 IPS Display 65K RGB Colors Dual-Core Arm Cortex M0+ Processor 6-Axis Sensor USB Type-C

Product Description:

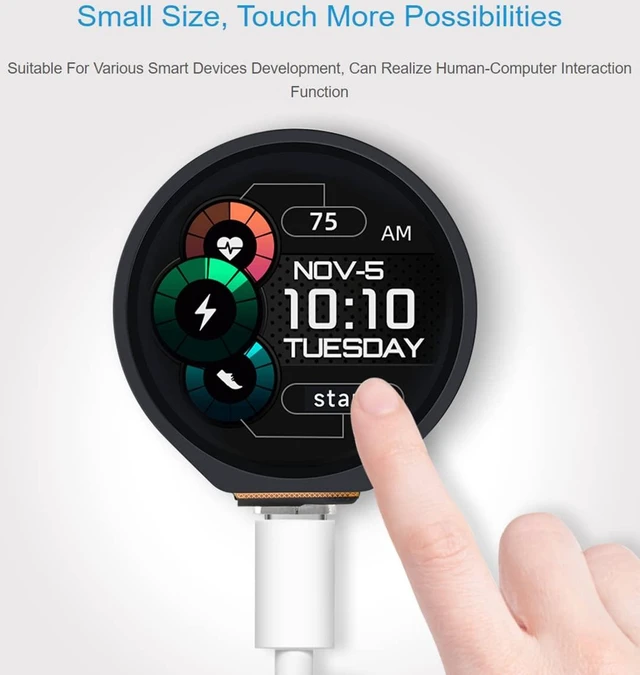

RP2040-Touch-LCD-1.28 development board with a compact 1.28-inch round capacitive touch display, 6-axis motion sensor, lithium battery recharge and discharge header, and dual-core microcontroller architecture. It is designed for smart device development, embedded projects, and human-computer interaction applications.

Core Selling Points:

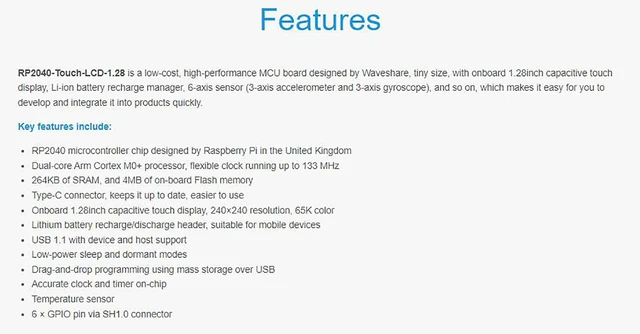

The onboard round IPS touch display supports 240 x 240 resolution and 65K colors for interactive interfaces. A 3-axis accelerometer and 3-axis gyroscope provide 6-axis motion sensing. The dual-core Arm Cortex M0+ processor runs at up to 133 MHz, while USB 1.1 device and host support, drag-and-drop USB programming, low-power sleep and dormant modes, and a Type-C connector support development and integration. The board also includes a temperature sensor, accurate on-chip clock and timer, and six GPIO pins through an SH 1.0 connector.

Technical Specifications:

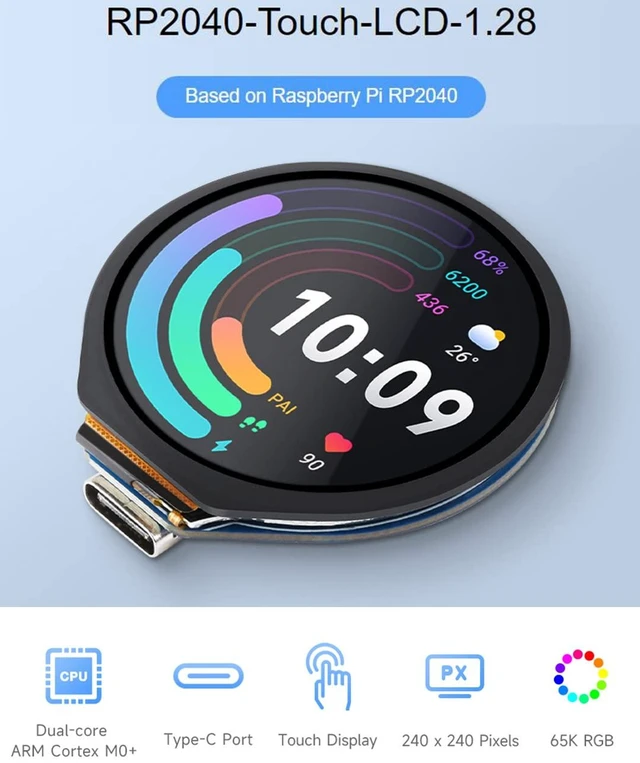

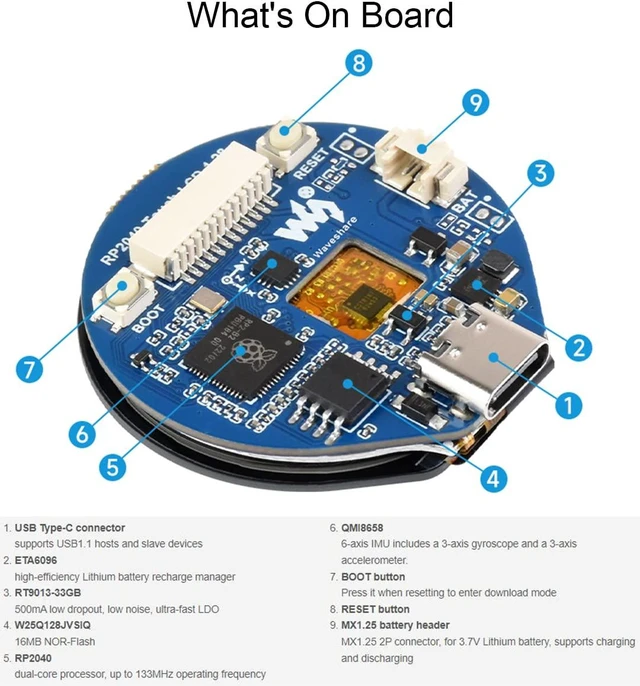

Model: RP2040-Touch-LCD-1.28. Processor: dual-core Arm Cortex M0+ running up to 133 MHz. Memory: 264KB SRAM and 4MB onboard Flash. Display: 1.28-inch round IPS panel, 240 (H) RGB x 240 (V) resolution, 65K colors, 32.4 mm display size, 0.135H x 0.135V mm pixel pitch. Touch chip: CST816S. Touch port: I2C. Display chip: GC9A01A. Display interface: SPI. IMU sensor: QMI8658C. Accelerometer resolution: 16 bits, optional measuring range of ±2, ±4, ±8, or ±16g. Gyroscope resolution: 16 bits, optional measuring range of ±16, ±32, ±64, ±128, ±256, ±512, ±1024, or ±2048°/sec. Connector: Type-C. GPIO: 6 pins via SH 1.0 connector. USB: USB 1.1 with device and host support. Programming support includes C/C++ and MicroPython.

Package Contents:

RP2040-Touch-LCD-1.28 x1; SH 1.0 12PIN cable x1

Before Purchase:

Confirm that your project supports a 1.28-inch round display with 240 x 240 resolution, SPI display communication, I2C touch communication, Type-C USB connection, and the listed SH 1.0 GPIO connection. Review the required accelerometer and gyroscope measuring ranges for your application. The board includes a lithium battery recharge and discharge header; battery specifications are not provided in the source information.
