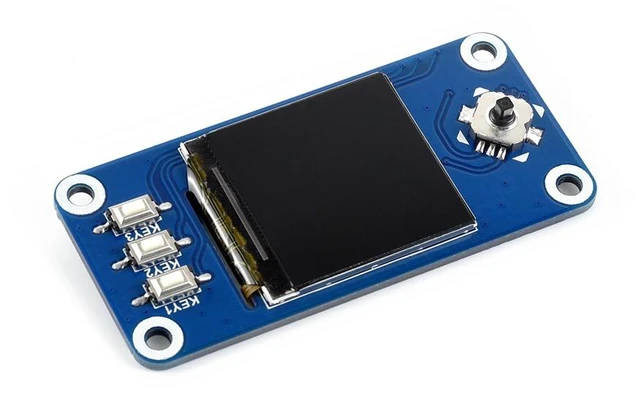

1.3 Inch 240x240 IPS LCD Display HAT ST7789 SPI GPIO Expansion Screen Module with Joystick and 3 Pushbuttons RGB 65K Color LED Backlight 3.3V Compatible with Raspberry Pi Boards
- 1.3 inch IPS LCD display HAT with a 240x240 pixel resolution for detailed output in a compact format.
- Embedded controller communicates through an SPI interface for connection with supported host boards.

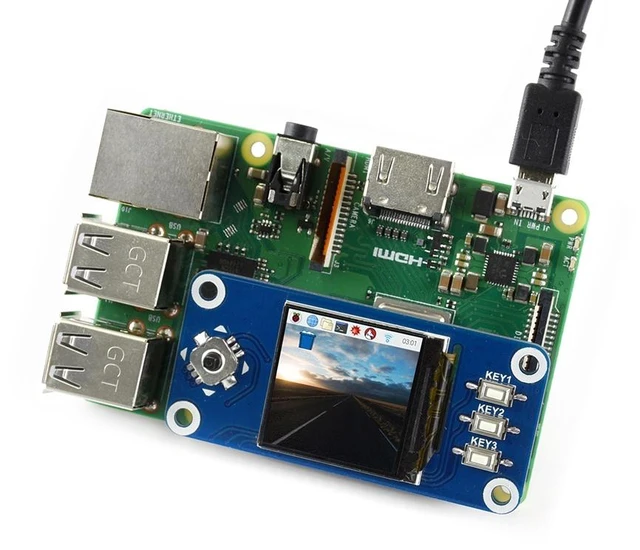

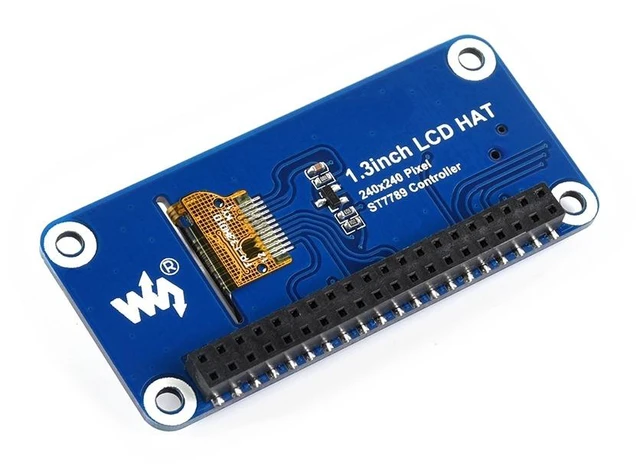

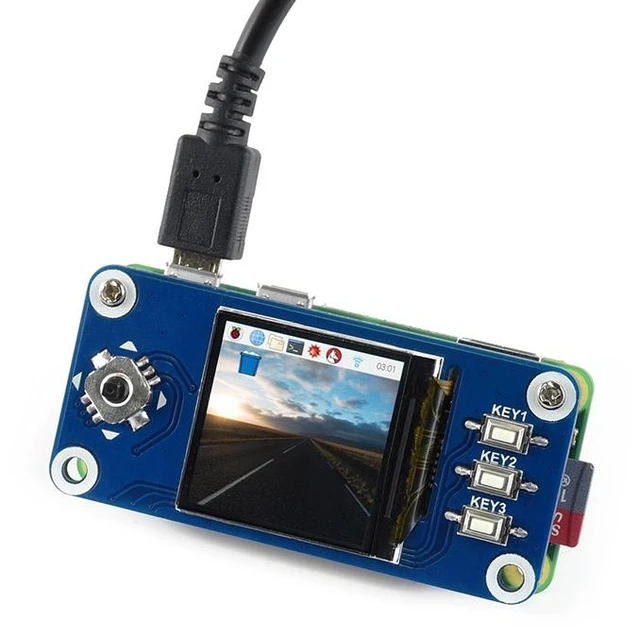

- Standard 40PIN GPIO extension header supports Raspberry Pi series boards for direct header-based integration.
- IPS screen provides a wide viewing angle and improved display visibility from different positions.
- Built-in input controls include 1 joystick and 3 pushbuttons for convenient local operation.
- Uses an ST7789 display driver and supports RGB output with 65K colors.
- LED backlight illuminates the display, while the module operates at 3.3V.
- Includes development resources and a manual with examples for Raspberry Pi.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
1.3-inch IPS LCD display HAT designed for Raspberry Pi, providing a 240x240 display and SPI communication for compact control or display projects.
Core Selling Points:
IPS screen offers a wide viewing angle and clear display in a compact size. Features a 40-pin GPIO extension header, one joystick, and three pushbuttons. Development resources and a manual with examples for Raspberry Pi are included.
Technical Specifications:
Display: 1.3-inch IPS LCD. Resolution: 240x240 pixels. Driver: ST7789. Interface: SPI. Display color: RGB, 65K color. Backlight: LED. Operating voltage: 3.3V. GPIO header: standard 40-pin extension header.
Before Purchase:
Compatible with Raspberry Pi series boards through the standard 40-pin GPIO extension header. Confirm that your board and project support SPI communication and 3.3V operating voltage.
