ESP32-S3 LCD Development Board 2.8inch 240x320 Capacitive Touch Display Module 5-Point Touch 32-Bit LX7 Dual-Core Processor Up to 240MHz 16MB Flash 8MB PSRAM 2.4GHz Wi-Fi Bluetooth 5 LE
- The ESP32-S3 development board features a 32-bit LX7 dual-core processor with a main frequency of up to 240MHz.
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with an onboard antenna for wireless connectivity.
- Built-in 512KB SRAM and 384KB ROM are complemented by onboard 16MB Flash and 8MB PSRAM for memory and storage.

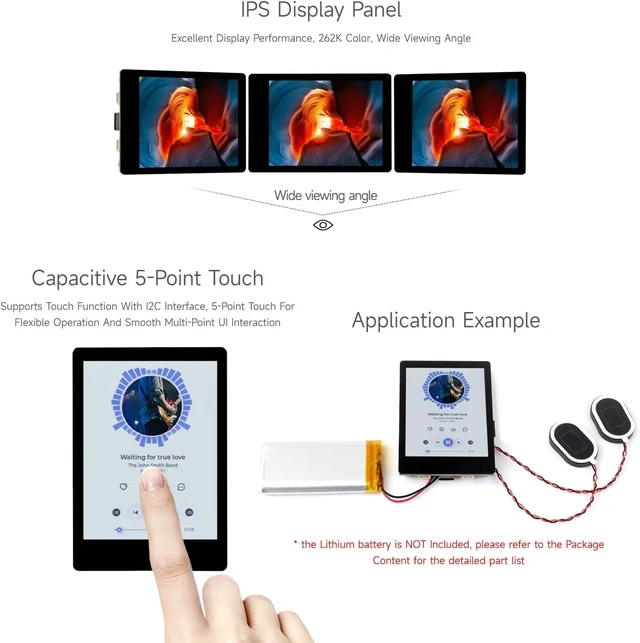

- The onboard 2.8inch LCD display provides 240×320 resolution and 262K color for displaying visual content.
- The capacitive touch display supports 5-point touch, with touch control through an I2C interface and interrupt support.

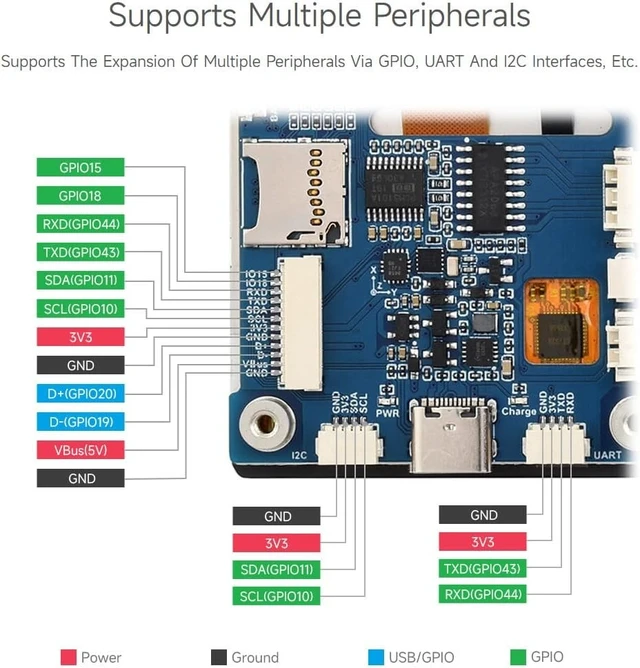

- UART, I2C and select IO interfaces provide peripheral connections, alongside an integrated full-speed USB port.

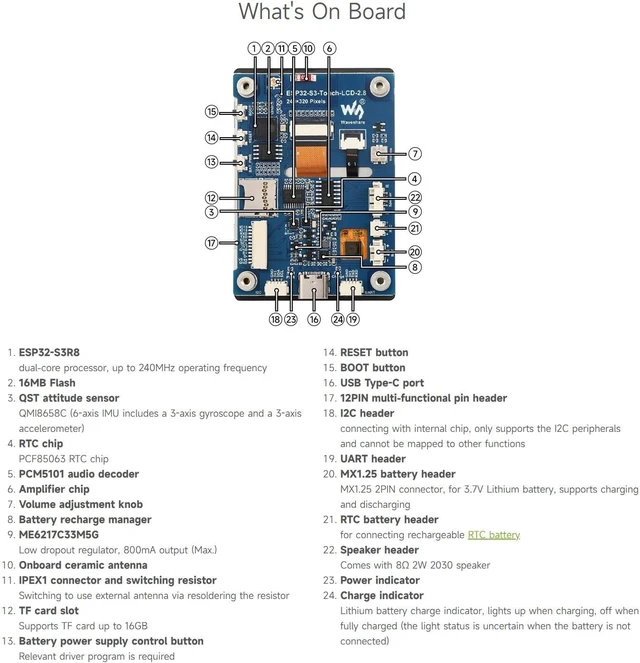

- An onboard QMI8658 6-axis sensor and RTC sensor expand the development board's integrated peripheral features.

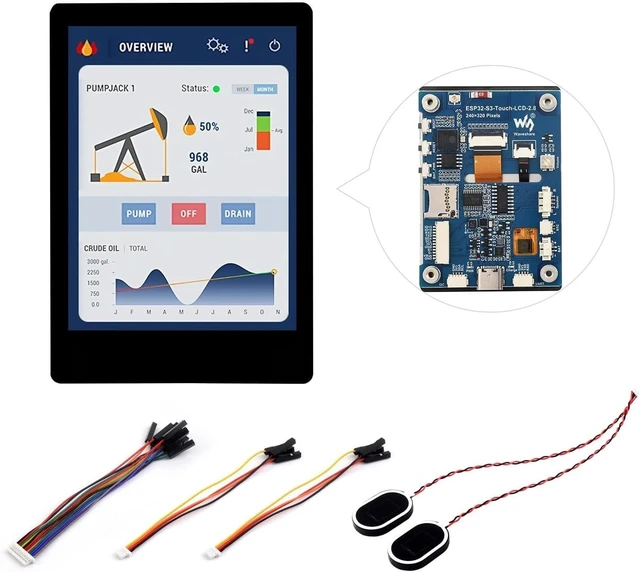

- The board includes an onboard speaker and a TF card slot, providing audio hardware and a connection for TF cards.
- An onboard battery recharge management module supports battery charging, while flexible clock control and multiple power modes support low power consumption.
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Product Description:
ESP32-S3 2.8-inch capacitive touch display development board designed for embedded projects requiring an integrated screen, touch control, wireless connectivity, sensor functions, and multiple peripheral interfaces.
Core Selling Points:
Features a 5-point capacitive touch display with interrupt support and a 240×320 resolution. Supports 2.4GHz Wi-Fi using 802.11 b/g/n and Bluetooth 5 LE with an onboard antenna. Includes an onboard speaker, 6-axis sensor, RTC sensor, TF card slot, battery recharge management module, and full-speed USB interface. Multiple power modes and flexible clock control support low-power operation in different scenarios.
Technical Specifications:
Processor: Xtensa 32-bit LX7 dual-core, up to 240MHz. Display: 2.8-inch LCD, 240×320 resolution, 262K colors. Touch: capacitive, 5-point, controlled via I2C interface with interrupt support. Memory: 512KB SRAM, 384KB ROM, 16MB Flash, and 8MB PSRAM. Wireless: 2.4GHz Wi-Fi, 802.11 b/g/n; Bluetooth 5 LE. Interfaces and onboard features: UART, I2C, selected IO interfaces, full-speed USB, speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot, and battery recharge management module.
Before Purchase:
Confirm that your project supports the ESP32-S3 platform and the listed UART, I2C, IO, USB, and wireless functions. The capacitive touch function uses an I2C interface. Check display resolution, interface requirements, power modes, and available space before installation.
