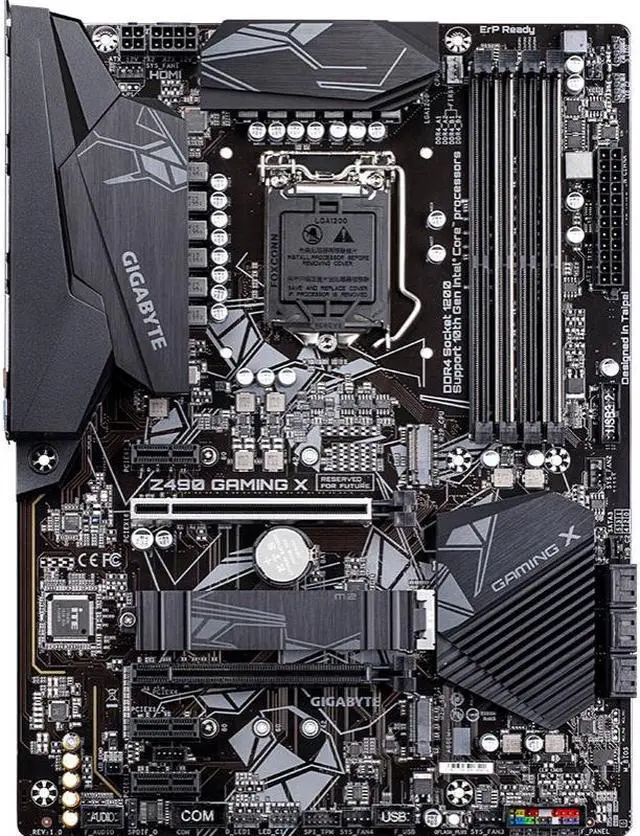

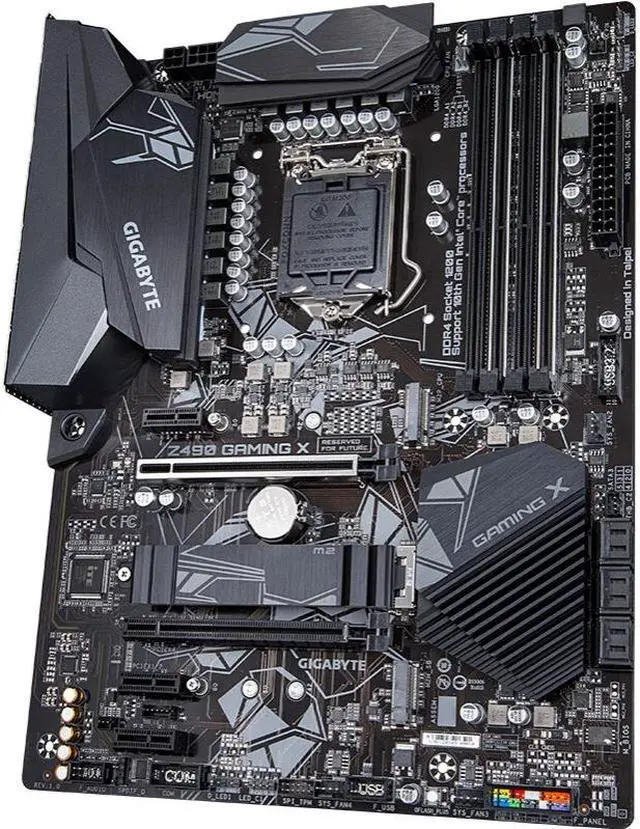

GIGABYTE Z490 GAMING X LGA 1200 Intel Z490 SATA 6Gb/s ATX Intel Motherboard

Be the first to review this product...
  • Intel Z490
  • Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
  • Intel Core i9/i7 processors:
  • DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
  • Intel Core i5/i3/Pentium/Celeron processors:
  • Support for DDR4 2666/ 2400/ 2133 MHz memory modules
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE Z490 GAMING X

Model
Brand GIGABYTE
Model Z490 GAMING X
Supported CPU
CPU Socket Type LGA 1200
CPU Type Support for 10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors / Intel Pentium processors/Intel Celeron processors in the LGA1200 package
Chipsets
Chipset Intel Z490
Onboard Video
Onboard Video Chipset Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.

Maximum shared memory of 512MB
Memory
Number of Memory Slots 4x288pin (DDR4)
Memory Standard Intel Core i9/i7 processors:
DDR4 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 3.0 x16 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4
PCI Express x1 3 x PCI Express x1 slots
(All of the PCI Express slots conform to PCI Express 3.0 standard.)
Storage Devices
Serial ATA (SATA) 6 x SATA 6Gb/s
M.2 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2A_SB)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2M_SB)
Intel Optane Ready Yes
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset Realtek ALC1200
Audio Channels 2/4/5.1/7.1-channel
Support for S/PDIF Out
Onboard LAN
LAN Chipset Intel GbE LAN chip
Max LAN Speed 1Gbps

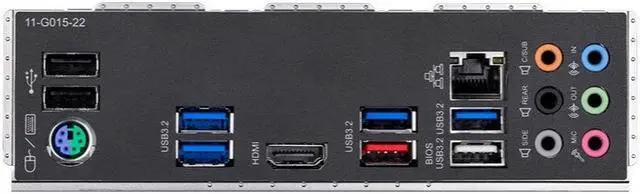

Rear Panel Ports
Back I/O Ports 1 x PS/2 keyboard/mouse port
1 x HDMI port
1 x USB 3.2 Gen 2 Type-A port (red)
5 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
Other Connectors 1 x CPU fan header
4 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
2 x Thunderbolt add-in card connectors
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.1"
Power Pin 1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
1 x 8-pin ATX 12V power connector
Features
Features Multi-Graphics Technology:
Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies

I/O Controller:
iTE I/O Controller Chip

H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS:
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features:
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Bundled Software:
Norton Internet Security (OEM version)
cFosSpeed

Operating System:
Support for Windows 10 64-bit
