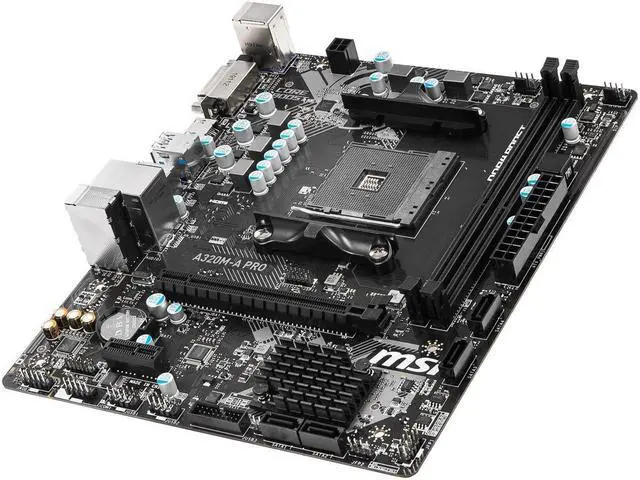

Alt view image 3 of 6 - MSI A320M-A PRO AM4 AMD A320 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

Alt view image 4 of 6 - MSI A320M-A PRO AM4 AMD A320 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

Alt view image 5 of 6 - MSI A320M-A PRO AM4 AMD A320 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

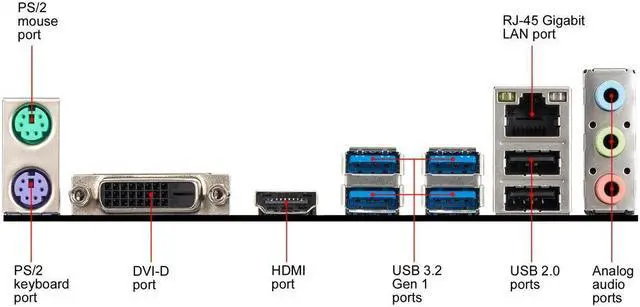

Alt view image 6 of 6 - MSI A320M-A PRO AM4 AMD A320 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

Shop All MSI Products | Visit UltraParts Renewed Store

MSI A320M-A PRO AM4 AMD A320 SATA 6Gb/s USB 3.0 Micro ATX AMD Motherboard

REFURBISHED

Be the first to review this product...

AMD A320
Support DDR4 3200(OC)/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 MHz

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

Model
Brand	MSI
Model	A320M-A PRO

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

Chipsets
Chipset	AMD A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	Support DDR4 3200(OC)/ 2933(OC)/ 2667(OC)/ 2400/ 2133/ 1866 MHz
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCIe 3.0 x16 slot: 1st, 2nd and 3rd Gen AMD Ryzen: Supports x16 speed Ryzen with Radeon Vega Graphics, 2nd Gen AMD Ryzen with Radeon Graphics: Supports x8 speed AMD Athlon with Radeon Vega Graphics: Supports x4 speed
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCIe 2.0 x1 slot

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz 1 x HDMI 1.4 port, supports a maximum resolution of 4096x2160@30Hz Only support when using AMD Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics Processors Maximum shared memory of 2048MB

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek 8111H
Max LAN Speed	1Gbps

Rear Panel Ports
USB 3.0	4 x USB 3.0

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin system fan connector 1 x Front panel audio connector 1 x Serial port connector 2 x Front panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 1 x Clear CMOS jumper

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.9" x 7.4"
Power Pin	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector

Features
Features	Supports 1st, 2nd and 3rd Gen AMD Ryzen / Ryzen with Radeon Vega Graphics and 2nd Gen AMD Ryzen with Radeon Graphics / Athlon with Radeon Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4 Supports DDR4 Memory, up to 3200 (OC) MHz Audio Boost: Reward your ears with studio grade sound quality DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability Core Boost: With premium layout and fully digital power design to support more cores and provide better performance
