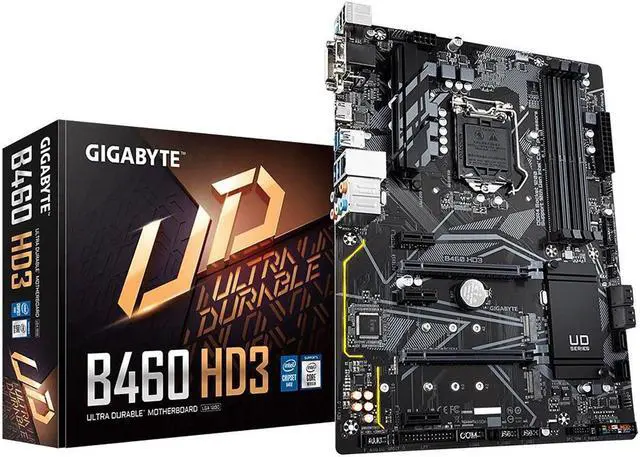

Main image of GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

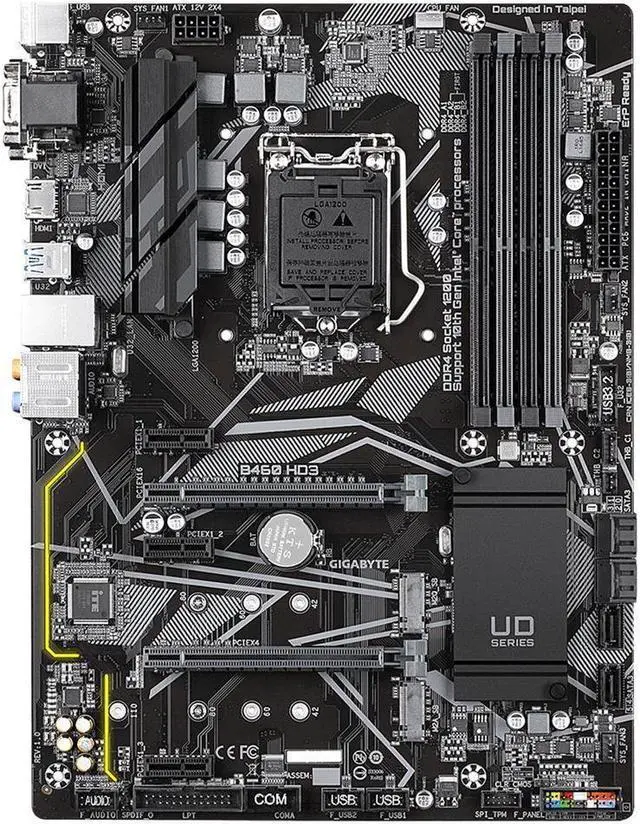

Alt view image 2 of 5 - GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

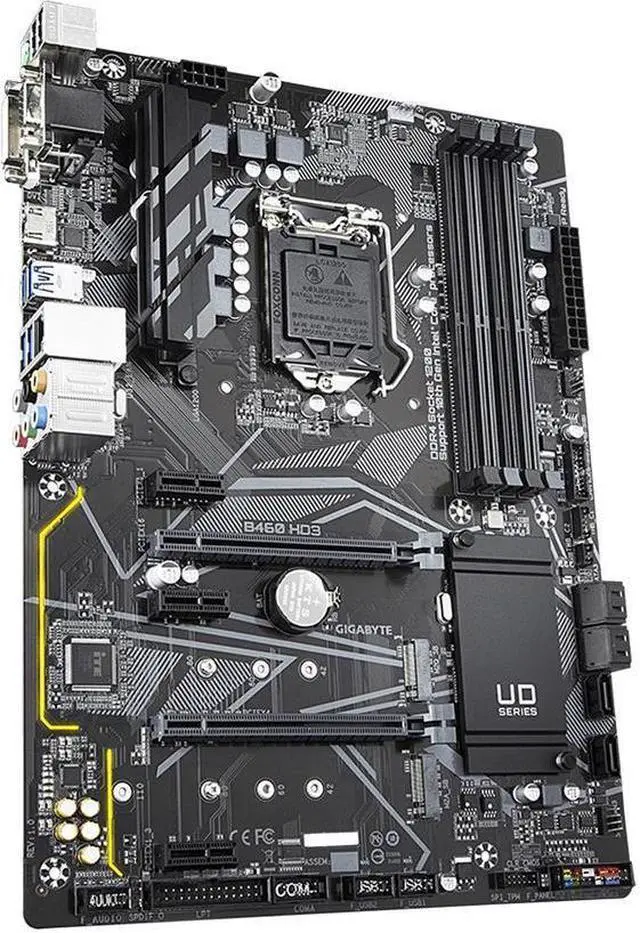

Alt view image 3 of 5 - GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

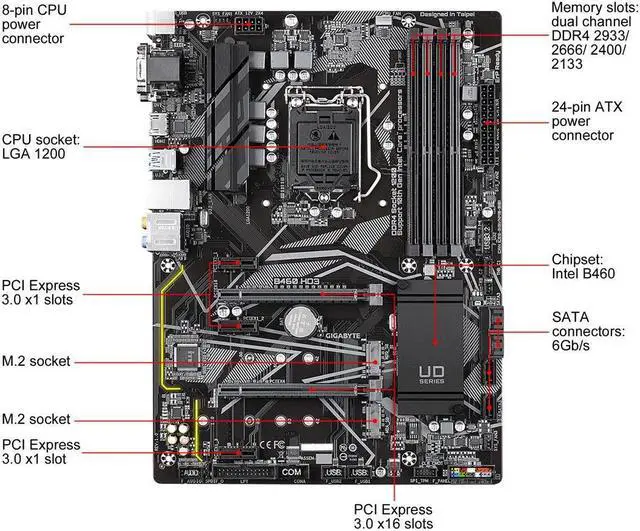

Alt view image 4 of 5 - GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

Alt view image 5 of 5 - GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

Shop All GIGABYTE Products | Visit UltraParts Renewed Store

GIGABYTE B460 HD3 LGA 1200 Intel B460 ATX Motherboard with Dual M.2, SATA 6Gb/s, USB 3.2 Gen 1

REFURBISHED

Be the first to review this product...

Supports 10th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Dual Ultra-Fast M.2 with PCIe Gen3 X4/X2 interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
ALC1200 with High Quality Onboard Audio Design
GIGABYTE Unique DualBIOS Design
Smart Fan 5 features Multiple Temperature Sensors
Hybrid Fan Headers with FAN STOP
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Lightning-Fast Intel Thunderbolt 3 AIC Support
Intel Optane Memory Ready

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 10th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Dual Ultra-Fast M. 2 with PCIe Gen3 X4/X2 interface
GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
ALC1200 with High Quality Onboard Audio Design
GIGABYTE Unique DualBIOS Design
Smart Fan 5 features Multiple Temperature Sensors
Hybrid Fan Headers with FAN STOP
High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
Lightning-Fast Intel Thunderbolt 3 AIC Support
Intel Optane Memory Ready

Model
Brand	GIGABYTE
Model	B460 HD3

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel processors Supports Intel Pentium / Celeron processors

Chipsets
Chipset	Intel B460

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2933 / 2666 / 2400 / 2133 (Intel Core i9/i7 processors) DDR4 2666 / 2400 / 2133 (Intel Core i5/i3 / Pentium/Celeron processors)
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1	3 x PCI Express 3.0 x1

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD) (M2A_SB)
Intel Optane Ready	Intel Optane Memory Ready * System Acceleration with Intel Optane Memory enabled on the M2Q_SB connector only.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports

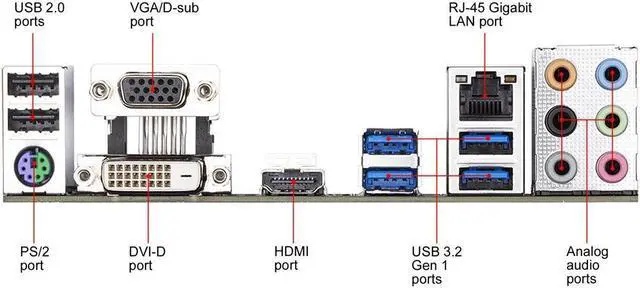

Back I/O Ports	1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x DVI-D port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 6 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	12.0" x 8.9"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS Ambient LED EasyTune Fast Boot Game Boost ON/OFF Charge Smart Backup System Information Viewer Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) Realtek 8118 Gaming LAN bandwidth Control Utility Operating System: Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	November 06, 2023
