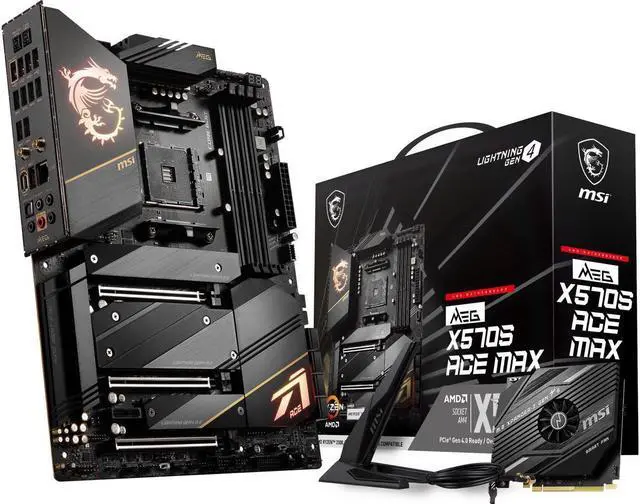

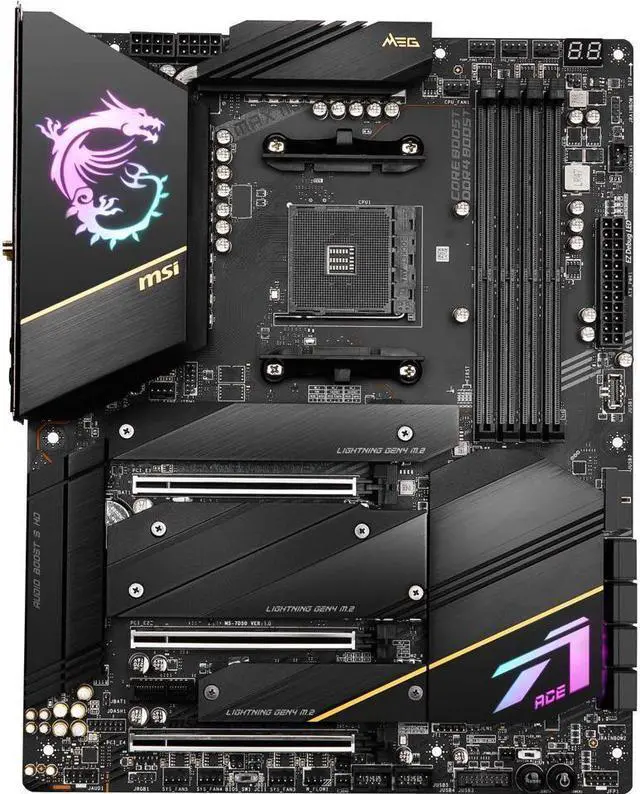

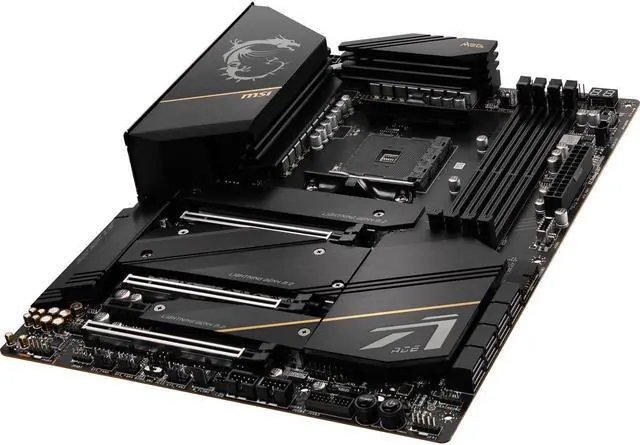

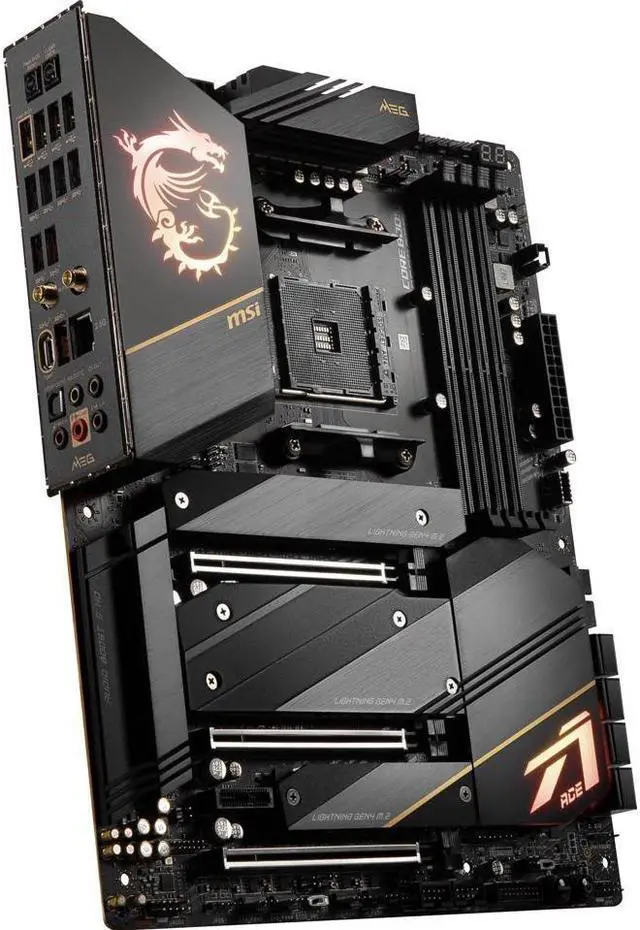

MSI MEG X570S ACE MAX AM4 AMD X570 SATA 6Gb/s USB 3.0 ATX AMD Motherboard

REFURBISHED

Be the first to review this product...

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300(OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution
Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors
Supports DDR4 Memory, Dual Channel 5300 (OC) MHz+
Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance
Quadruple M. 2
Connectors: Onboard 4x M. 2 connectors for the maximum storage performance with Lightning Gen 4 solution
Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M. 2 Shield Frozr and MOSFET Baseplate

Model
Brand	MSI
Model	MEG X570S ACE MAX

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series and 2000 G-Series processors* * Please refer www.msi.com for more information on compatible memory.

Chipsets
Chipset	AMD X570

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200 / 3066 / 3000 / 2933 / 2800 / 2667 / 2400 / 2133 / 1866 (by JEDEC) Max frequency by A-XMP OC mode: For Ryzen 5000 G-Series & 4000 G-Series processors: - 1DPC 1R Max speed up to 5300 (support overclocking up to 5500+) - 1DPC 2R Max speed up to 4266 - 2DPC 1R Max speed up to 4400 - 2DPC 2R Max speed up to 3600 For Ryzen 5000 Series & 3000 Series processors: - 1DPC 1R Max speed up to 5100 - 1DPC 2R Max speed up to 4000 - 2DPC 1R Max speed up to 4000 - 2DPC 2R Max speed up to 3600
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * PCI_E4 supports x8. * PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x16	1 x PCI Express x16
PCI Express x1	1 x PCI Express x1* * Actual support may vary by CPU. * The PCIe x1 slot and onboard Wi-Fi module share the same bandwidth, you can not use both of them simultaneously, and the default setting is the Wi-Fi module for the system. Please disable the Onboard Wi-Fi Module Control in BIOS if you want to use the PCIe x1 slot.

Storage Devices
Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M): Supports PCIe 4.0 / PCIe 3.0 PCIe 4.0 is available only on AMD Ryzen 5000 Series and 3000 Series desktop processors Support SATA 6Gbps (For M2_1, M2_3 & M2_4) M2_1 (From processor): Supports 2280/22110 storage devices M2_2 (From X570 chipset): Supports 2260/2280 storage devices M2_3 * (From X570 chipset): Supports 2280/22110 storage devices M2_4 * (From X570 chipset): Supports 2260/2280 storage devices * PCI_E4, M2_3, M2_4 and SATA5~8 share the same bandwidth.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC4082 Codec + ESS SABRE9018Q2C Combo DAC/HPA
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8125B
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6E AX210 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

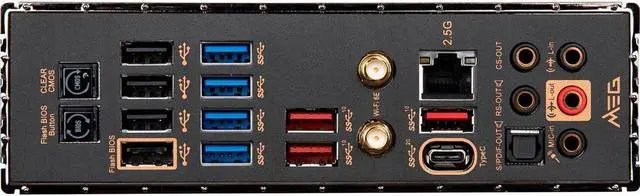

Back I/O Ports	1 x Clear CMOS Button 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 1 x USB 3.2 Gen 2x2 Type-C 3 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0/1.1 1 x Optical S/PDIF Out 5 x Audio Jacks
USB 3.0	4 x USB 3.0

Internal I/O Connectors
Onboard USB	2 x USB 2.0 connectors (support additional 4 USB ports) 2 x USB 3.2 Gen 1 5Gbps connectors (support additional 4 USB ports) 1 x USB 3.2 Gen 2 10Gbps Type-C connector
Other Connectors	1 x 4-pin CPU fan connector 1 x 4-pin water-pump connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x TPM module connector 1 x Chassis Intrusion connector 2 x 2-pin Thermal sensors connectors 1 x Water Flow Meter connector 1 x Tuning Controller connector 1 x 4-pin RGB LED connector 2 x 3-pin RAINBOW LED connectors 1 x 3-pin CORSAIR connector 1 x EZ LED Control switch 1 x 2-Digit Debug Code LED 4 x EZ Debug LEDs

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Software Feature
Windows 11	Supported

Features
Features	Supports AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series and 2000 G-Series desktop processors Supports DDR4 Memory, Dual Channel 5300(OC) MHz+ Extreme Power Design: Direct 16+2+1 phases with 90A Smart Power Stage and dual CPU power connectors to unleash the maximum performance Quadruple M.2 Connectors: Onboard 4 x M.2 connectors for the maximum storage performance with Lightning Gen 4 solution. Double-sided M.2 Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster Premium Thermal Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, Double-sided M.2 Shield Frozr and MOSFET Baseplate to ensure the extreme performance with low temp 2.5G LAN with latest Wi-Fi 6E solution: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience Lightning Fast Game experience: PCIe 4.0, Lightning Gen 4 x4 M.2 with M.2 double-side Shield Frozr, Lightning USB 20G Server Grade PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise Audio Boost 5 HD: Ultimate audio solution with premium audio processor combining ESS audio DAC and amplifier deliver the breathtaking experience

Additional Information
First Listed on Newegg	March 23, 2026
