In Win S-Frame Black Aluminum/Tempered Glass Computer Case Support ATX12V/EPS, up to 220mm Power Supply

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Special Edition, Limited Quantity Available
  • One-piece construction aluminum with open-frame chassis design
  • USB3.0 x 4, HD Audio Front Ports
  • Support ATX12V, PSII and EPS Up to 220mm Power Supply

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews

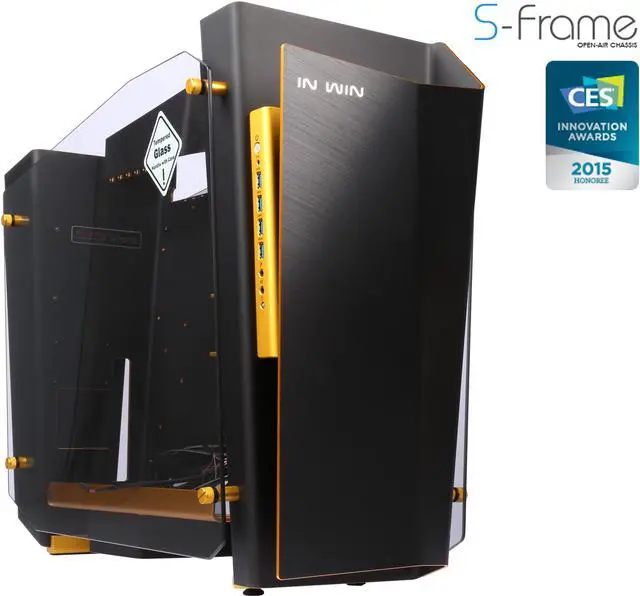

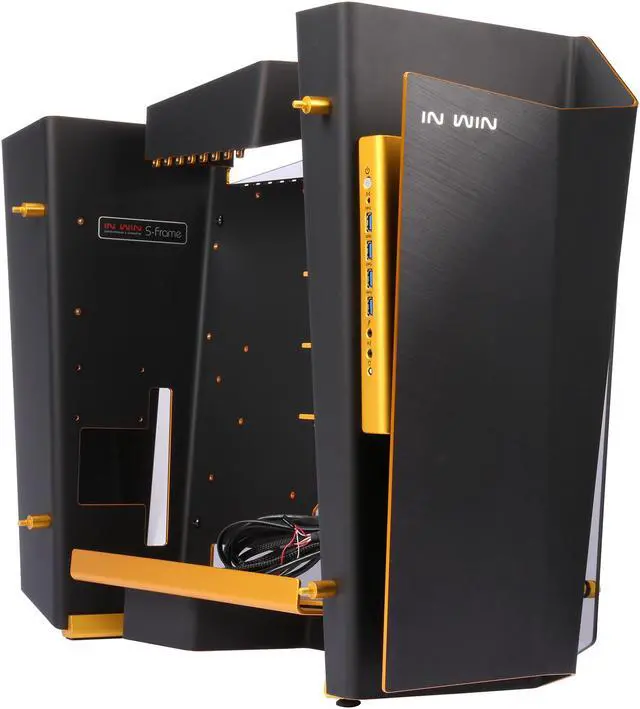

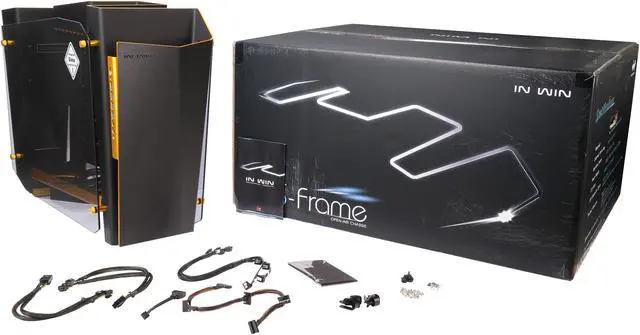

In Win S-Frame Black Aluminum & Tempered Glass Computer Case

In Win has introduced its new limited edition open-frame chassis with a unique one-piece construction concept combining unconventional craftsmanship to create an impeccable work of art.

Using laser processing to cut 4mm thick aluminum sheet metal into a 6.5-foot (2-meter) long chassis, the In Win S-Frame is made using complete one piece metal with a CNC polishing processes. The dual-anodized procedures not only increases the resistance of the aluminum surface but also features a dual color presentation to maximize visual beauty.

Finally, the main structure of S-Frame was bent through 15 times in order to create every bending angle smooth and seamless. These processes also created a beautiful texture of brushed metal sliding along the S-Frame's curves.

The S-Frame's simple aesthetics required a selection of delicate techniques to accomplish the uniqueness, strength and perfect artistry. As the S-Frame becomes available, it will be highly sought after.


Samsung Multifunction ProXpress M3370FD

Elegant Metal Curves
One Piece Construction

Samsung Multifunction ProXpress M3370FD

Dual Color Design
Double Visual Enjoyment

Samsung Multifunction ProXpress M3370FD

Meticulous Engineering
Shining Polished Edge

Samsung Multifunction ProXpress M3370FD

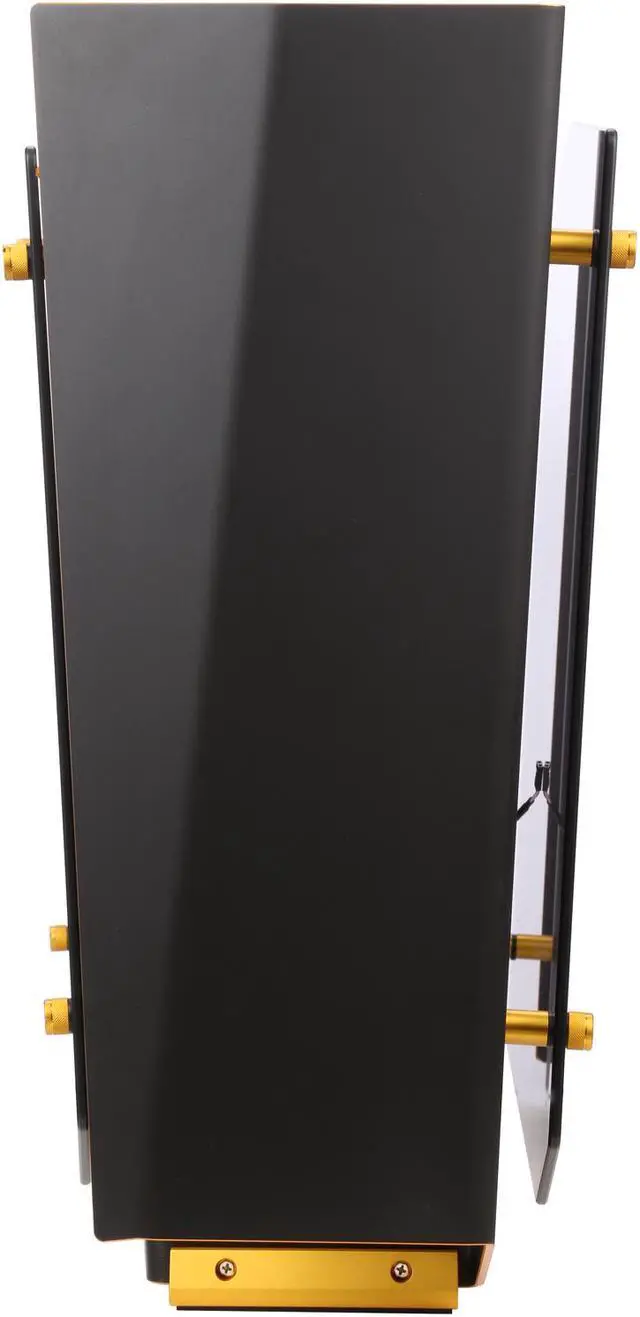

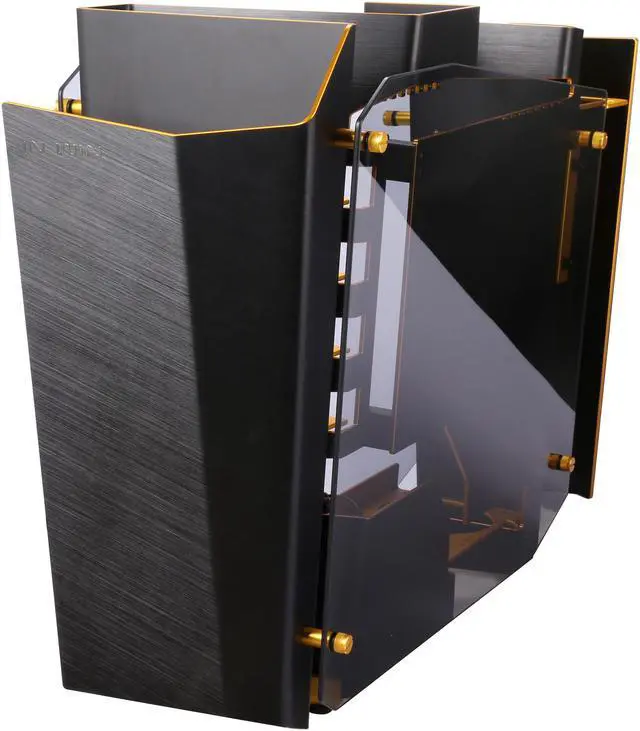

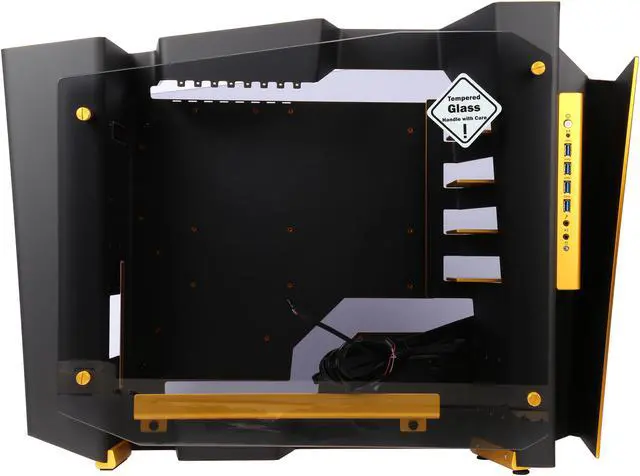

Tempered Glass
Extended Vision

Samsung Multifunction ProXpress M3370FD

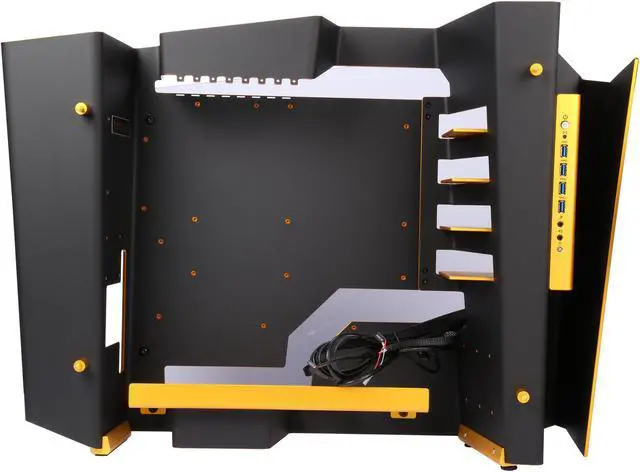

Open Frame Structure
Independent Airflow Design

Samsung Multifunction ProXpress M3370FD

Unique Limited Edition Number




Samsung Multifunction ProXpress M3370FDSamsung Multifunction ProXpress M3370FD
  1. Width up to 5.3 inches (135mm) of 1.4mm Aluminum
  2. 3.5" or 2.5" HDD x 4
  3. Supports Power Supplies Up to 8.6 inches (220mm)
  4. Holds High-End Graphics Cards Up to 13.3 inches (340mm)
  5. 360mm Liquid Cooling Radiator
  6. Accommodates CPU Heatsinks Up to 7.6 inches (195mm)



Samsung Multifunction ProXpress M3370FDSamsung Multifunction ProXpress M3370FDSamsung Multifunction ProXpress M3370FDSamsung Multifunction ProXpress M3370FD

Learn more about the In Win S-FRAME

Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 2 years
  • Limited Warranty period (labor): 2 years
  • Read full details
  • Return Policies
    • Return for refund within: 30 days
    • Return for replacement within: 30 days
  • This item is covered by Newegg.com's Standard Return Policy.
Ownership: 1 day to 1 week
Verified Owner
5/ 5
S-Frame

Pros: Beautiful, unique and well built.

Cons: If you can budget for a fancy computer case, then you can also order custom length and beautifully sleeved cable for cable management. A simple piece of smoked acrylic and a heat gun creates a beautiful shroud over the bulk of cables on the back side of the case. If you're not creative enough to find an elegant solution, then you should buy a more practical case already designed to manage and hide your cables for you.

Other Thoughts: Unsure how a sheet of folded aluminum gets a bad review.

3 out of 3 people found this review helpful. Did you?
Manufacturer Response:
Hello Edward,

Thank you for your feedback on our S-Frame chassis. We are glad to see that you enjoyed the case. Thank you for choosing In Win.

Best regards,

In Win Development Inc.
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Functional Work of Art

Pros: -Absolutely gorgeous case, unique, everyone is blown away
-Very Sturdy Build
-Spacious
-Easy to work with (removable glass sides, open top)
-Designed with cable management in mind
- Access below PSU next to GPU(s)
- PSU cabling can be run behind back,
and accessed below/left/right of mobo
-Modular design:

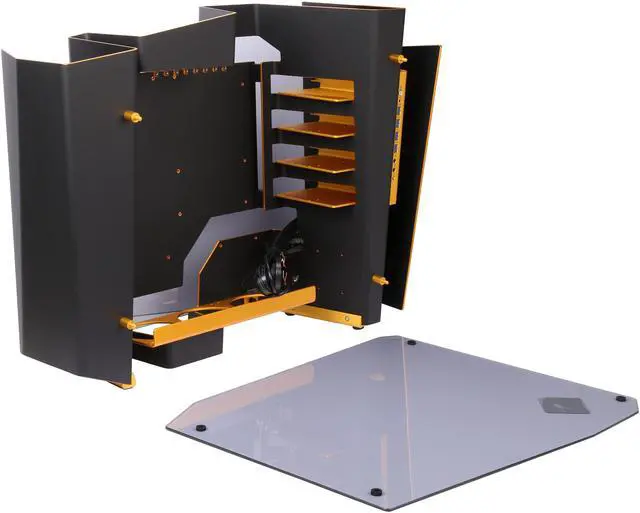

- PSU cage, radiator/fan mount, HDD bays can all be removed
-Exclusivity; higher cost, limited production

Cons: -Rather heavy, although not necessarily a con (amazing build quality)
-I imagine dust will be a problem down the road; open-concept
and all, but people who buy this case should have the foresight
to see this and keep canned air handy. This is a show piece, it
should be kept pristine.
-The "S" on top does partially obscure USB access/ethernet on
some boards. You still have roughly an inch clearance to work
with. I don't feel it's an issue, but some have mentioned it in
reviews. There's still 4 USBs on the case (and another 8 on my
mobo, so not an issue). Just use short adapter if you're worried
about bending cables for the 2-3 ports that may be partially
blocked.
-Cost; it's expensive, but worth it

Other Thoughts: -Would be nice to have a shroud on the back side to hide cabling
e.g. the carbon fiber mod at Computex '14
-Would like to have reservoir mounts higher up the left side for tall
res. There are some pre-drilled screw holes lower that I did use
-Absolutely in love with In-Win!! My third case from this company!
-With the aesthetic/build-quality of this case, you'll probably want
to reuse it in future builds. Worth considering, if cost is a factor.
-Eager to see what is released in 2015!!

3 out of 3 people found this review helpful. Did you?
Manufacturer Response:
Hello Donald,

Thank you for such high praise on our S-Frame chassis. In Win strives to be unique, innovative and use high quality on their cases. We appreciate the valuable feedback and will take all of your comments into consideration when developing future products. Thank you for choosing In Win.

Best regards,

In Win Development Inc.
Ownership: 1 week to 1 month
Verified Owner
1/ 5
Expensive Junk

Pros: None

Cons: I hate this thing. Cables for the front panel are too short to reach the motherboard. Cable routing is a nightmare. No provision for a top mounted cpu radiator unless you want to jury rig and drill the case. Want an optical drive or two? Forget it. No place to put one.

Other Thoughts: The only reason I ended up with this case is because I bought a "combo" deal that included it. Since it was a combo, I can't return just the case, and I am happy with the other items. I will have to try and sell this turkey. Going back to Thermaltake which is a beast of a case for 1/3 the cost.

7 out of 35 people found this review helpful. Did you?
Manufacturer Response:
Hello Katzman001,

We are very sorry for the inconvenience that you have experienced with our S-Frame chassis. We would like to get more information from you in order to find the solution to help you resolve the problems. Please kindly contact us at customerservice@in-win.com. Thank you very much.

Best Regards,
In-Win Development
Ownership: 1 day to 1 week
Verified Owner
5/ 5
beautiful case

Pros: this case is built like a tank. very well put together. all aluminum and glass no plastic. I imagine it can fit any size graphics card. Nice area for a power supple ( I put a evga supernova 1300 in it). nice expansion slots for hard drives. plenty of room for cable management in the back.

Cons: very large and heavy. but that can be expected when it's a full atx tower and is plastic free constructed.

11 out of 14 people found this review helpful. Did you?
Ownership: 1 month to 1 year
Verified Owner
5/ 5
Worth the Work !

Pros: I'd like to start this review by saying that InWin is a first class company. There were some small issues with my case regarding paint finish and they responded immediately and bent over backward to assure my satisfaction. Great job InWin !

In regards to the product itself; It is a well constructed (built like a tank) heavy duty open air Case. It is very pleasing to the eye depending upon where you place it and how many peripherals are plugged in. What I mean by this is that the more cables flowing out of it's top... the less attractive most people find it to be. I have had no issues yet with it being a "dust magnet", it has remained fairly dust free much to my pleasant surprise. Cooling isn't an issue with heat naturally venting through the top. Having a Corsair H105 on the bottom keeps my i7-4790k at around 30c - 33c at idle 4.4mhz.

Cons: Cable management was definitely a "challenge". I found myself ordering different cables as work a rounds. However, once I figured everything out, it all came together. Rather nicely in fact. It's worth the work and I found myself being very satisfied with a sense of accomplishment.

Other Thoughts: Friends are jealous, they love the case. Even though it's pricey, you get what you pay for. I definitely recommend this case to anyone who likes to think outside the box and has an open mind. If it's within your budget, it's a must have !

16 out of 22 people found this review helpful. Did you?
Ownership: 1 day to 1 week
Verified Owner
5/ 5
Unique without some imperfections.

Pros: The case is nicely designed, In-Win is bringing the "Luxury" in PC cases. Finish on it is amazing, and well thought of.

Cons: Open air chassis can build up some dust but can also cool better than closed chassis, it's like a double edge sword. The case has some imperfections so beware when you buy it. The red anodized lining on the edges did not have enough layers.

Other Thoughts: $800 is a lot to spend on a Chassis, think of it as a luxury item if your wallet will let you. You will need to measure the dimensions of the interior if you're planning to water cool it.

3 out of 5 people found this review helpful. Did you?
Ownership: less than 1 day
Verified Owner
4/ 5
Lacks cable management

Pros: Build quality, expensive materials, design.

Cons: Lacks cable management. Cables inside the case can be taken care of, however motherboard ports are on top and cables that you plug into the motherboard (USB, audio) as well as DVI cables from your video card(s) lack any kind of cable management.

In my case I have a bunch of cables plugged into ports on top - two DVI cables (for SLI). ethernet, printer, audio and two USB (Razer Black Widow keyboard), mouse and two USB extension cables and it looks like a hideous mess which really detracts from the looks of the finished product.

In order for this to really look good, plan to go wireless as much as possible and don't plug any cables into motherboard USB ports.

Other Thoughts: I was not sure whether to knock off one star or two stars for the cable mess. On one hand this is an extremely expensive case and for this kind of money 90% good is not good enough. On the other hand, the rest of the case - materials, design, etc is all premium quality, so in the end I only knocked off one star. I'm a little disappointed.

Will try to think of a way to organize these cables better, I'm sure there must be a way

13 out of 16 people found this review helpful. Did you?
Manufacturer Response:
Thank you very much for your valuable opinions on our S-Frame.We will forward it to our R&D dept. for improvement.

Best regards,

Customer Service
In-Win Development
Ownership: less than 1 day
5/ 5
Cant wait!

Pros: I've seen this case first hand and let me say this, it's the second most beautiful thing I've seen (My wife is sitting next to me in case anyone's wondering.) it has plenty of room in it and would be perfect for a water cooling build with rigid tubing. It reminds me of a racing car the way it looks and it's design is out of this world. I'm using it as soon as I get it in my next build. Very modern, very sleek and perfect for a case if you plan on keeping it for a while.

Cons: Cost obviously, but this is really more of a price of art more than a case.

Other Thoughts: Would like to see more consumer friendly cases that look like this from In Win. Love the case but price is a scare factor. Keep up the great work In Win, can't wait to see more!

12 out of 44 people found this review helpful. Did you?
