HOW TO GET OPTIONAL 3.5" TO 2.5" HDD/SSD TRAY?

This case come with 1qty 2.5" mounting bracket. It is located at the very bottom of the other drive bays. It has two posts on one side and you use two screws on the other side. If you are looking for more than 1qty 2.5" drive bay, you will need to purchase an adapter. Many 2.5" SSD drived come with the needed adapter but be sure to check the description first. I hope you find this information helpful.

How 3.5" total drives can fit in this case?

There is one mounting spot behind the power button. You can also fit two more next to the front USB & audio ports though heat issues may arise as those two would be right on top of each other. You could also get 5.25" drive bay brackets to put another 3.5" drive in one of the 5.25" bays. In general, I love this case and use it all the time. Very easy to use and very good quality with a nice, quiet power supply.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

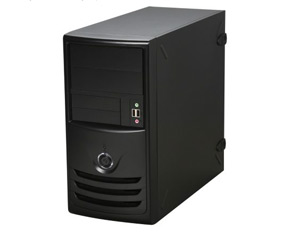

Main image of In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 2 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 3 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 4 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 5 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 6 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 7 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 8 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Alt view image 9 of 9 - In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

Shop All In Win Products

In Win Z589 micro ATX Case with Haswell Ready 350W power supply, Black, TAC 2.0, Front USB 2.0X2, HD audio

(16) Write a Review

Steel MicroATX Mini Tower
USB 2.0 x 2, HD/AC'97 Audio Front Ports
350W Power Supply
2 External 5.25" Drive Bays
1 Internal 3.5" Drive Bays

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (16)

Any questions? Our AI beta will help you find out quickly.

Try me now

IN WIN MicroATX Mini Tower Computer Case

Simplicity is the name of the game, and that's what you get with the Z589T.CQ350TBL Mini Tower case from In Win. It features 0.8mm SECC Japanese steel to provide the best stability and durability, and a folded edge design with no sharp edges or debris for safe installation. The included 350W power supply unit provides a reliable, strong current to all the components. The front I/O panel offers easy access to two USB 2.0 and two audio ports.

You'll have all the room you need to build your dream system in this case, with bays for two external 5.25" drives, an internal 3.5" drive, and two external 3.5" bays. The tray supports MiniATX motherboards, with four PCI expansion slots in the back. The screwless design enables an easy, quick and safe installation.

Compliant with TAC 2.0 Design Guide, this chassis takes advantage of the large perforated area on the side panel to increase air flow to the system. There is a 90mm rear fan to improve the heat dissipation within the case. Get the stylish case today and build your own little power house.

Features

TAC 2.0 Thermal Solution

Qualified for TAC 2.0, a side panel design with massive ventilation enhances thermal efficiency and cools down the entire system.

Cooling Fan

Optional 90mm auxiliary cooling fan at rear panel for better system cooling.

Tool-Free Installation and Easy Maintenance

Tool-free front panel, drive bays, and I/O slots.

Six Configured Drive Bays

5.25" x 2 / 3.5" x 3 / 2.5" x 1 - for expandability & future upgrades.

Side Panel Clips

The patented tool-free installation side panel clips.

The industry's best 0.8mm SECC Japanese Steel
0.8mm Sheet metal construction - for better stability & durability
Folded Edge - for safe installation; no sharp edges, debris
Stamped Motherboard Support - no MB standoff required for speedy installation

Front Ports

USB 2.0 x 2
HD Audio
Optional USB 3.0 x 2

Excellent Thermal Solution

80mm or 90mm Rear Fan (Optional)
Intel Certificated TAC 2.0

Easy Installation and Maintenance

Screwless Front Panel
Screwless Side Panels
Screwless 5.25" Drive Bays
Screwless 3.5" Drive Bays
Screwless PCI-E Expansion Slots

Security

Standard Padlock Loop for Padlock
Kensington Security Slot Supported
Chassis Intrusion Switch (Optional)

Optional

eSATA
3.5" to 2.5" HDD/SSD Bracket
Supports 2.5" X 2

Optional 60mm Fan
(60 x 60 x 10mm, 2500RPM, 20dB Fan, 4-Pin Power Connector)

Gallery

What's in the Box

Simplicity is the name of the game and that's what you get with the Z589T.CQ350TBL mini tower case from In Win. It features 0.8mm SECC Japanese steel metal to provide the best stability and durability. The folded edge design with no sharp edges or debris delivers safe installation. The included 350W power supply unit provides reliable, strong power to all the components. The front I/O panel offers easy access to two USB 2.0 and two audio ports.

You'll have all the room you need to build your dream system in this case, with bays for 2x external 5.25" drives, 1x internal 3.5" drives and 2x external 3.5" bay, and swiveled HDD drive cage allows you to install drives with great flexibility and convenience. The tray supports Mini ATX, with 4 PCI expansion slots in the back. The screwless design enables an easy, quick and safe installation.

Compliant with TAC 2.0 Design Guide, this chassis takes advantage of the large perforated area on the side panel to increase airflow to the system. There is a 120mm rear fan to improve the heat dissipation within the case. Get the stylish case today and build your little power house.

Model
Brand	IN WIN
Model	Z589.CH350TB

Details
Type	Micro ATX Mini Tower
Color	Black
Case Material	Steel
With Power Supply	350W
Power Supply	350W
Power Supply Mounted	Top
Motherboard Compatibility	Micro ATX
Side Panel Window	No

Expansion
External 5.25" Drive Bays	2
External 3.5" Drive Bays	2
Internal 3.5" Drive Bays	1
Expansion Slots	4

Front Panel Ports
Front Ports	2 x USB 2.0 / Audio

Cooling System
Side Air duct	No

Dimensions & Weight
Dimensions (H x W x D)	14.3" x 7.1" x 14.6"
Weight	17.00 lbs.

Additional Info
Features	SECC Japanese Steel metal. 0.8 mm Sheet Metal Construction - for better stability & durability. Folded Edge - for safety installation. No sharp edges, debris. Stamped Motherboard Support - no M/B standoffs installation required, for faster M/B installation. Configured 5 Drive Bays - (2 x 5.25", 3 x 3.5") drive bays for expandability of future upgrade. Screwless Installation: Screwless Front Panel, ,Screwless Side Panels, Screwless 5.25" Drive Bays, Screwless 3.5" Drive Bays and 4 Screwless PCI/AGP Expansion Slots Standard Padlock loop for padlock Kensington Security Slot Supported Meets RoHS, CE and FCC Class B Requirements.
