What cooling options does the Cooler Master MasterFrame 360 support?

It supports up to twelve 120mm fans, fan sizes up to 200mm, and radiators up to 360mm.

What are the maximum dimensions for GPU and CPU cooler that can fit in the Cooler Master MasterFrame 360?

The maximum GPU length is 430 mm and the maximum CPU cooler height is 145 mm.

Returns

Out of stock

$299^.99

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

Computer Case Size Buying Guide

ATX Mid-Tower PC Cases

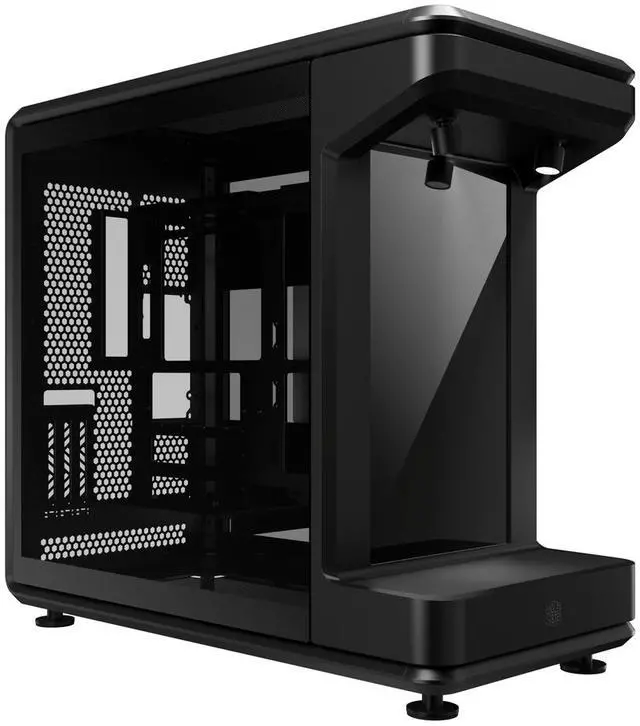

Main image of Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 2 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 3 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 4 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 5 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 6 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 7 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 8 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 9 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 10 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 11 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Alt view image 12 of 12 - Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

Shop All Cooler Master Products

Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case - Front Showcase Stage with Spotlight & LCD Display, Supports 430mm GPUs & 360mm Radiators, PCIe 5.0 Ready, Up to 12x120mm Fans, USB-C

(2) Write a Review

Option: Stage LCD

Mirror
Panorama
Stage LCD

Front-Facing STAGE LCD Display Integrated LCD screen transforms your PC into a visual showcase. Supports Extended Display Mode as a true secondary monitor or Custom Playback Mode with preloaded animations and user-uploaded JPG/MP4 content via MicroSD.
Exceptional Cooling & Liquid Support Supports up to twelve 120mm fans (top and bottom), fan sizes up to 200mm, and radiators up to 360mm - ideal for high-performance air or custom liquid cooling setups.
Open-Frame Design for Ultimate Customization Stage-inspired open chassis design provides unrestricted visibility for components, collectibles, and themed builds - perfect for creators, modders, and showcase systems.
Broad Hardware Compatibility Fits Mini-ITX, Micro-ATX, and ATX motherboards, including ATX BTF (back-connect) layouts. Accommodates GPUs up to 430mm and PSUs up to 210mm.
PCIe 5.0 Vertical GPU Mount Included Premium PCIe 5.0 riser cable included for vertical GPU installation, delivering next-gen performance with an elevated presentation out of the box.
Future-Ready Front I/O Connectivity Equipped with USB 4.0 Gen 2x2 Type-C (up to 20Gbps) and two USB 3.2 Gen 1 Type-A ports for fast data transfer and modern device support
110mm of cable routing clearance enables a clean, clutter-free build that keeps the focus on your components and display.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (2)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Cooler Master MasterFrame 360 Stage LCD ATX Mid-Tower PC Case

Comparison

MasterFrame 360 Panorama

MasterFrame 360 Stage LCD

MasterFrame 360 Stage Mirror

Model
Brand	Cooler Master
Series	MASTERFRAME Series
Model	MF360-KHNN-S02

Details
Color	Black
Case Material	Exterior: SGCC Side Panel (Left / Right): TG / TG
Motherboard Compatibility	Mini-ITX, Micro-ATX, ATX, BTF (ATX)
Dust Filters	Mesh Only

Expansion
Internal 3.5" Drive Bays	1
Internal 2.5" Drive Bays	2
Expansion Slots	PCI Expansion Slots: 3.5

Front Panel Ports
Front Ports	2x USB 3.2 Gen 1 Type-A 5G 1x USB 4.0 Gen 2x2 Type-C 20G 1x 3.5mm Headset Jack (Audio+Mic)

Cooling System
Fan Options	Top: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm
Radiator Options	Bottom - Up to 120mm / Bottom - Up to 140mm / Bottom - Up to 240mm / Bottom - Up to 280mm / Bottom - Up to 360mm / Top - Up to 120mm / Top - Up to 140mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm

Dimensions & Weight
Max GPU Length	430 mm
Max CPU Cooler Height	145 mm
Max PSU Length	210 mm
Dimensions	549 x 291 x 581 mm
Weight	13.72kg

Additional Information
