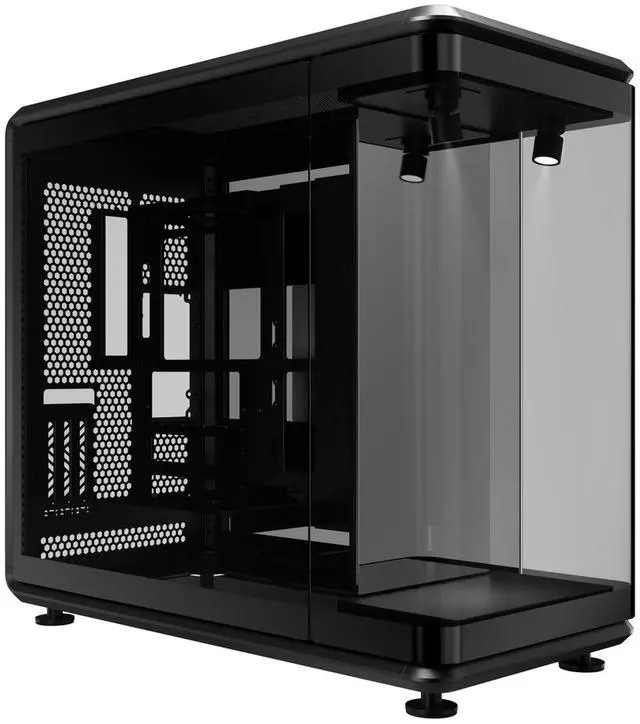

Cooler Master MasterFrame 360 Panorama Open-Frame ATX PC Case, 3-Side Panoramic Tempered Glass, 430mm GPU Max, 360mm Radiator Support, PCIe 5.0, Supports Up to 12 x 120mm Fans, USB4 Type-C
- Industry-First 360° Liquid Cooling Showcase Purpose-built for open-loop liquid cooling, this 360-degree open-frame chassis enables tubing and cooling loops to wrap fully around the system for an unmatched visual and thermal experience.
- Extreme Cooling Flexibility Supports fan sizes from 120mm to 200mm with space for up to twelve 120mm fans—six on the top and six on the bottom—plus radiator support up to 360mm for high-end custom cooling.
- Panoramic Tempered Glass Display Ultra-clear tempered glass panels on three sides provide a full panoramic view of your components and collectibles, turning your build into a true centerpiece from every angle.
- Front Display Stage with ARGB Accents Mirrored front platform designed for showcasing figures, themed accessories, or custom displays, enhanced with front-facing ARGB lighting for vivid visual impact.
- Broad Hardware Compatibility Compatible with Mini-ITX, Micro-ATX, and ATX motherboards, including ATX BTF (back-connect) layouts. Supports GPUs up to 430mm and PSUs up to 210mm.
- PCIe 5.0 Vertical GPU Mount Included Premium PCIe 5.0 riser cable included for vertical GPU installation, delivering next-generation bandwidth and an elevated presentation out of the box.
- Future-Ready Front I/O Equipped with USB 4.0 Gen 2x2 Type-C (up to 20Gbps) and two USB 3.2 Gen 1 Type-A ports for fast data transfer and modern device compatibility.
+
+
Learn more about the Cooler Master MF360-KINN-S00
| Brand | Cooler Master |
|---|---|
| Series | MASTERFRAME Series |
| Model | MF360-KINN-S00 |
| Color | Black |
|---|---|
| Case Material | Exterior: SGCC Side Panel (Left / Right): TG / TG |
| Motherboard Compatibility | Mini-ITX, Micro-ATX, ATX, BTF (ATX) |
| Dust Filters | Mesh Only |
| Internal 3.5" Drive Bays | 1 |
|---|---|
| Internal 2.5" Drive Bays | 2 |
| Expansion Slots | PCI Expansion Slots: 3.5 |
| Front Ports | 2x USB 3.2 Gen 1 Type-A 5G 1x USB 4.0 Gen 2x2 Type-C 20G 1x 3.5mm Headset Jack (Audio+Mic) |
|---|
| Fan Options | Top: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm Bottom: 6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm |
|---|---|
| Radiator Options | Bottom - Up to 120mm / Bottom - Up to 140mm / Bottom - Up to 240mm / Bottom - Up to 280mm / Bottom - Up to 360mm / Top - Up to 120mm / Top - Up to 140mm / Top - Up to 240mm / Top - Up to 280mm / Top - Up to 360mm |
| Max GPU Length | 430 mm |
|---|---|
| Max CPU Cooler Height | 145 mm |
| Max PSU Length | 210 mm |
| Dimensions | 549 x 291 x 581 mm |
| Weight | 13.72kg |
| First Listed on Newegg | January 21, 2026 |
|---|
