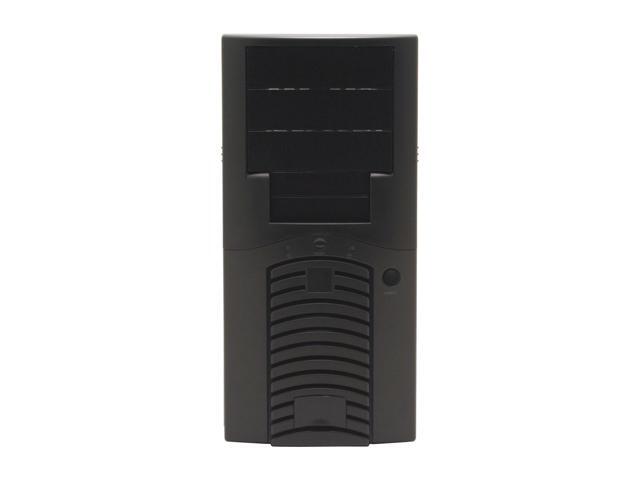

| Brand | CHENMING |
|---|---|
| Model | 501AWBU-F-0 BLK |
| Type | ATX Mid Tower |
|---|---|
| Color | Black |
| Case Material | 1.0mm SECC |
| With Power Supply | No |
| Motherboard Compatibility | ATX |
| Side Panel Window | No |
| External 5.25" Drive Bays | 3 |
|---|---|
| External 3.5" Drive Bays | 2 |
| Internal 3.5" Drive Bays | 3 |
| Expansion Slots | 7 |

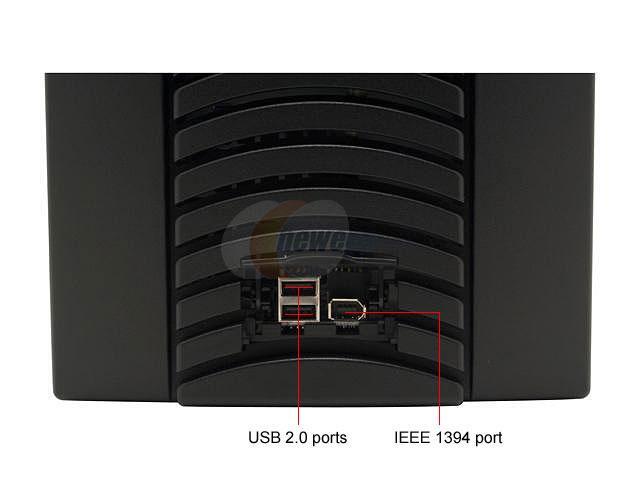

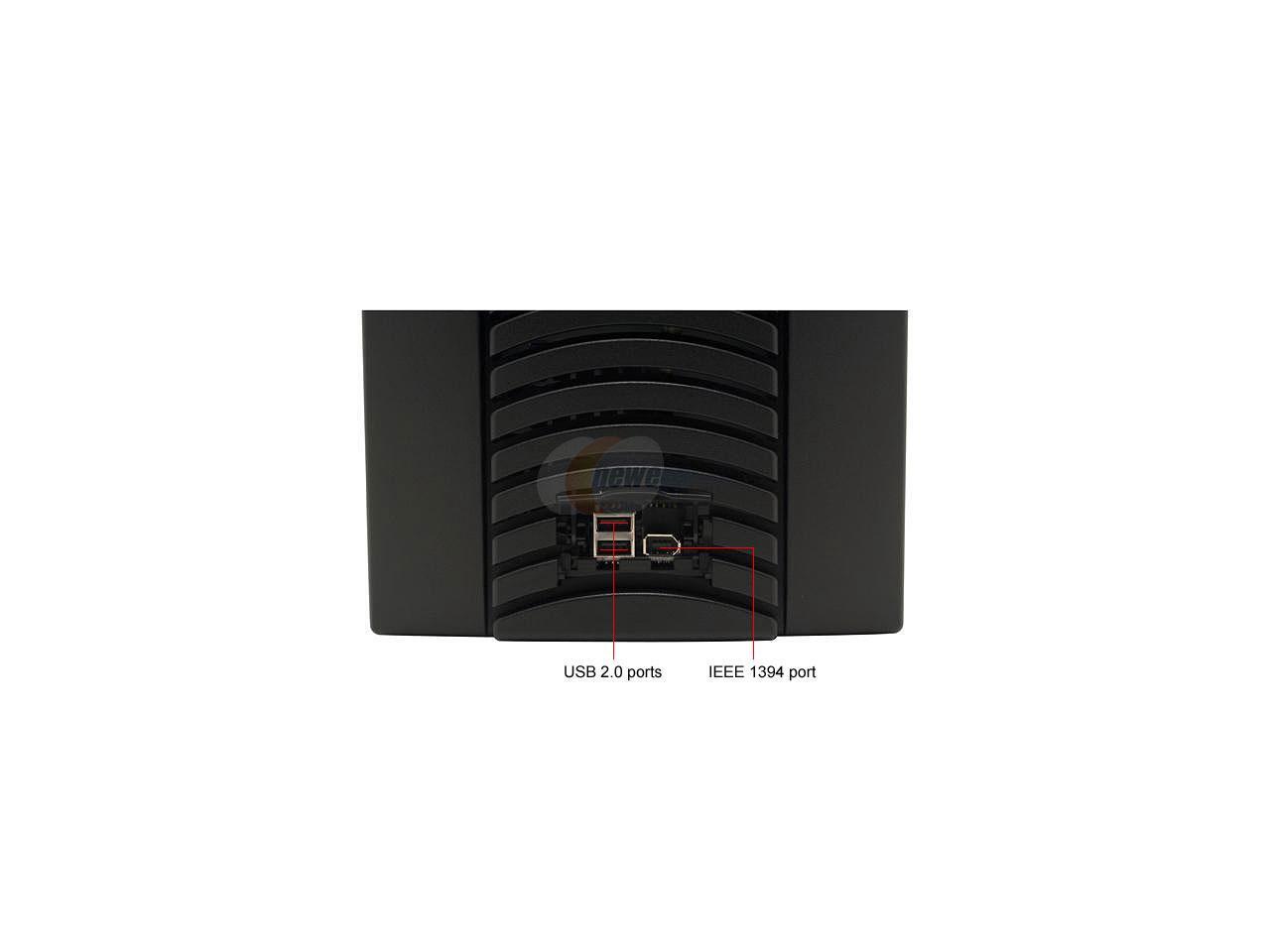

| Front Ports | 2 x USB2.0 , 1 x IEEE1394 |
|---|
| 80mm Fans | No |
|---|---|

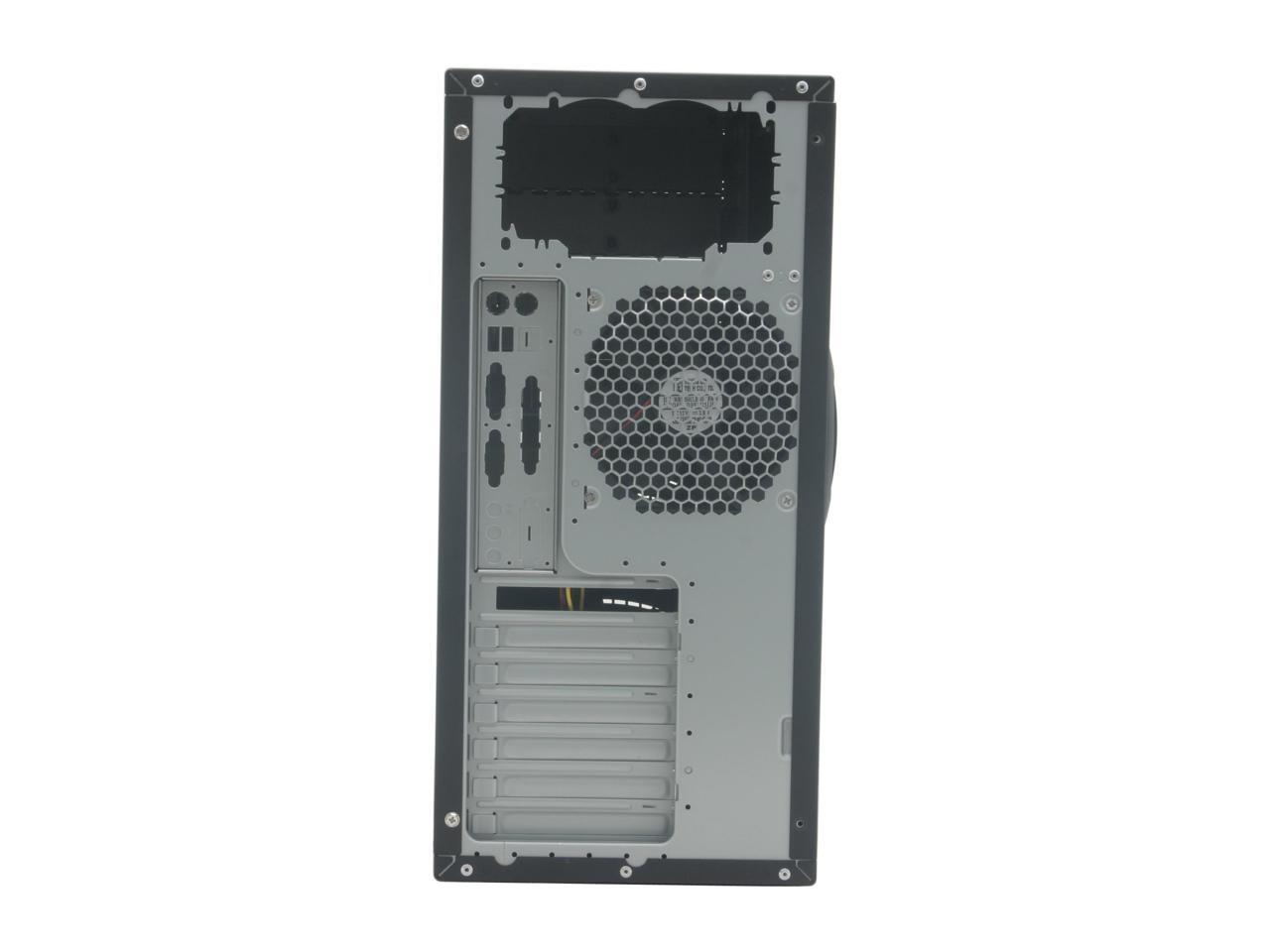

| 120mm Fans | 1 x 120mm Rear Fan |
| Side Air duct | No |
| Dimensions (H x W x D) | 18.8" x 8.1" x 17.1" (D x W x H) |
|---|---|
| Weight | 21 lbs. |

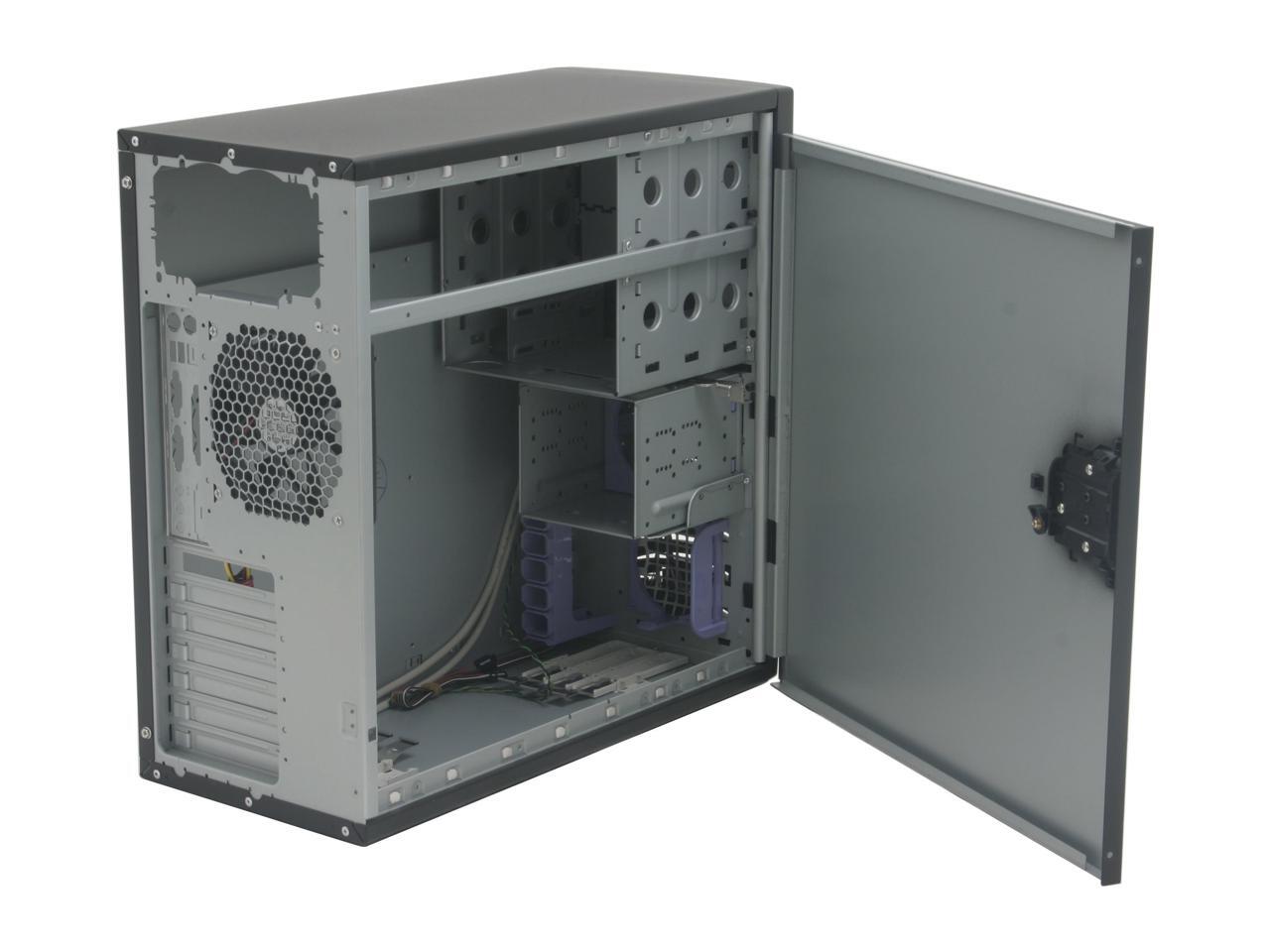

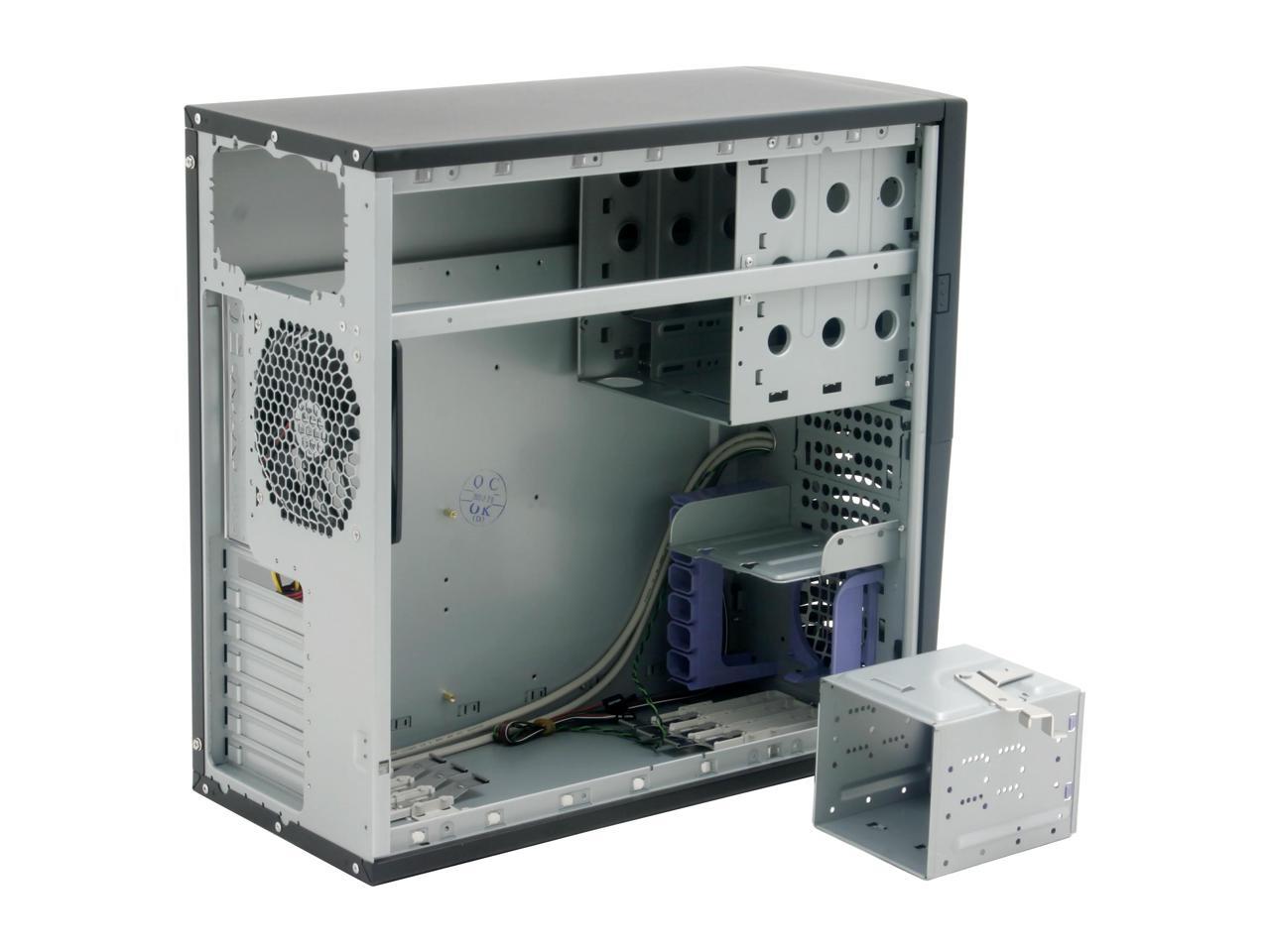

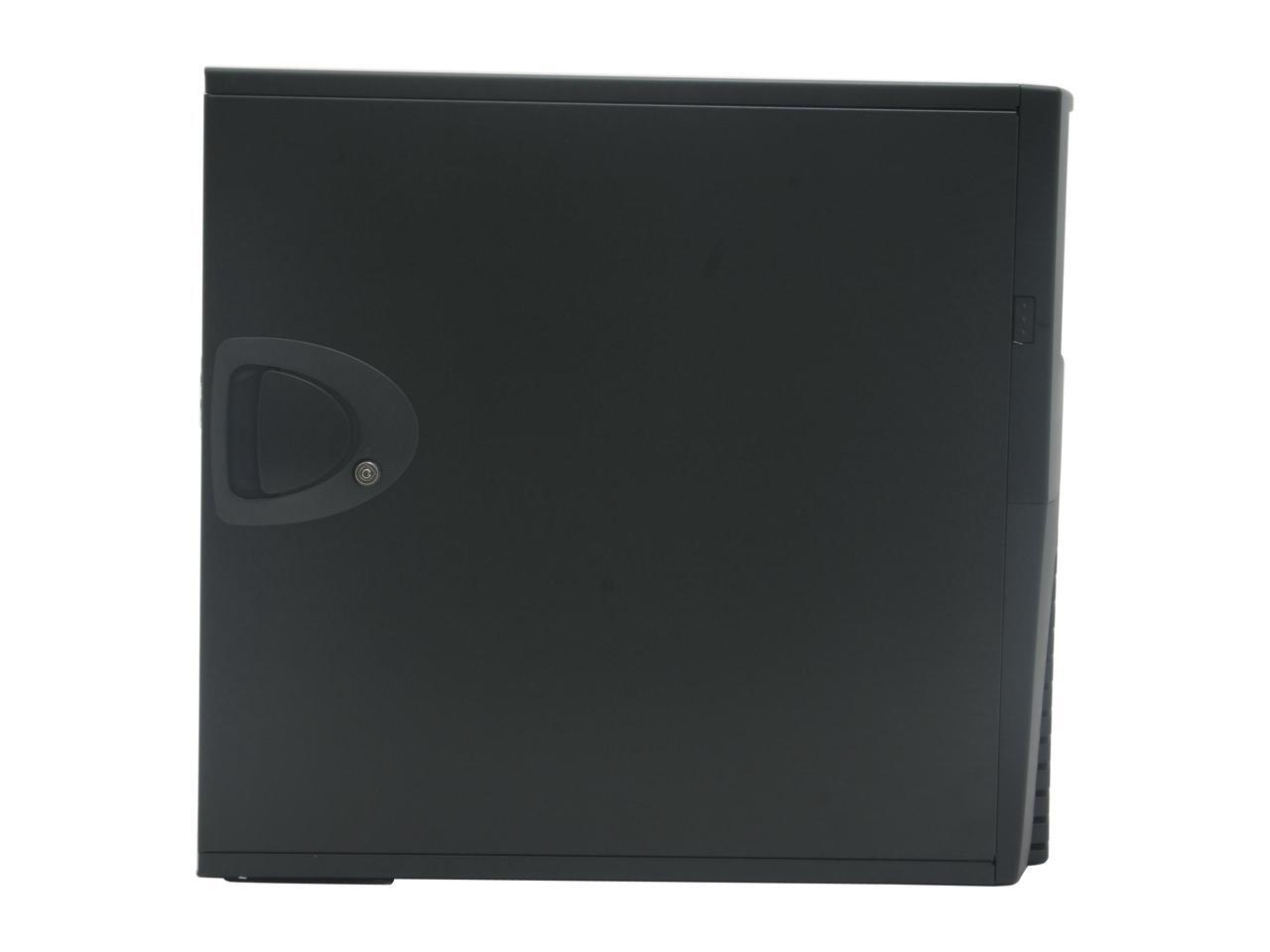

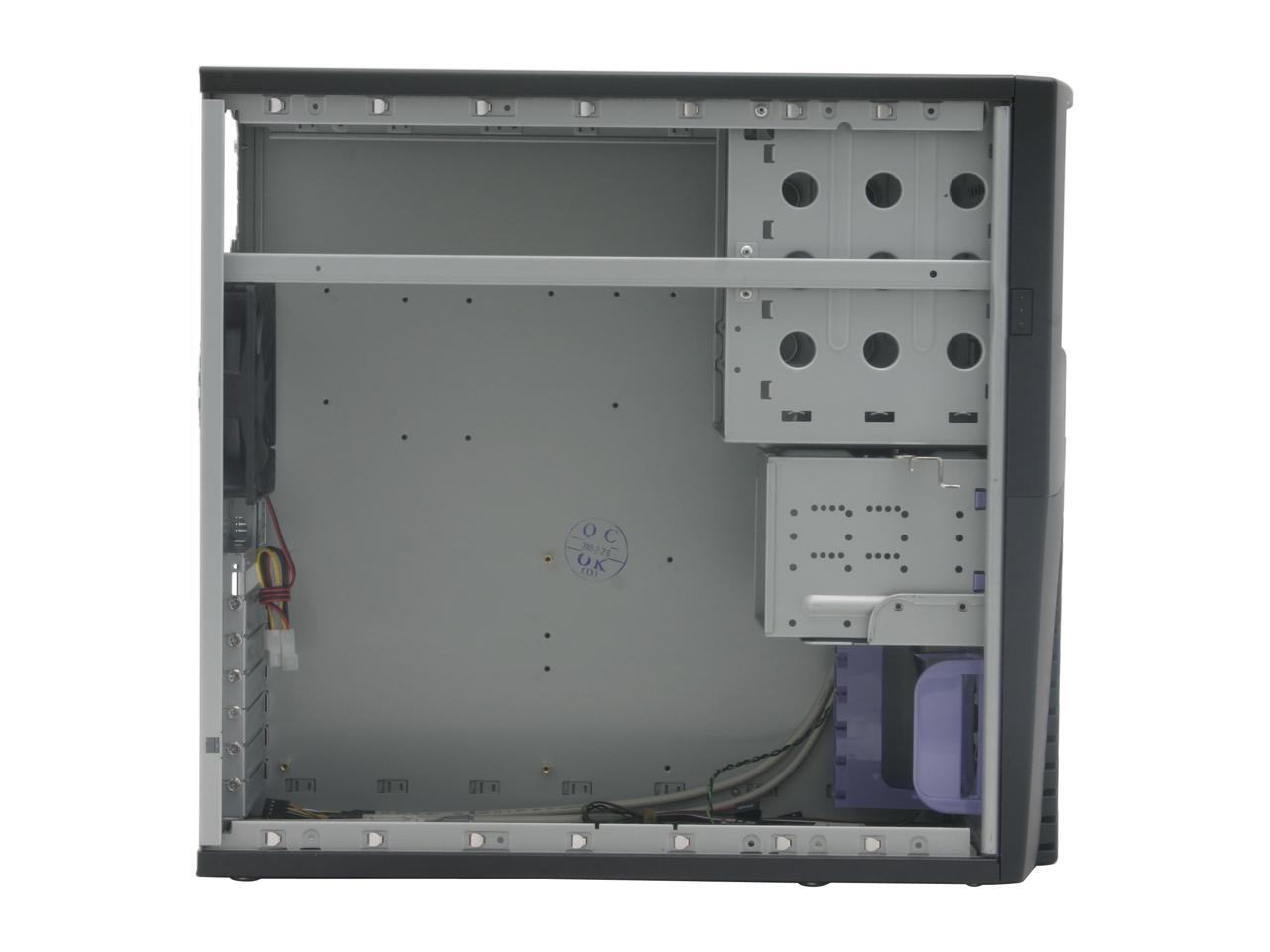

| Features | Screwless, lockable side cover for convenience and security Sliding, external drive assembly Tool-free internal drive bays for convenient assembly Ability to install up to 3 quick changeable fans Hemmed edges for safe access EMI shielding designed to support FCC requirements |
|---|
| Date First Available | July 15, 2005 |
|---|

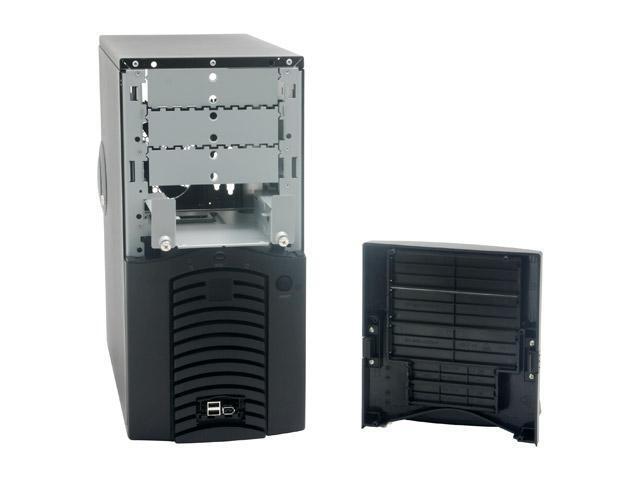

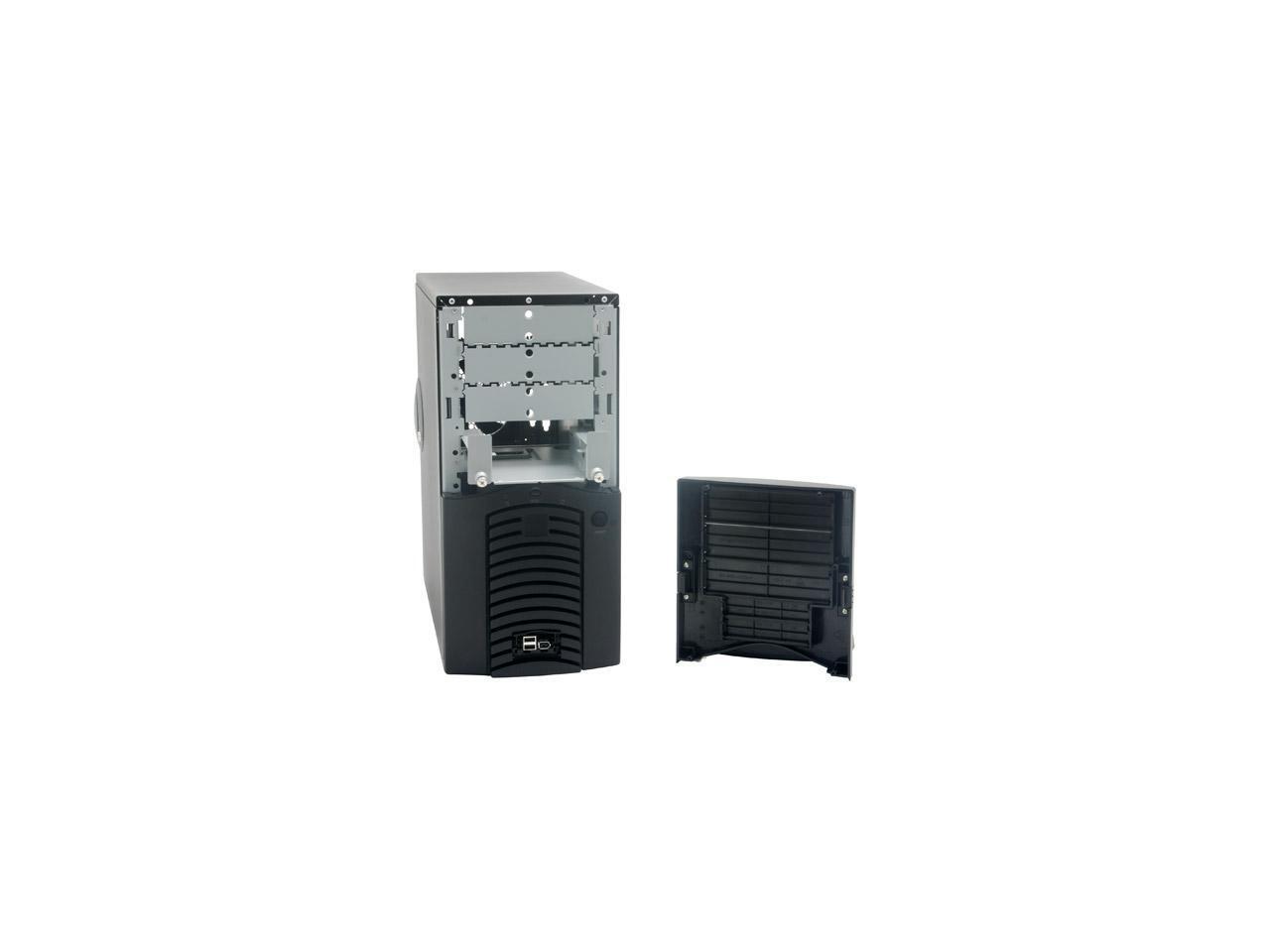

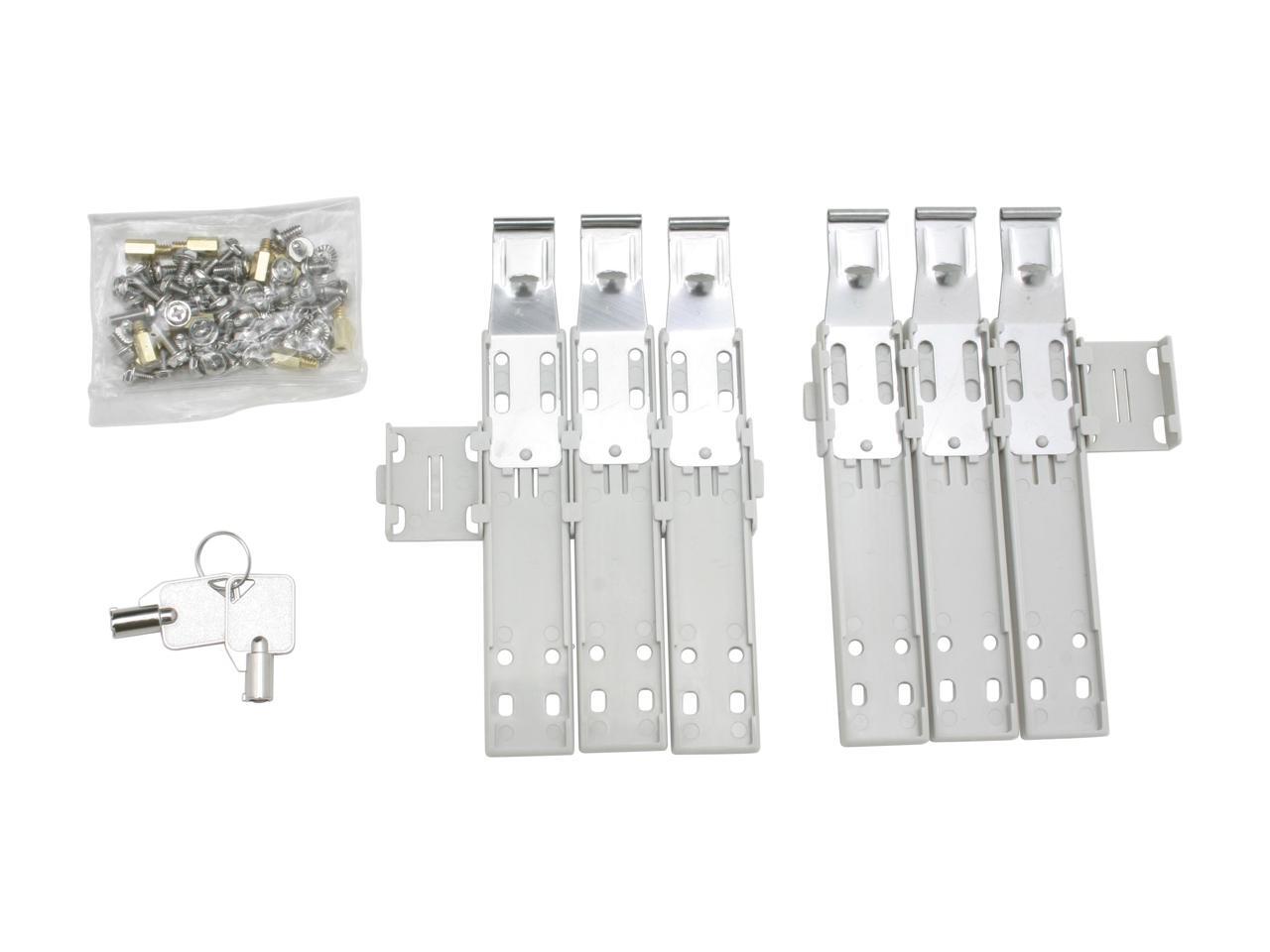

Pros: 1. Built like a tank -- very sturdy and solid. 2. Tool-free design -- easy to work on/in. Removeable drive cages and front bezel are great, as well as optical drive rails and screwless front fan mounts. 3. Great airflow with rear 12cm and 2 front 8cm fans. 4. Consolidated USB and Firewire jacks, instead of a separate wire for each jumper. Saves time! 5. Unlike the Chenming 301, the 501 allows you to remove BOTH side panels, which helps with cable management. 6. NO DOOR! Finally a good looking, classy case without a door. Unless you are using mis-matched drives or have security issues, why would you want a door? It just gets in the way and is one more thing to break. 8. Great pricepoint. Antec quality and style for half the price.
Cons: 1. Built like a tank, so it's very HEAVY. But if you aren't dragging it to LAN parties, then that shouldn't matter. Other than that, I can't think of any.
Overall Review: This is a great case, as are most of the Chenming cases in the *01 series (301, 501, 601/02, etc). I recommend them to all of my clients. If you have a RAID array, multiple optical drives, or an extended MOBO, this may not be the case for you, since it is just a mid-tower. But for most standard ATX systems, this is a great choice. For the same case in a larger format, see the Chenming 901A. Sadly, the 901A is only avail in beige, unless you custom order direct from Chenming.
