The Antec Mini P180 case is designed for the power computing enthusiast who enjoys tinkering under the hood, but who doesn't want to listen to the cooling fans strain. Designed to fit a microATX motherboard, a heat-reducing dual chamber design and sound deadening multi-layer side panels reduce noise and heat both. Silicone grommets reduce vibration noise. The side panels are made up of three layers aluminum and plastic to deaden sound.
A rear mounted 12cm and top mounted 20cm TriCool fans create a lot of airflow to keep your components cool. External speed controls let you adjust them to balance sound and airflow. You can install two additional 12cm fans in the front as well. All intake fans have easily-removable filters to catch dust and debris before it enters your system.
Mount three front-accessible 5.25" and one 3.5" drives along with five internal 3.5" drives without tools. The case will accommodate graphics cards with full length PCB’s. The front mounted ports let you connect two USB 2.0 and one eSATA device along with a microphone and headset without having to move the case to get at the back. A double hinge door at the front protects your drives when closed or swings out of the way against the side of the case when you need access. The majority of the chassis is .8mm cold rolled steel for durability and the internal parts are designed to prevent scratches when working in tight spaces.
The Antec Mini P180 case is designed for the power computing enthusiast who enjoys tinkering under the hood, but who doesn't want to listen to the cooling fans strain. Designed to fit a microATX motherboard, a heat-reducing dual chamber design and sound deadening multi-layer side panels reduce noise and heat both. Silicone grommets reduce vibration noise. The side panels are made up of three layers aluminum and plastic to deaden sound.
A rear mounted 12cm and top mounted 20cm TriCool fans create a lot of airflow to keep your components cool. External speed controls let you adjust them to balance sound and airflow. You can install two additional 12cm fans in the front as well. All intake fans have easily-removable filters to catch dust and debris before it enters your system.
Mount three front-accessible 5.25" and one 3.5" drives along with five internal 3.5" drives without tools. The case will accommodate graphics cards with full length PCB’s. The front mounted ports let you connect two USB 2.0 and one eSATA device along with a microphone and headset without having to move the case to get at the back. A double hinge door at the front protects your drives when closed or swings out of the way against the side of the case when you need access. The majority of the chassis is .8mm cold rolled steel for durability and the internal parts are designed to prevent scratches when working in tight spaces.

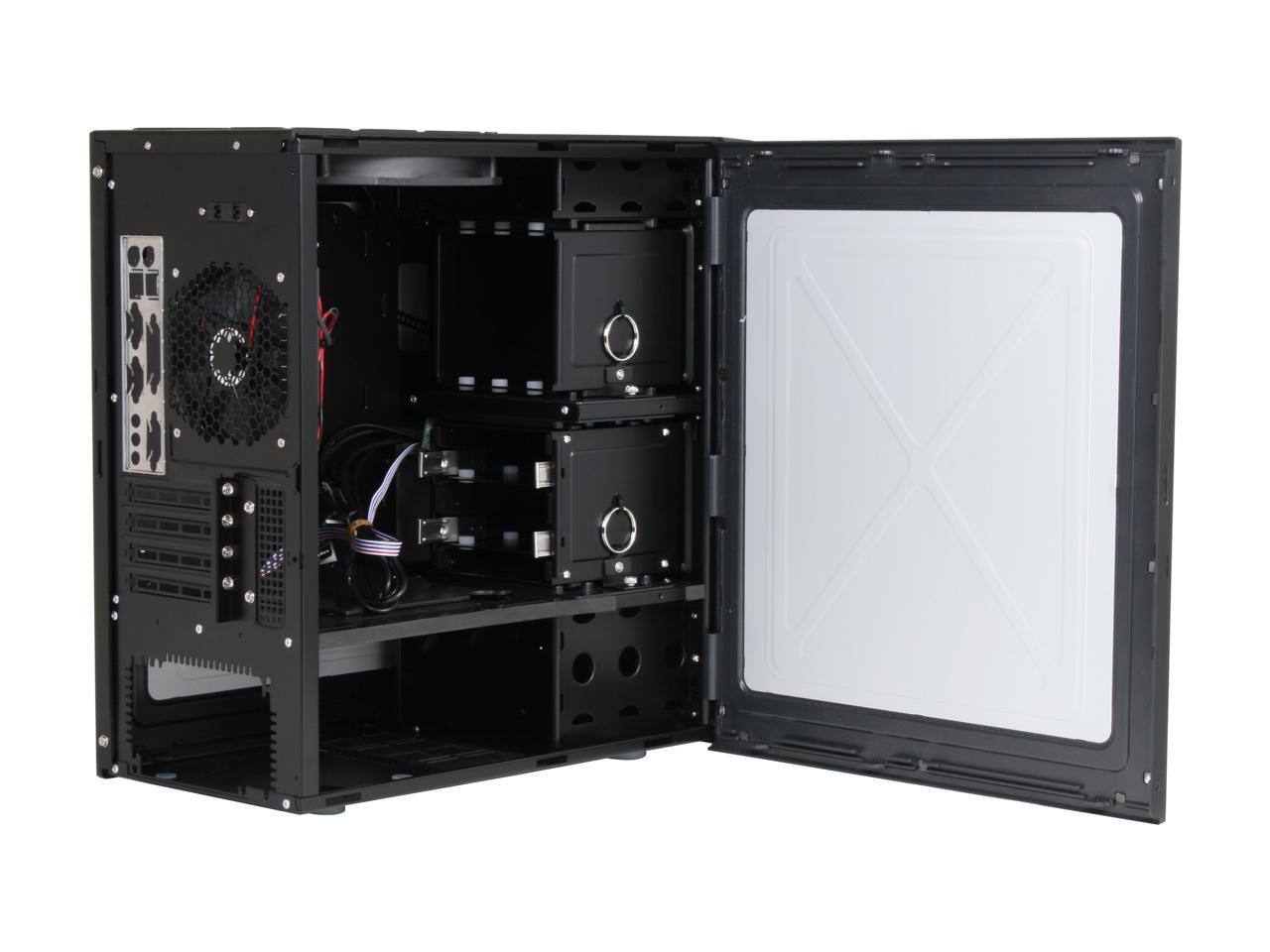

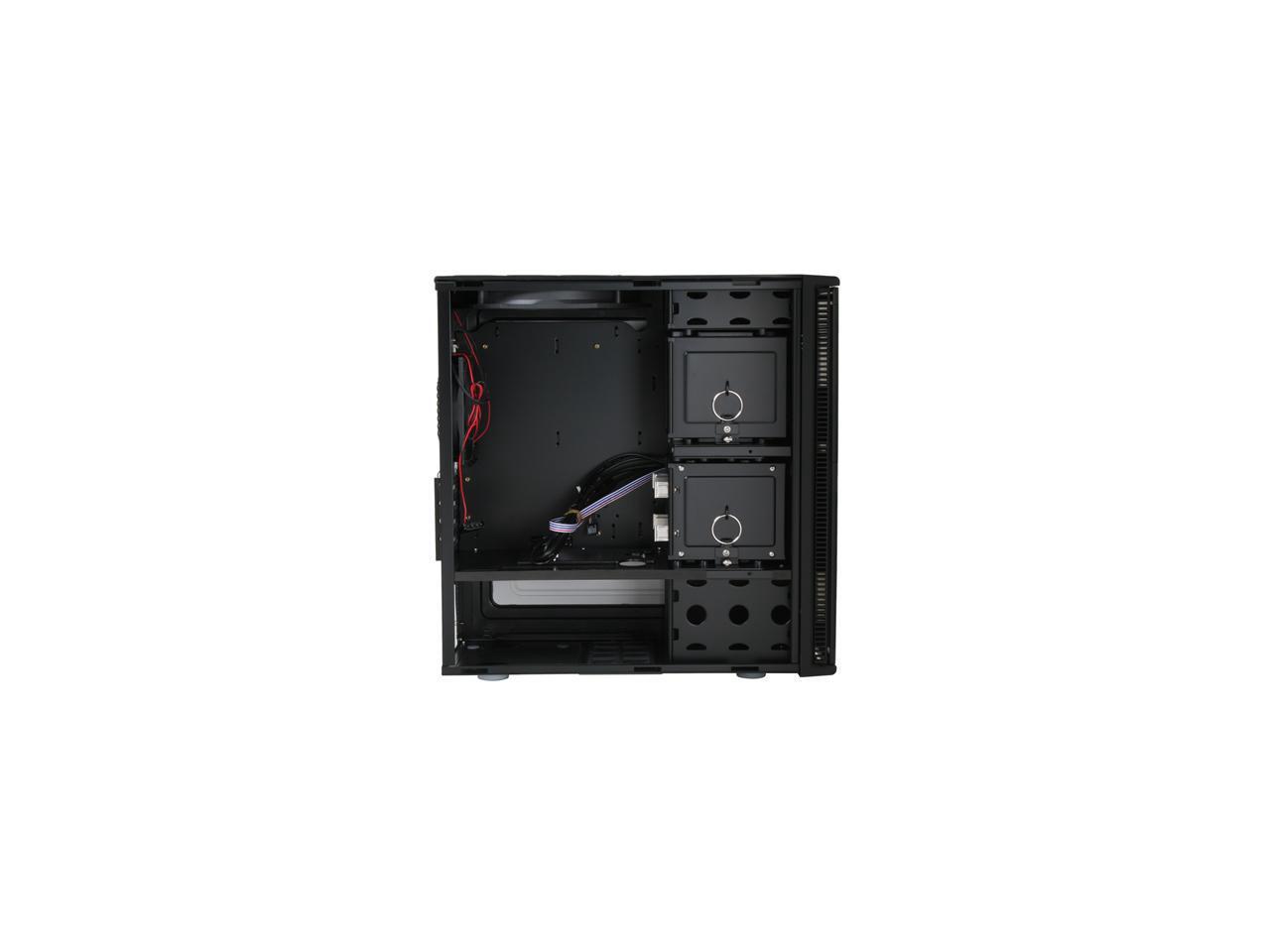

Unique Upper and Lower Chamber StructureThe unique dual-chamber structure enables the power supply and CPU to reside in separate cooling zones for exceptional heat dissipation and reduced system noise.
Supreme Expandability with 9 Drive BaysBoasting three 5.25" external drive bays, and six 3.5" drive bays (one external and five internal), the Antec Mini P180 provides supreme expandability.

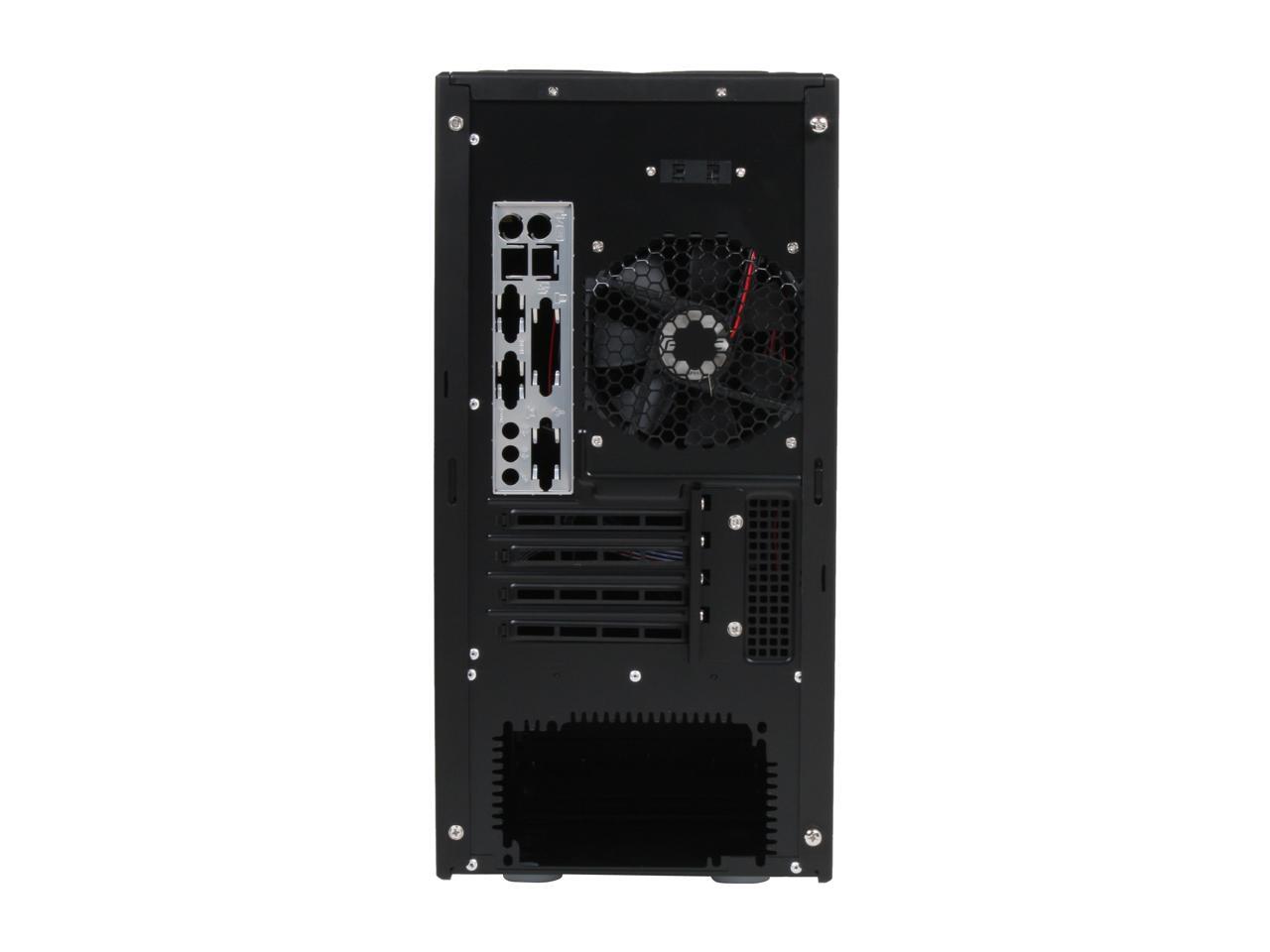

Efficient VentilationThe Antec Mini P180 features an enormous 200mm TriCool fan on the top and a 120mm TriCool fan at the rear for efficient ventilation and effective system cooling.

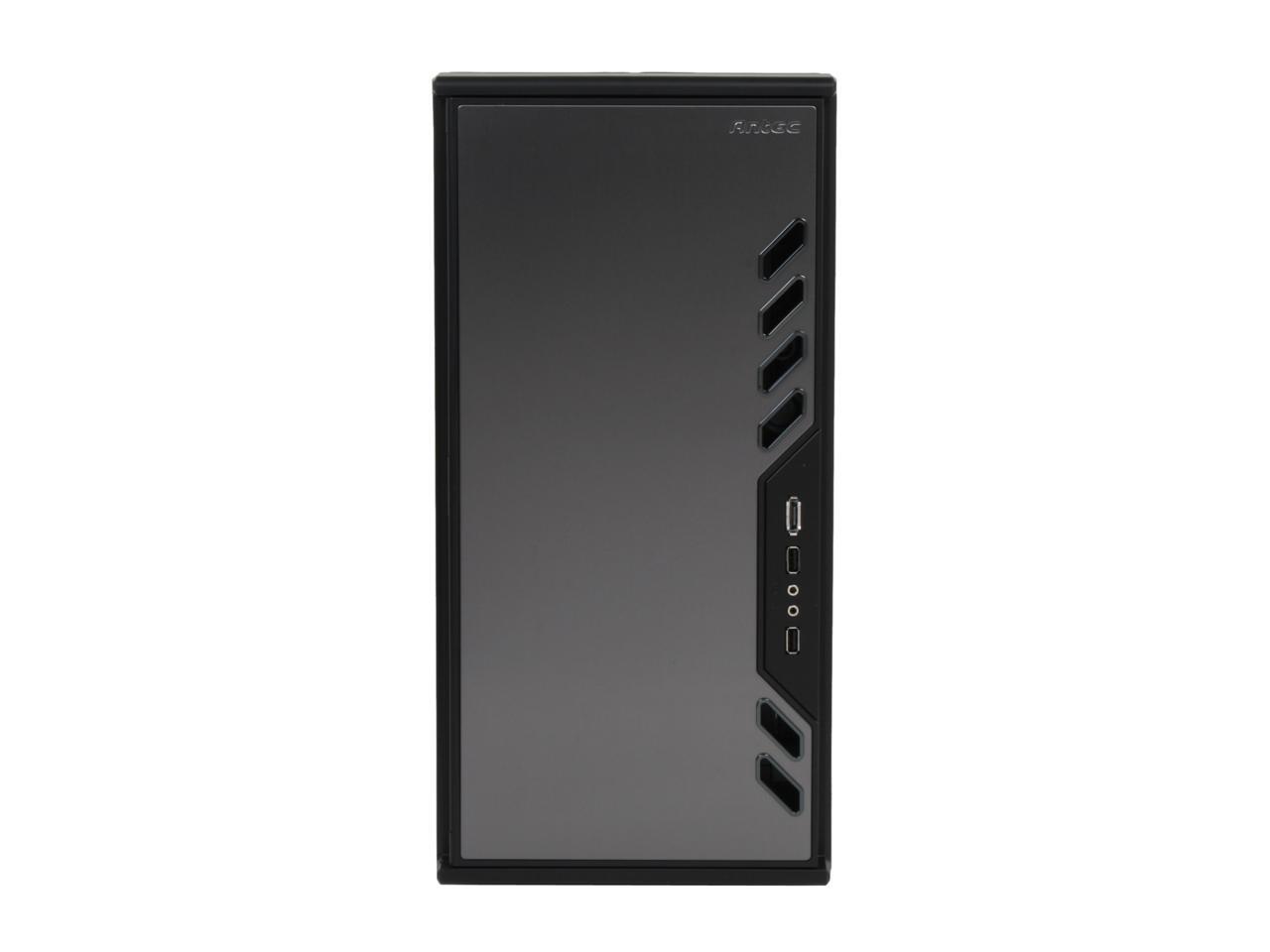

Convenient Front I/O PanelThe Antec Mini P180 features a convenient front I/O panel for easy access to two USB 2.0, one eSATA and two audio ports.
Learn more about the Antec Mini P180
Model
Brand
Antec
Model
Mini P180
Details
Type
Micro ATX Mini Tower
Color
Black
Case Material
Steel
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Mini-ITX, microATX
Side Panel Window
No
Expansion
External 5.25" Drive Bays
3
External 3.5" Drive Bays
1
Internal 3.5" Drive Bays
5
Expansion Slots
4
Front Panel Ports
Front Ports
USB / Audio / e-SATA
Cooling System
120mm Fans
1 x 120mm rear fan
200mm Fans
1 x 200mm top fan
Dimensions & Weight
Dimensions (H x W x D)
17.20" x 8.30" x 17.10"
Weight
20.9 lbs.
Additional Info
Features
Unique upper and lower chamber structure: the power supply resides in a separate chamber to isolate heat from the system and lower system noise.
Stylish black interior
No power supply included: to optimize the performance of your Mini P180, your choice of power supply is crucial. Antec strongly recommends choosing from our Signature or TruePower series.
Configurable to accomodate graphics cards with full length PCBs
Cable organization for added convenience and better airflow
Innovative three-layer side panel (aluminum, plastic, aluminum) dampens system generated noise, making this one of the quietest cases available
Maximum video card size: 13"/330mm (Note: some video cards may require removal of the adjacent hard drive cage)
Double hinge door designed to open up to 270°
0.8mm cold rolled steel for durability through the majority of chassis
