Question 1

What power supply would you recommend with this box?

Accepted Answer

I'm using a Rosewill ARC M650 supply, which appears to be standard depth. The bay looks like it could accomodate a supply that's a good inch and a half longer than this one is, if that's what you're going for.

The Rosewill supply was a pleasant surprise - quiet at light load and it won't be the loudest fan in your system when everything's going full blast. This is for an LGA 1150 Haswell system - things may be different for one that consumes more power.

Question 2

What are the dimensions of this case? H W D?

Accepted Answer

Just measured mine and I got H - 17.5", W - 7.5", D - 19.5".

Question 3

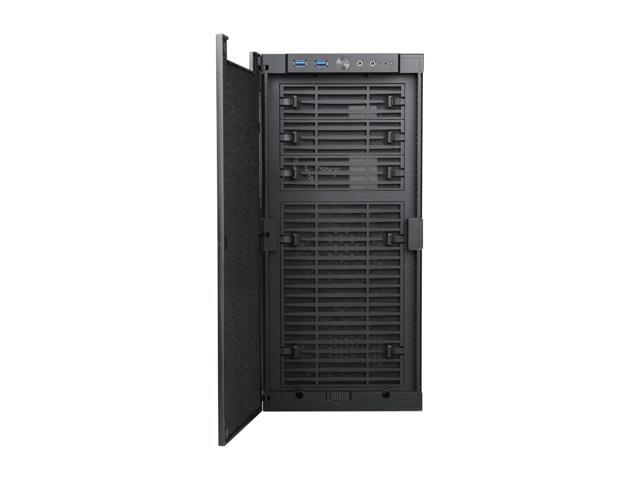

How do I connect the front fans?

Accepted Answer

That is a problem with this case that I ran into to. The big old 4 pin connectors can be used and connected directly to the power supply, but I choose to just buy a couple of new quitter fans with 3 pin connectors that would connect directly to the motherboard. Make sure the power cables on the fan are long enough (read the specs).

Question 4

I can't figure out how to connect them. There is a molex connector coming from the front somewhere, but it won't fit on my new EVGA 650G power supply. There are a couple of other wires that are in front also, but they are too short to connect to the motherboard.
Can somebody please help?

Accepted Answer

Hello, Thank you for contacting us with your question. We apologize that we are unable to provide you with direct technical assistance; however, we recommend visiting our online community forum. www.eggxpert.com. At EggXpert you can chat with someone who may assist you with your question. Hope this information is helpful. Have an Eggcellent Day! Newegg.com

Model	Legacy QT01-S
Type	ATX Mid Tower
Color	Silver / Black
Case Material	SGCC Steel Panel: ABS / Aluminum Alloy
With Power Supply	No
Motherboard Compatibility	Micro ATX / ATX / ITX / U-ATX
With Side Panel Window	No
External 5.25" Drive Bays	3
Internal 3.5" Drive Bays	4
Internal 2.5" Drive Bays	5
Expansion Slots	7

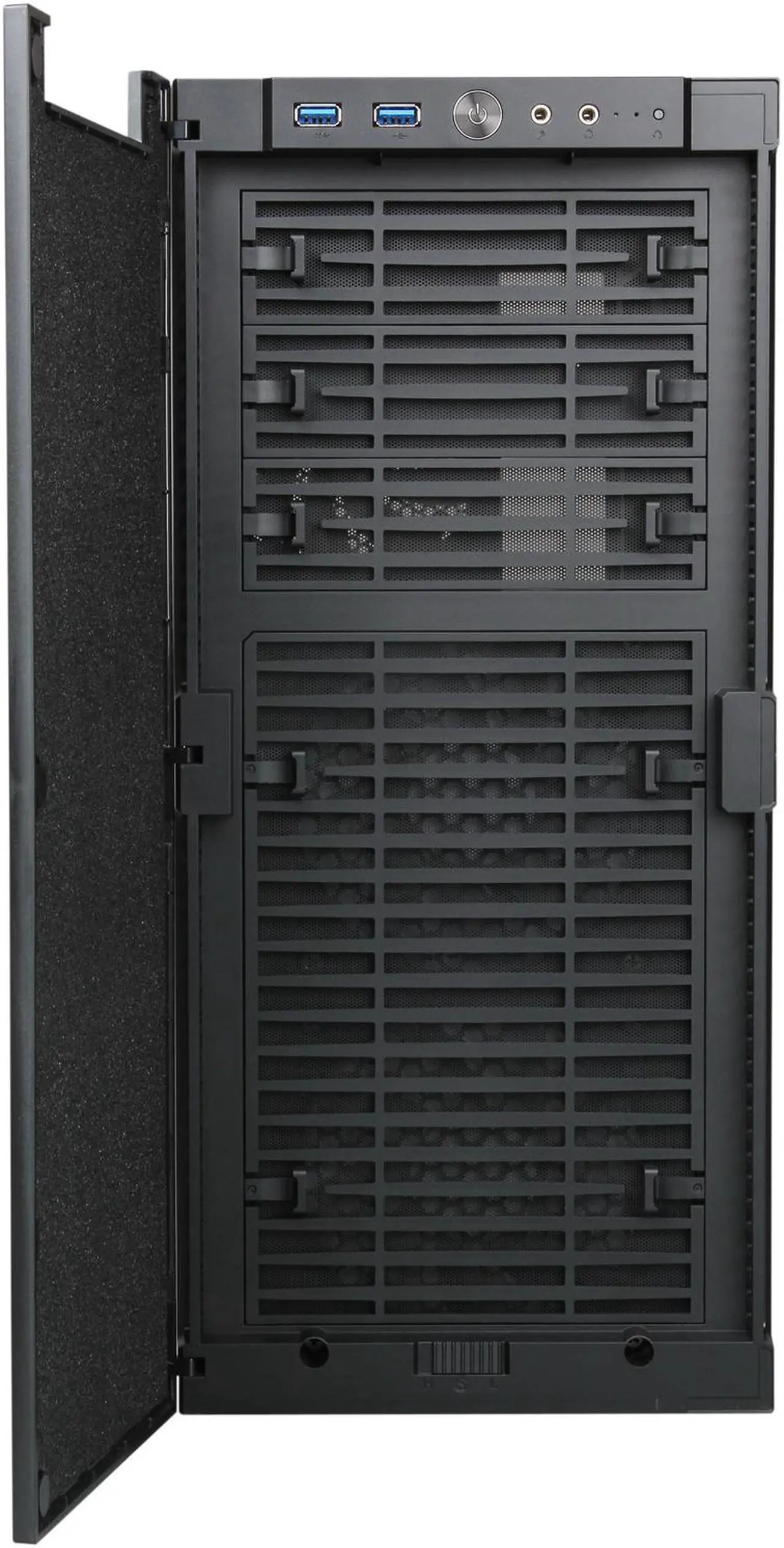

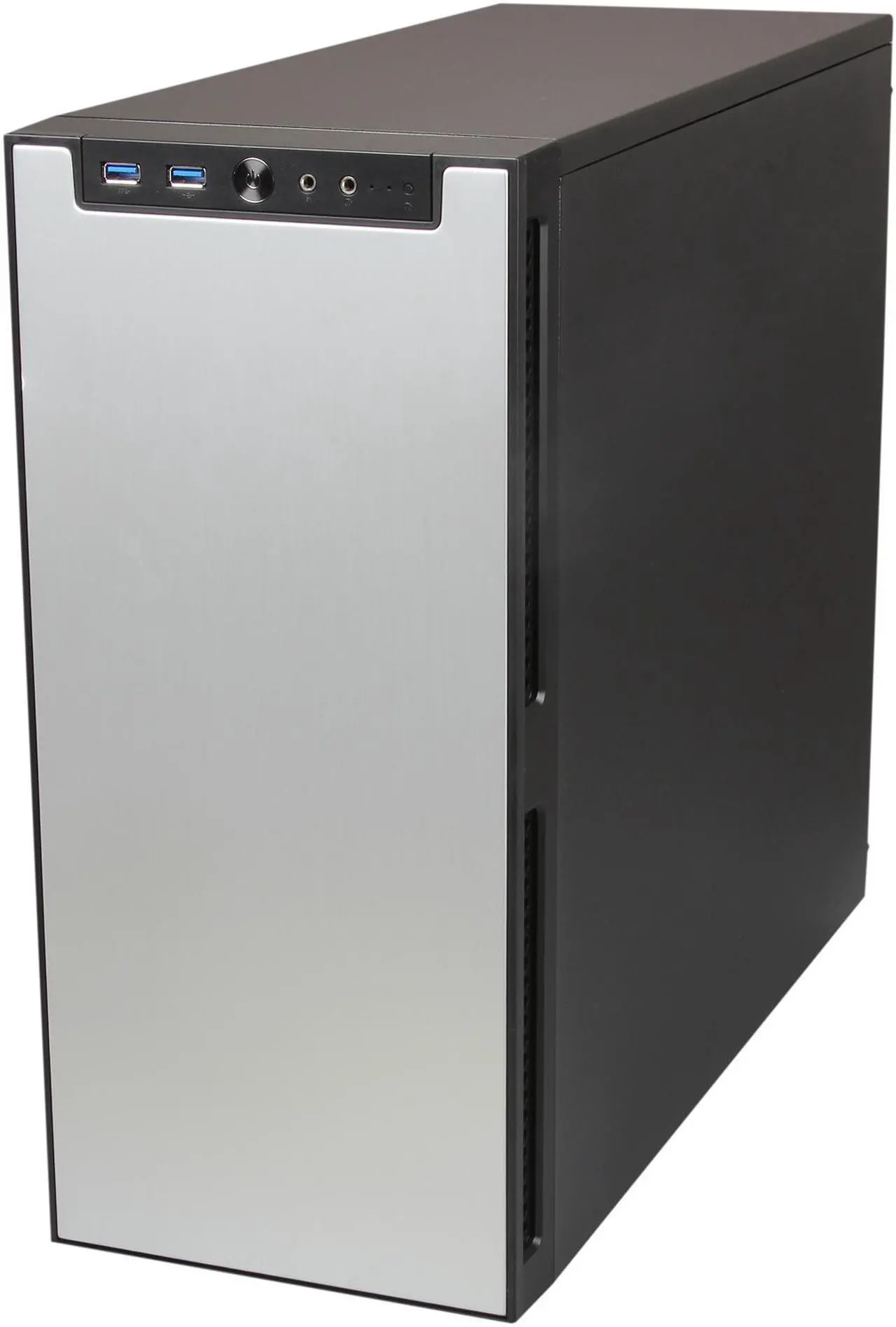

Front Ports	2 x USB 3.0 Port, Audio In/Out
120mm Fans	2 x Front 120mm Fan (Built-in) 1 x Rear 120mm Fan (Built-in)
Side Air duct	No
Dimensions (W x D x H)	7.68 x 19.69 x 17.52" 195 x 500 x 445mm
Weight	17.64lbs (8.0kg)

Brand	Rosewill
Model	Legacy QT01-S

Type	ATX Mid Tower
Color	Silver
Case Material	SGCC Steel Panel: ABS / Aluminum Alloy
With Power Supply	No
Motherboard Compatibility	Micro ATX / ATX / ITX / U-ATX
Side Panel	without Side Window

External 5.25" Drive Bays	3
Internal 3.5" Drive Bays	4
Internal 2.5" Drive Bays	5
Expansion Slots	7

120mm Fans	2 x Front 120mm Fan 1 x Rear 120mm Fan
Side Air duct	No

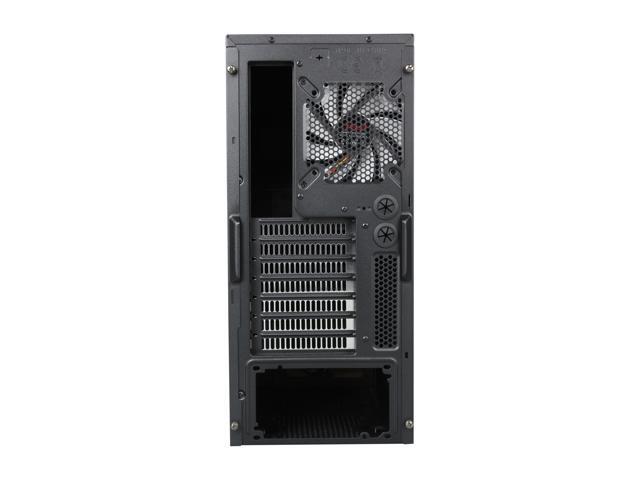

Rosewill Legacy QT01-S - Tri-Fan, Silver Aluminum Alloy ATX Mid Tower Silent Computer Case

Specifications

Details

Learn more about the Rosewill Legacy QT01-S

Customer Reviews of the Rosewill Legacy QT01-S

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Dimensions & Weight
Dimensions	17.52" x 7.68" x 19.69"
Weight	17.64 lbs.
