Do the 3.5 inch bays contain screw holes for 2.5 inch drives?

They do not have screw holes or spacing for 2.5 inch drives. I buy the 3.5" to 2.5" hdd\sdd hard drive kit to mount the ssd drive.

Hi. Does this case has an indicator light for hard drive activity or power? Thanks in advance for you answer.

There is no light for HDD activity, but the circle around the power button does glow blue when the unit is on.

What is the technique for taking off the front panel? I read it's possible but I'm having trouble doing it in a way that won't break it. Just trying to install a fan in the front mount point

T remove the front bezel, you will need to first pull the bottom out. Do this firmly yet with care that you don't pull too hard. There are wires attaching the power, usb and audio connectors that could be pulled out. Yes it is scary because it needs to be forcefully pulled away. It is a tighter fit than one would expect.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 5 wish lists)

Sold by Newegg

Shipped by Newegg

Get Educated

Make informed decisions with expert advice. Learn More

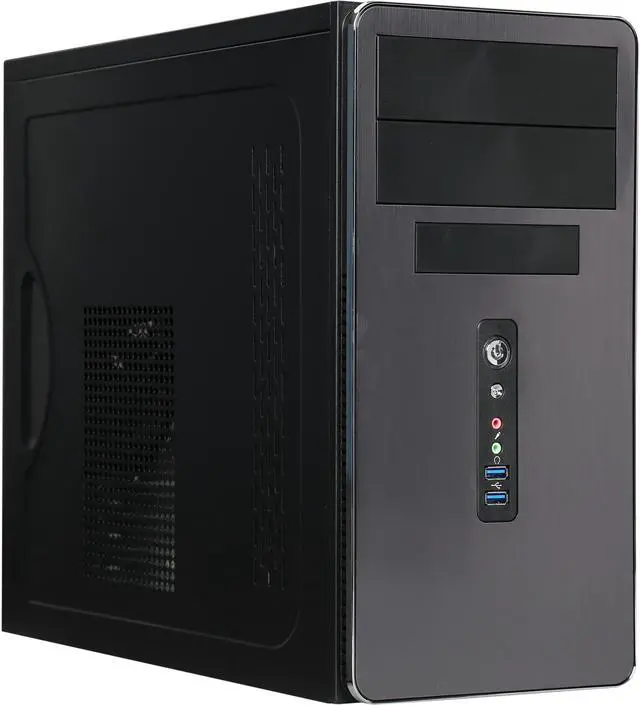

Main image of ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

100%

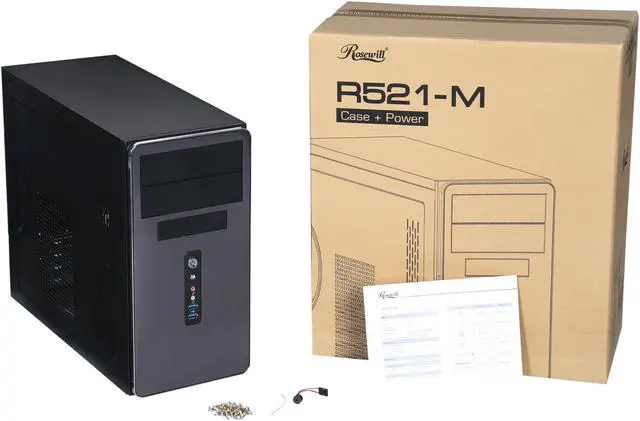

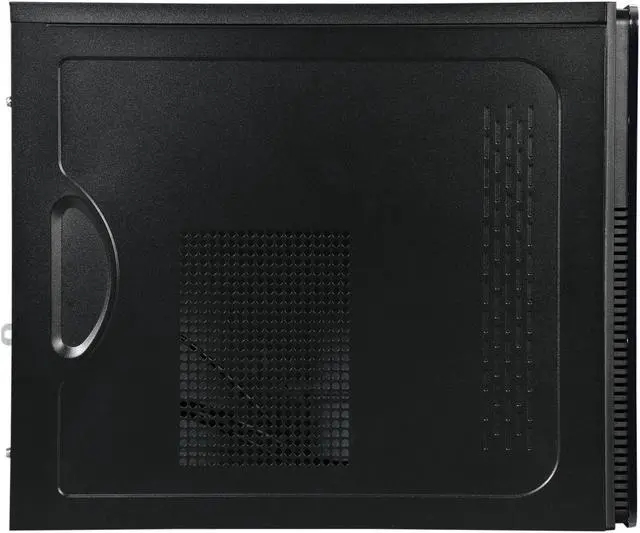

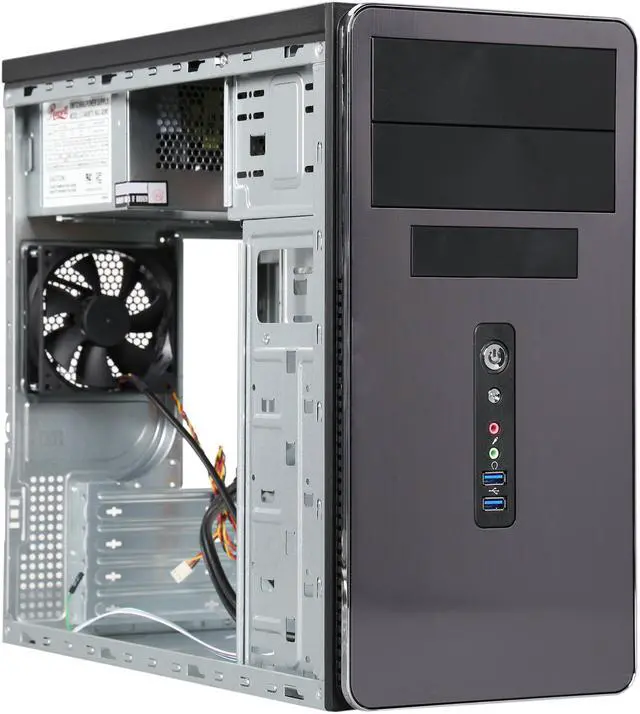

Alt view image 2 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 3 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 4 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 5 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 6 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 7 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 8 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

Alt view image 9 of 9 - ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

360^°

Shop All Rosewill Products

ROSEWILL, Aesthetic Finish, 90mm Fan pre-installed, Mini Tower Computer Case with 400W Power Supply - R521-M

(24) Write a Review

Micro ATX Mini Tower Computer Case
Stylish Aluminum-Look Front Panel
2 x USB 3.0 Ports
1 x 90mm Fan (pre-installed)
400W Power Supply Included
Compatible with Micro-ATX / Mini ATX Motherboard

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (24)

Any questions? Our AI beta will help you find out quickly.

Try me now

Rosewill R521-M Mini Tower Computer Case

The Rosewill R521-M Mini Tower Computer Case is a stylish, durable, rich-featured Mini Tower with great affordability. It comes packed with all essential features, like excellent expandability, effective cooling performance, a reliable power supply etc., letting you easily build your own rig.

Superb Scalability

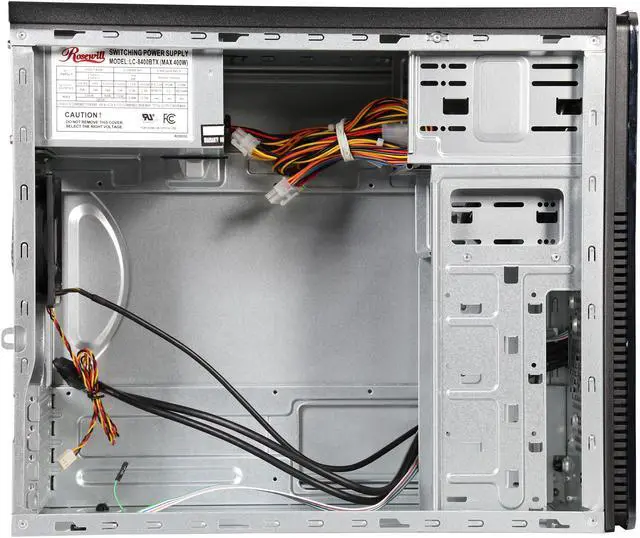

Though small in size, the Rosewill R521-M Mini Tower Case offers ample interior room to accommodate your PC components, like a Micro-ATX or Mini-ITX motherboard, a long graphics card etc. It also offers up to five internal 3.5” drive bays, two external 5.25” drive bays, and one 3.5” external drive bays, as well as four expansion slots for great expandability.

Cooling Performance

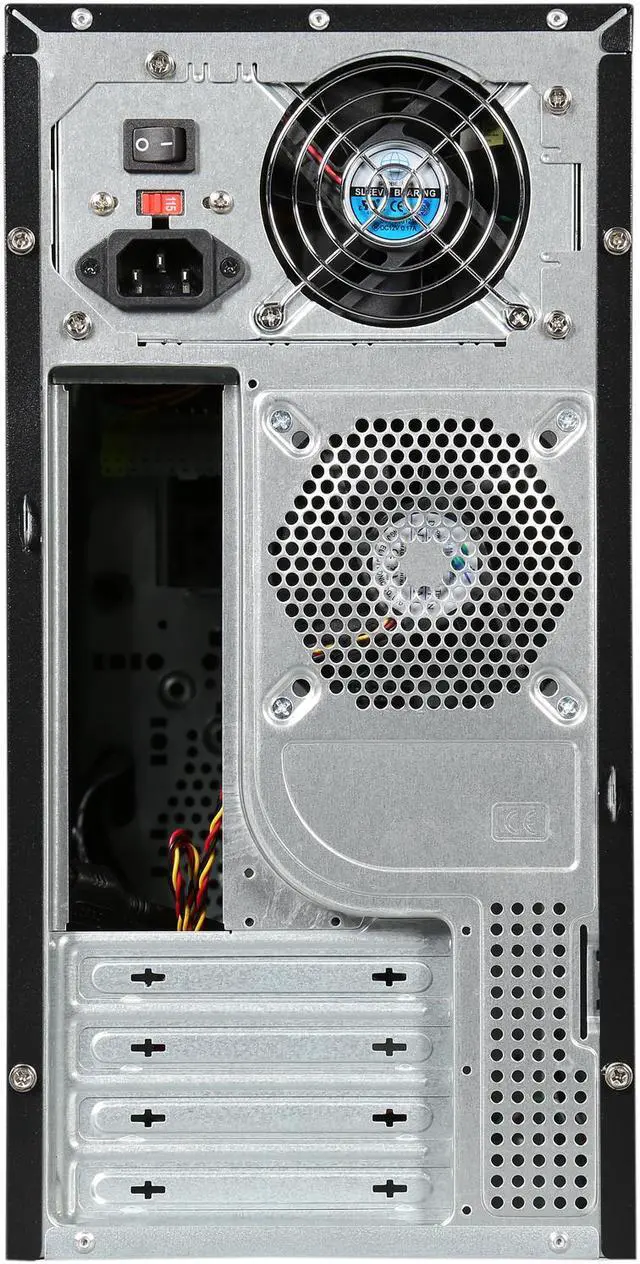

Keep your system running cool. The Rosewill R521-M is preinstalled one 90 mm fan at rear panel. One fan slot on the front panel allows you to install one additional 120 mm or 80 mm fan.

Reliable Power Supply

The included 400W switching power supply offers pure, stable power to all your components with amazing power efficiency. The clever fan design allows for little or no detectable fan noise during regular operation.

Durability and Aesthetics

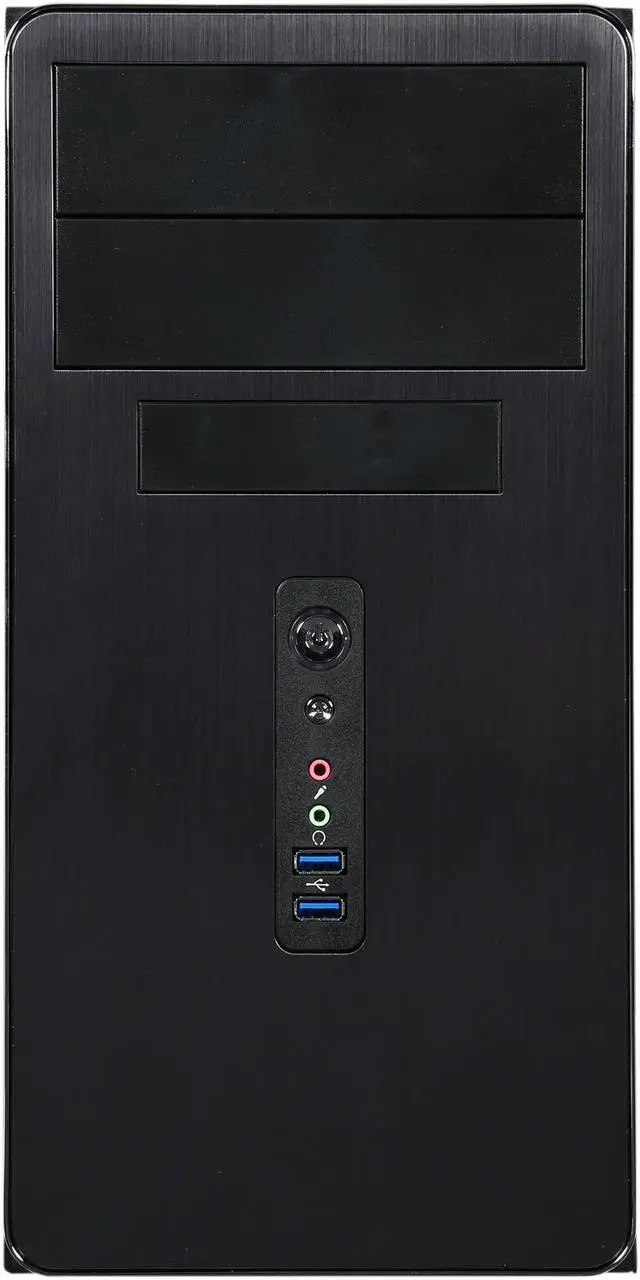

The Rosewill R521-M is constructed of premium steel material for long-lasting durability. The stylish aluminum-look front panel gives it an attractive look while giving you an easy, quick access to two SuperSpeed USB 3.0 ports and two audio jacks.

Model
Brand	Rosewill
Model	R521-M

Details
Type	Micro ATX Mini Tower
Color	Black
Case Material	Steel
With Power Supply	400W
Power Supply	400W (model: LC-8400BTX, UL / FCC approved)
Motherboard Compatibility	Micro ATX / Mini-ITX
Side Panel Window	No

Expansion
External 5.25" Drive Bays	2
External 3.5" Drive Bays	1
Internal 3.5" Drive Bays	5
Expansion Slots	4

Front Panel Ports
Front Ports	2 x USB 3.0 / Audio

Cooling System
Fan Options	Front: 1 x 120mm or 1 x 80mm fan Rear: 1 x 90mm fan (pre-installed)
120mm Fans	No
Side Air duct	No

Dimensions & Weight
Max GPU Length	250 mm
Max CPU Cooler Height	140 mm
Dimensions (H x W x D)	14.25" x 7.00" x 17.20"
Weight	11.95 lbs.

Additional Info
Features	Ideal for Intel & AMD Systems Stylish Aluminum-Look Front Panel 1 x 90mm Rear Fan 1 x 120mm / 80mm Front Fan (optional) Front I/O Ports (2 x USB 3.0, Audio In / Out) Padlock Loop TAC 2.0 Compliant Power Supply: - Proprietary IC & Unique Design - Embedded thermal Sensor - Low-Noise Fan - Various Safety Protection: OCP (over-current) OVP (over-voltage) OPP (over-power) SCP (short-circuit) UVP (under-voltage) -Connector: 1 x 20+4 pin MB Connector 1 x 4 pin P4 Connector 2 x SATA Connector 2 x Peripheral Power Connector 1 x Floppy Power Connector -Output: MAX 400W +3.3 V: 20 A +5 V: 14 A +12 V 1: 14 A +12 V 2: 13 A -12 V: 0.3 A 5 VSB: 2.5 A

Additional Information
First Listed on Newegg	June 25, 2015

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy. Read full return policy for details.
