Logisys CS6501H 1.2MM Steel 4U Rackmount Server Case

Overview
Specs
Reviews (5)
avatar

Any questions? Our AI beta will help you find out quickly.

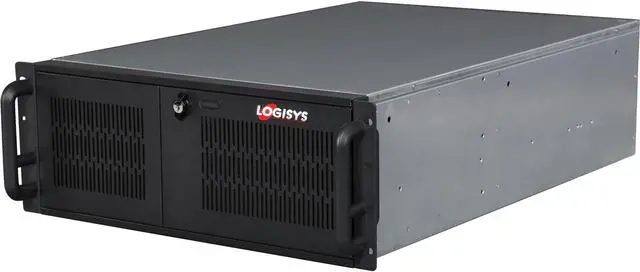

Logisys CS6501H 1.2MM Steel 4U Rackmount Server Case

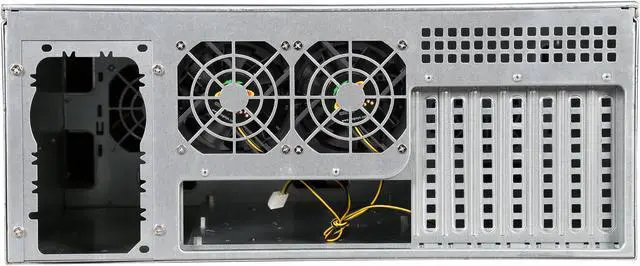

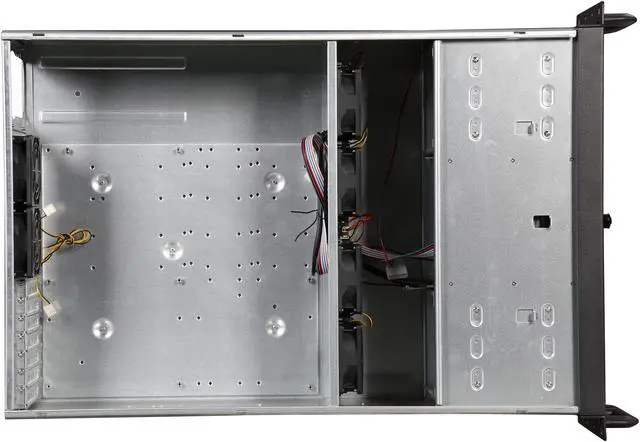

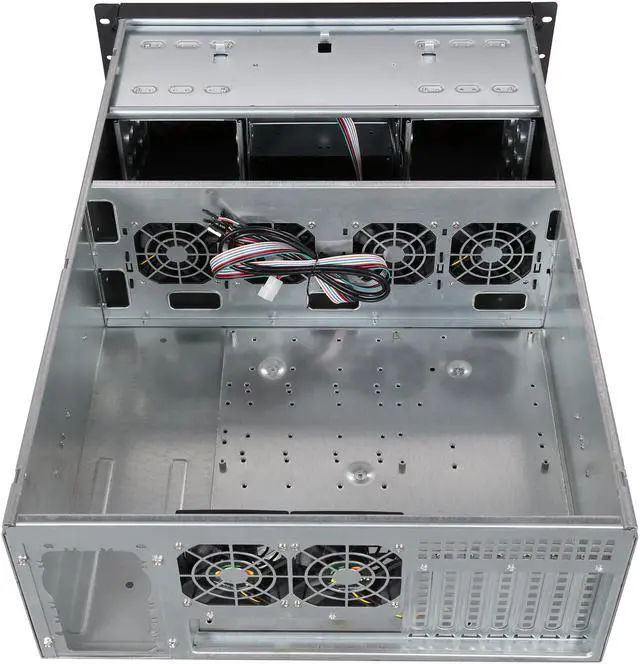

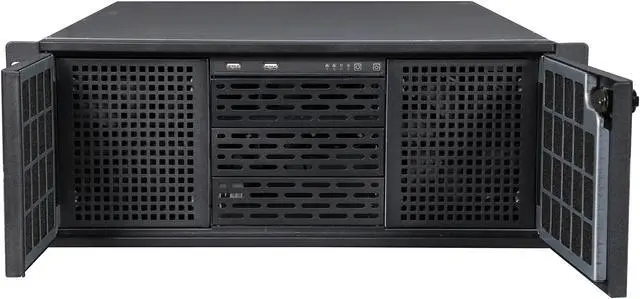

This is a full-size 4U industrial rack mount case, built with heavy duty 1.2mm metal sheet. It is one of the largest 4U cases you can find on the market! With ample space inside, it supports most of the ATX, Baby ATX and Micro ATX sizes of motherboards up to 12" x 13". Two 120mm large size fans mounted in each side of the HDD trays to cool off the hard drives installed. There are four fans installed in the middle and two additional fans mounted in the back of the case to circulate the air inside. There are two doors with meshed design and air filters. A lock with keys is installed to protect access to your computer!

Logisys
  • Strong and solid with 1.2mm Sheet Metal
  • Superior Expandability with 10 - 11 Drive Bays
  • Efficient Ventilation – six 80mm Fans and two 120mm Fan
  • Front USB 2.0 Access

Specifications


Logisys
  • Chassis Type: Rackmount
  • Color: Front black, body is SGCC
  • Case Material: 1.2mm Steel
  • Motherboard Compatibility: Up to 12" x 13" ATX
  • Form Factor: 4U
  • Drive Expansion: 2 x External 5.25" Drive Bays
  • 10 - 11 x Internal 3.5" Drive Bays
  • Expansion Slots: 7
  • Front Ports: 2 Front Access USBs
  • Cooling System: 4 x 80mm Fans (middle) + 2 x 120mm Fans (front) + 2 x 80mm Fans (back)
  • Unit Dimensions (L x W x H): 25.5 x 16.9 x 6.9 in. (650 x 430 x 177mm)
  • Package Dimensions (L x W x H): 33.2 x 21.6 x 9.4 in. (845 x 550 x 240mm)

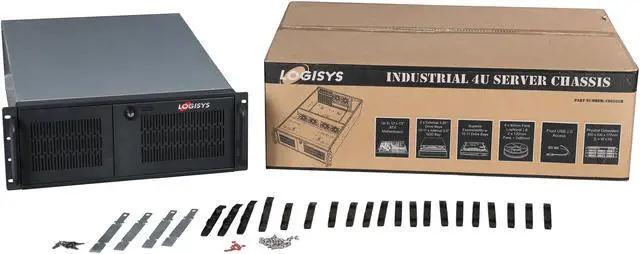

What's in the Box

Logisys

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
