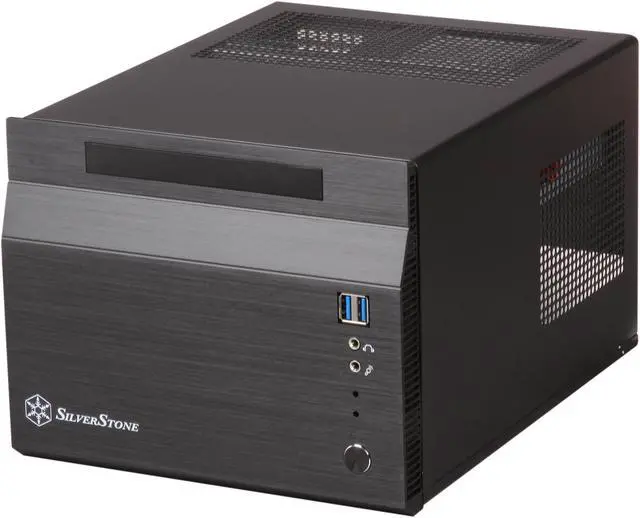

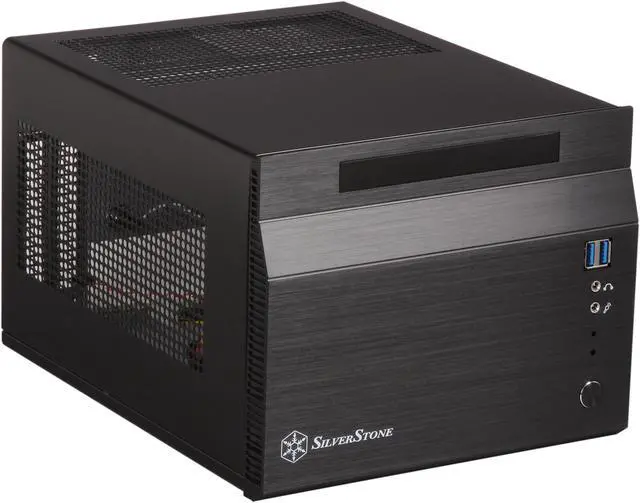

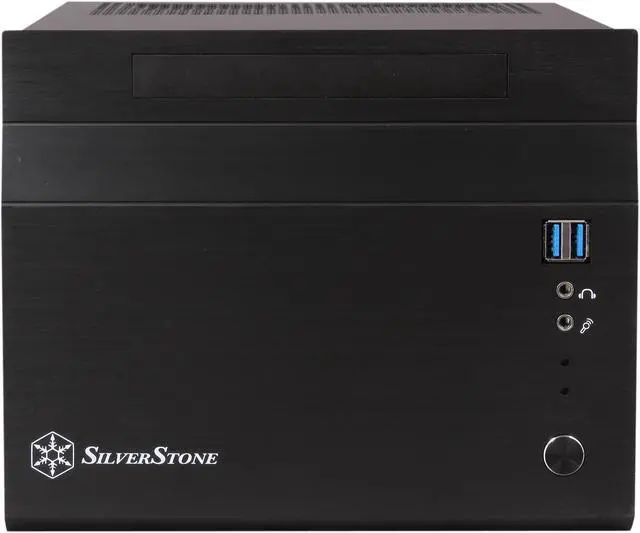

Designed for use with Mini-DTX and Mini-ITX motherboards, the SG06, like the SG05, is the smallest Sugo yet. Compared with Micro-ATX iterations at around 1400 cubic inches (23 liters) in volume, the SG06 at 675 cubic inches (11.1 liters) is less than half the size! In keeping with the spirit of its Sugo name, the case is capable of swallowing many standard components while keeping everything cooled. The SG06 is equipped with a low-speed 120mm fan that utilizes dimpled blades for exceptionally quiet airflow. As in the SG05, the fan is mounted in the front, drawing air into the case to create positive air pressure cooling.

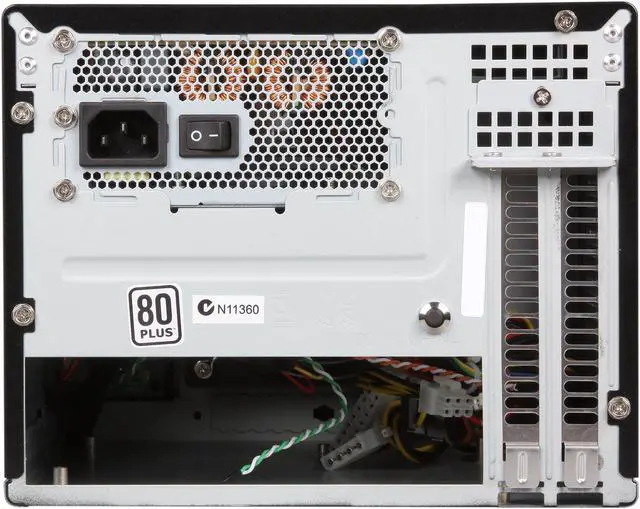

Other notable features shared with the SG05 include the ability to accept 10-inch long graphics cards, room for thicker 2.5-inch hard drives such as Western Digital's VelociRaptor, full-height for retail boxed CPU coolers, and an 80 PLUS certified SFX 300W power supply tuned by SilverStone for improved quietness and performance (300W continuous rated at 122°F (50°C)). For building a fast PC in the smallest possible form factor and with great styling, there is nothing better than the SG06.
- | +3.3V | +5V | +12V1 | +12V2 | +12V3 | +12V4 | +5VSB | -12V | -5V |
Max. (Amps) | 20A | 22A | 14A | 16A | - | - | 2.5A | 0.5A | - |
Peak (Amps) | - | - | 19A | 19A | - | - | 3A | - | - |
Min. (Amps) | 0.5A | 0.5A | 1A | 1A | - | - | 0A | 0A | - |
Range (%) | ±5% | ±5% | ±5% | ±5% | - | - | ±5% | ±10% | - |
Ripple (mVp-p) | 70mV | 70mV | 140mV | 140mV | - | - | 70mV | 70mV | - |
