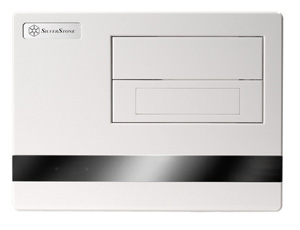

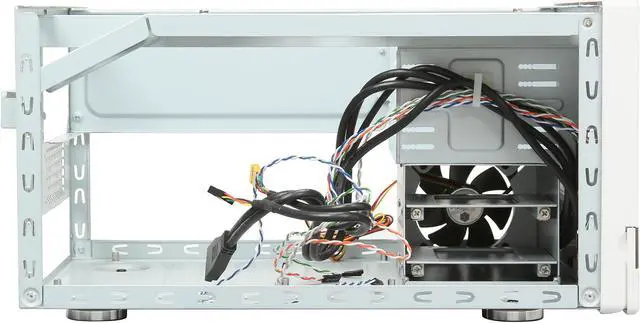

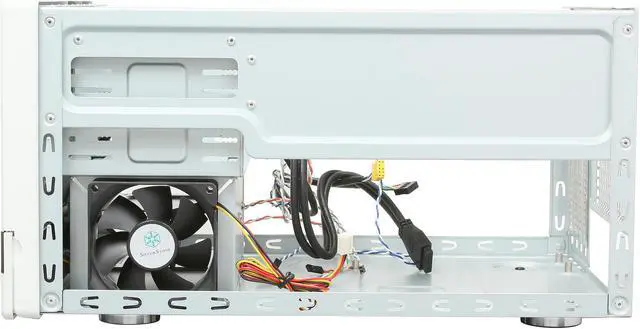

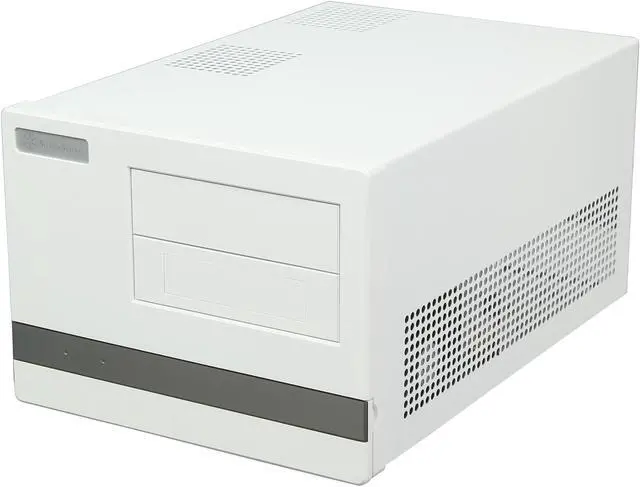

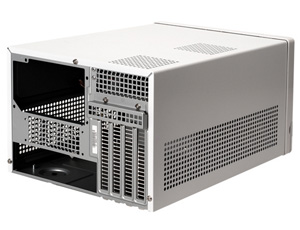

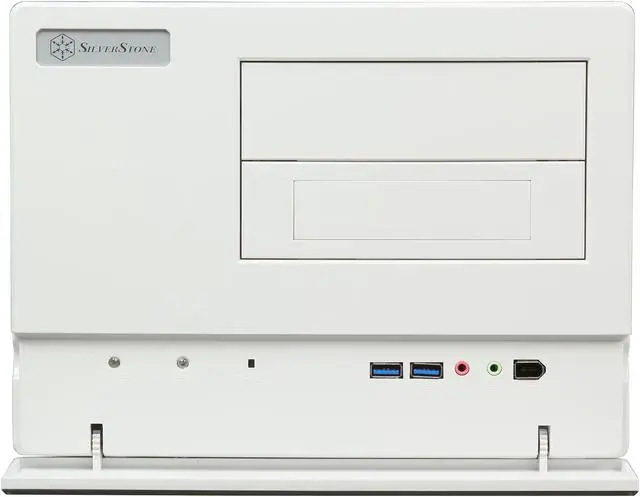

The SG02F, as the successor to the SG02 is an evolutionary step forward in both performance and the capabilities over the original Sugo chassis, the SG01. With the case now capable of handling even more powerful graphics cards than ever before, the SilverStone engineers were still able to keep the smaller dimension in tact. Although SG02F's front panel design is unchanged from its predecessor, its styling and function continues to stand out from ordinary SFF designs. The same can also be said of its tried and true chassis layout, which is still capable of accepting larger ATX power supplies or optical drives than other SFF cases available. Built based on a brand new steel structure, the SG02F is sure to please potential builders looking for primarily silent applications.




| Model No. | ||
| SST-SG02W-F-USB3.0 (white) | ||
| Material | ABS & acrylic front panel, SECC body | |
| Motherboard | Micro-ATX | |
| Multimedia | -- | |
| External 5.25" Drive Bays | 2 | |
| External 3.5" Drive Bays | 3.5" converter x 1 | |
| Internal 3.5" Drive Bays | 2 | |

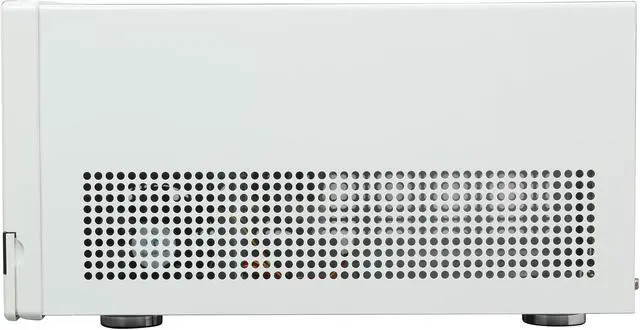

| Cooling System | Rear: 1 x 80mm fan slot, Optional cross-flow fan Side: 1 x 80mm intake fan 2050RPM Option 80mm or 70mm in thickness of 25mm, 15mm or 10mm Top: 1 x 80mm fan slot |
|

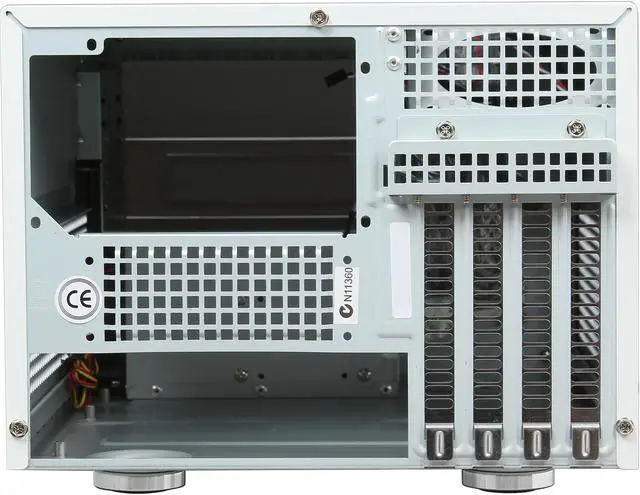

| Expansion Slots | 4 | |
| Front I/O Ports | USB 2.0 x 2 (SST-SG02B-F, SST-SG02W-F only) USB 3.0 x 2 (SST-SG02B-F-USB3.0, SST-SG02W-F-USB3.0 only) IEEE 1394 x 1 Audio x 1 MIC x 1 |
|
| Power Supply | Optional standard PS2(ATX) | |
| Operating System Support | -- | |
| Expansion Card | Full size long cards capable (14.5")*, width restriction: 4.46" | |
| Max. Size CPU Cooler | 82mm | |
| Max. Size PSU | PSU + optical drive / 5.25" device = 370mm | |
| Net Weight | 9lbs (4.1kg) | |
| Dimensions (W x H x D) | 10.6 x 8.3 x 15.5 inches (270 x 212 x 393mm) | |
| Extras | -- | |
| Supports VESA Mount | -- | |
