SilverStone KL05B-W Steel ATX Mid Tower Computer Case Support ATX 12V/EPS Power Supply

OUT OF STOCK.
  • Steel ATX Mid Tower
  • 2 x USB 3.0 / Audio Front Ports
  • Support ATX 12V/EPS Power Supply
  • 2 External 5.25" Drive Bays
  • 6 Internal 3.5" Drive Bays
Overview
Specs
Reviews
INTRODUCTION
SilverStone Kublai KL05 ATX Tower Case

The Kublai KL05 is a high quality ATX tower case designed for enthusiasts with the need for ample liquid cooling and storage space. It has convenient tool-less 5.25" drive bays and highly flexible cages designed to accommodate any combination of 2.5" or 3.5" drives. With a relatively tall and slender profile, it has surprising room for fitting liquid coolers. Not only does it have complete support for 240mm and 280mm radiators on both the top and the front panel, it has numerous paths for tubing, mounting holes for fans, and easily removable filters for an exceptionally cool and clean build. KL05 is offered in two variations depending on front panel design so whether the preference is for a direct intake case with side window or a conservative, quiet build with indirect intake and sound-absorbing foam, there is a model perfectly suited for the intended task.

SPECIAL FEATURES
Kublai
  • Interference-free design for mounting 240mm or 280mm radiator
  • Highly flexible storage accommodation of up to 8 or 11 drives*
  • Quick access filters for easy cleaning
  • Motherboard back plate opening for quick CPU cooler assembly
  • Mesh front panel intake maximizes airflow with side window for viewing system innards (KL05-W)
  • Front-side intake vents with foam padded side panels to minimize noise (KL05-Q)
  • All black painted interior for stylish look
  • *Requires purchase of additional drive cage
FEATURE PHOTOS
Kublai

Interference-free design for mounting 240mm or 280mm radiator

Kublai

Highly flexible storage accommodation of up to 8 or 11 drives (Requires purchase of additional drive cage)

Kublai

Fan filter for power supply intake area

Kublai

Motherboard back plate opening for quick CPU cooler assembly

Kublai

Front-side intake vents with foam padded side panels to minimize noise (KL05-Q)

Kublai

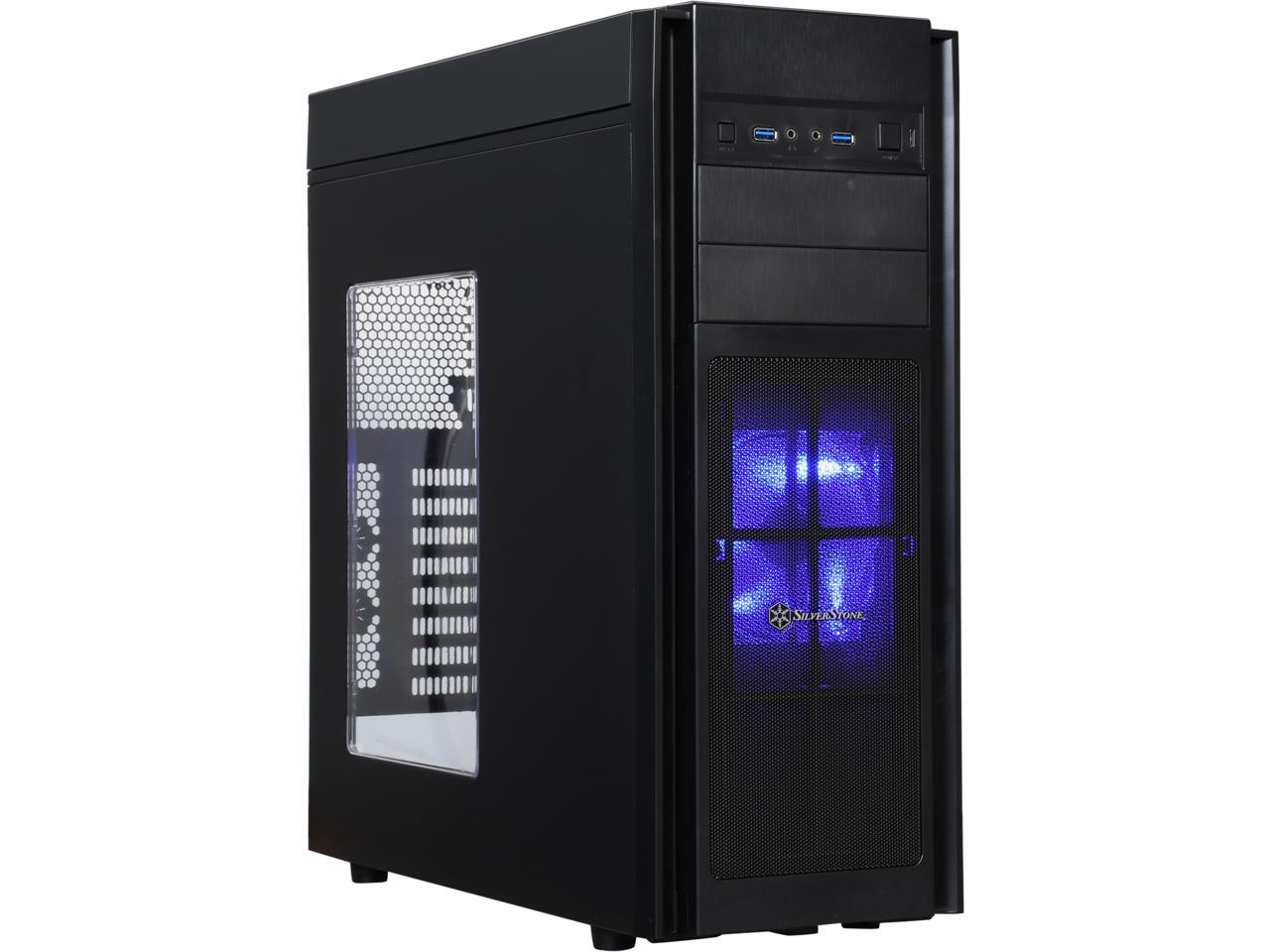

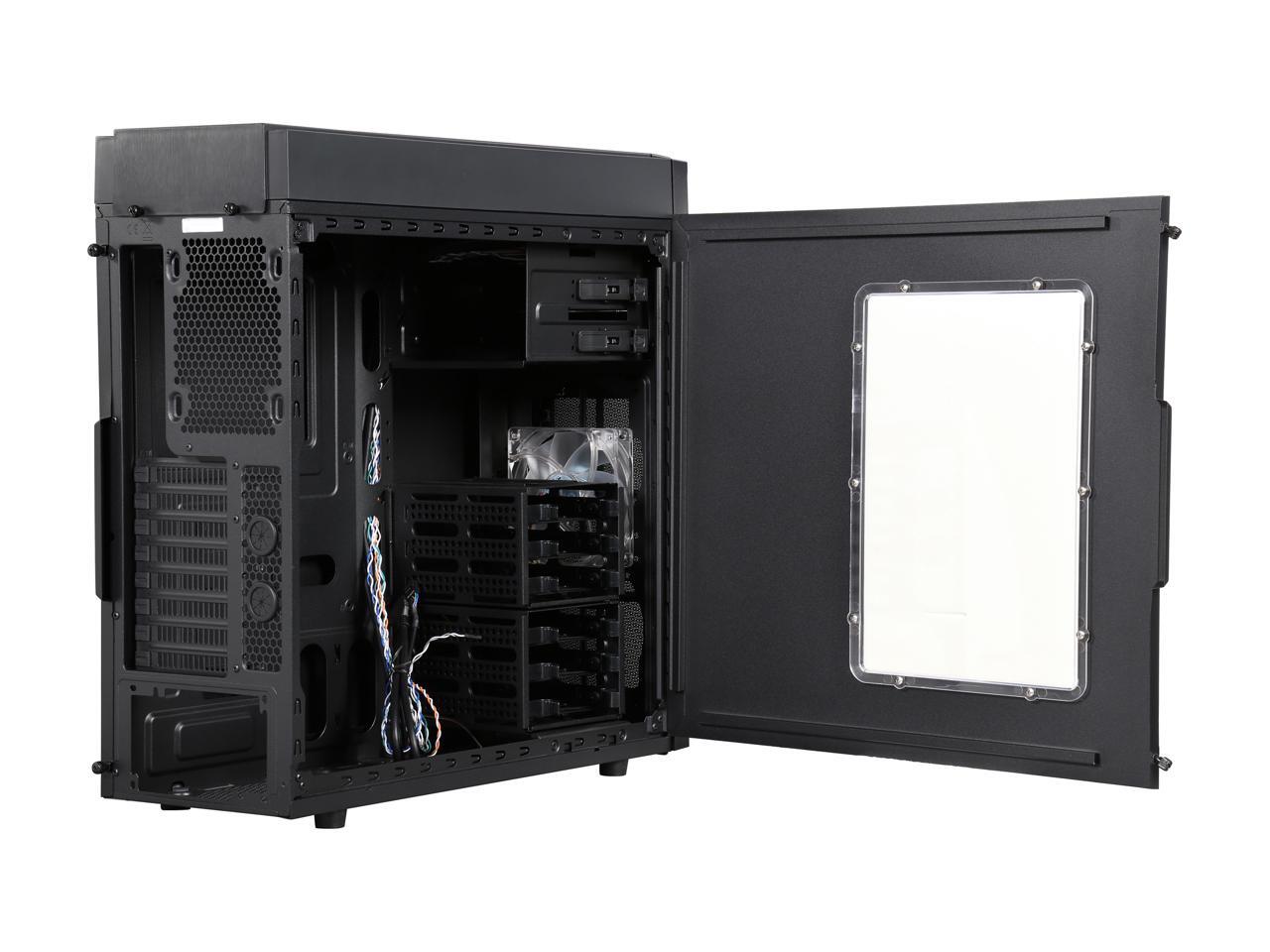

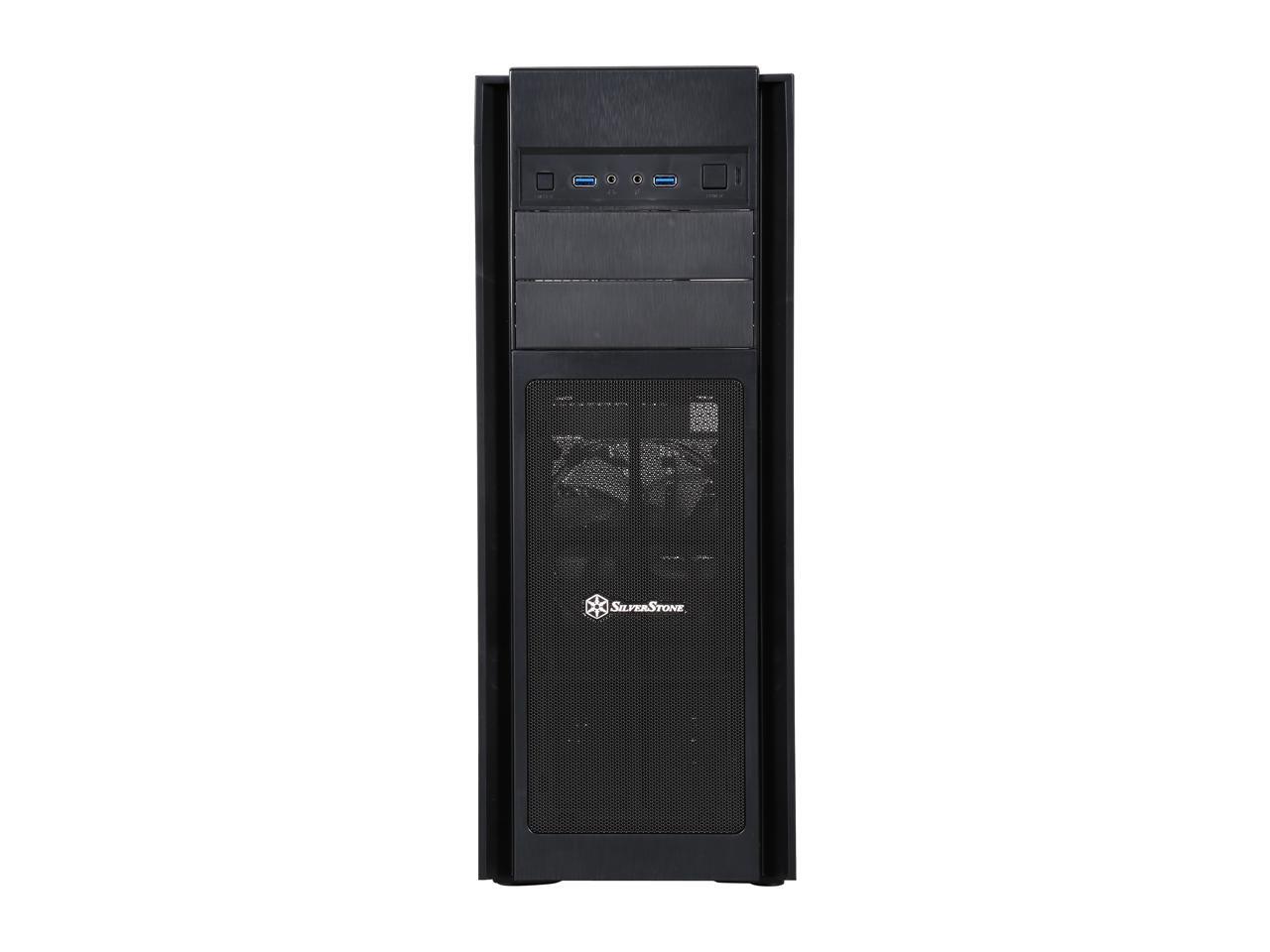

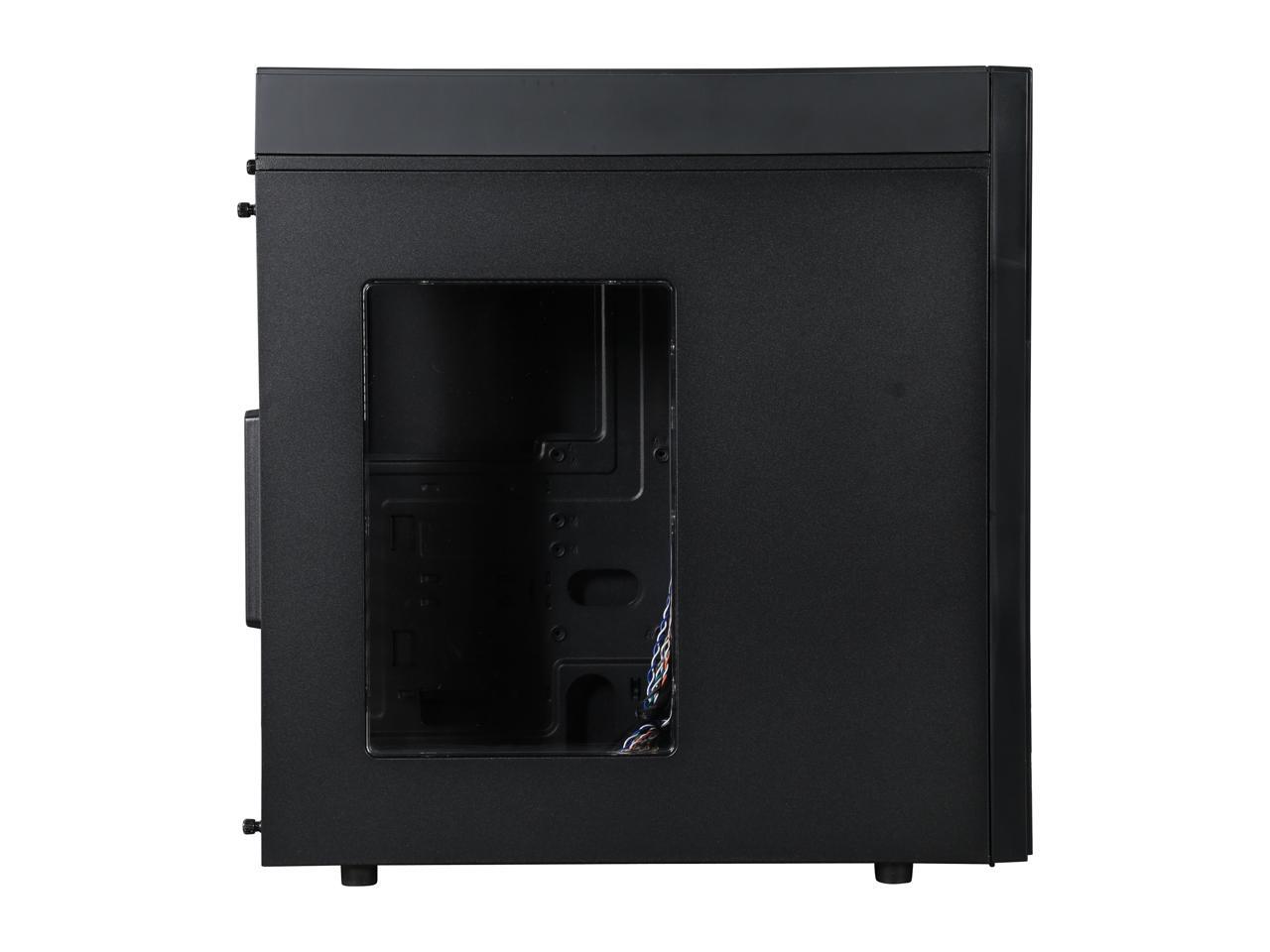

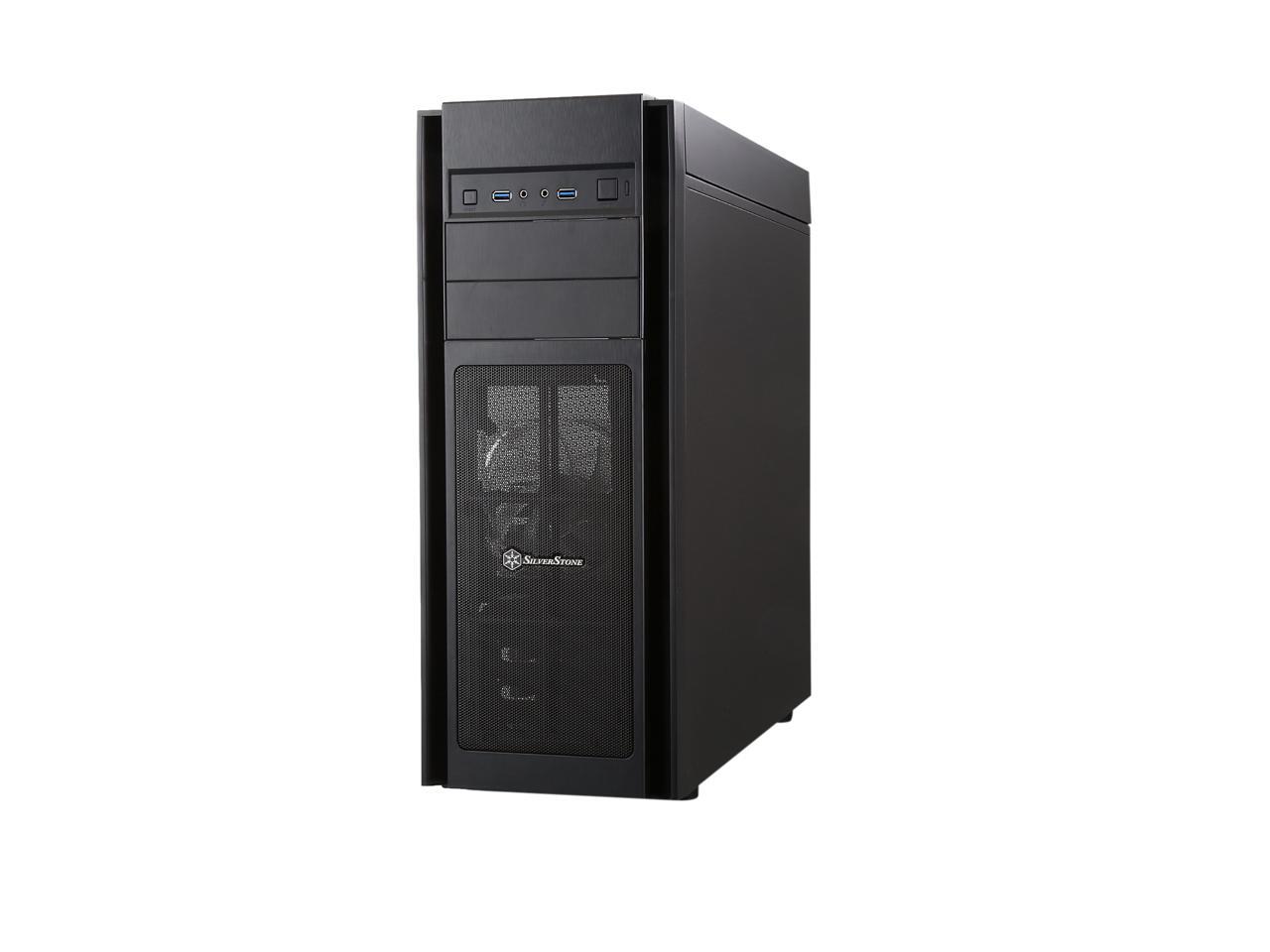

Mesh front panel intake maximizes airflow with side window for viewing system innards (KL05-W)

Kublai

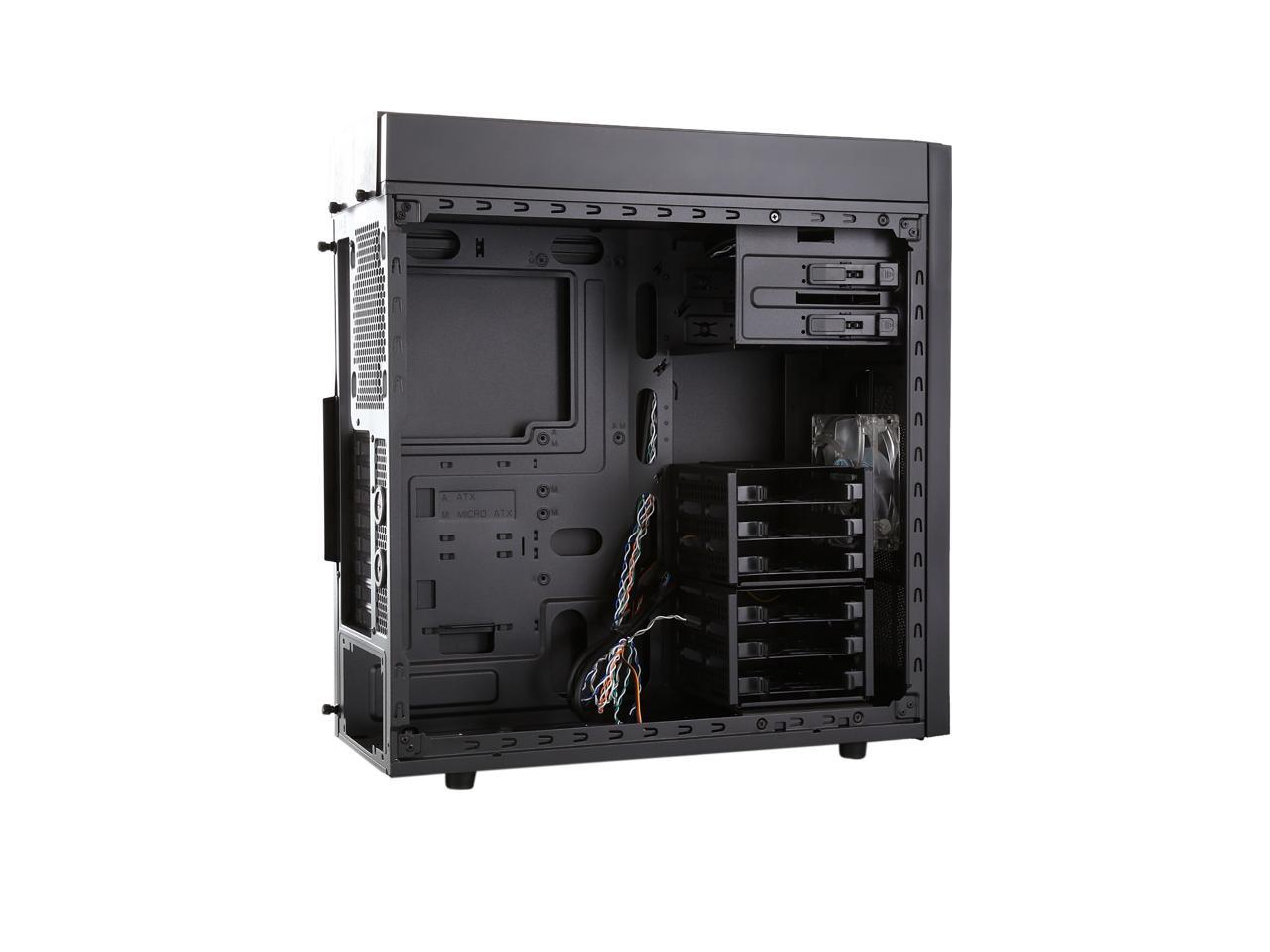

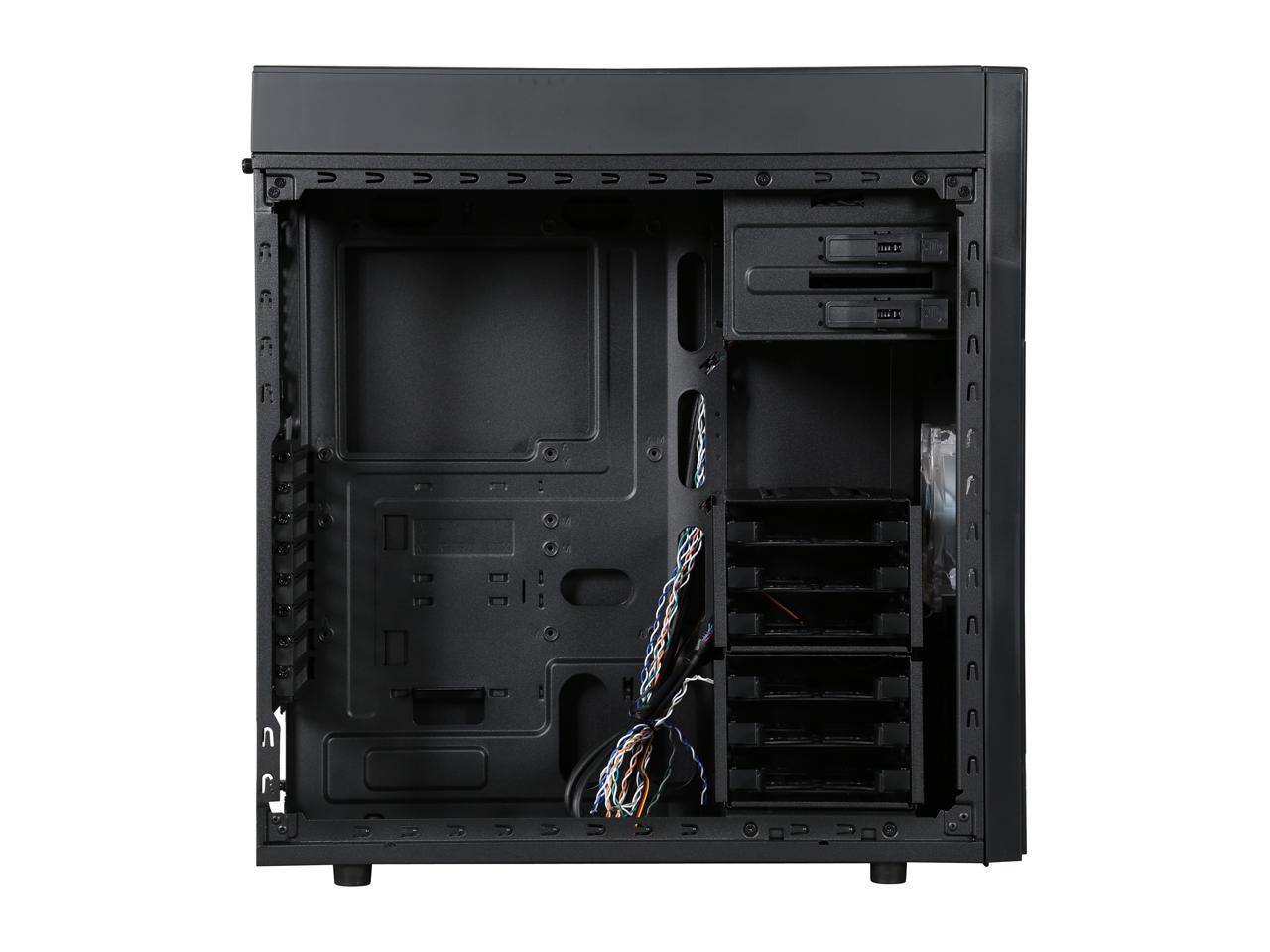

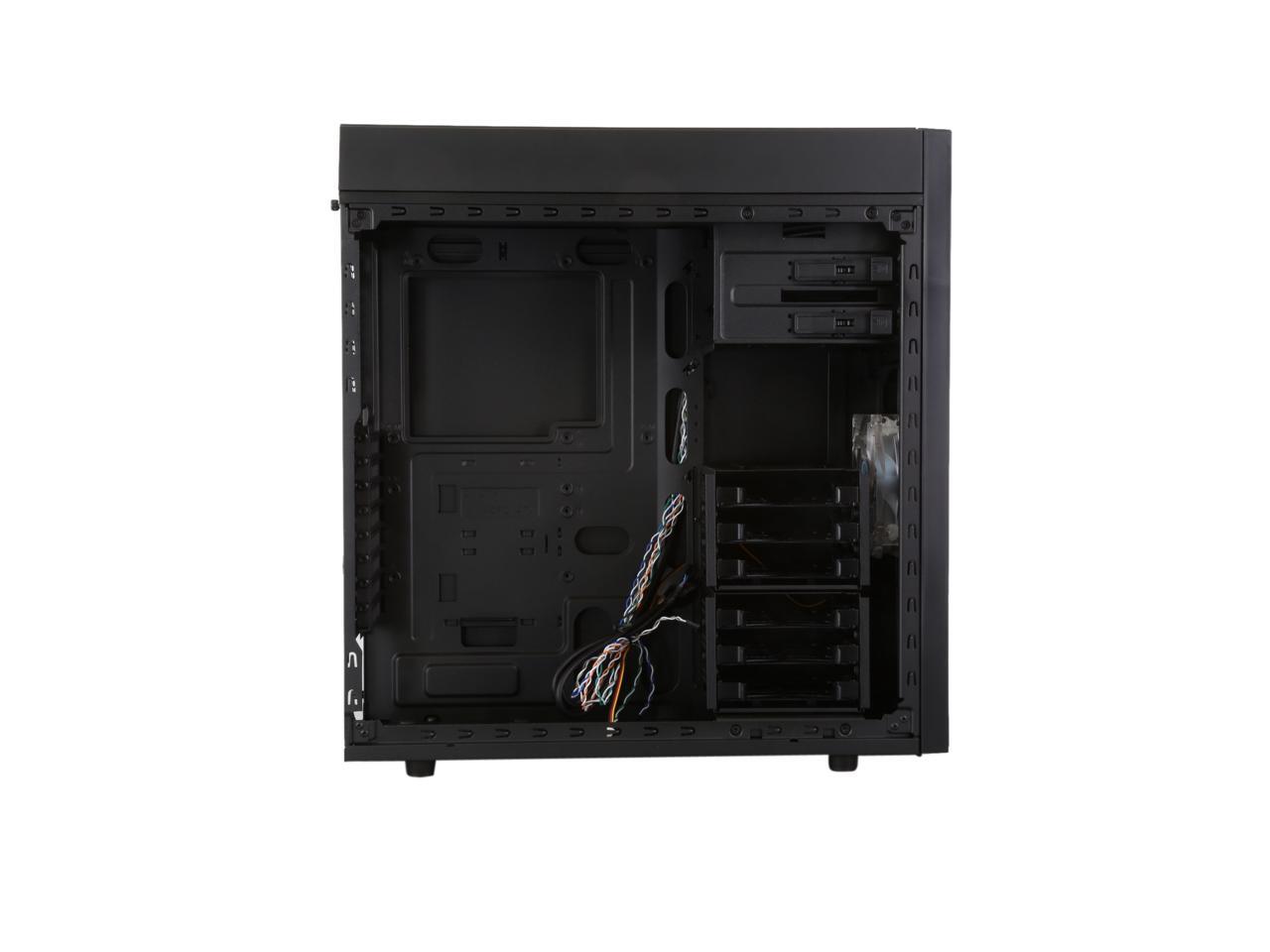

All black painted interior for stylish look

  1. 2 x 120mm / 140mm Fan slot
  2. Interference-free design for mounting 240mm or 280mm radiator
  3. 120mm Fan slot
  4. Motherboard tray cut-out for CPU cooler backplates
  5. Eight expansion slots accommodates top-end graphics card up to 16" long
  6. Two 2.5" SSD/HDD slots on the backplate
  7. I/O ports include microphone, audio, and two USB 3.0 ports
  8. Two 5.25" drive bay space with tool-less locks
  9. 1 x 120mm intake fan included (KL05B-Q)
    1 x 120mm intake LED fan included (KL05B-W)
  10. Front-side intake vents with foam padded side panels to minimize noise (KL05B-Q)
    Mesh front panel intake maximizes airflow with side window for viewing system innards (KL05-W)

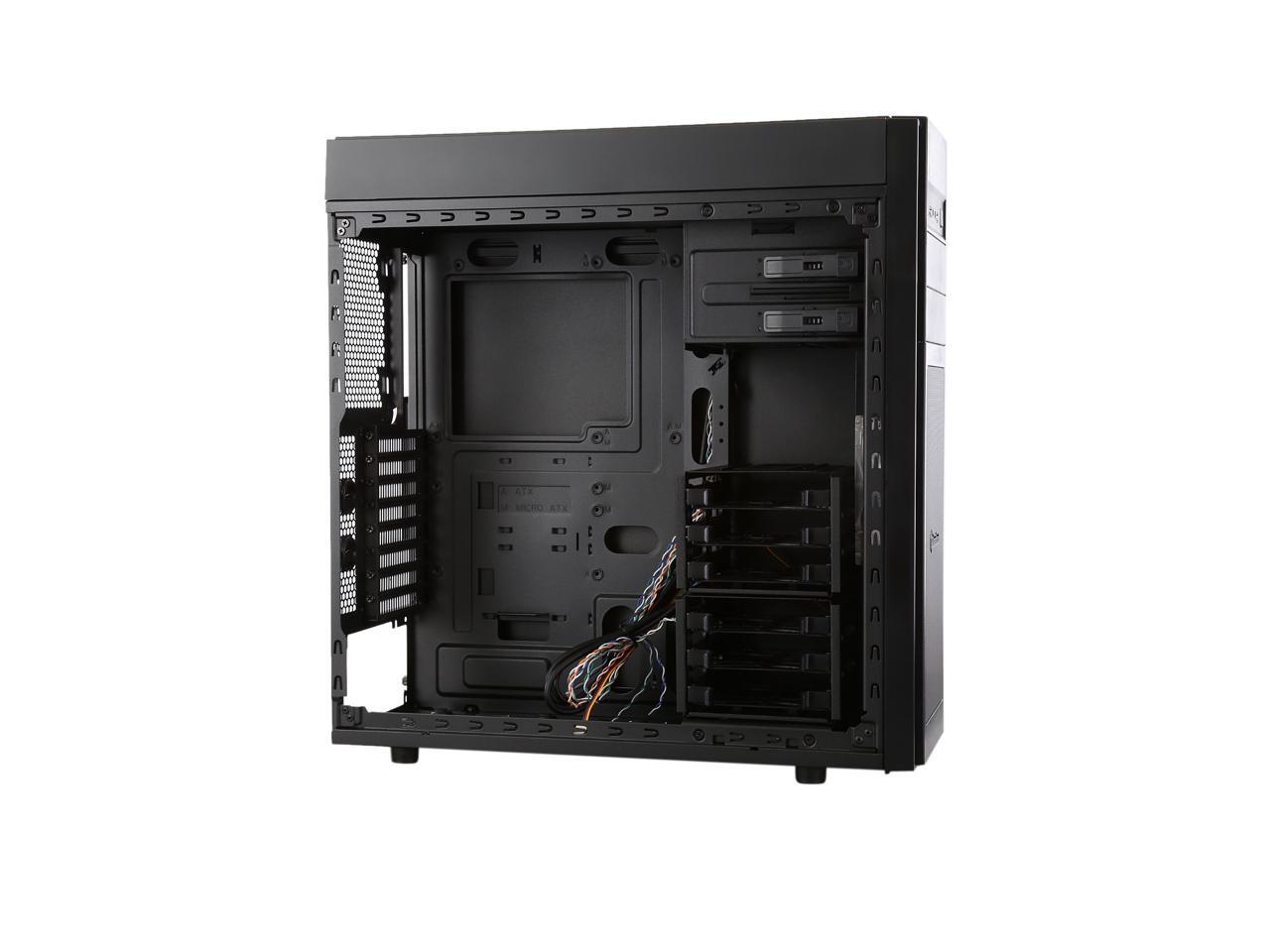

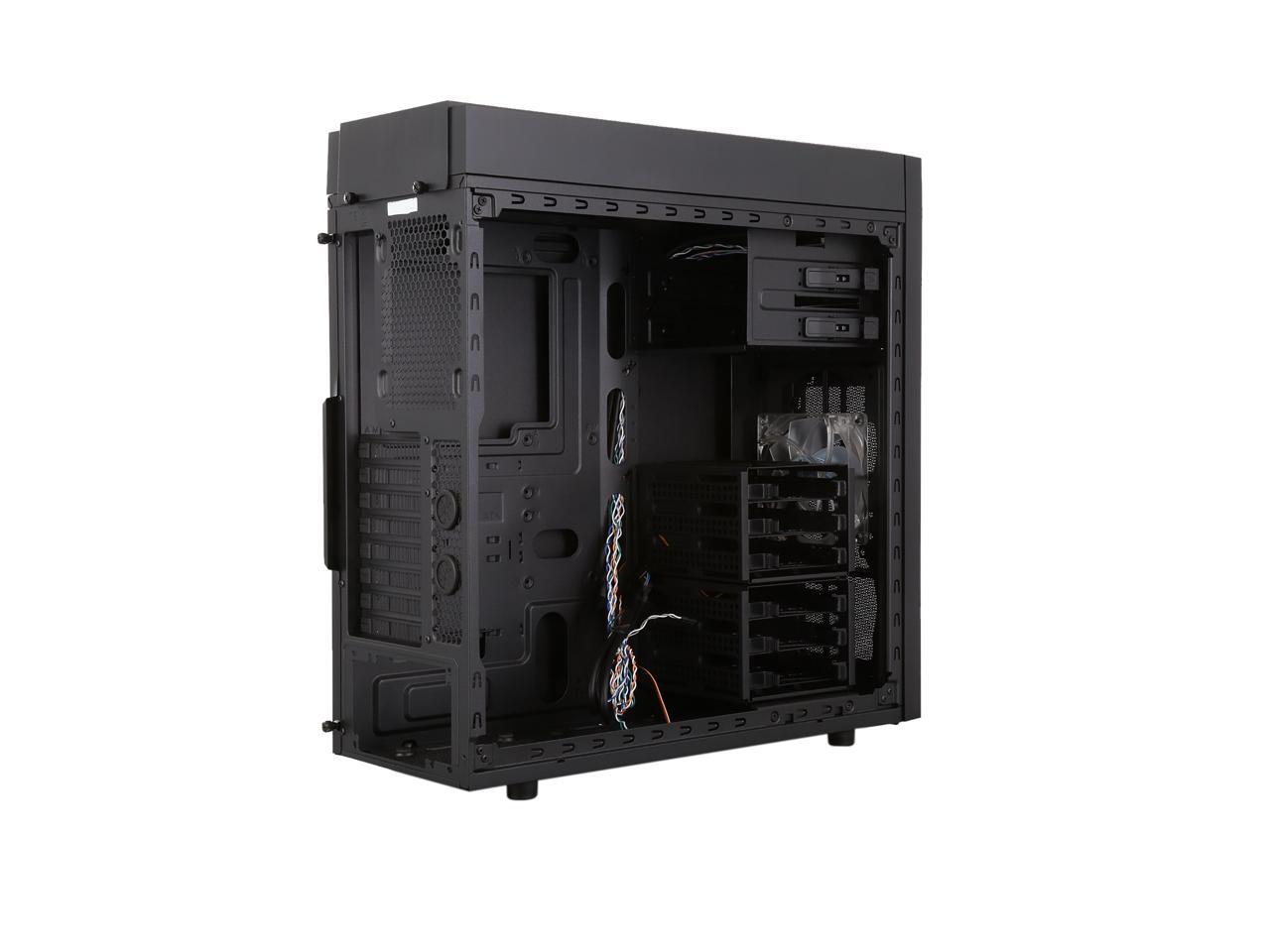

  11. Six highly flexible cages designed to accommodate any combination of 2.5" or 3.5" drives
  12. Fan filter for power supply intake area
SPECIFICATIONS
Model No. SST-KL05B-W
SST-KL05B-Q
Material Mesh front panel, steel body (SST-KL05B-W)
Plastic front panel, steel body (SST-KL05B-Q)
Motherboard ATX, Micro-ATX
Drive Bay External 5.25" x 2
--
Internal 3.5" x 6 or 2.5" x 6 , 2.5" x 2
Cooling System Front 2 x 120mm/140mm fan slot (1 x 120mm intake fan included)
Rear 120mm fan slot x 1
Side --
Top 120mm / 140mm fan slot x 2
Bottom 120mm fan slot x 2
Internal --
Expansion Slots 8
Front I/O Ports USB 3.0 x 2
Audio x 1
MIC x 1
Power Supply Optional Standard PS2 (ATX)
Expansion Card Compatible up to 16", 11" with optional drive cage (sold separately) installed
Max. Size CPU Cooler 165mm
Max. Size PSU 225mm
Net Weight KL05-Q: 14.9 lbs (6.8Kg) / KL05-W: 15.2 lbs (6.9Kg)

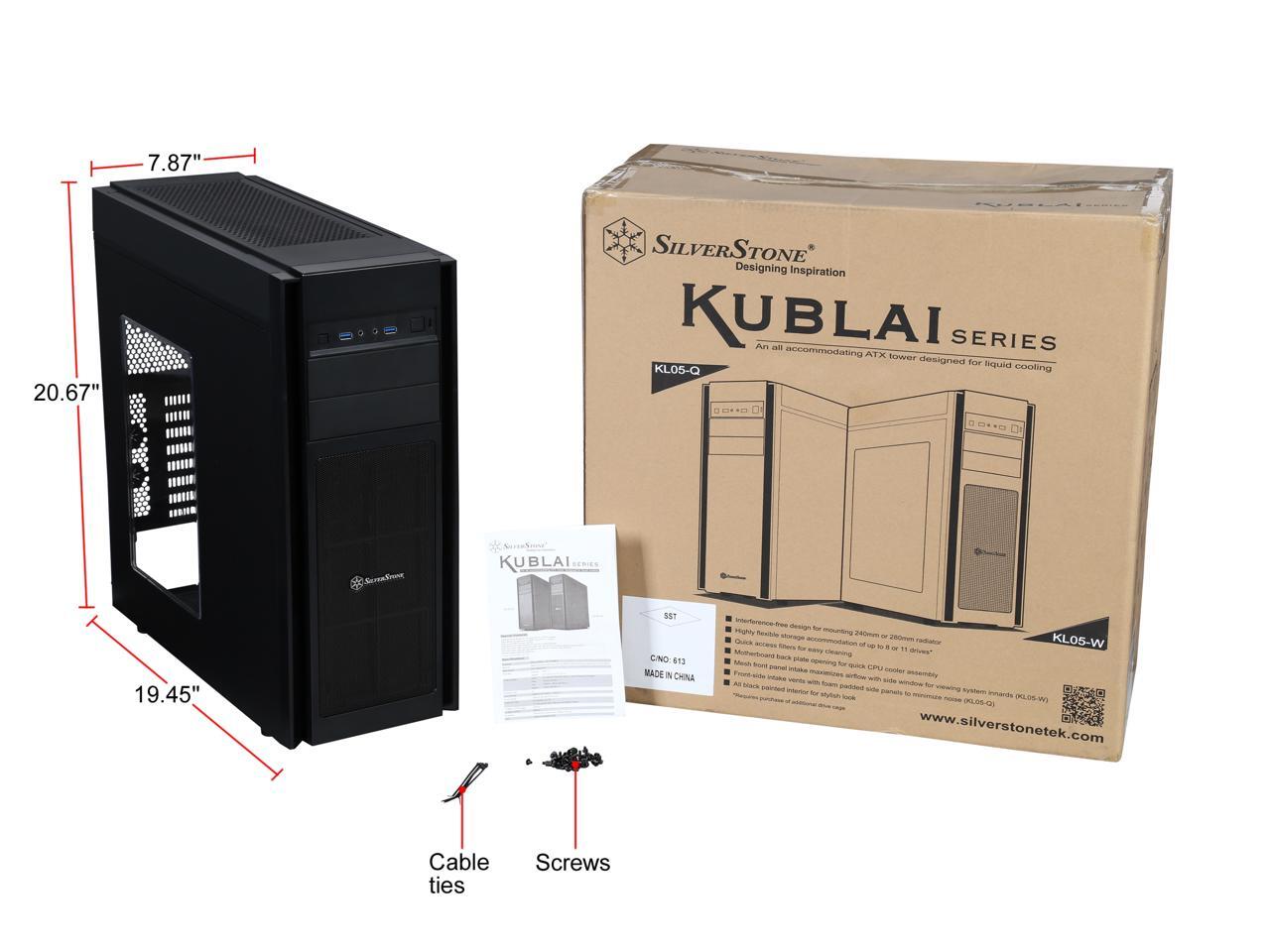

Dimensions (W x H x D) 7.8 x 20.6 x 19.4 inches (200 x 525 x 494mm), 3173.2 cubic inches (52 liters)
Extra Support Kensington locks
GALLERY
Kublai Kublai Kublai Kublai Kublai Kublai Kublai Kublai Kublai Kublai Kublai
