Is the Power Supply bracket height adjustable? (I can't find a user manual)

Yes. The power supply bracket can move to two spots. This gives approximately 1 inch of up and down movement.

Is there enough space in the ASUS Prime Case to fit larger GPUs?

Yes, the ASUS Prime Case supports GPUs up to 338 mm in length.

Is the ASUS Prime Case suitable for AiO/custom style cooling?

Yes, the ASUS Prime Case supports custom liquid cooling as mentioned in its description.

Can this case support ITX/mATX motherboard sizes?

Yes, this case supports Micro ATX and Mini ITX motherboard sizes.

Can I fit an ATX PSU in the ASUS Prime Case?

Yes, the ASUS Prime AP201 case supports ATX PSUs up to 180 mm long.

$89^.99

$94.99

Limit 5 per customer.

Add to PC build list

Make an offer

Price alert

Add to wish list(Found on 10 wish lists)

Sold by Newegg

Shipped by Newegg

Best Sellers

NothingButSavings

Top Rated

4.5 (8,943 total ratings)

$112^.99

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 2 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 3 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 4 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 5 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 6 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 7 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 8 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 9 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 10 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Alt view image 11 of 11 - ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Customer images

Shop All ASUS Products

ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

Name: ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans
Uploaded: 2025-08-31
Description: ASUS Prime AP202 ARGB Black mATX case with fully tempered curved glass, supports graphics cards up to 420mm long, 360mm long radiators, easy-detach rail, patented slot vent, built-in three ARGB fans

(94)(29) Write a Review

Options: AP201 (Tempered Glass, Black)

A21 (White)
A21 (Black)
AP201 (Tempered Glass, White)
AP201 (Tempered Glass, Black)
AP201 (Mesh, White)
AP201 (Mesh, Black)

Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

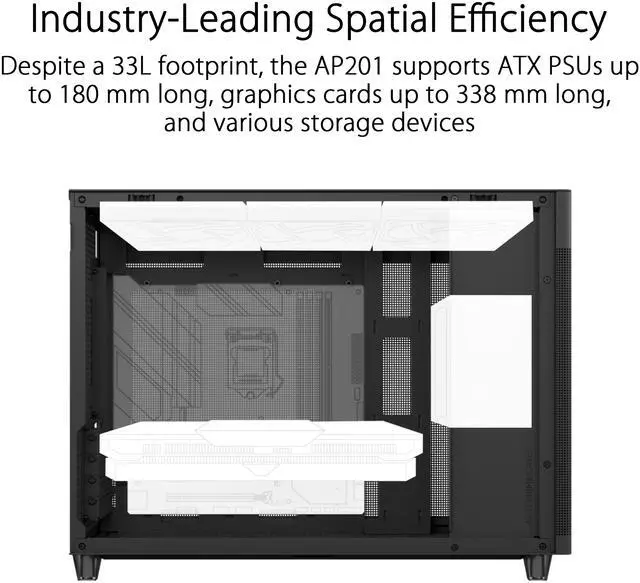

Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

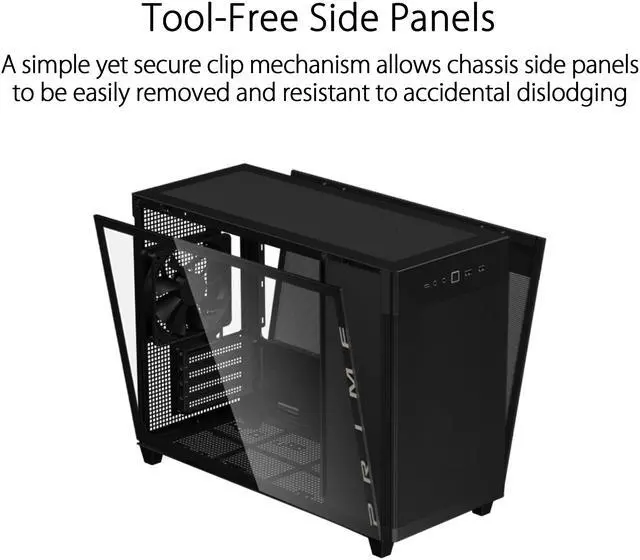

Tool-Free Panels with Tempered Glass Side: See or work on your machine easily with a simple yet secure clip mechanism allowing side panels to be easily removed and resistant to accidental dislodging.

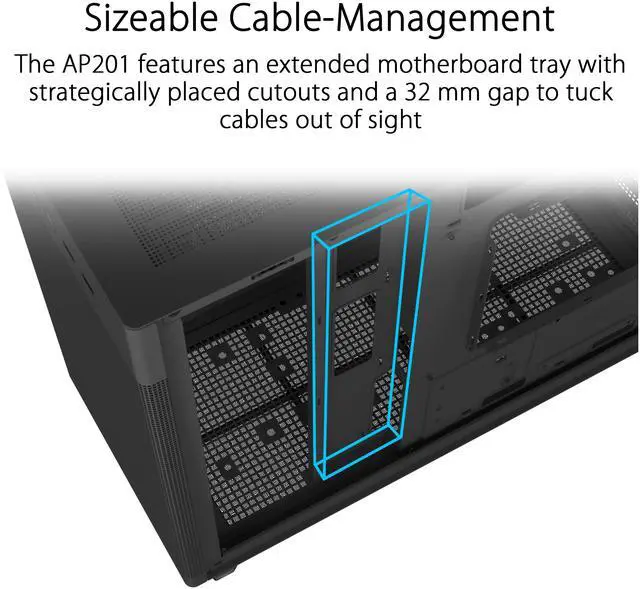

Sizable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

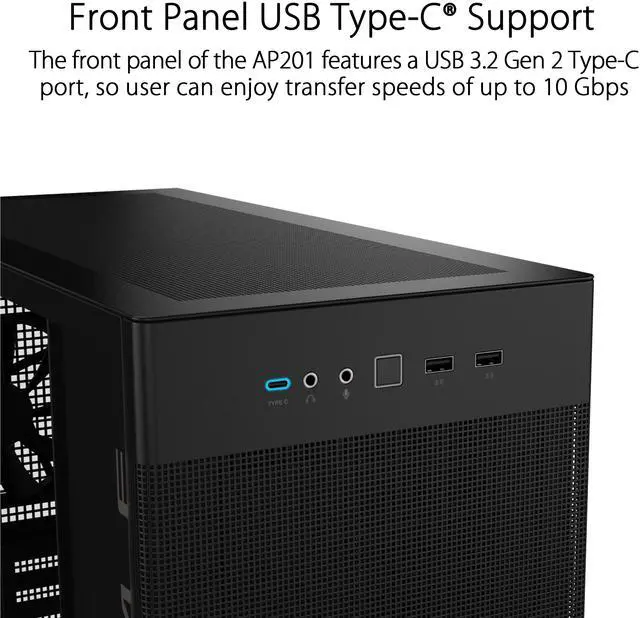

Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (94)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	AP201 ASUS PRIME CASE TG BLACK

Details
Type	Micro ATX
Color	Black
Case Material	Steel, Plastic/Steel, Plastic, TG
Motherboard Compatibility	Micro ATX / Mini ITX
Dust Filters	Bottom

Expansion
Internal 3.5" Drive Bays	3
Internal 2.5" Drive Bays	1
Expansion Slots	4

Front Panel Ports
Front Ports	2 x Audio, 2 x USB 3.2 Gen 1, 1 x USB 3.2 Gen 2 Type-C

Cooling System
Fan Options	Top: 3 x 120 mm; 2 x 140 mm Rear: 1 x 120 mm (pre-installed) Bottom: 2 x 120 mm
Radiator Options	Top: 120 mm, 140 mm, 240 mm, 280 mm, 360 mm Rear: 120 mm

Dimensions & Weight
Max GPU Length	338 mm
Max CPU Cooler Height	170 mm
Max PSU Length	140-180 mm
Dimensions (H x W x D)	17.3” x 10.8” x 20.5”
Weight	17.2 lbs

Additional Information
First Listed on Newegg	May 19, 2023
