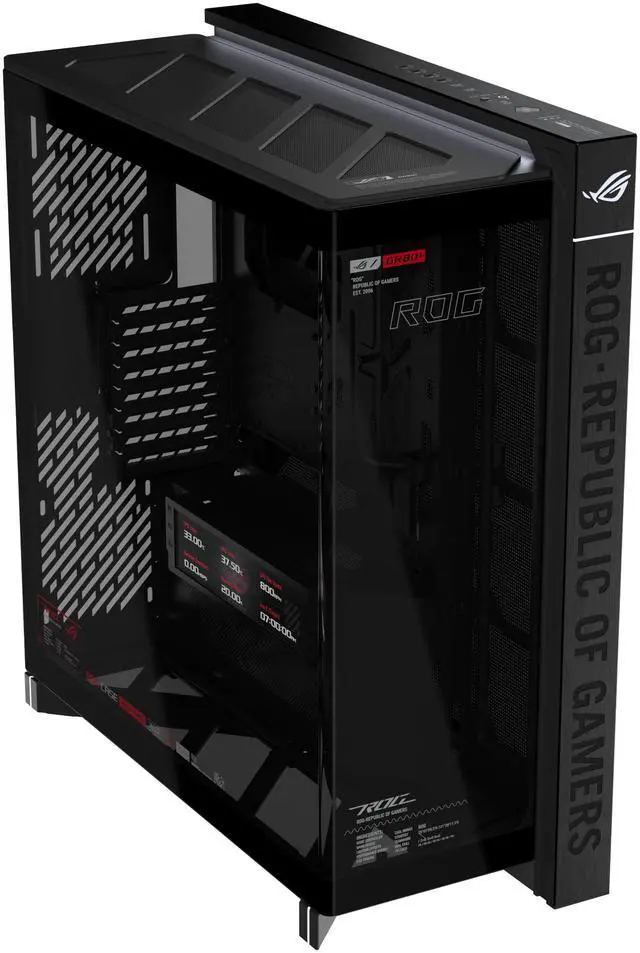

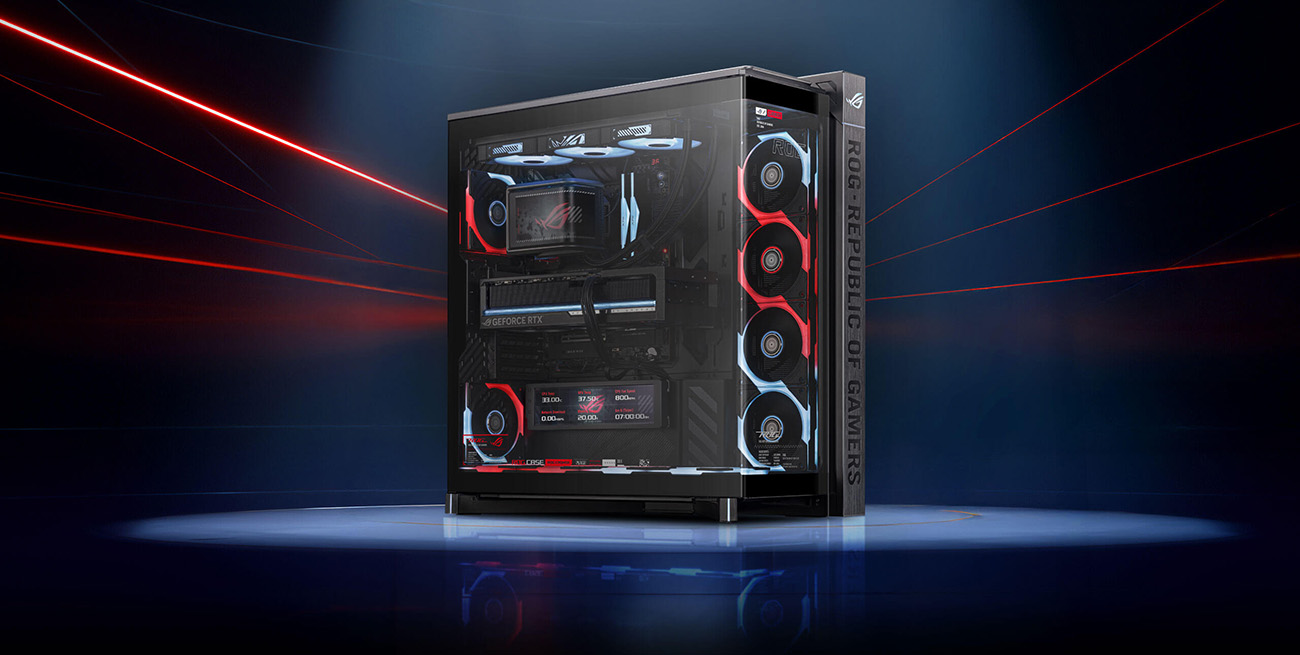

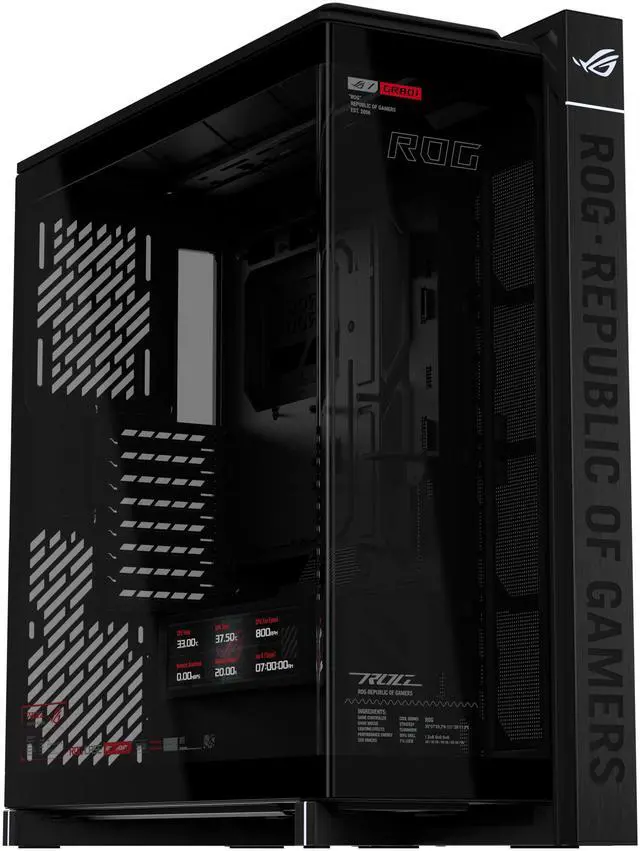

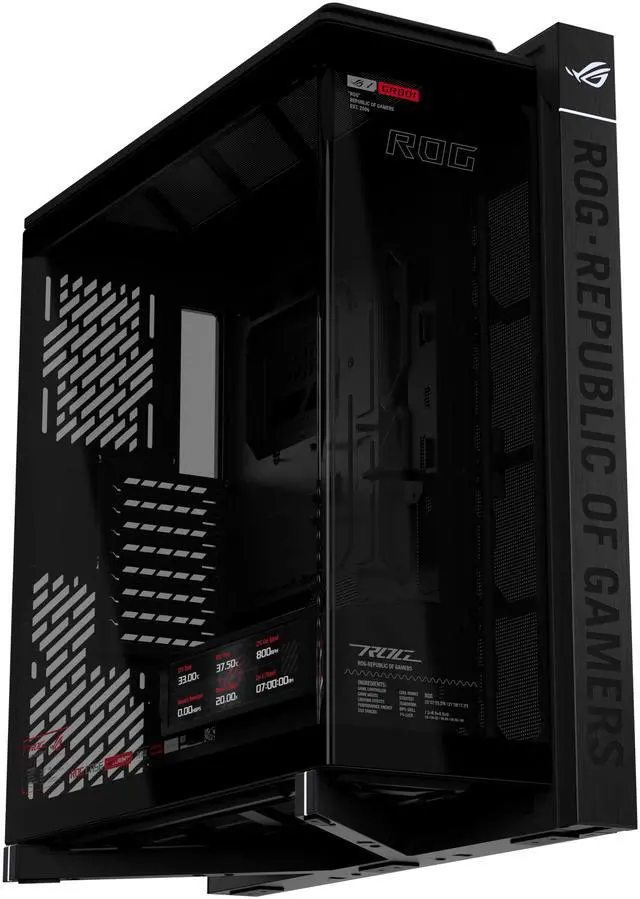

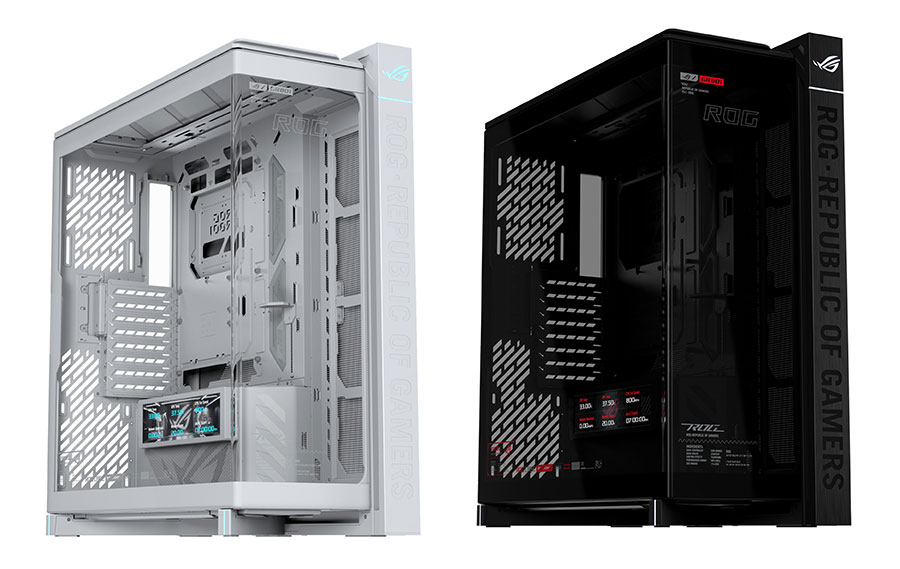

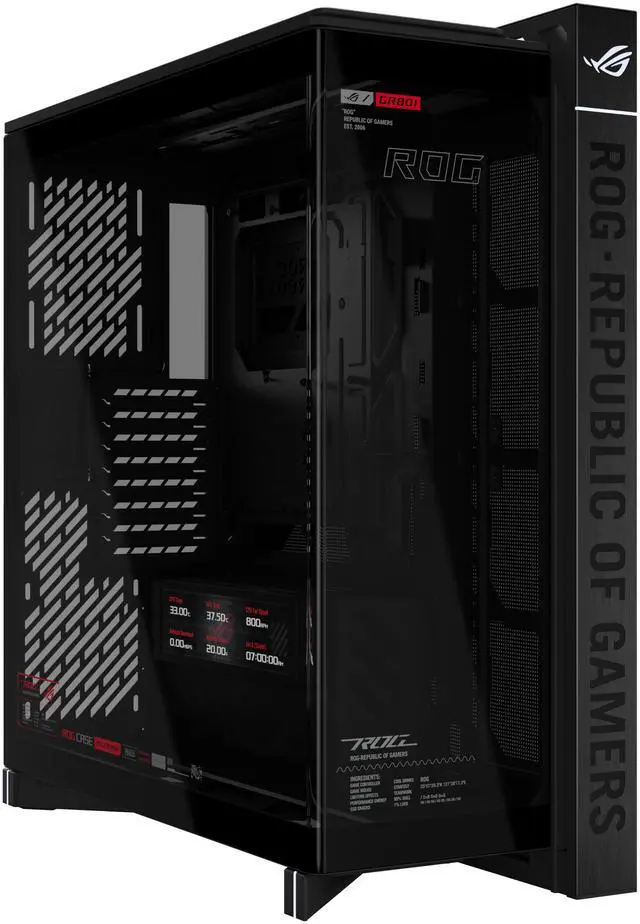

The ROG Cronox is a panoramic full-tower case with a curved tempered-glass panel and precision-cut edges. It's compatible with EATX and BTF motherboards and features subtle ROG lighting to add layers of visual intensity. A patented rotatable side fan bracket enables targeted airflow management, allowing precise thermal tuning for demanding builds. The 9.2-inch LCD screen module features a 60Hz refresh rate and can be freely rotated on a hinge to set up the most suitable and convenient viewing angle.
Max. Graphics Card Length
400mm
Max. CPU Cooler Height
180mm
Radiator Support
Dual 360mm
Supports Up to
14 x 120mm Fans
Patented Rotatable Side Fan Bracket
Patented Graphics Card Slot Clamp
9.2” LCD Case Screen Module
1920 x 462 pixels
400nits
60Hz
ROG is for those who dare to push the limits. The ROG Cronox opens up a new dimension of clarity — where cooling, power, and aesthetics unite under one command. It's more than a case: it's your arena of dominance.

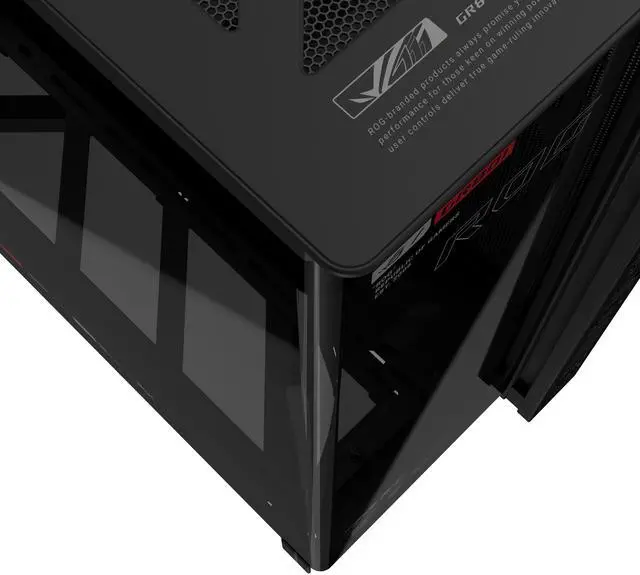

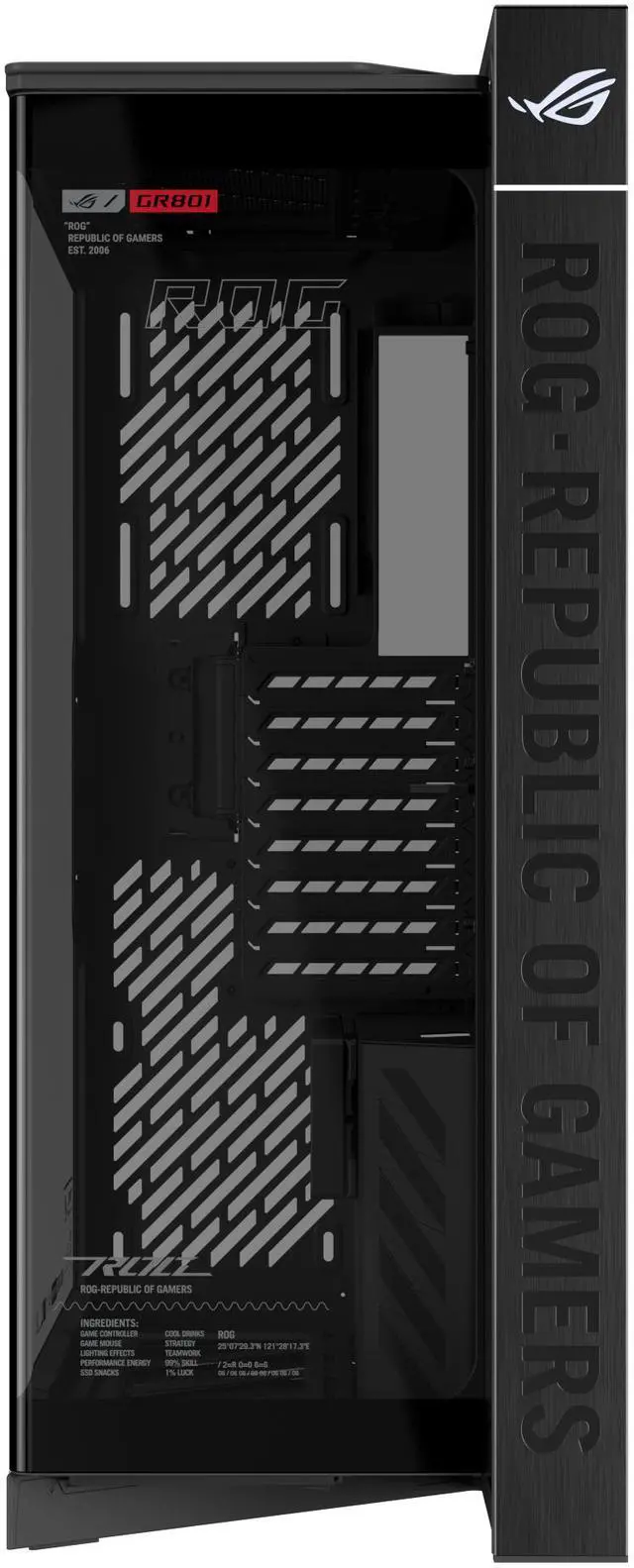

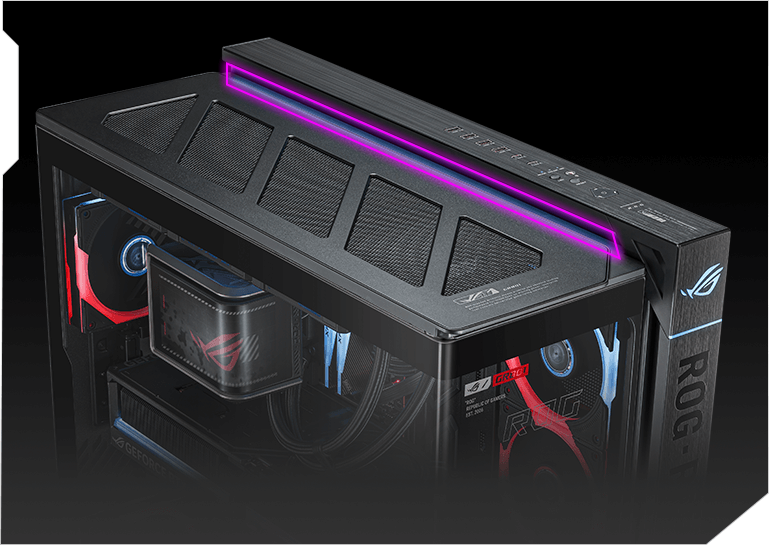

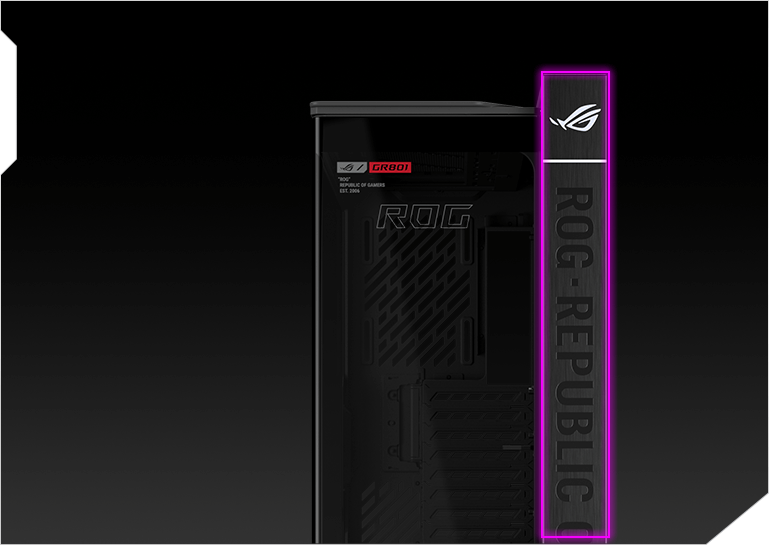

Curved tempered glass with an aluminum-trimmed frame delivers a panoramic view. Pushing a button at the rear of the case releases the side panel for tool-less access to the interior. In addition, the ambient lighting on the top panel provides subtle illumination, enhancing overall visibility and creating a balanced lighting atmosphere.
Details waiting to be uncovered include:
# Aluminum-trimmed structural
# Ambient lighting
# Angular metal feet
# Stylish cable grommets
Engineered for precision and durability, the mechanisms described below help ensure optimized operation, reliable performance, and a robust and intuitive user experience.

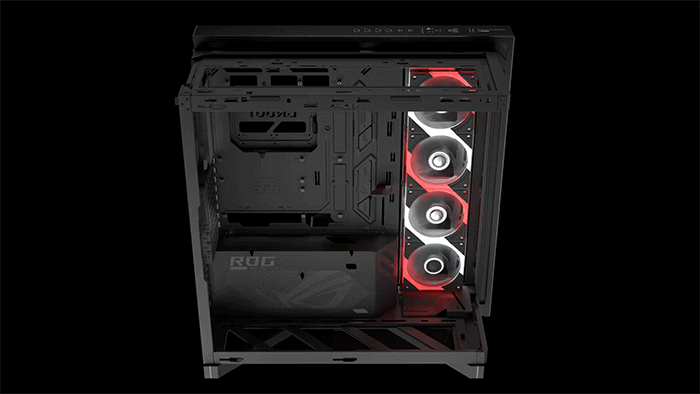

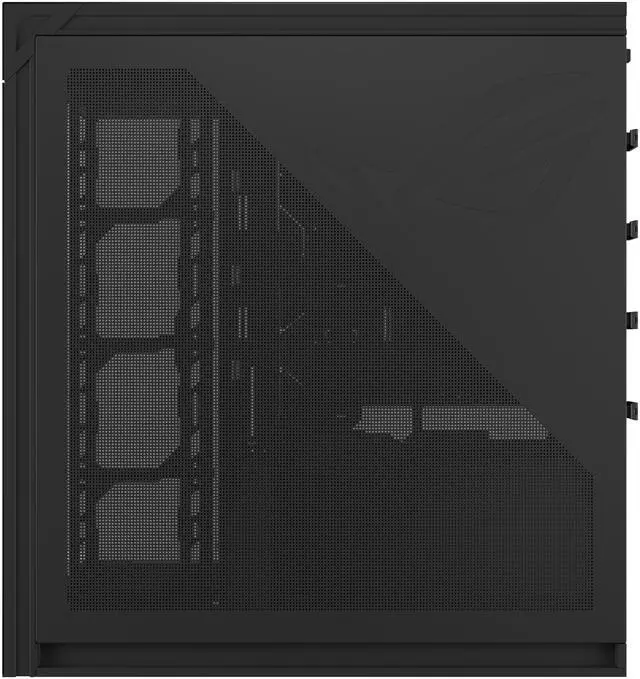

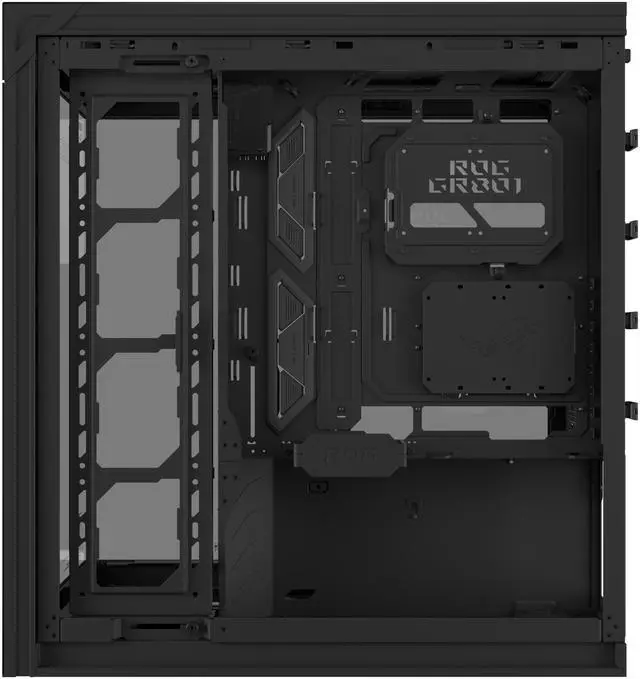

A patented rotatable side fan bracket is designed as a flexible cooling channel, enabling direct airflow to critical components or revealing an unobstructed panoramic view of the entire system.

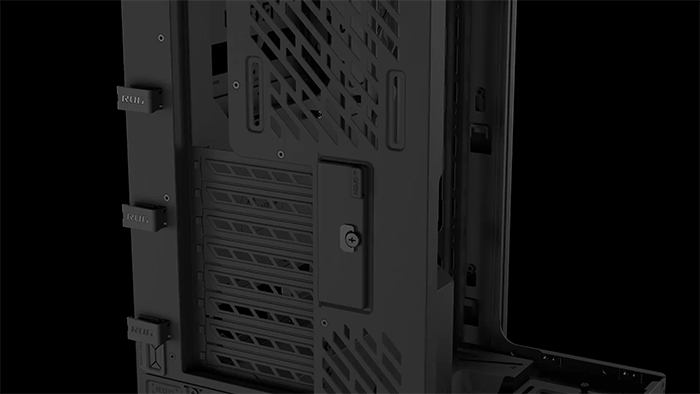

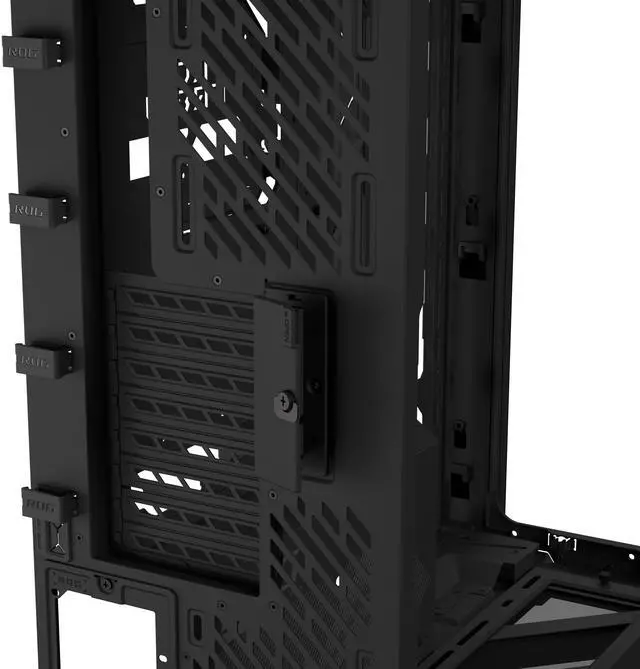

A tool-free graphics card slot clamp makes your PC building faster and more convenient. A simple snap firmly secures the card.

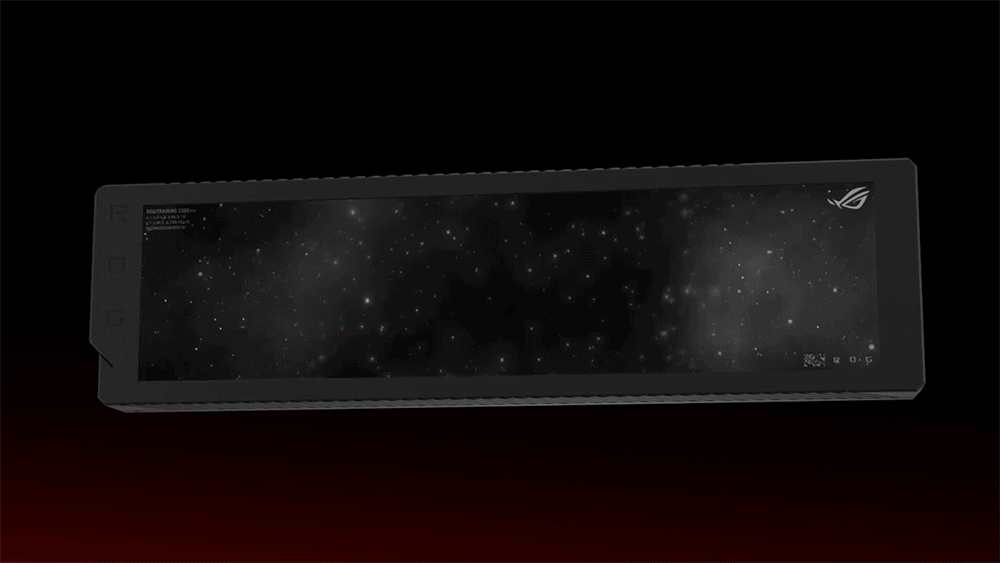

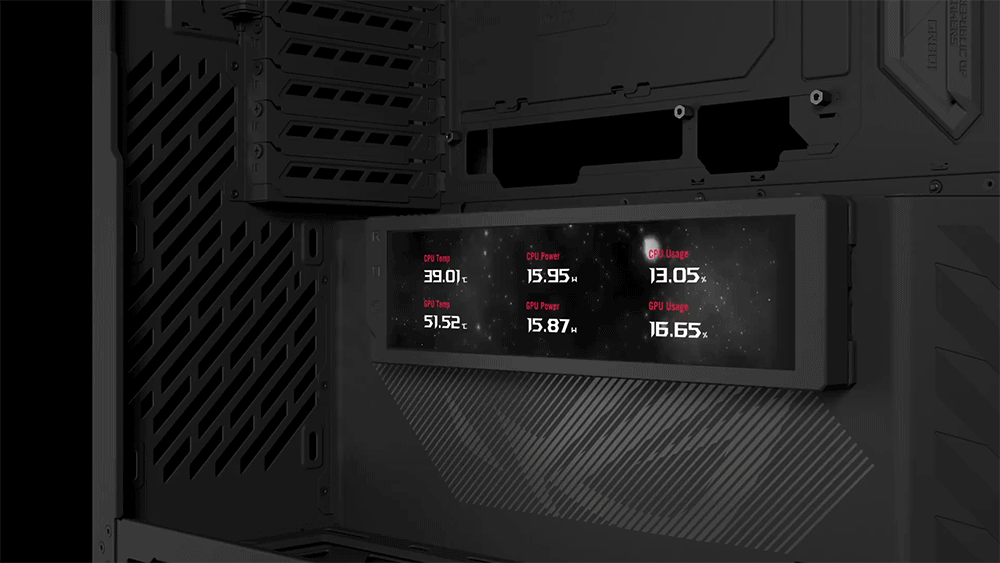

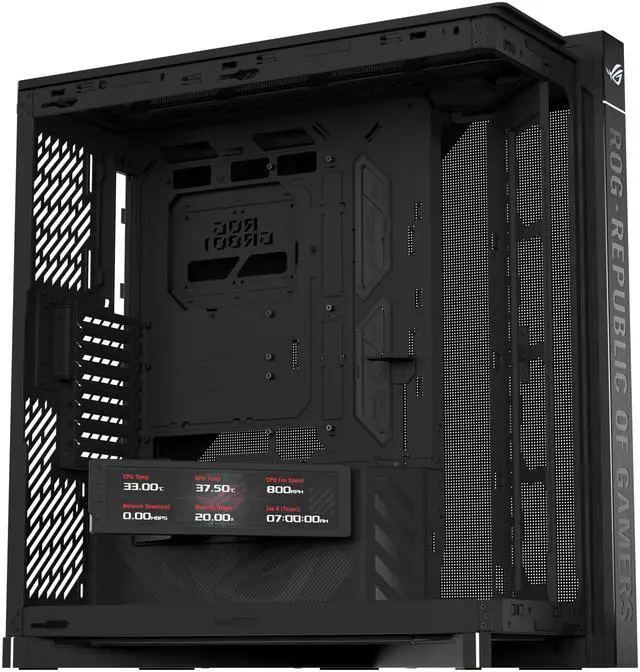

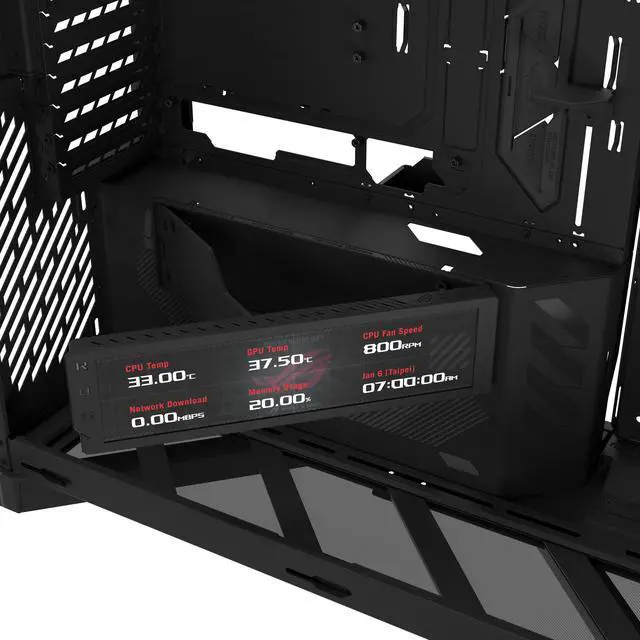

Featuring a 60Hz refresh rate, the pre-installed screen module delivers an immersive visual experience.
1920 x 462 pixels
400 nits
60Hz
IPS panel
1:1000 Cr
A unique hinge mechanism allows the screen to be effortlessly rotated to deliver the perfect viewing angle for monitoring, showcasing, or customization.

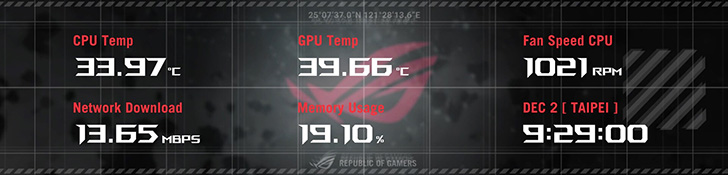

A unified dashboard brings CPU, GPU, memory, networking, and fan stats into one clear view that also includes a digital world clock — delivering real-time system awareness that keeps performance data instantly readable, organized, and visually cohesive at a glance. In addition, the customizable layout allows users to display only the information they want.

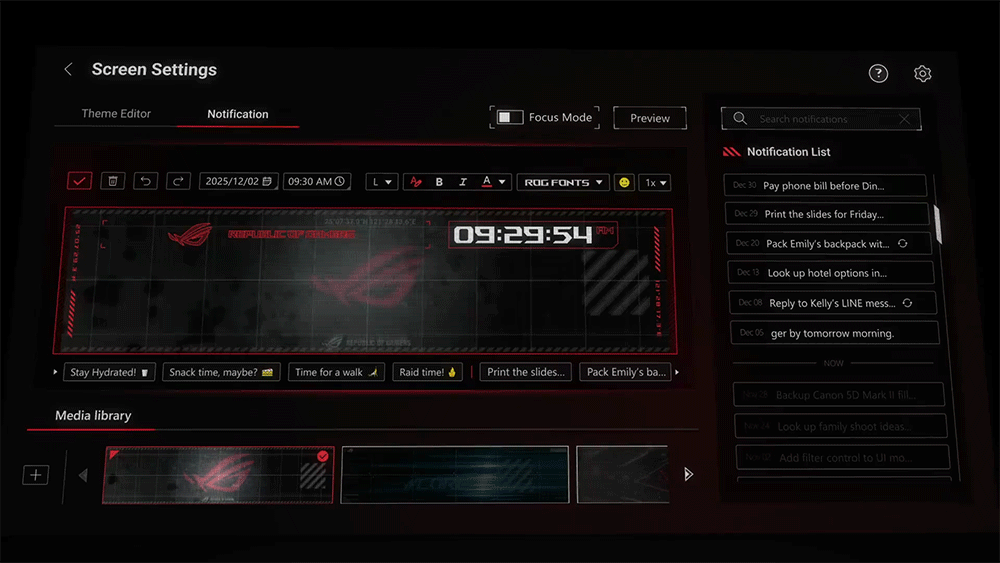

Stay connected with Notification Mode, supporting custom messages and scheduled reminders, with alerts available through audio and visual effects to ensure timely awareness.

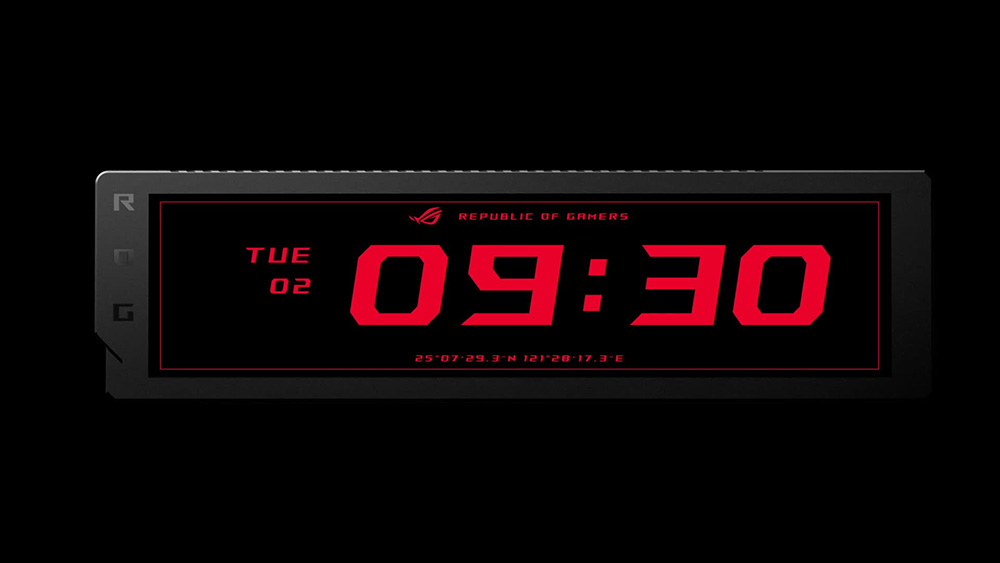

Stay aware of the time whether your PC is on or off. The always-on clock keeps essential time and date information visible at all times, blending precision, endurance, and ROG design into a unified theme and style.
The ROG Cronox features multiple design features that ensure a smooth PC building experience and make maintenance effortless.

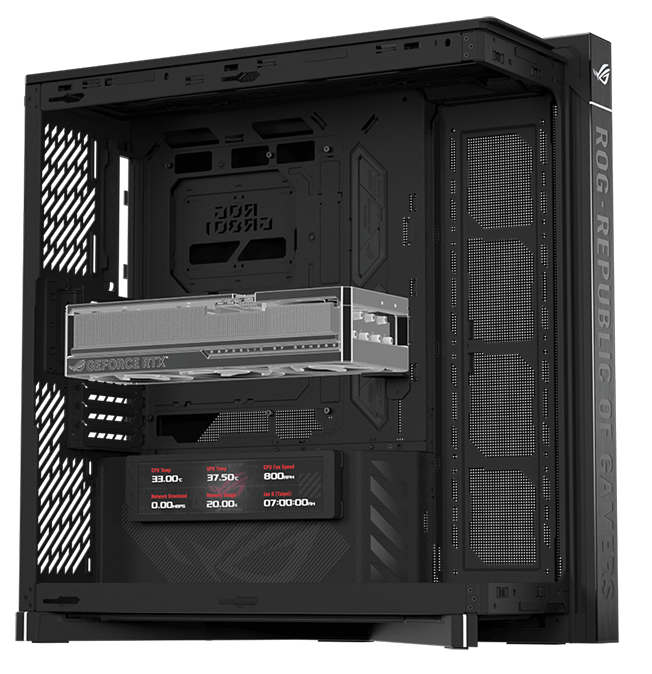

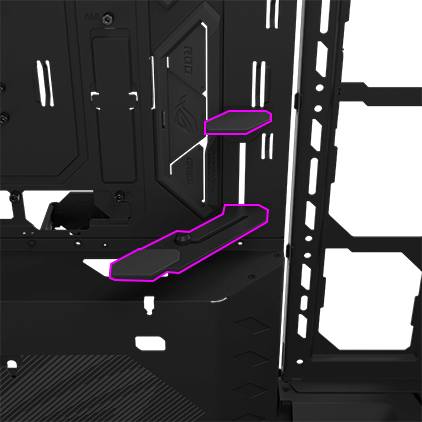

The embedded graphics card holder supports horizontal or vertical graphics-cards installation, with expansive height adjustability.

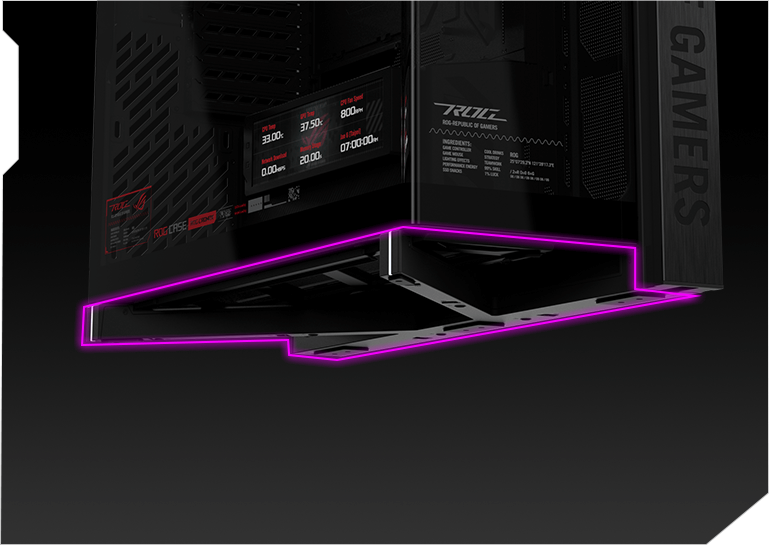

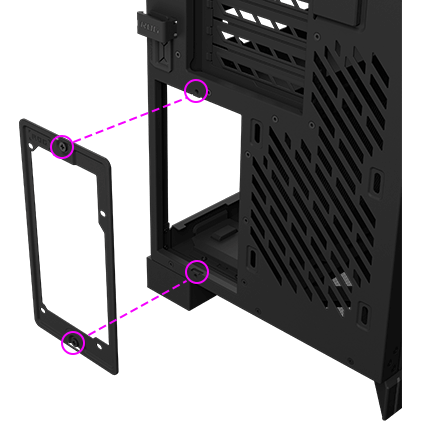

For easier PSU installation, a rear bracket detaches from the case so that a power supply can slide right in.

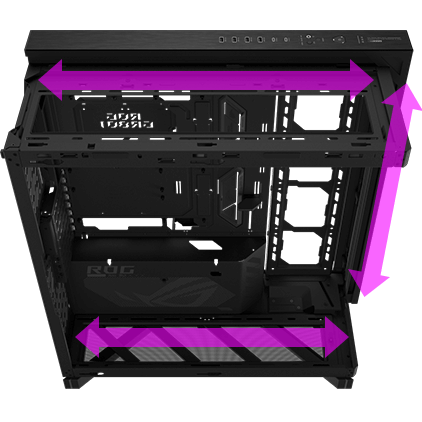

Long mounting holes enable flexible placement of fans and radiators for optimized cooling configurations.

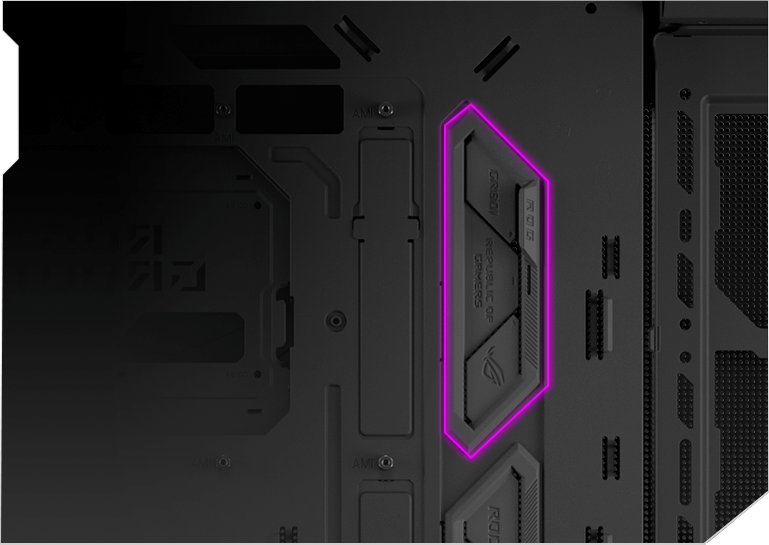

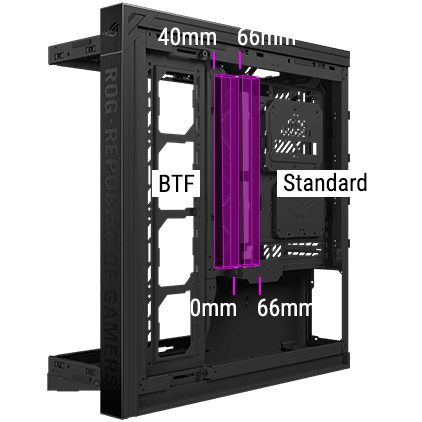

Two rear cable routing paths support both standard and BTF layouts to keep cables firmly organized.

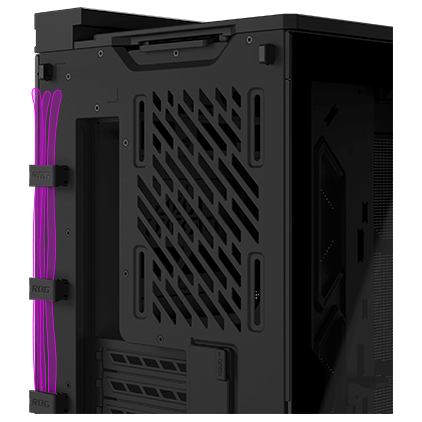

Rear cable clips keep cables firmly secured and organized, ensuring clean cable management.

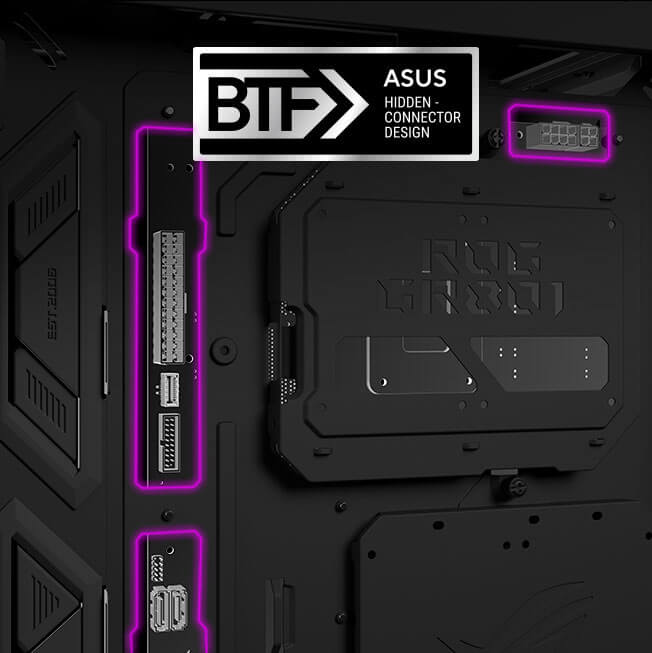

The ROG Cronox supports ASUS ATX BTF motherboards, whose connectors and headers are hidden on the underside to maximize clean cable management, delivering a more refined PC build.
The ROG Cronox can also accommodate Extended ATX motherboards, delivering ample space for advanced system builds.
The ROG Cronox accommodates graphics cards in both horizontal and vertical orientations, granting ample space for performance and future expansion.
400 mm
Horizontal Installation
115 mm
Vertical Installation

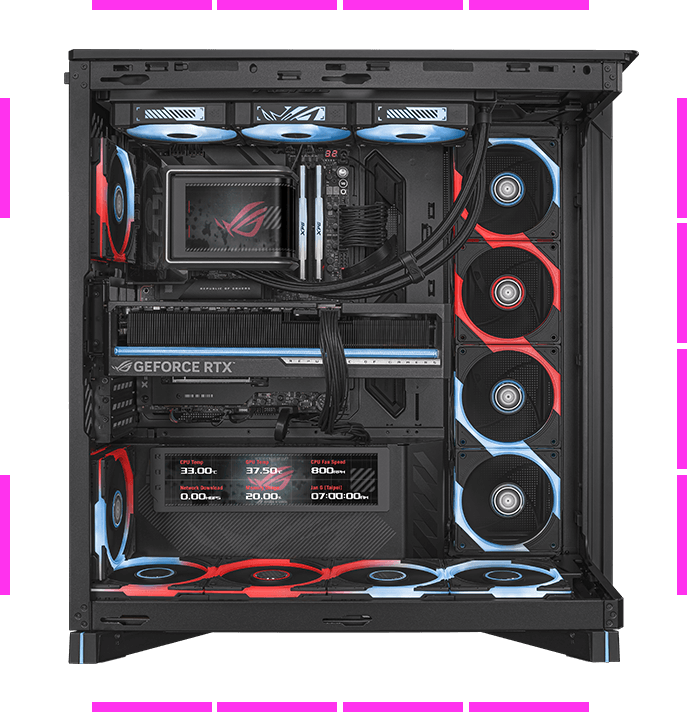

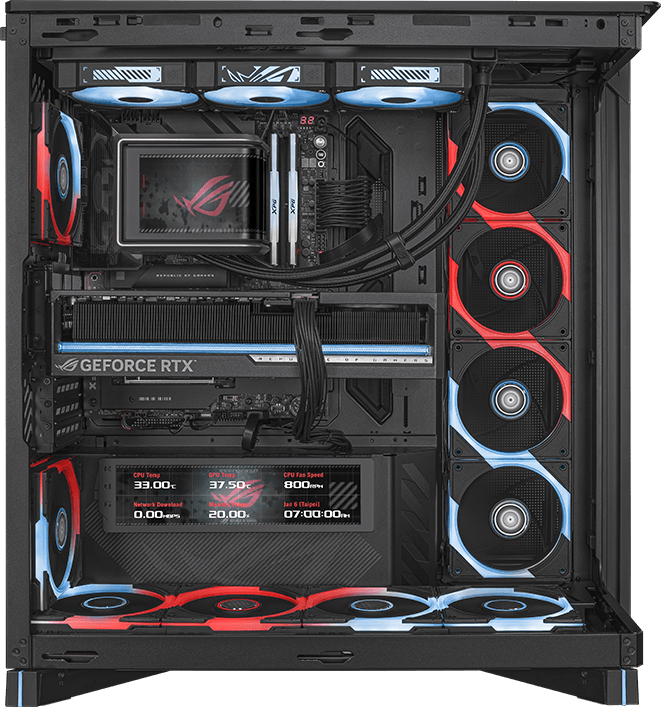

The ROG Cronox version supports up to fourteen 120mm fans for maximum thermal performance. A rear bottom 120mm mount enables users to optimize both fan arrangement and overall thermal efficiency.

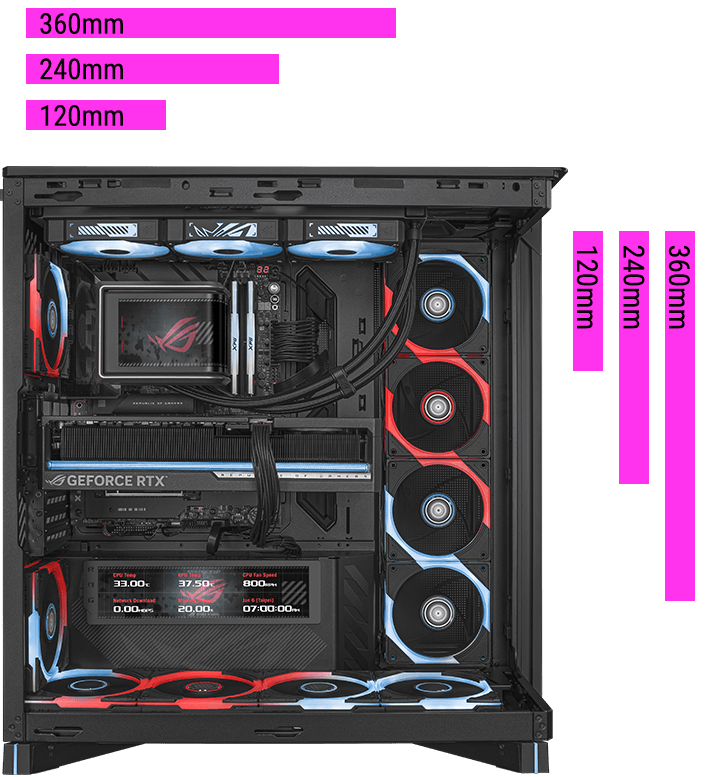

The ROG Cronox supports up to dual 360mm radiators.
The ROG Cronox version includes two USB 20Gbps Type-C® ports, with support for 60-watt fast charging where compatible.

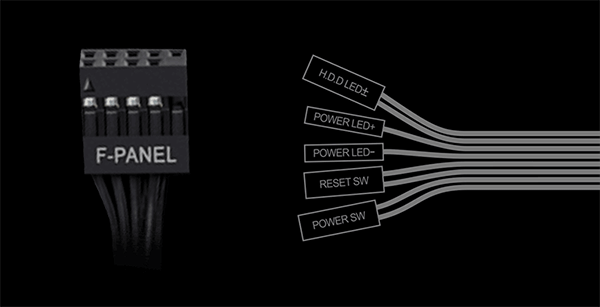

A thoughtful header design makes it easy to connect Front Input/Output (FIO) components to the motherboard.
What PC components are compatible with the ROG Cronox PC case?
The ROG Cronox PC case supports a wide range of PC components, including motherboards, graphics cards, power supplies, and cooling solutions. Key compatibility details are outlined below.
Motherboard Compatibility
- E-ATX (12" x 10.9"), ATX, MicroATX, and Mini-ITX form factors
- ASUS ATX BTF motherboards featuring rear-mounted connectors for cleaner cable management
Graphics Card Compatibility
- Horizontal installation: up to 400mm long
- Vertical installation: up to 115mm wide
- Supports high-end and next-generation GPUs
Power Supply Compatibility
- ATX power supplies up to 200mm long
Cooling & Fan Compatibility
- Two radiators up to 360mm long
- CPU air cooler up to 180mm tall
- Fourteen 120mm fan mounts
What cooling configurations and fan layouts does the ROG Cronox support?
The ROG Cronox PC case is engineered for flexible and high-performance cooling setups, supporting both air and liquid cooling configurations.
Radiator & AIO Liquid Cooling Support
- Top mounting: 120, 240, 360mm
- Side mounting: 120, 240, 360mm
- Rear mounting: 120mm
Fan Support & Pre-Installed Fans
- Top: up to 4 x 120mm fans
- Side: up to 4 x 120mm fans
- Rear: up to 2 x 120mm fans
- Bottom: up to 4 x 120mm fans
Recommended Fan Layout
- ASUS recommends a 360mm radiator that exhausts through the top, four reverse-blade intake fans on the side, and four intake fans at the bottom.
- At the rear, ASUS recommends using the upper fan mount for exhaust, while the lower rear fan mount can be configured with either a standard or reverse-blade fan, depending on the user's airflow preference and system layout.
- The rotatable side fan bracket lets users adjust the air channel, directing fresh intake airflow more precisely toward the graphics card or CPU area, depending on the system configuration. This flexible design creates effective positive airflow, supplies cool air directly to the graphics card and radiator, and efficiently expels hot air through the top and rear, making it ideal for high-performance gaming and workstation systems.
What I/O ports are available on the ROG Cronox PC case?

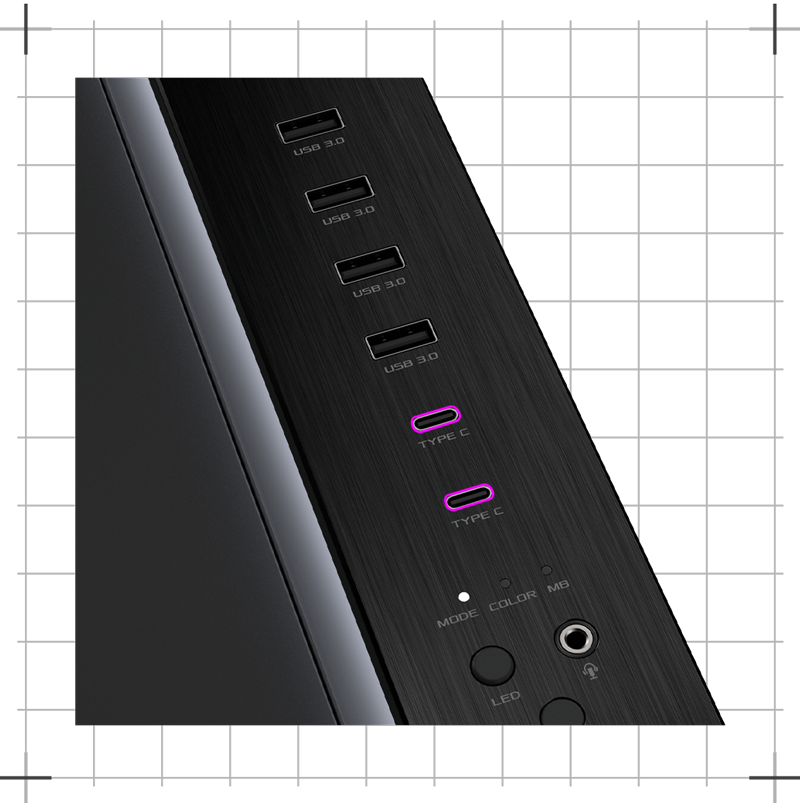

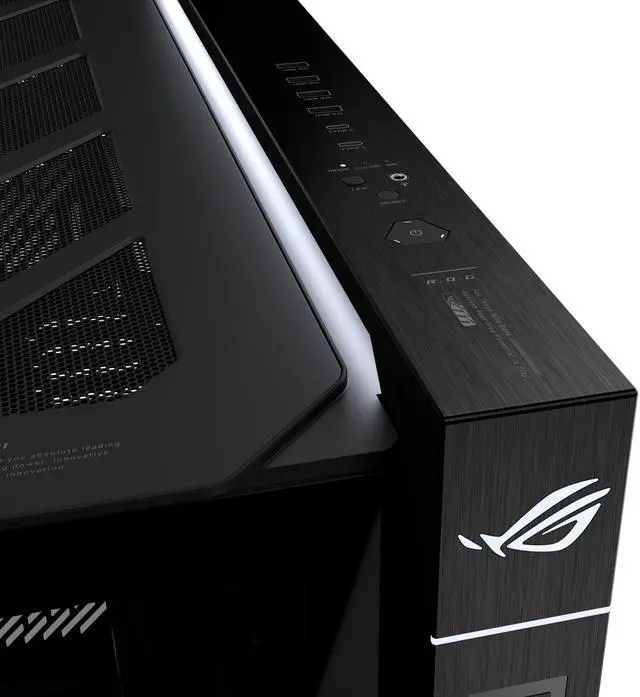

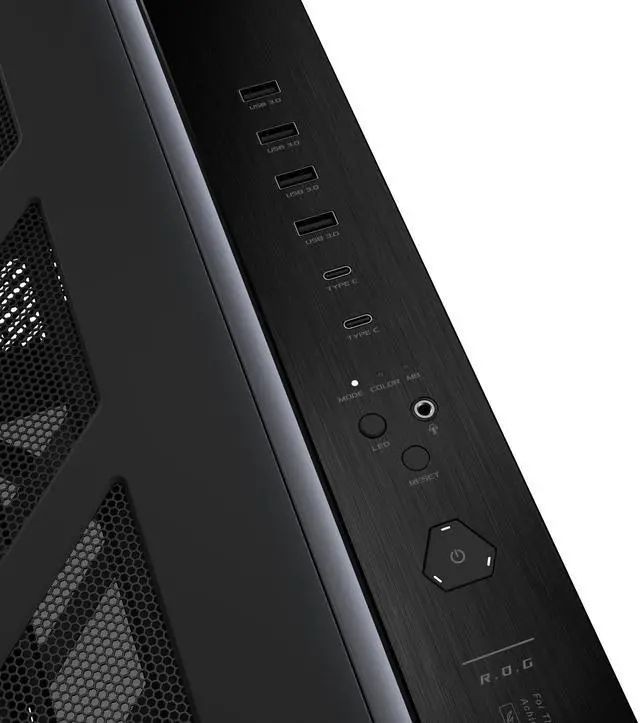

The ROG Cronox PC case I/O panel includes two USB Type-C® ports rated for up to 20Gbps and up to 60-watt fast charging; four USB 5Gbps Type-A ports; and audio input/output jacks. It also features dedicated lighting and fan control buttons, along with power and reset buttons for convenient system operation.
Does the ROG Cronox case feature ARGB lighting?
Yes. The ROG Cronox PC case features ambient ARGB lighting on the top panel and case feet, providing customizable lighting effects without requiring additional accessories.
What are the specifications and features of the LCD screen in the ROG Cronox PC case?
Specifications
ROG Cronox features a 9.2-inch LCD screen with a 1920 x 462 resolution, 400 nits brightness, 60Hz refresh rate, IPS panel, and 1:1000 contrast ratio.
LCD Hinge Design
A hinge enables users to effortlessly rotate the LCD screen for the ideal viewing angle for monitoring and showcasing.
Features
The ROG Cronox LCD screen displays real-time CPU, GPU, memory, networking, and fan status through a unified system dashboard, along with a world time clock for clear at-a-glance monitoring. It also supports customizable layouts and nine ROG themes to allow users to choose which system information and background are shown. A Notification Mode provides visual and audio alerts for custom messages, scheduled reminders and holidays, and a separate always-on clock keeps time and date visible even when the PC is powered off.
