Fractal Design Node 605 Black Aluminum/Steel ATX HTPC/Media Center Computer Case

Node 605

The Node 605 boasts a minimalistic, sleek, Scandinavian appearance, designed to integrate easily into your home theater equipment.

Featuring a stunning exterior accompanied by a modern, black interior, with sound and vibration dampening materials, the Fractal Design Node 605 supports a full ATX motherboard as well as a graphics card up to 11 inches (280mm) in length.

Cleverly hidden behind the access panel on the solid, 8mm-thick aluminum front panel are two USB 3.0 ports, a FireWire port, and a multi-format card reader for your convenience.

Features

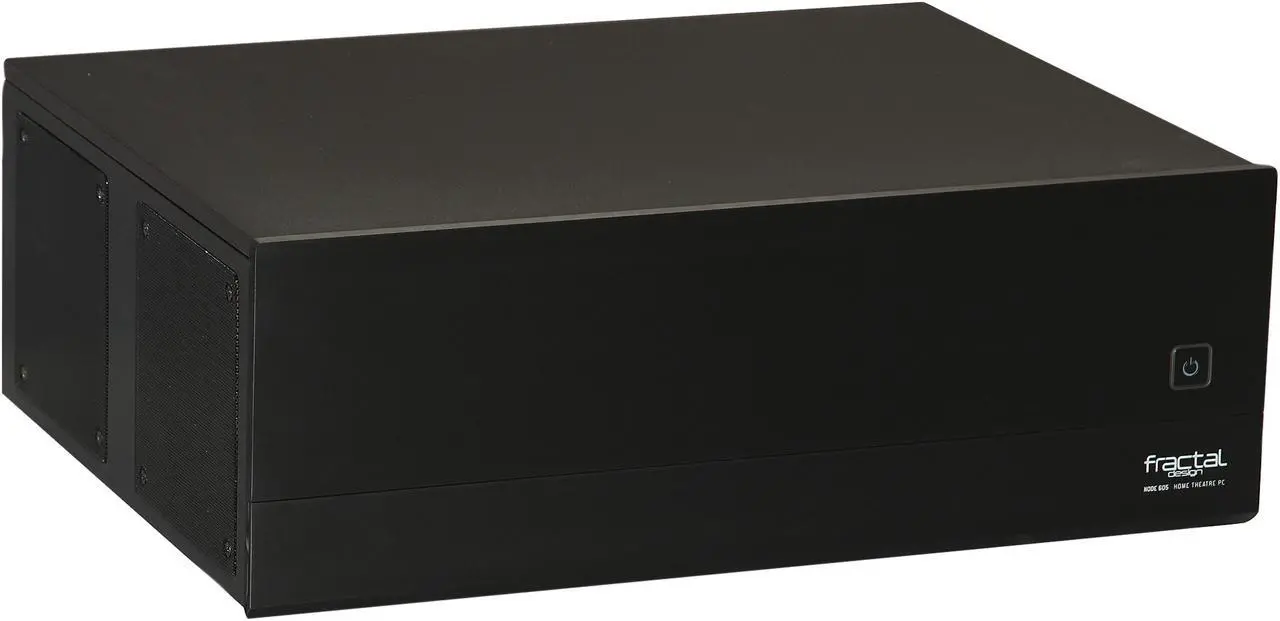

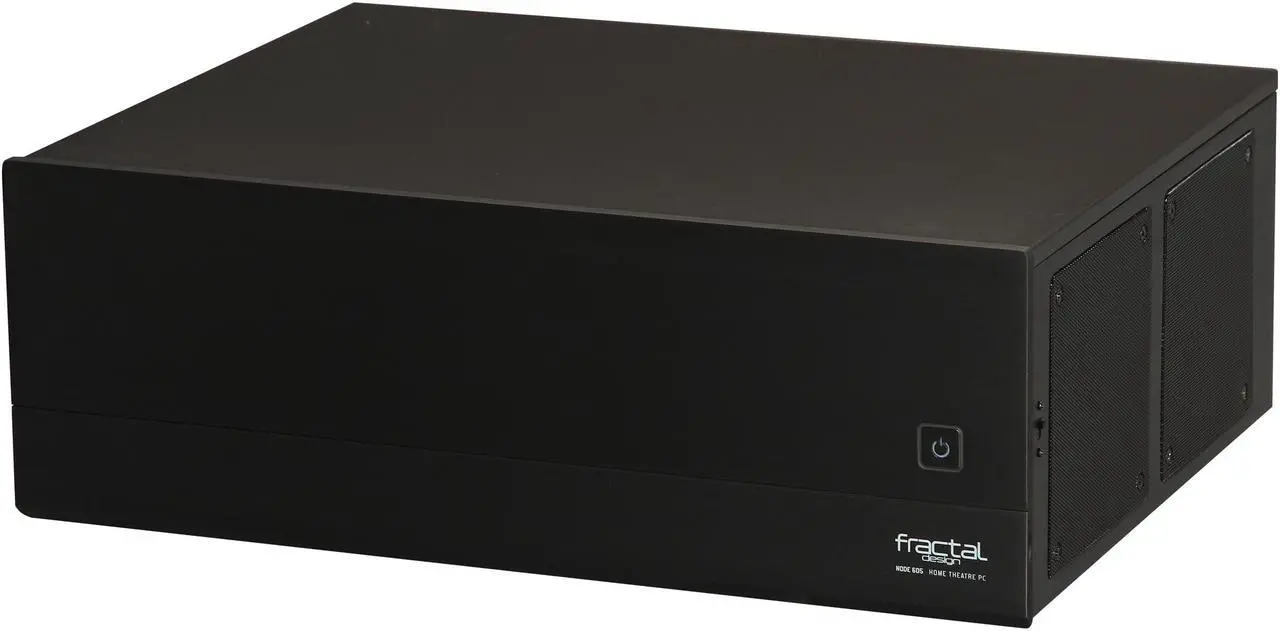

• Solid aluminum front panel
• Supports full ATX motherboards
• Noise-dampening material
• 4 HDD/SSD slots
• Integrated card reader
• Two Silent Series R2 hydraulic bearing fans included
• Supports graphics cards up to 11 inches (280mm) in length - 7 inches (180mm) with all hard drives in place
• USB 3.0 and FireWire front connectors

Specifications

• ATX, microATX, Mini ITX, DTX motherboard compatibility

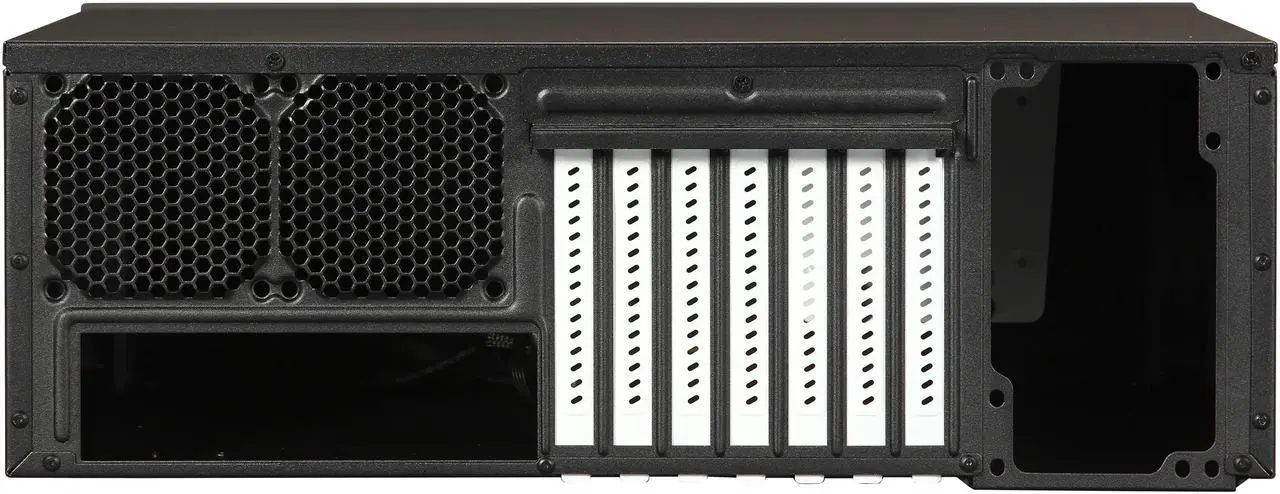

• 7 expansion slots
• 4 - Supports either 2.5" or 3.5" HDD / SSD
• 1 Slim-line ODD (only supported with mATX or smaller motherboards)
• PSU Compatibility: 7 Inches (180mm) (including any modular connectors) with both hard drive cages mounted or 7.4 inches (190mm) (excluding cables and any modular connectors) with one hard drive cage mounted
• CPU Cooler compatibility: Approx 125mm with side-mounted fans - For coolers with top-mounted fans, Fractal Design recommends that you add at least 30mm clearance for decent airflow
• Case dimensions (W x H x D): 17.5 x 6.4 x 13.7 inches (445 x 164 x 349mm) (excluding front panel - 17.3 x 6.3 x 13.4 inches (440 x 162 x 341mm))
• Net weight: 13.2 lbs (6.0kg)

Cooling system

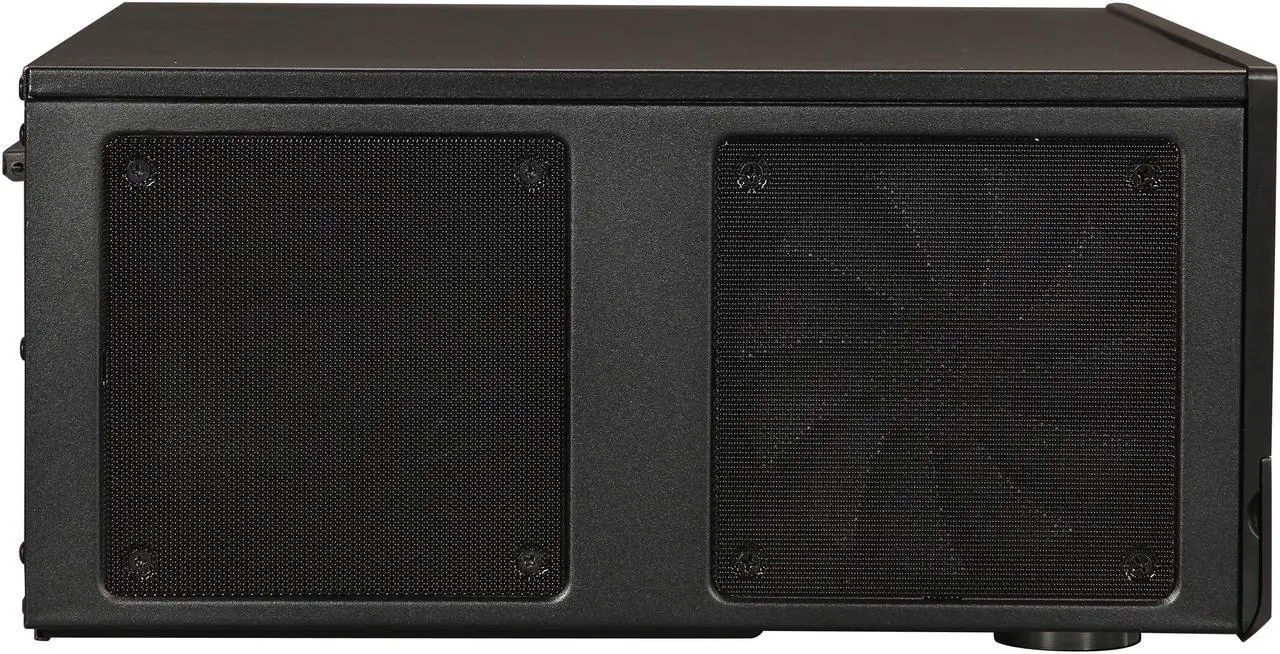

• 5 Fan slots total (3 - 120mm + 2 - 80mm)
• 2 x 120mm Silent Series R2 fans included
• Air filters for side fans and PSU
• Integrated three-channel fan controller (included)

Graphics card compatibility

• 7" (180mm) with both hard drive cages mounted
• 10" (255mm) with one hard drive cage mounted
• 11.4" (290mm) in the top two ATX expansion card slots with two hard drive cages mounted
• 11" (280mm) in the top four ATX expansion card slots with one hard drive cage mounted, containing one 3.5" HDD and one 2.5" SSD

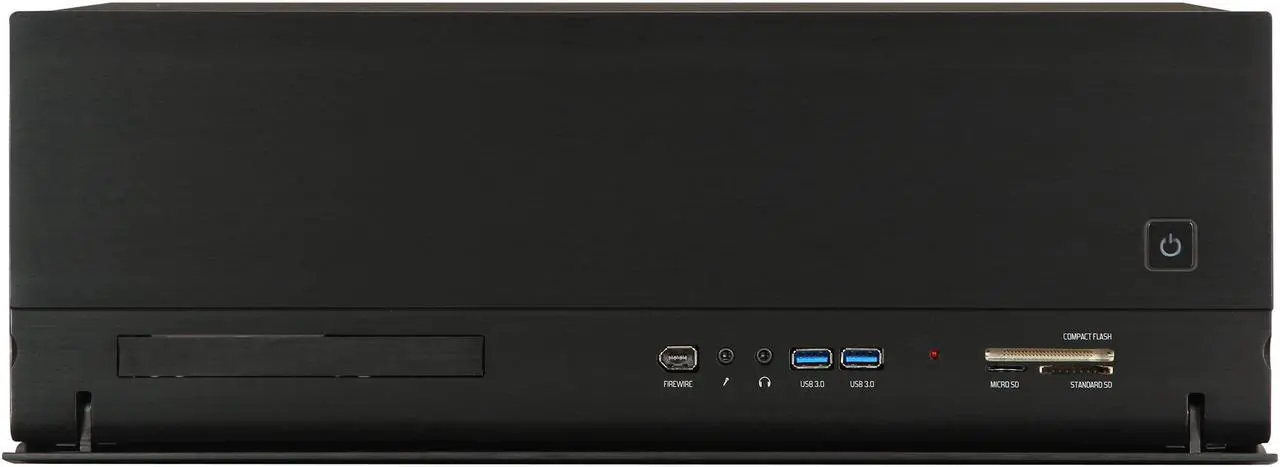

Front interface

• 2 - USB 3.0
• 1 - FireWire (IEEE 1394)
• 1 - 3.5mm Audio in (microphone)
• 1 - 3.5mm Audio out (headphone)
• 1 - Card reader
• Power button with LED
• HDD LED

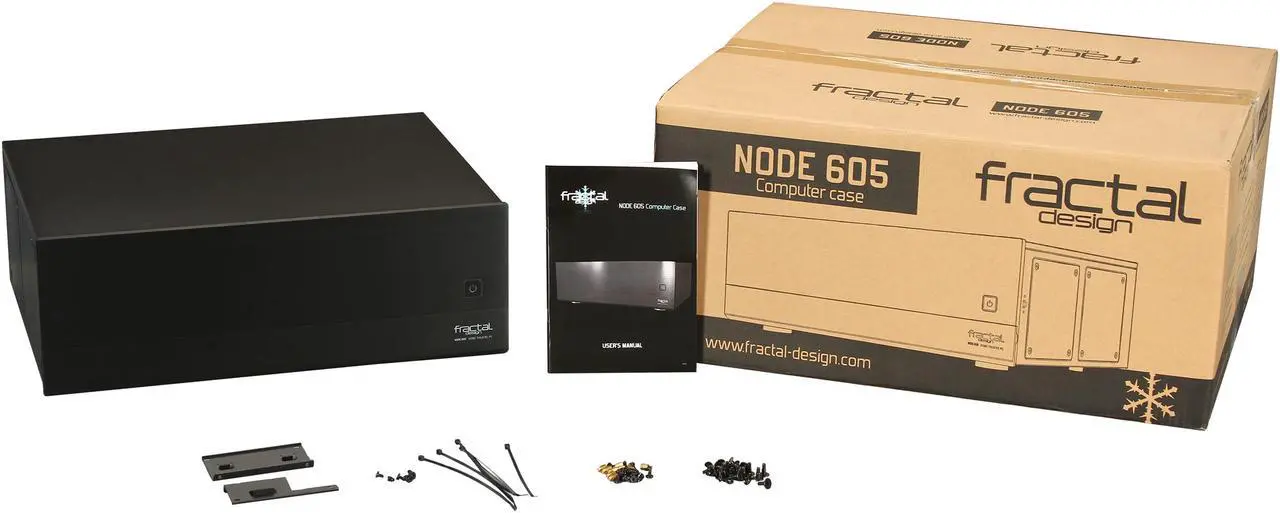

Package contents

• Node 605 Computer Case
• User Manual
• Accessory Box
