Question 1

Where's the power on and off switch/button located? Can't tell from the picture.

Accepted Answer

there is a big white button looking down from top and a fan control also  and all usb inputs are hear . you will just love the case super vale with all the fans and well built with lots of room for large video cards.

Question 2

Would you recommend this case? is it a good one?

Accepted Answer

I am very happy with the case, the airflow is really good.
Be aware, that you will need an extension for the 12v 4-PIN CPU plug for most power supplies as it is a tall case with a bottom mounted P/S.

Question 3

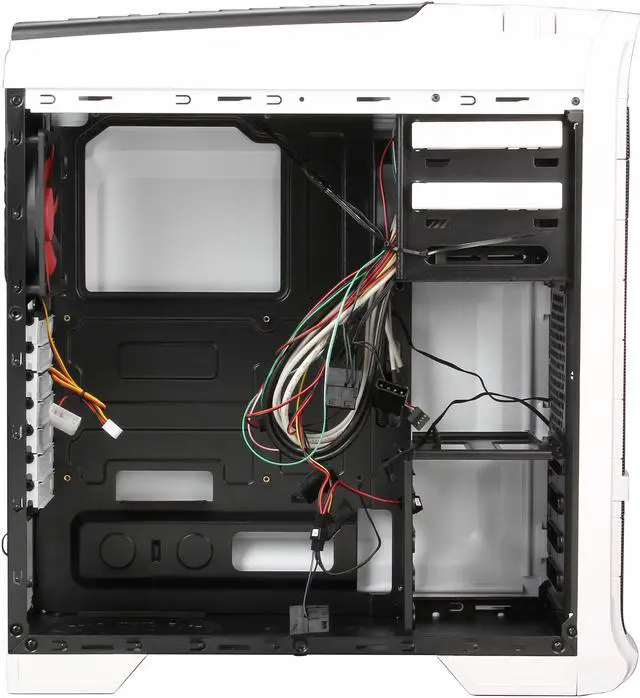

How does one install a motherboard in this case?

the third or fourth picture down is wrecking my mind as to how a motherboard is monted

Accepted Answer

This does fit a standard ATX motherboard and has extra holes for mounting screws. I do not recommend this case. It is very flimsy and two pieces broke while installing components (I build PCs for a living and know very well what I'm doing). The "tinted" windows at the top is worthless and you can see through it to the plastic underneath which looks less than sleek. Overall very disappointed in this case, for the money there are way better cases.

Question 4

Are the fans using 4 pin headers? Can I hook the fan up to my motherboard?

Accepted Answer

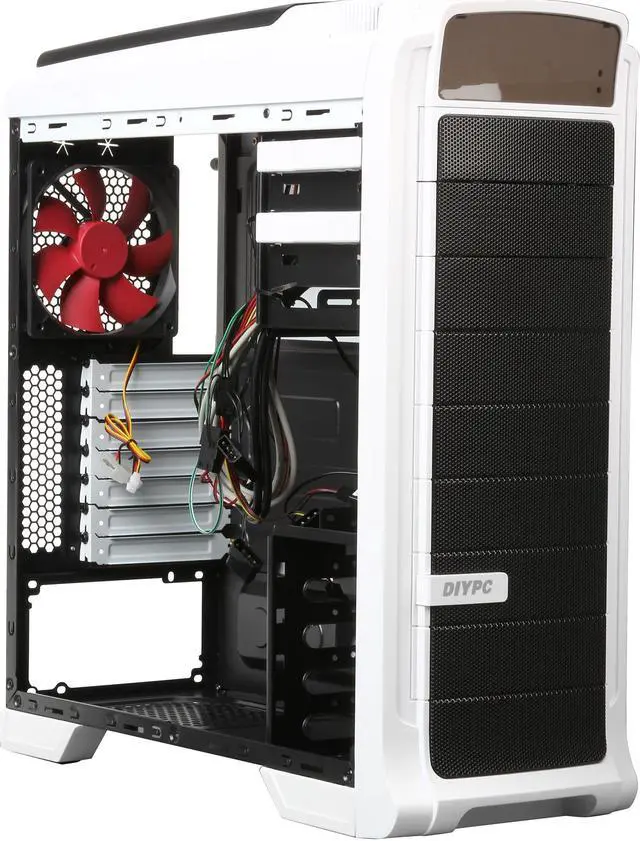

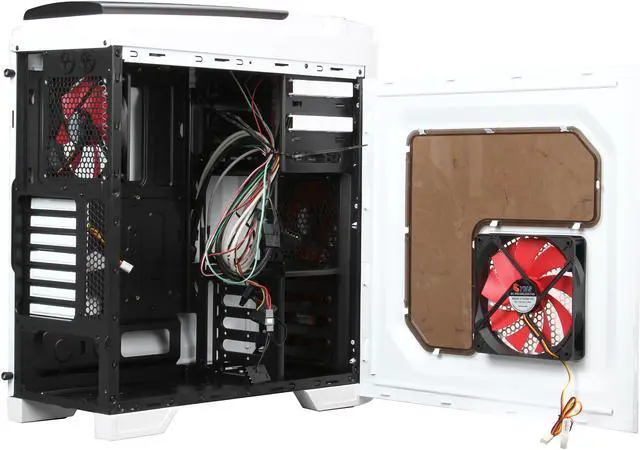

The rear fan and the fan on the side are 4pin headers for your motherboard.

The front and top fans are all wired to a 4pin Molex connector with a speed controller. They are 3pin connectors strung together for the controller, so you could split them apart if you wanted to.

Question 5

Can I choose different color fans besides just red?

Accepted Answer

It comes with 4 total red led fans. Two of them are on the front and two are on the top. You could always replace them with your own fans but there are no other fan colors in this configuration. There is the black version of this case that has blue led fans though.

Question 6

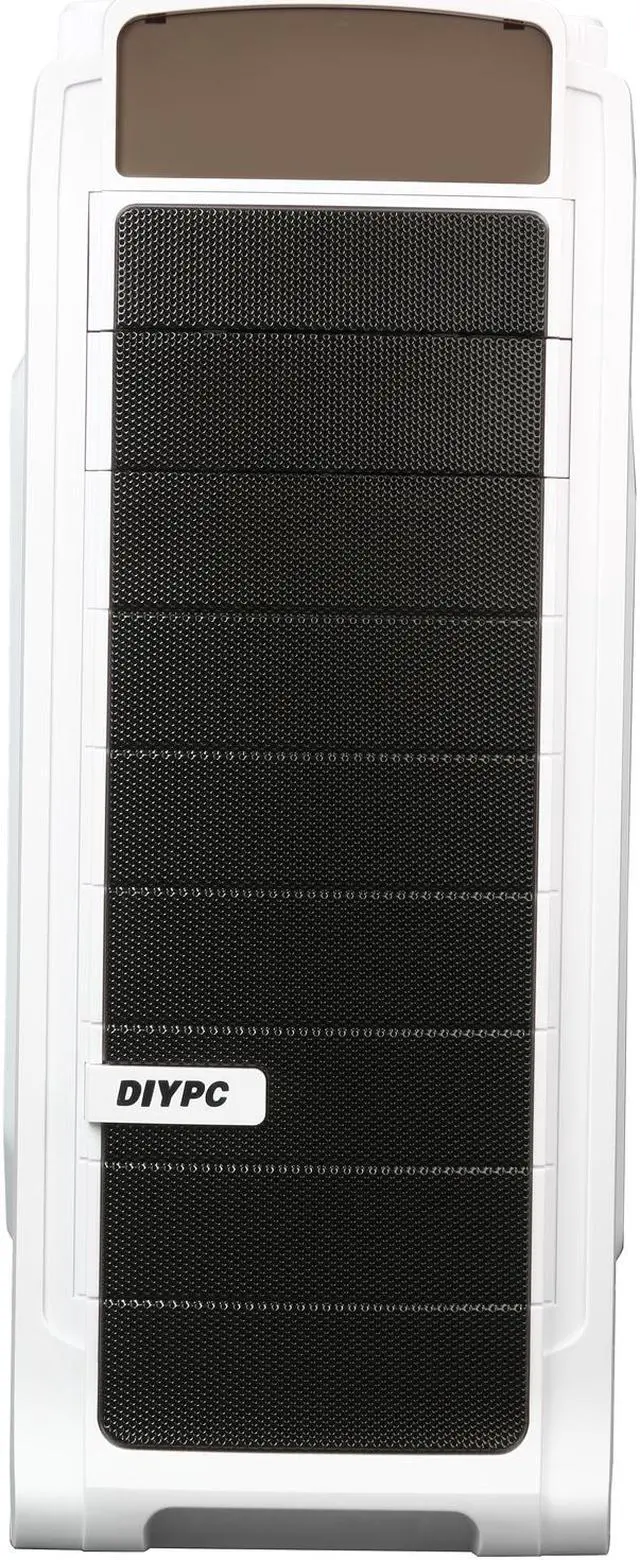

Can I install an optical drive in the front on this case?

Accepted Answer

Yes and it is very simple the front covers pop out and lock I place easily and are interchangable.

Question 7

what is the black panel at the very top of the case that looks like a mirror?

Accepted Answer

It is purely for looks, the fan controller is located behind it. It will show two led buttons when fan controller is on and when you have things plugged into the top USB or external mic ports. Hope this helps.

Question 8

anyone know if you can mount a liquid cool in this?

Accepted Answer

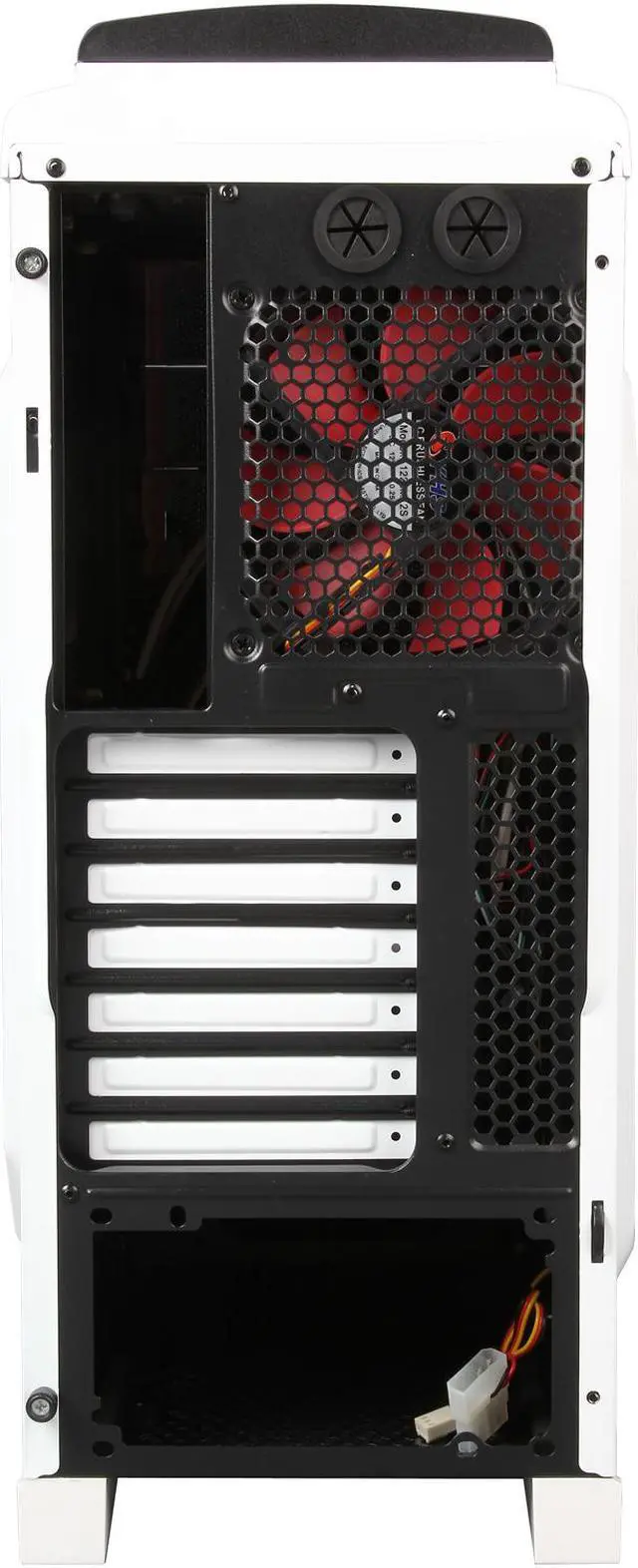

I had this case. I used liquid CPU cooler with one fan. The fan of my liquid cooler can be mounted on the back of this case. But if you use liquid cooler with duo fans, I'm not sure.

Question 9

Does this have an hdmi port? How did you connect your computer to a monitor?

Accepted Answer

This is an empty computer case and only comes with fans, you will have to buy a video card with an hdmi port on it, a motherboard, a power supply, a cpu, a cpu cooler fan, memory or "ram", a hard drive, a dvd reader/ripper, amonitor or use your tv with hdmi cable.

Question 10

Does this case come with blue led fans instead of red? Please respond as fast as possible

Accepted Answer

Not that i know of (sorry not definitive) but there's no options for that anywhere I saw the case and mine came with red leds as shown.

Brand	DIYPC
Model	Shadow-H01-W

Type	ATX Mid Tower
Color	White
Case Material	SPCC
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX / ATX
Side Panel	with Side Window
LED	Red
Dust Filters	Yes

External 5.25" Drive Bays	2
Internal 3.5" Drive Bays	4
Internal 2.5" Drive Bays	2 ( SSD )
Expansion Slots	7

120mm Fans	2 x Front 120mm LED Red Fan (Pre-Installed) 2 x Top 120mm LED Red Fan (Pre-Installed) 1 x Rear 120mm Red Fan (Pre-Installed)

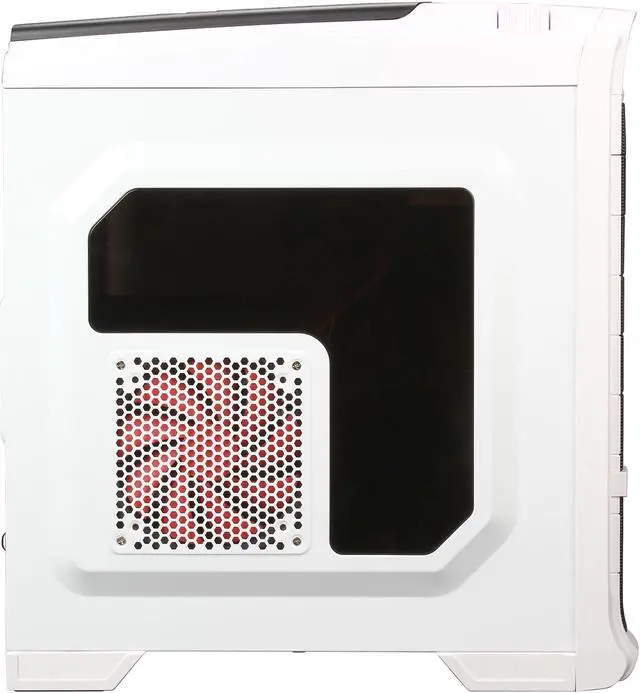

140mm Fans	1 x Side 140mm Red Fan (Pre-Installed)

Max GPU Length	390 mm
Max CPU Cooler Height	158 mm
Dimensions	19.65" x 7.50" x 18.32"
Weight	9.80 lbs.

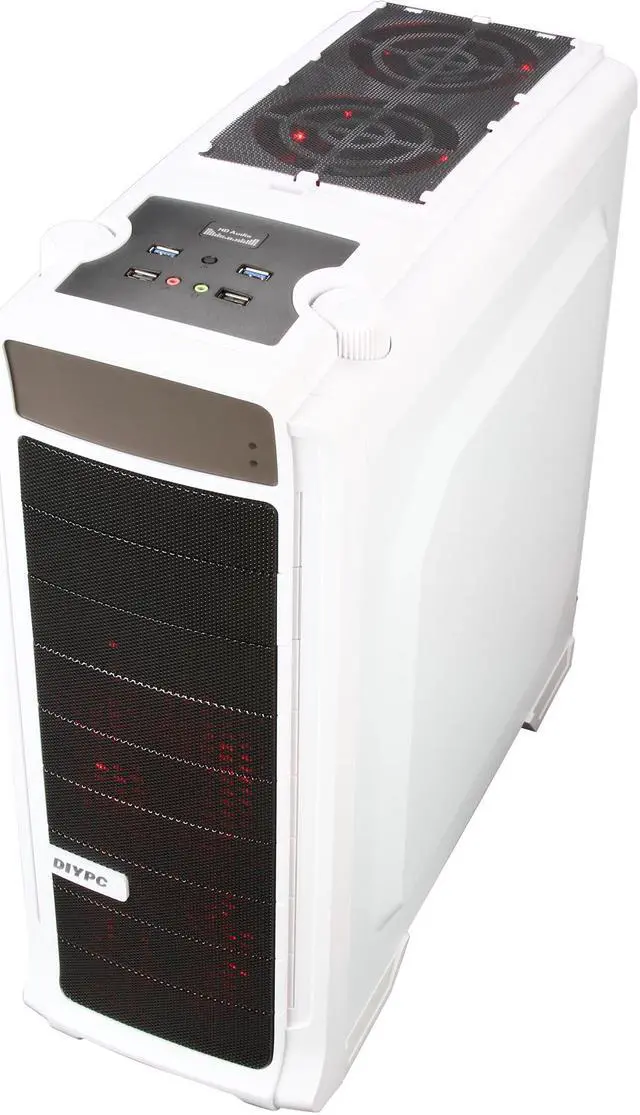

DIYPC Shadow-H01-W White Dual USB 3.0 ATX Mid Tower Gaming Computer Case with Build-in 6 x Red Fans (2 x 120mm LED Fan x Top, 2 x 120mm LED Fan x Front, 1 x 140mm Fan x Side, 1 x 120mm Fan x rear
