DIYPC D480-BK-Window Black Dual USB 3.0 ATX Mid Tower Computer Case with Build-in 5 x White Fans (2 x 120mm Fan x Front, 1 x 120mm Fan x rear, 2 x 120mm Fan x top), Fan Controller
Maximize the power of GeForce 5000 series cards with Gen5 NVMe SSD.
Overview
Specs
Reviews (48)
Any questions? Our AI beta will help you find out quickly.
Try me now
Simple and Elegant

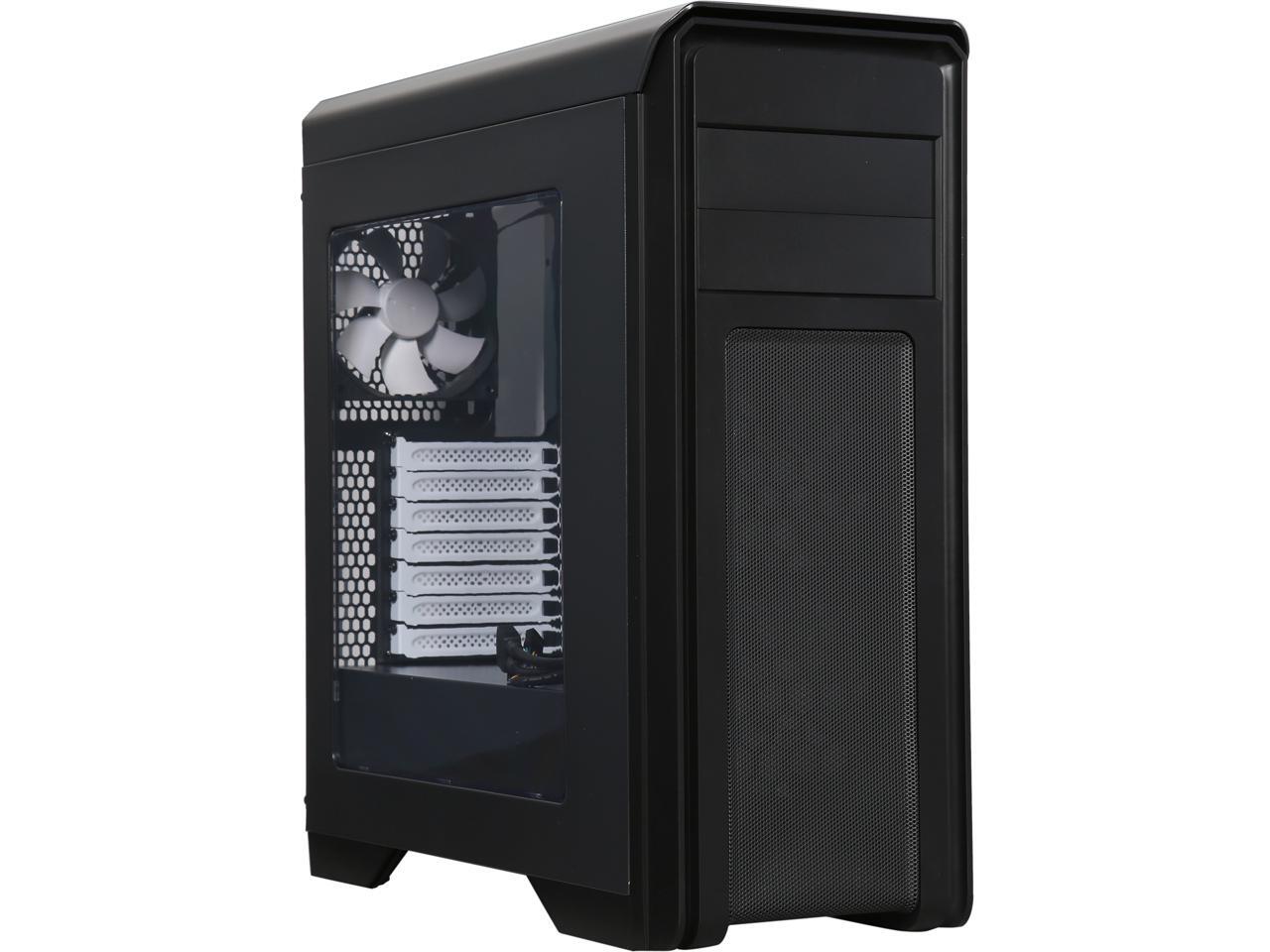

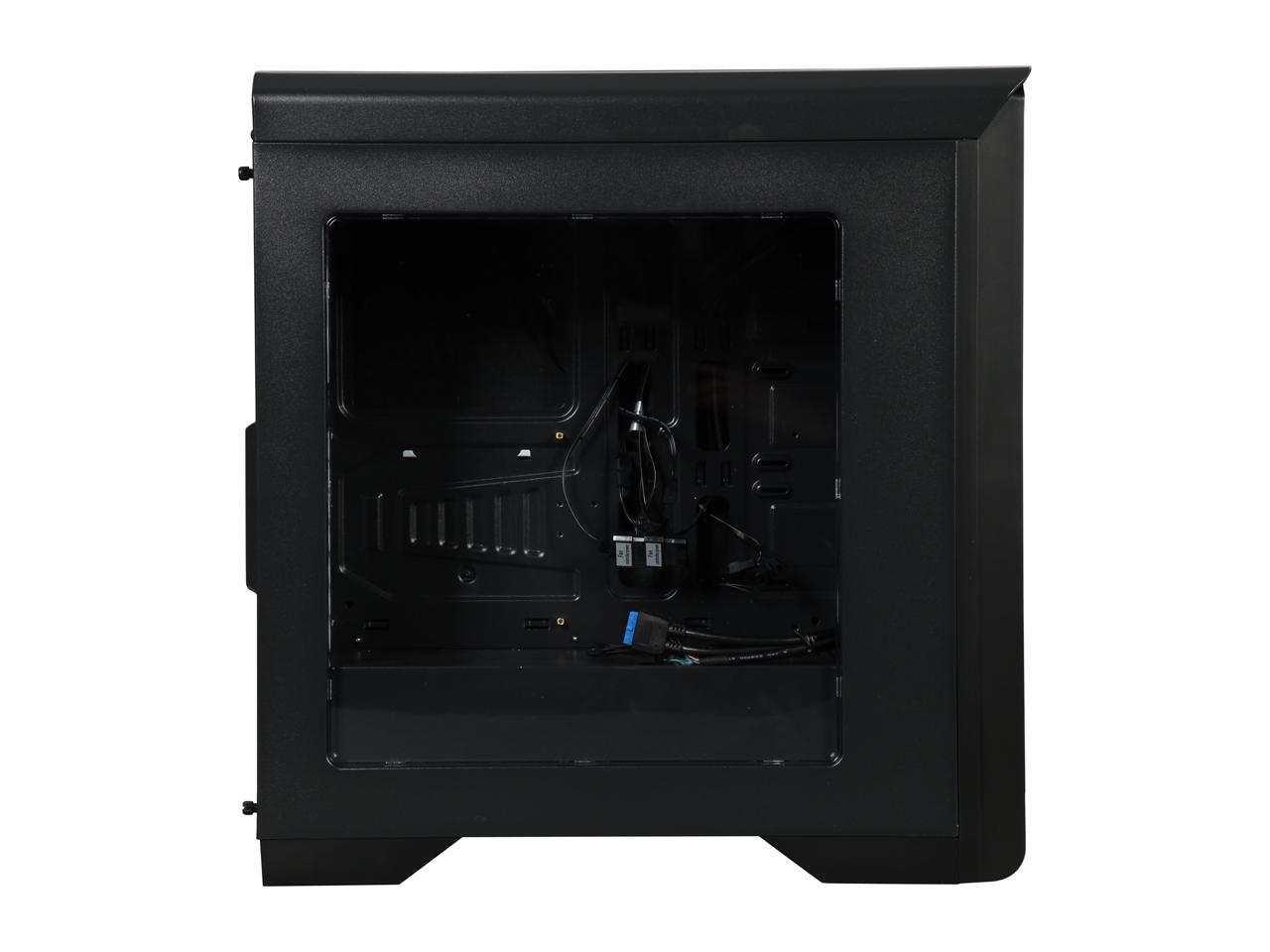

ATX mid-tower case with clear side window High quality of SPCC steel enhances case's strength and durability
Compatible with ATX and Micro-ATX MB

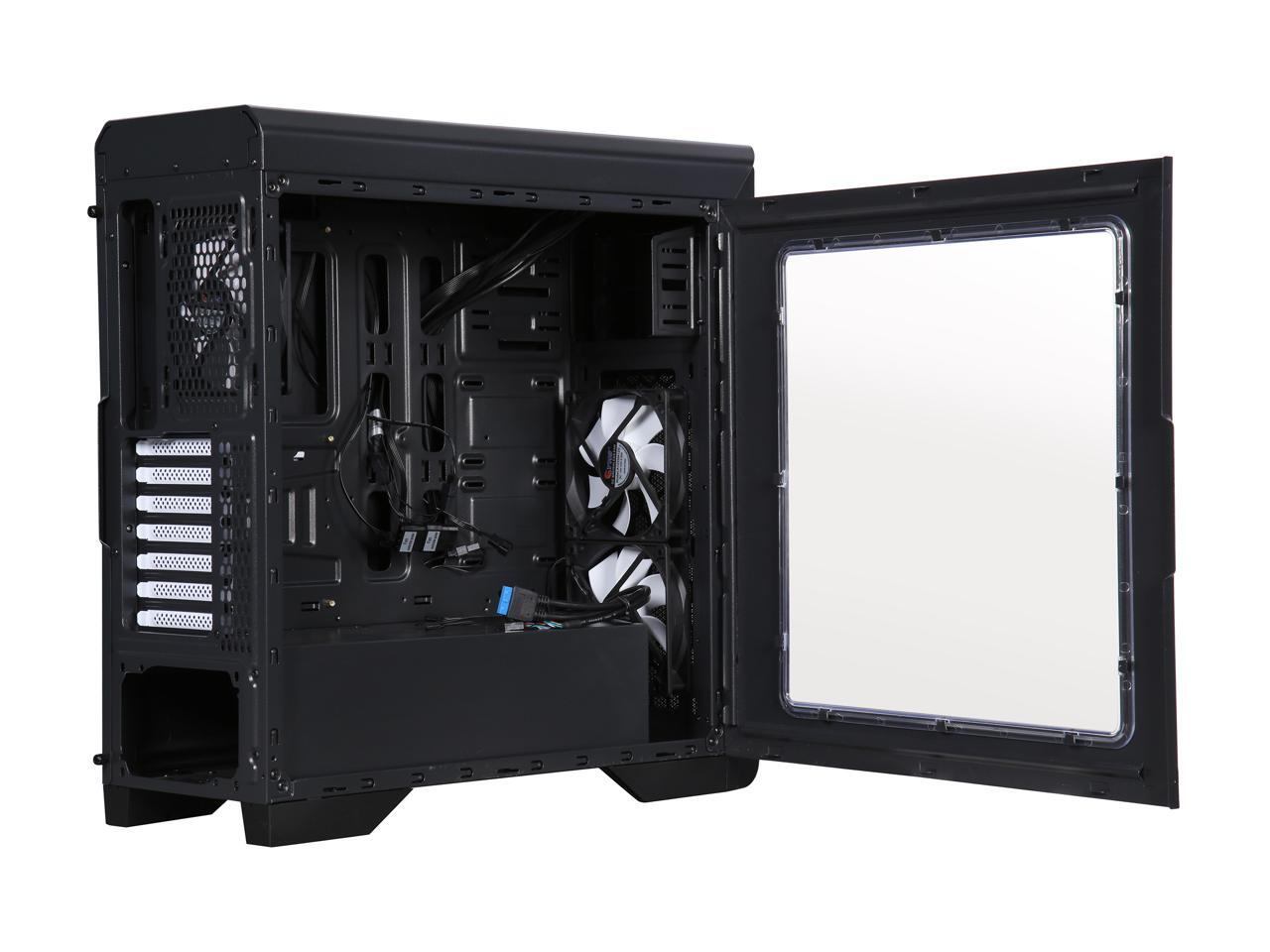

Advanced cable management (23mm)
HDD tool-free design
Maximize performance on your system
Magnetic dust filter on top panel- improves heat dissipation and easy clean
Outstanding cooling: Build-in 5 x fans provide excellent cooling performance 2 x 120mm black fan x top (pre-Installed) 2 x 120mm LED fan x front (pre-Installed) 1 x 120mm LED fan x rear (pre-Installed)
Integrated fan speed controller – control front, top, and rear fan
Learn more about the DIYPC D480-BK-Window
Model
Brand
DIYPC
Model
D480-BK-Window
Details
Type
ATX Mid Tower
Color
Black
Case Material
SPCC
With Power Supply
No
Power Supply Mounted
Bottom
Motherboard Compatibility
Micro ATX / ATX / Extended ATX
Side Panel Window
Yes
Dust Filters
Yes
Expansion
External 5.25" Drive Bays
2
Internal 3.5" Drive Bays
2
Internal 2.5" Drive Bays
3 (SSD)
Expansion Slots
7
Front Panel Ports
Front Ports
2 x USB 3.0 / 2 x USB 2.0 / Audio
Cooling System
Fan Options
Front: 2 x 120mm White Fan (Pre-Installed)
Rear: 1 x 120mm White Fan (Pre-Installed)
Top: 2 x 120mm Fan (Pre-Installed)
Radiator Options
Front - Up to 280mm / Top - Up to 240mm
Dimensions & Weight
Max GPU Length
415 mm
Max CPU Cooler Height
161 mm
Dimensions (H x W x D)
19.40" x 8.00" x 20.00"
Weight
14.00 lbs.
Additional Info
Features

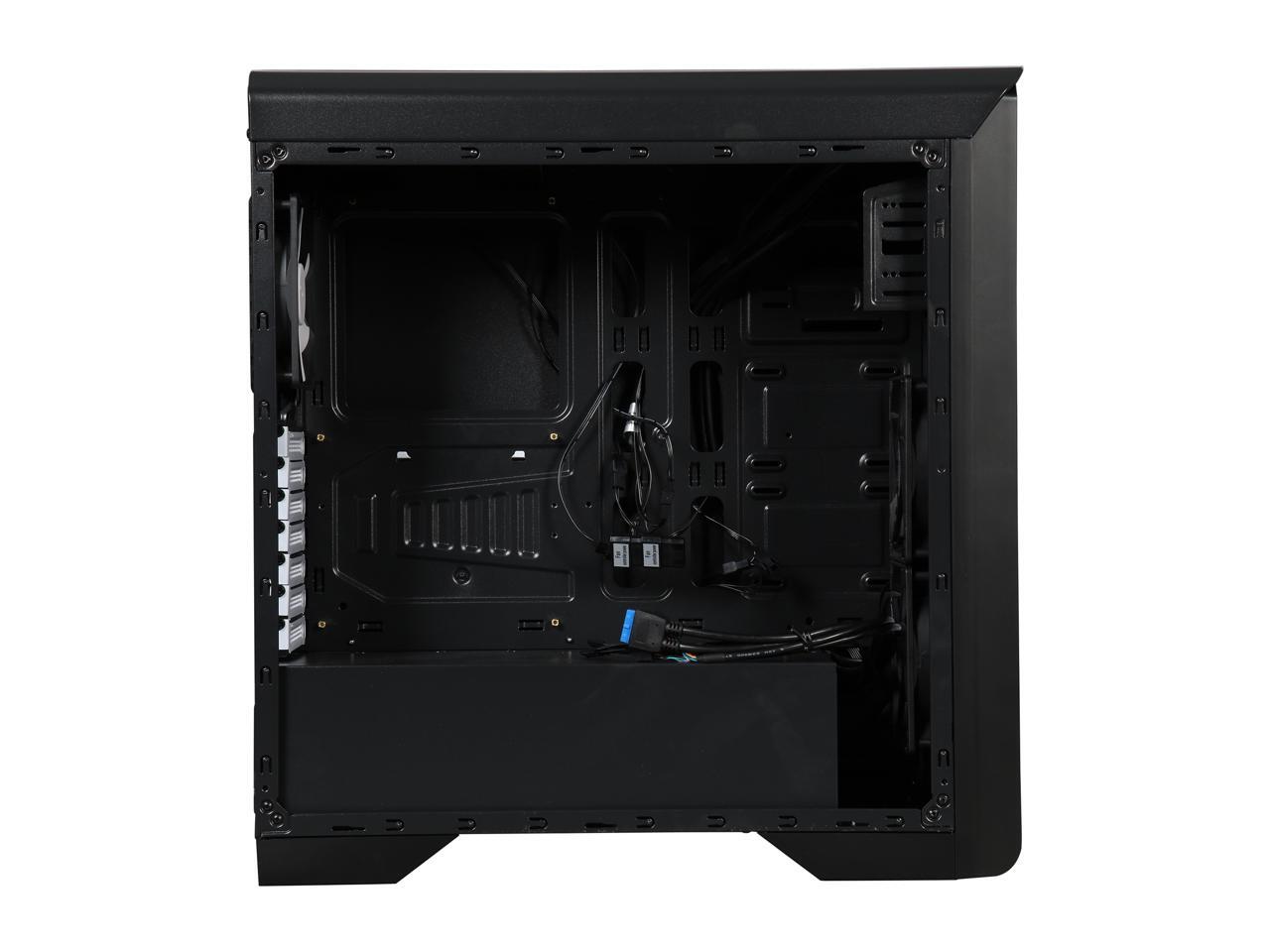

Full black interior
Advanced cable management design - 21.00mm
Advanced Bottom-Mounted PSU Design
Integrated fan speed controller - control front, top and rear fans

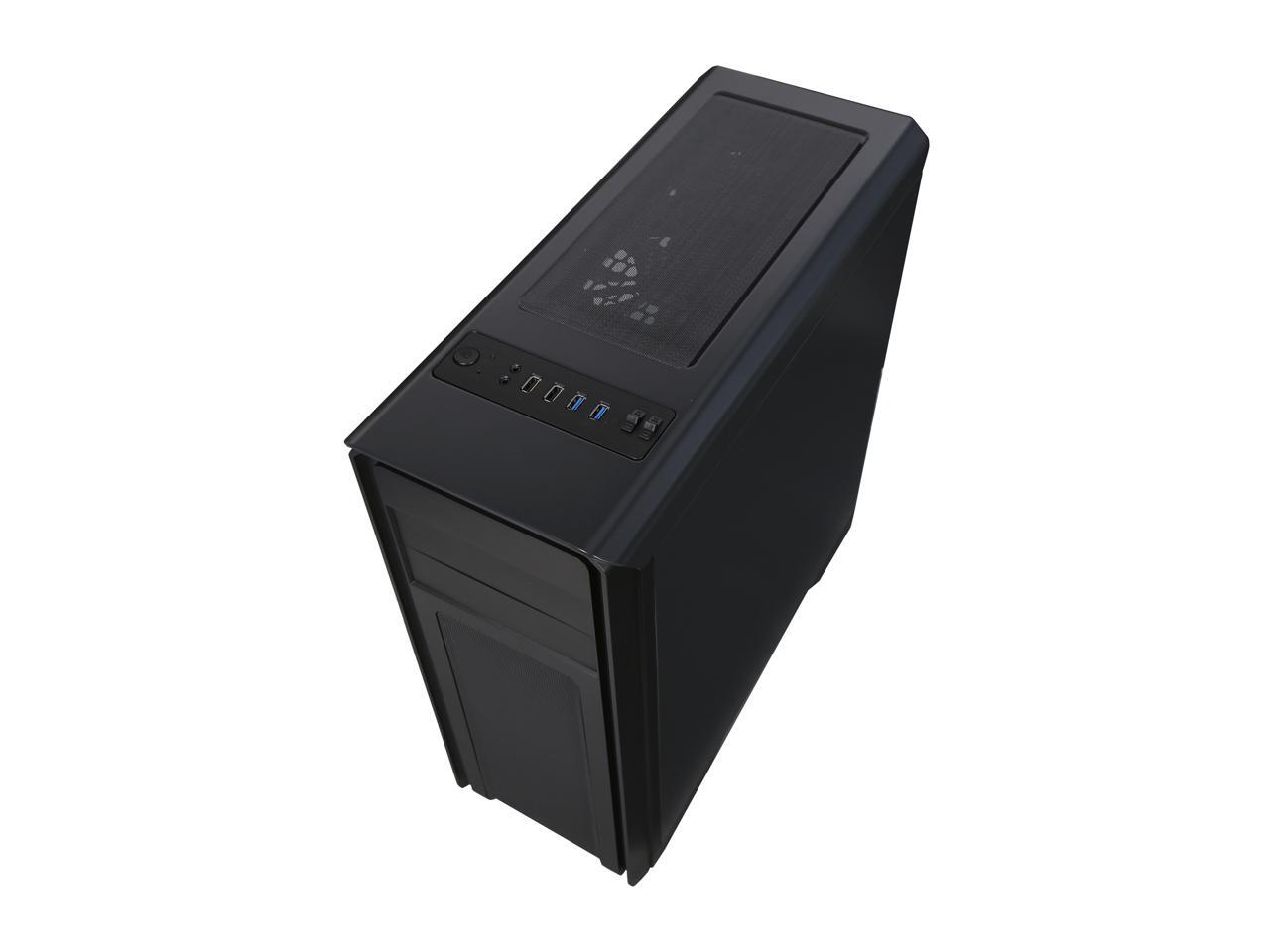

Top mounted IO ports - 2 x USB 3.0 for up-to-date high speed data transfer
5 fans capability (2 x 120mm white fan x front, 1 x 120mm white fan x rear, 2 x 120mm white fan x top) provide great cooling performance
