Brand | DIYPC |
---|---|
Model | G1-BK-ARGB |
Type | ATX Mid Tower |
---|---|
Color | Black |
Case Material | Steel / Tempered Glass |
With Power Supply | No |
Power Supply Mounted | Bottom |

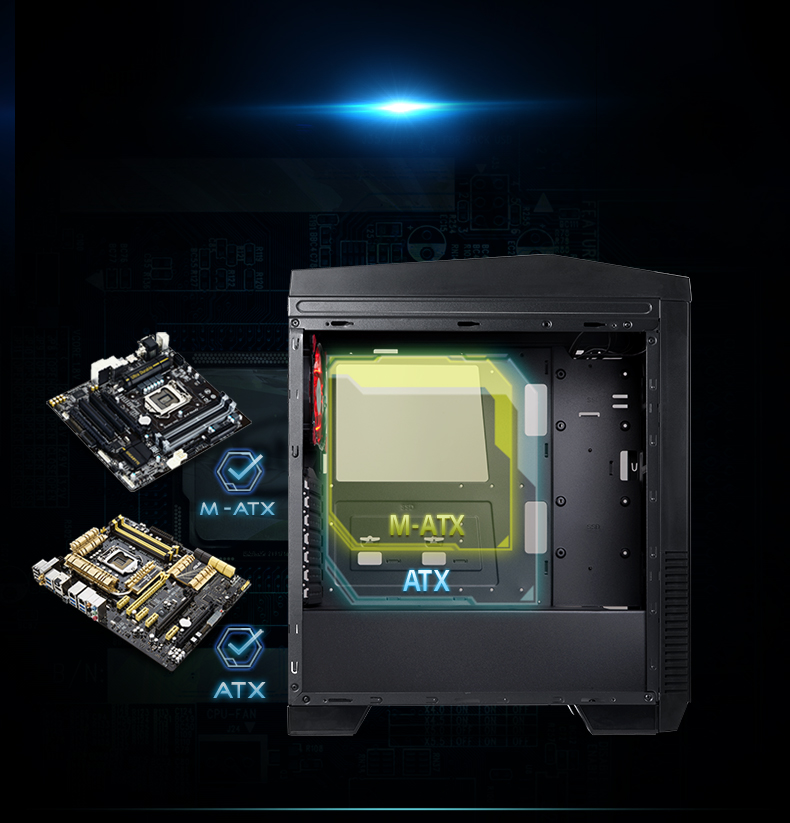

Motherboard Compatibility | Micro ATX / ATX / Mini-ITX |
Side Panel Window | Yes |

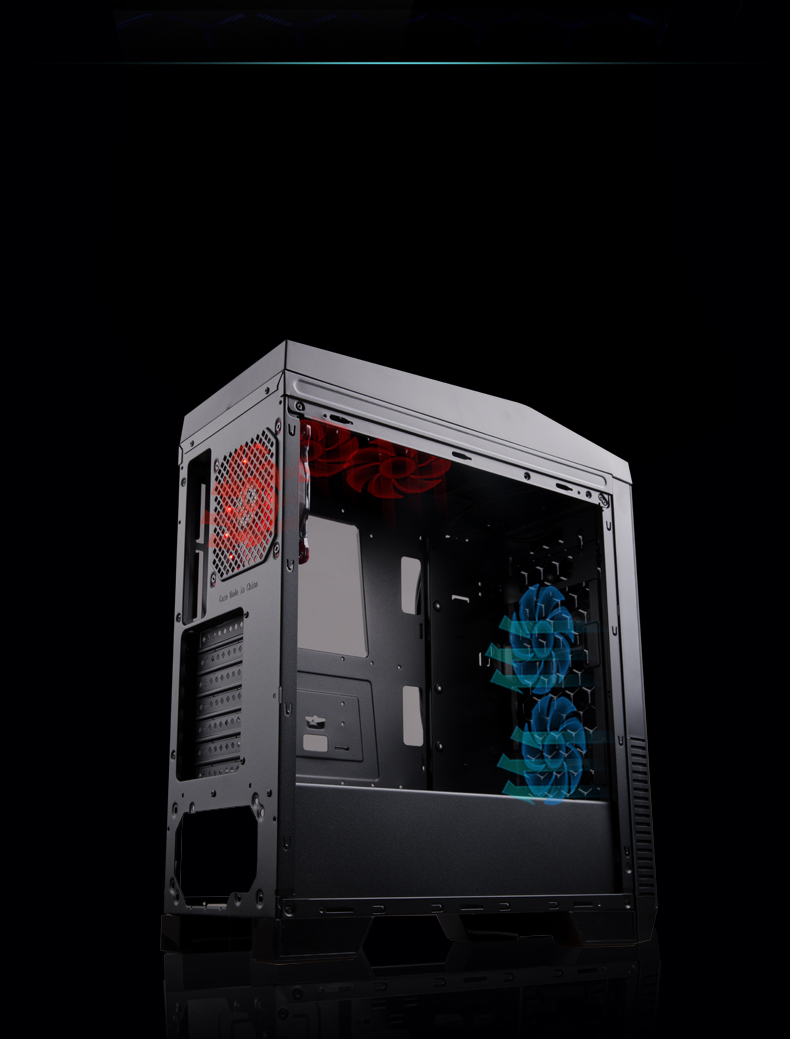

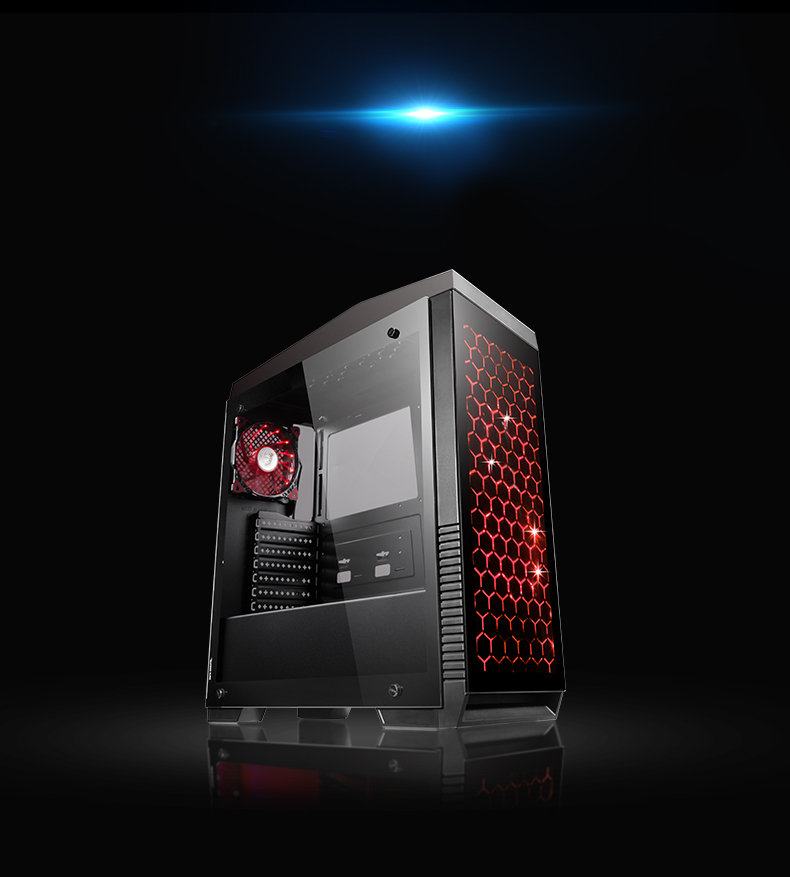

LED | Addressable RGB LED Strip on Front Panel, 1 x 120mm ARGB LED fan x rear |
Dust Filters | Top |

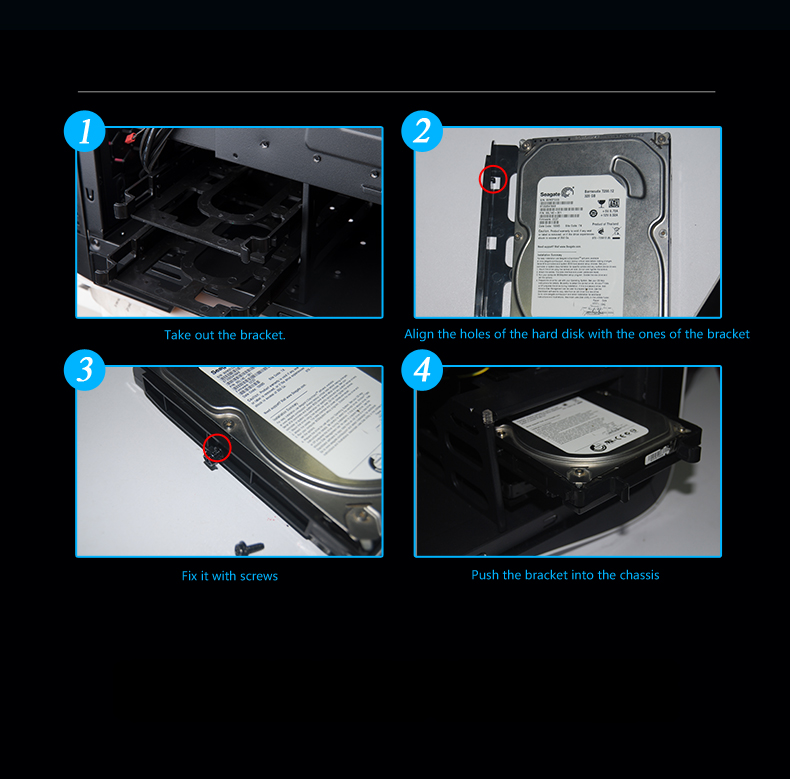

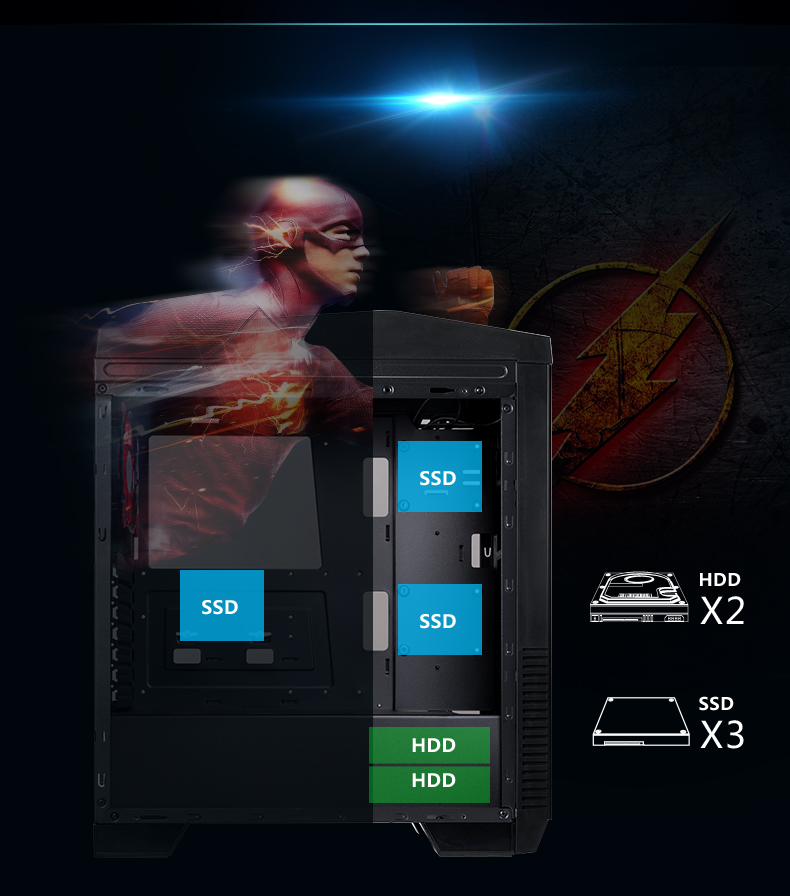

Internal 3.5" Drive Bays | 2 |
---|---|
Internal 2.5" Drive Bays | 2 |
Expansion Slots | 7 |

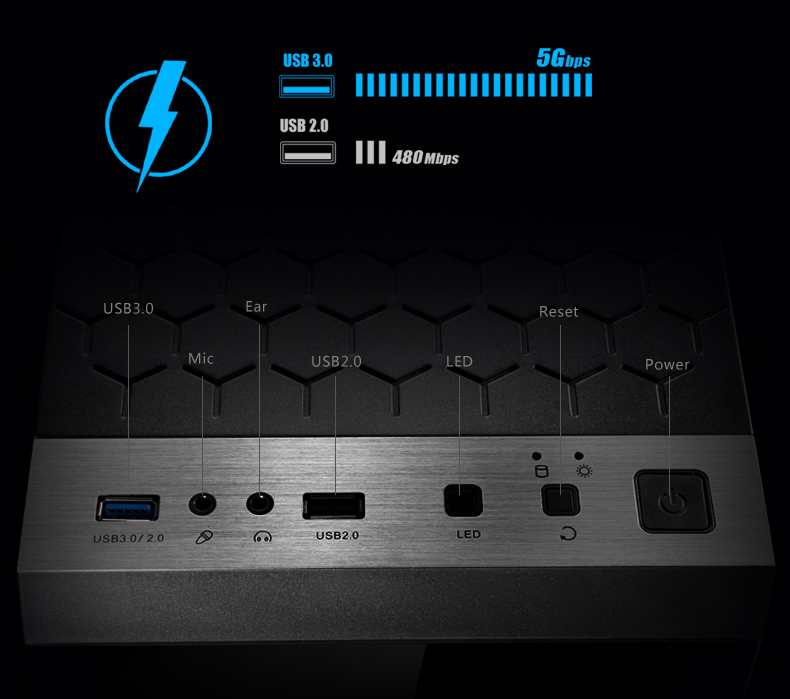

Front Ports | 2 x USB 2.0 / 1 x USB 3.0 / Audio In & Out (HD) |
---|
Fan Options | Front: 3 x 120mm fans (Optional) Top: 2 x 120mm fan (Optional) Rear: 1 x 120mm fan (1 x 120mm ARGB fan Pre-Installed) |
---|---|
Radiator Options | Front - Up to 360mm Rear - Up to 120mm |
Max GPU Length | 345 mm |
---|---|
Max CPU Cooler Height | 160 mm |
Max PSU Length | 200 mm |
Dimensions (H x W x D) | 18.50" x 8.40" x 17.00" |
Weight | 10.50 lbs. |

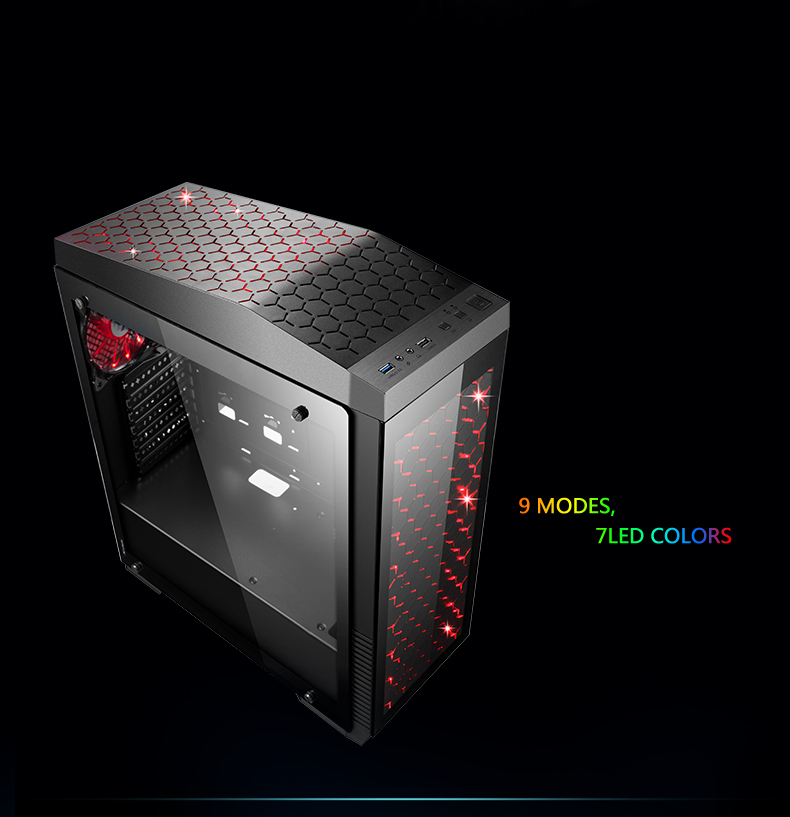

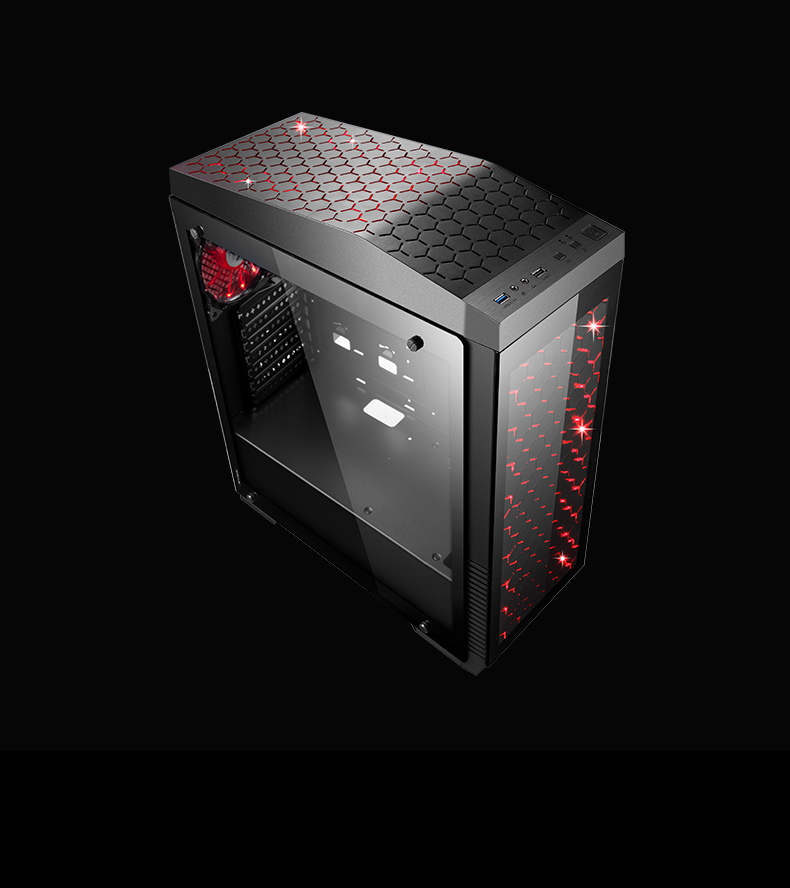

Features | Tempered glass side panel x 4mm thickness not only offers great protection, but also provides wide angle for optimized visualization while the system is running Addressable RGB LED strip on front panel and 1 x ARGB LED fans x rear provide great cooling and dynamic cyber gaming atmosphere 2 ways to control RGB LED strip and ARGB LED fan lighting: either by manual ARGB LED button on top panel; or if your motherboard has 5v addressable connector, this case has ARGB 5V/3 pin header ready to SYNC w/your motherboard to control ARGB lighting Water cooling ready - front can fit up to 360mm water cooling radiator Advanced cable management design Advanced bottom-mounted power supply design Top mounted IO ports - USB 3.0 for up-to-date high speed data transfer 6 fans capability provide great cooling performance Magnetic dust filter at top - easy clean Support up to 160mm CPU cooler Support up to 345mm VGA card |
---|
Date First Available | January 06, 2022 |
---|
Pros: -Great product, glass panels are sturdy and about a quarter of an inch thick. -Case design is good as well, pretty straight forward build if you do have some experience, -There are 2 RGB led strips on the front panel, 2 on the top, one red led fan is pre-installed. Front control panel also gives led mode switch: fade, stable,flashing,etc -rubber feet and Power supply dust filter, nice -Build quality is great I would say. Even not considering its price.

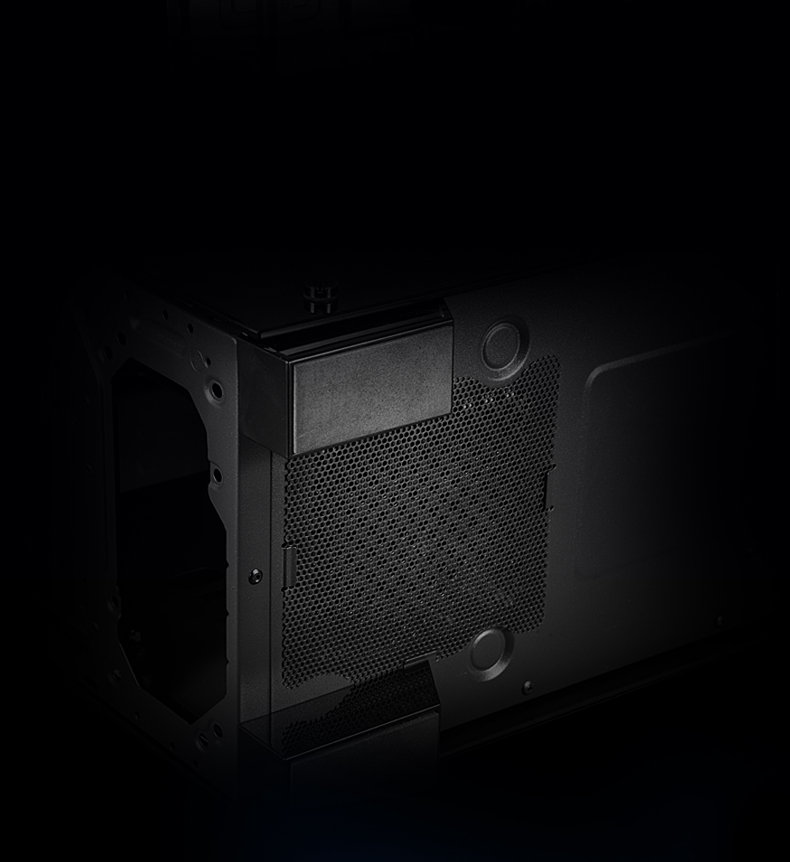

Cons: -no other dust filters, you may need to buy some to DIY your own way to keep dust from running in. A DIYPC afterall, lol. -As the other "didn't buy" reviewer mentioned, no rubber grommets. However, these holes are pretty small, if rubber grommets are pre-installed, I am pretty sure I can't push ATX cable out. Not a big issue though. -the metal used could be a little thin, however, it does feel solid as a whole. -the PCI shielding on the back panel are not reusable, but I am guessing since most people are using it for at least one video card, popping out two lanes of shields aren't an issue. -OHHH TAKE THIS ONE SERIOUS: there isn't a lot of room behind the motherboard, So wire management is a headache. Since it use a glass panel to close it, you gonna make it pretty on the back as well! Could take a while to smooth it out, I left some extra cable mass in the main compartment, and some in the hard-drive bay.
Overall Review: -Really great buy I would definitely recommend anyone who are looking to buy a new case. The led strips O-M-G is just every where, the glass panels are amazing, I really mean it. Those panels are really good (maybe it's because this is the first glass case I bought).. -Anyways, the wire management could be an issue. But if you are carefully enough and be patient, not a problem at all. -I am also watercooling my system, it does support very good watercooling variations. Be creative to DIY. LET ME KNOW IF THERE ARE ANY QUESTIONS, I WOULD BE HAPPY TO HELP AS LONG AS I SEE IT.
