Question 1

Does it come with the LED strips on the front?

Accepted Answer

Yes. They are integrated into the front panel. No controller for it though.

Question 2

Does it come with a video and network card?

Accepted Answer

No it doesn't. It's just the case. The video and network card is separate parts and does not include in this purchase.

Question 3

How quiet/loud is this case?

Accepted Answer

I have a home server using old parts in this case and it doesn't run too often, generally running at idle speeds and with the 2 front fans + 1 fan exhausting out the rear through a 120mm radiator it is relatively quiet.

If running a high end rig and an intensive workload (ie: gaming) it may get loud. The front isn't the best for airflow and will require high fan RPM to keep components cool.

Question 4

Will my ASUS Z170 PRO GAMING fit with eve 212?

Accepted Answer

Ill assume you meant the Cooler Master 212 Evo. In that case, yes, it will definitely fit. I don't have the case anymore but I think the plexy side panel actually might touch the top of the 212, but it's only barely touching, if it even does I don't quite remember.

Question 5

are all of the fans led?

Accepted Answer

No. Only the rear fan is. The front 2 are black. But there are blue light strips in the front that look really cool.

Question 6

does this case have a hdmi port?

Accepted Answer

No this case does not have a hdmi port built into the case. In fact I don’t think I have ever seen a hdmi built into a case,Pretty sure because the fact that it has to be driven off of built in graphics like a motherboard or graphics card to output the video feed.

Question 7

will an MSI 970 Gaming motherboard fit in there?

Accepted Answer

The case fits anything up to a standard atx motherboard, and standard atx power supply. Be careful of the cooler on the CPU, a hyper 212 Evo will fit but the ends of the copper tubes WILL be touching the plastic side panel, though it won't bend the panel.

Question 8

If the tempered glass breaks on the case how can i replace it?

Accepted Answer

Its not actually glass. Unless they have made a change since i purchased. Go to home depot and buy a thing sheet of acrylic and score it ans snap it to size. Bend the tabs holdimg the broke acrylic to remove the remainder. Then dependimg on the condition of the side panel after the old acrylic has been removed you might want to use somethimg like silicone to hold it in place and use a wet rag to remove any excess silicone.

Question 9

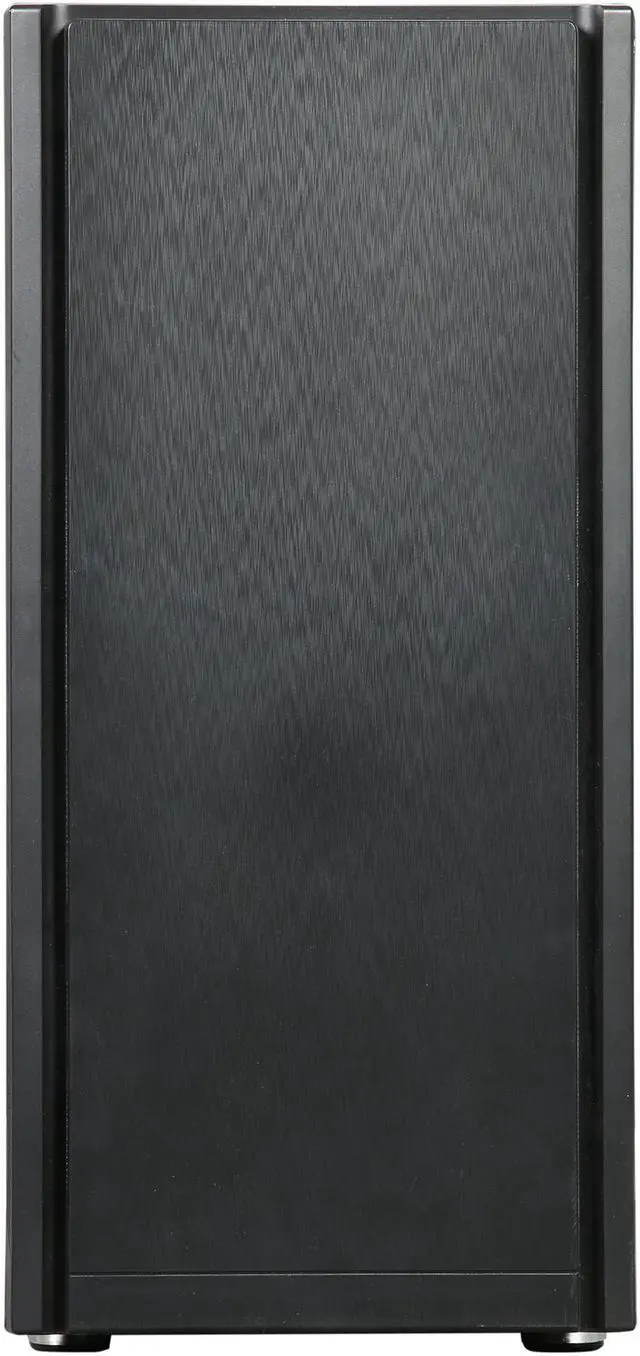

Is the front panel "breathable"?  In other words, will it allow air to flow through it and through the case or is it solid, not allowing air to pass through it?  Thank you for the help!

Accepted Answer

Yes, in the second picture you can see those two edges running down the front those are vents. There are two stock fans mounted just behind the panel and they dont seem to flow very much but they're there.

Question 10

Is it important to have a 5.25 bay?

Accepted Answer

Not at all. CD's, are gone. Only reason to have it is for all in one flash card and flash storage reader and some sort of controller, like fan controller or temperature output. Me for example I am using it for SupremeHiFi controller for my sound card. SupremeXiFi I think

Brand	DIYPC
Model	DIY-BG01

Type	ATX Mid Tower
Color	Black
Case Material	SPCC
With Power Supply	No
Power Supply Mounted	Bottom

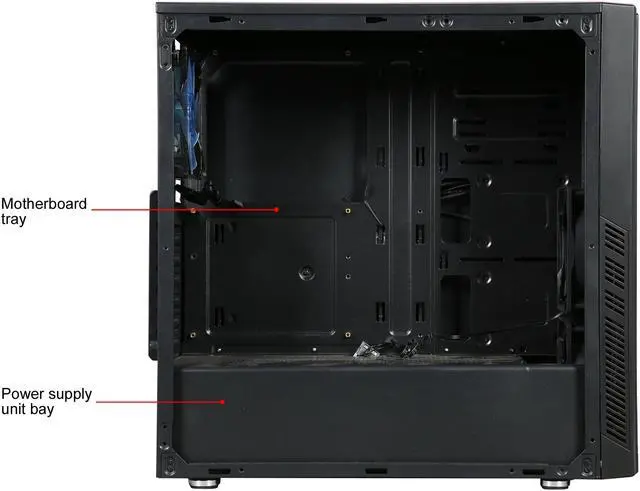

Motherboard Compatibility	Micro ATX / ATX

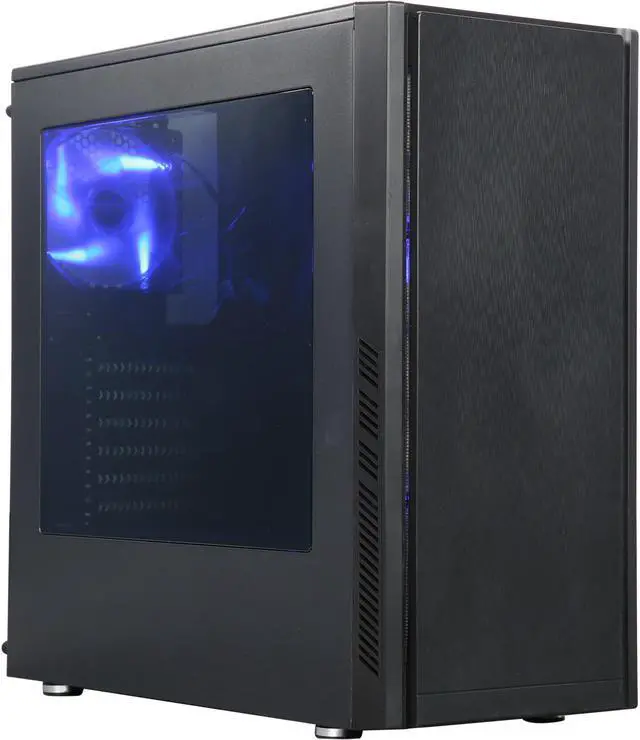

Side Panel Window	Yes
LED	Blue

Internal 3.5" Drive Bays	2
Internal 2.5" Drive Bays	3 (SSD)
Hot-Swap Drive Bays	1

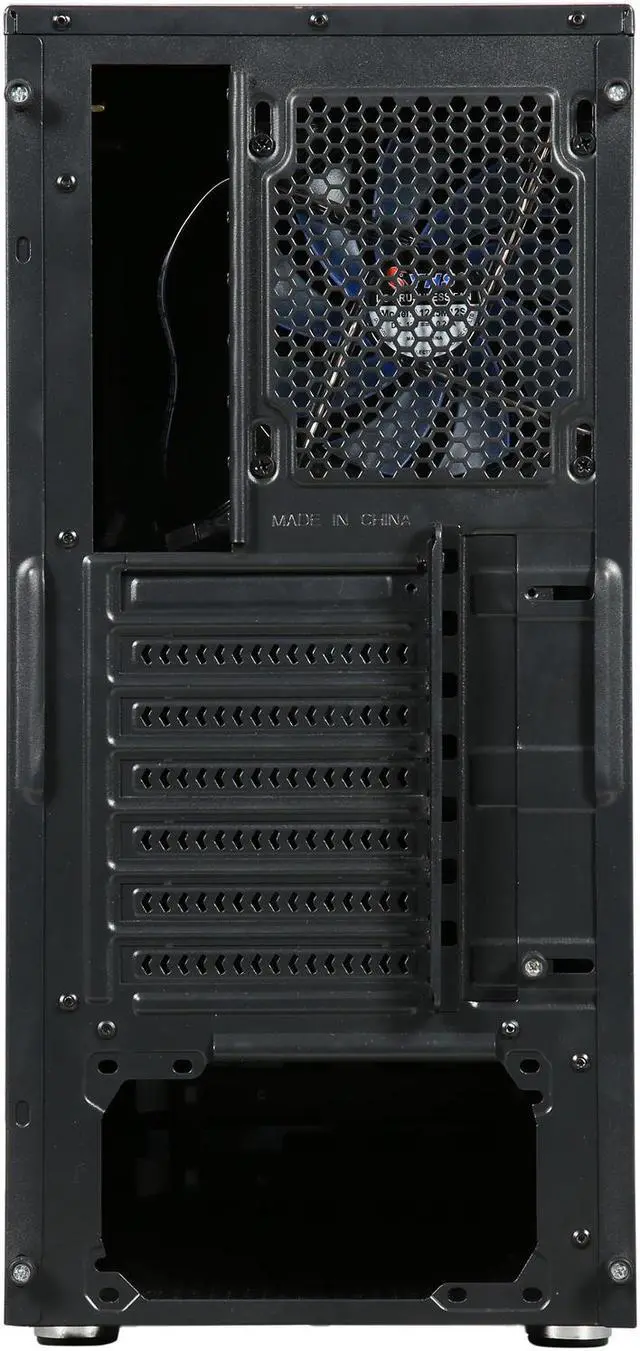

Expansion Slots	7

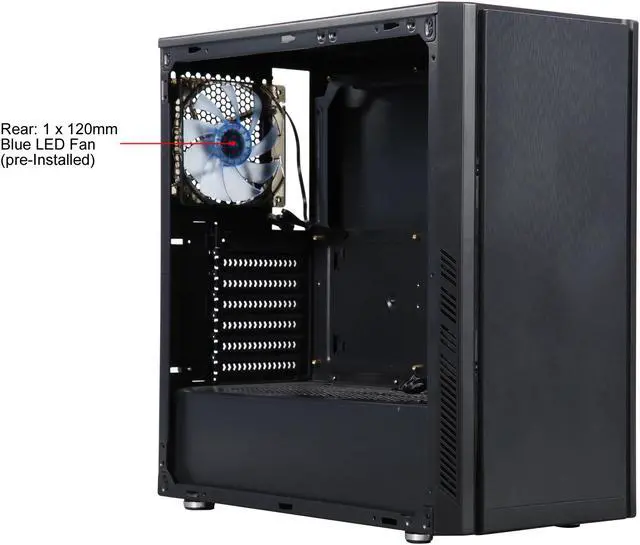

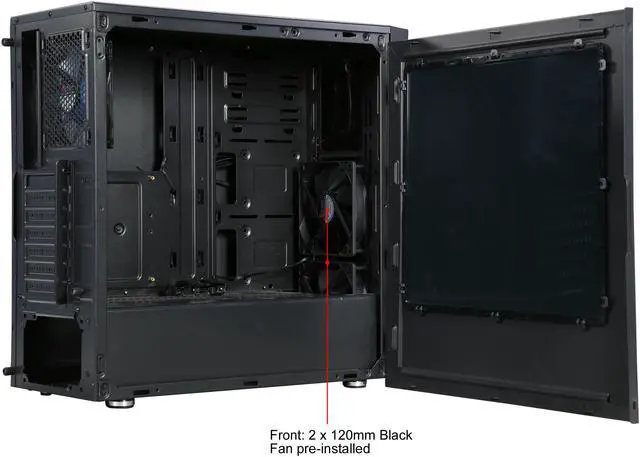

Fan Options	Front: 3 x 120mm Fan (2 x 120mm Black Fan pre-installed) or 2 x 140mm Fan Rear: 1 x 120mm Blue LED Fan (pre-Installed)
Radiator Options	Front - Up to 280mm
80mm Fans	No
140mm Fans	No
Side Air duct	Yes

Max GPU Length	400 mm
Max CPU Cooler Height	163 mm
Max PSU Length	200 mm

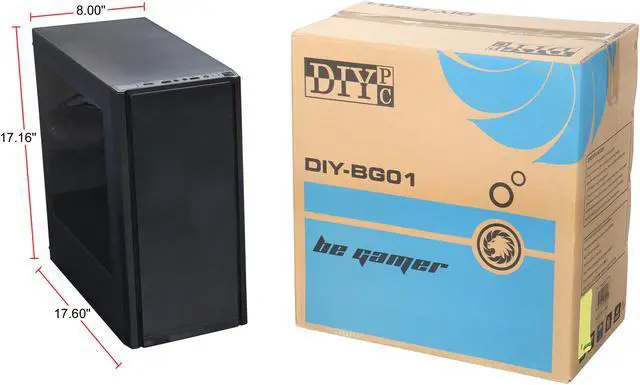

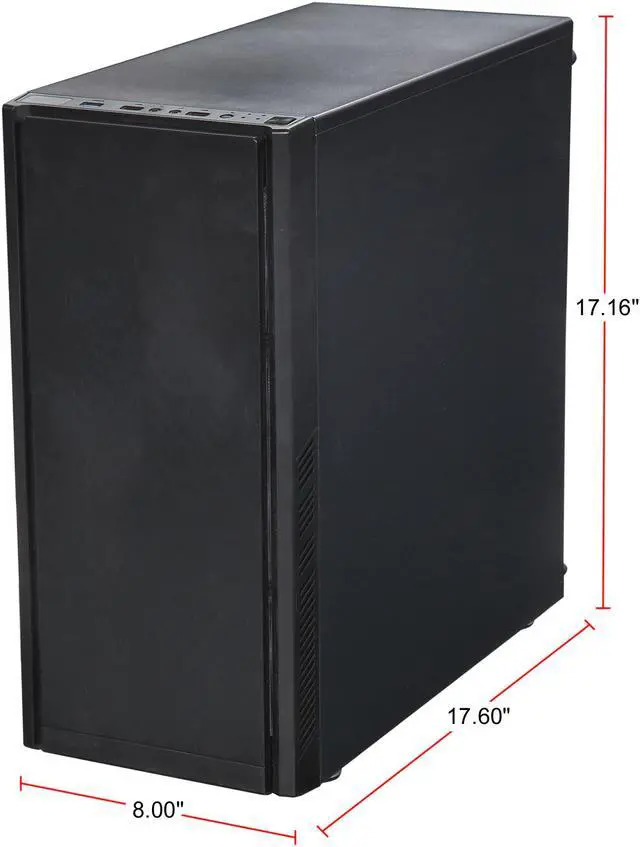

Dimensions (H x W x D)	17.16" x 8.00" x 17.60"
Weight	11.00 lbs.

DIYPC DIY-BG01 Black USB 3.0 ATX Mid Tower Gaming Computer Case with Pre-installed 3 x 120mm Fans
