Name: DIYPC Vanguard-V8-RGB Computer Case
Brand: DIYPC
SKU: N82E16811353140
Rating: 4 (400 reviews)

DIYPC Vanguard-V8-RGB Black Dual USB3.0 Steel/ Tempered Glass ATX Mid Tower Gaming Computer Case w/Tempered Glass Side Panel and Pre-Installed 4 x RGB LED Dual Ring Fans (7 Different Color in 3 Mode Control)

Steel / Tempered Glass ATX Mid Tower
2 x USB 2.0 / 2 x USB 3.0 / HD Audio In/Out Front Ports
Pre-installed 4 x RGB LED Dual Ring Fan (7 different color in 3 modes control- circularly flashing, breathing and stable) provides great cooling and dynamic cyber gaming atmosphere
2 ways to control RGB Fan Lighting: Either by Manual RGB LED Button on Top I/O Panel; or if your Motherboard has RGB connector, this case has Aura adapter(12V) ready to SYNC w/your motherboard to control RGB lighting
Water cooling ready - Front / top can fit up to 360mm water cooling radiator
Advanced cable management design
Support up to 440mm VGA card
Dust filter at top and bottom - easy clean

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

DIYPC Vanguard-V8-RGB Banner with two cases, one blue the other green with the graphic of a human head with molecules coming out of it

Unique Design, Ultimate Gaming Solution

DIYPC Vanguard-V8-RGB ATX Mid Tower gaming computer case helps you fulfill the dream of building a powerful and stylish gaming setup. It comes with four pre-installed RGB dual-ring fans that provide excellent cooling and create a captivating atmosphere. You can control RGB lighting by a manual button or use the built-in Aura adapter (12V) to synchronize with compatible motherboard. The chassis has spacious room for large-size components, such as 360mm water cooling radiator, up to 180mm high CPU cooler and up to 440mm long VGA card. A tempered glass window lets you showcase the hardware inside.

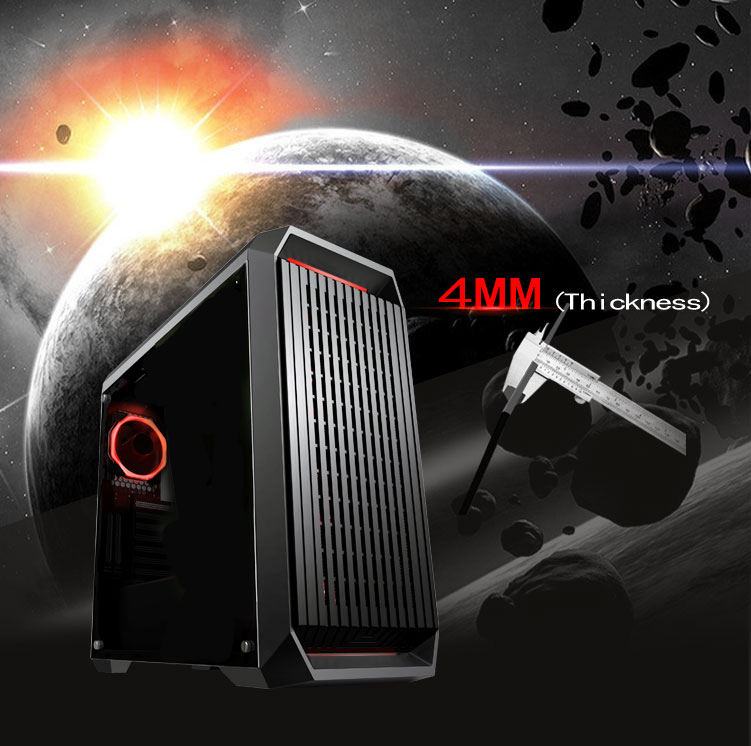

DIYPC Red Accent Case In Front of a Galactic Planetary Scene and the Text 4MM Thickness

Fully Clear, Tempered-Glass Side Window

DIYPC Front Facing Image In front of a planet and it's atmosphere

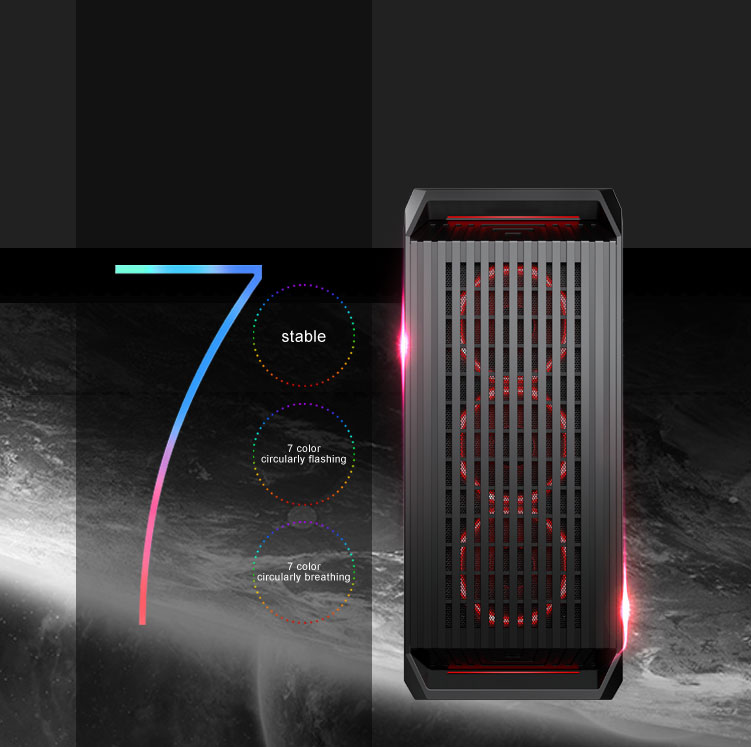

4x Pre-Installed Dual Ring RGB Fans
(7 Different Colors in 3-Mode Control)

If your motherboard has an RGB connector, this case has an AURA adapter ready to sync the compatible motherboard to the RGB lighting control.

How to Use the AURA Adapter

Step I: Make sure the motherboard has a 12V RGB header.

Step II: Find the AURA adapter on the RGB controller.

Step III: Connect the AURA adapter. (4pin RGB header) from RGB controller to 12v RGB header from motherboard

ASUS Aura Sync ASRock RGB LED GIGABYTE RGB Fusion Ready MSI Mystic Light logos

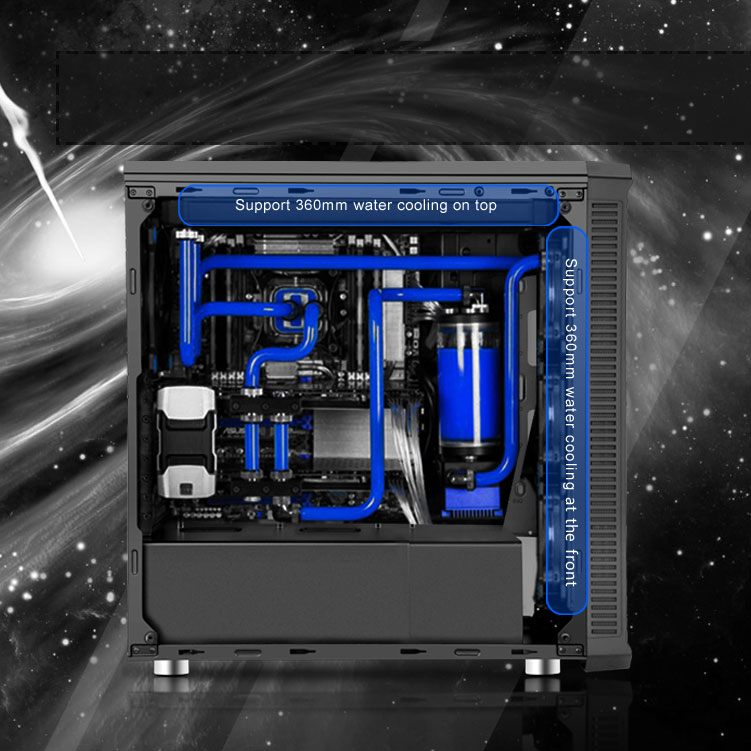

Support 360mm Water Cooling at the Front and Top

This case can support 360mm water cooling at the front and top, and the rear supports 140mm water cooling.

PC Case with a Complete Blue Water Cooling Setup

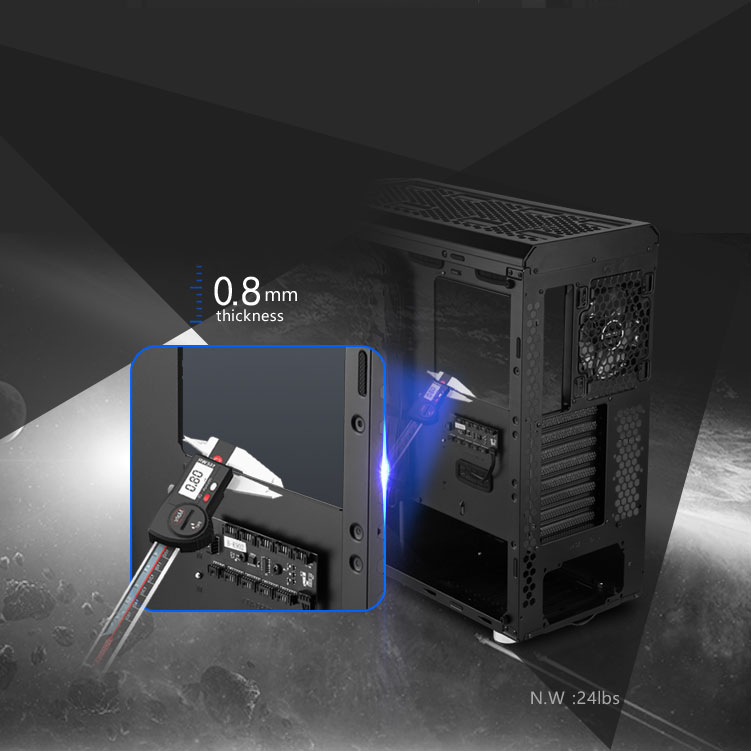

0.8mm Steel Thickness with a High Standard of Quality

Closeup of the Case's Steel Thickness and the entire case in the background

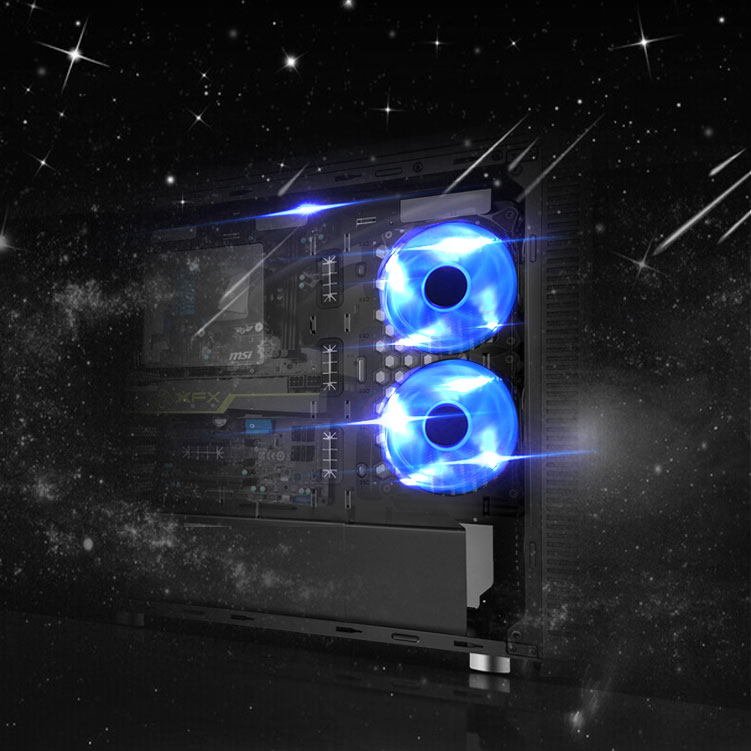

Support up to 240mm Water Cooling Side Mount on the Motherboard

Unique DIY Design

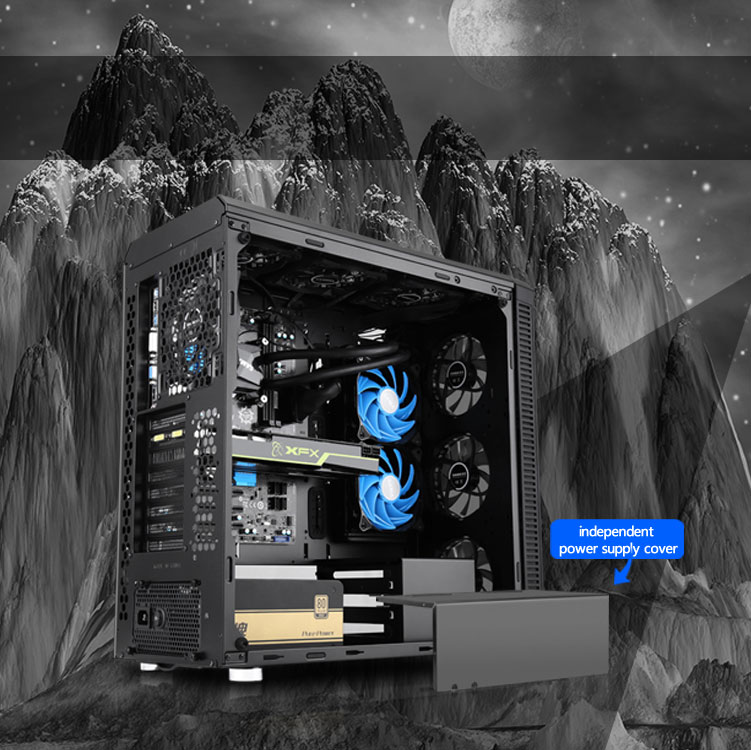

Each case's structure comes with a power-supply cover that can move independently for flexible installation.

DIYPC case with components installed and side panel removed

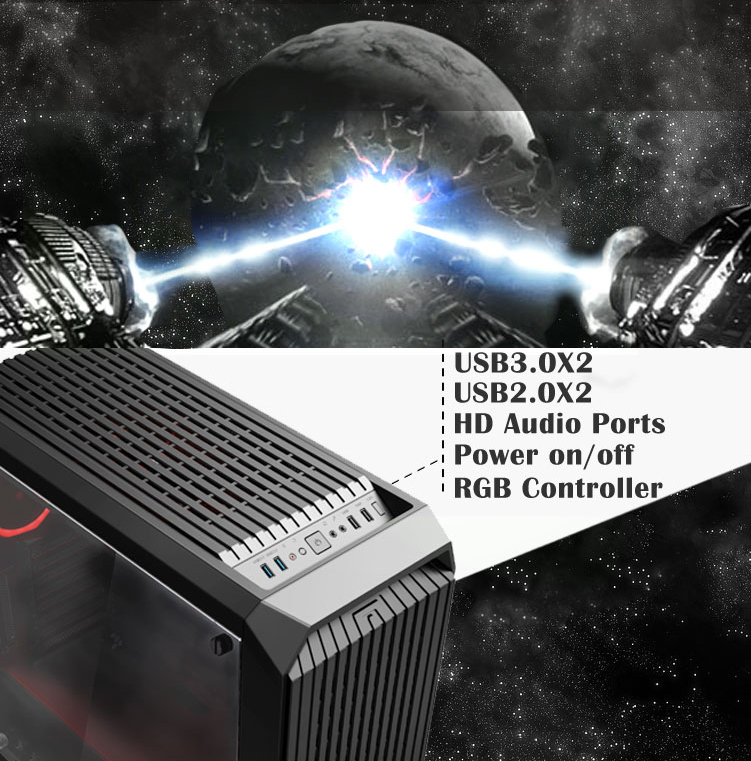

Top shot of the DIYPC case showing its ports

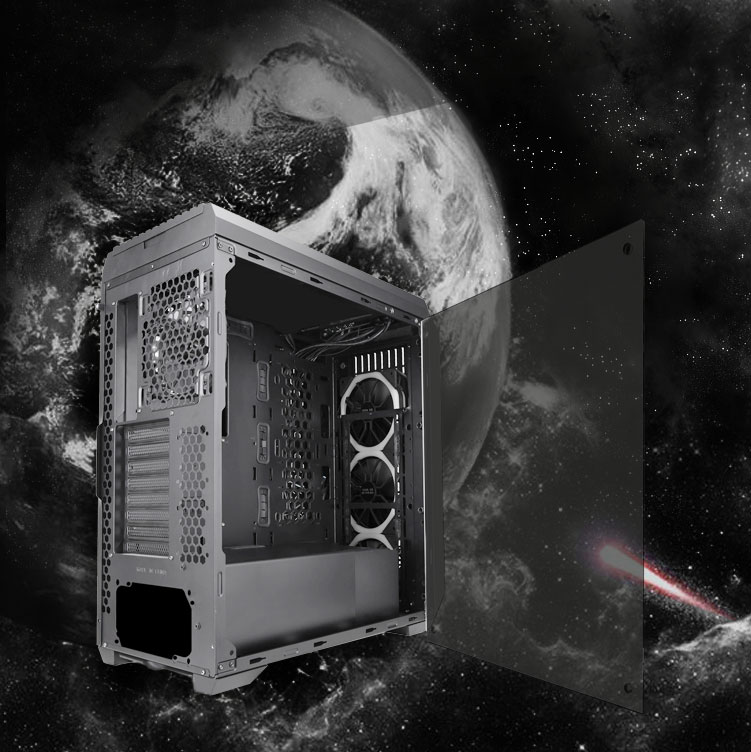

DIYPC case with its tempered glass side panel removed and a planet in black and white behind it

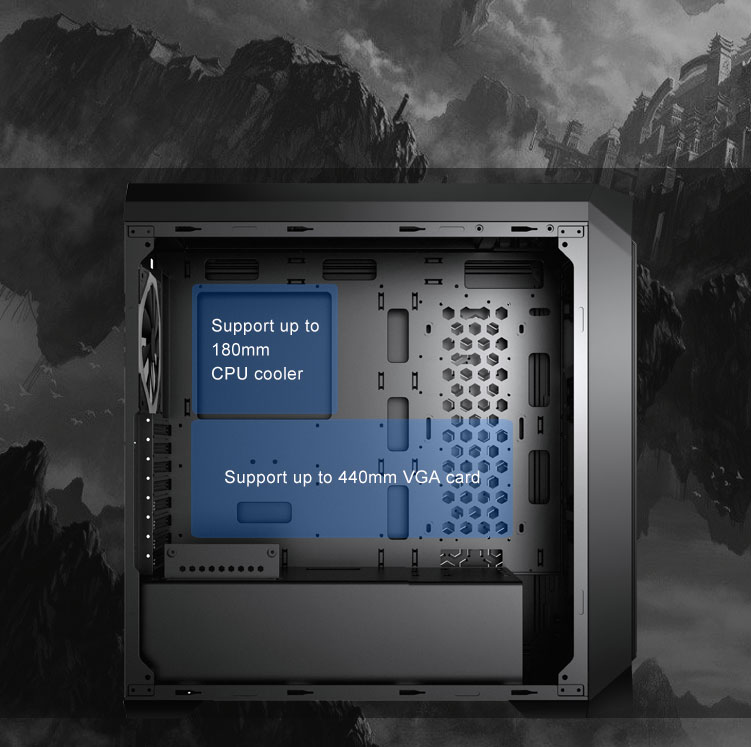

DIYPC side shot with the side panel removed and text indicating where the video card and CPU cooler can be installed

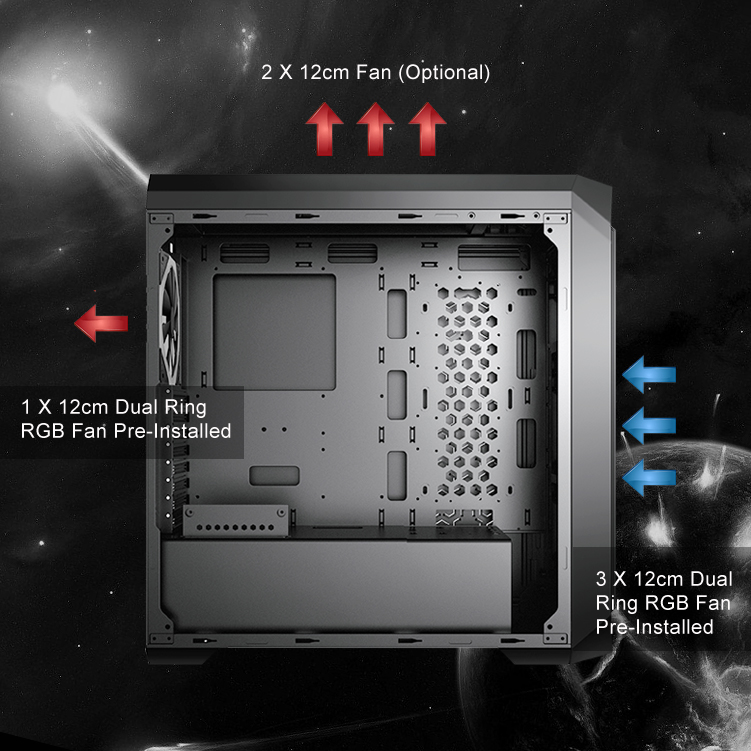

DIYPC case side panel removed showing how airflow can be directed within

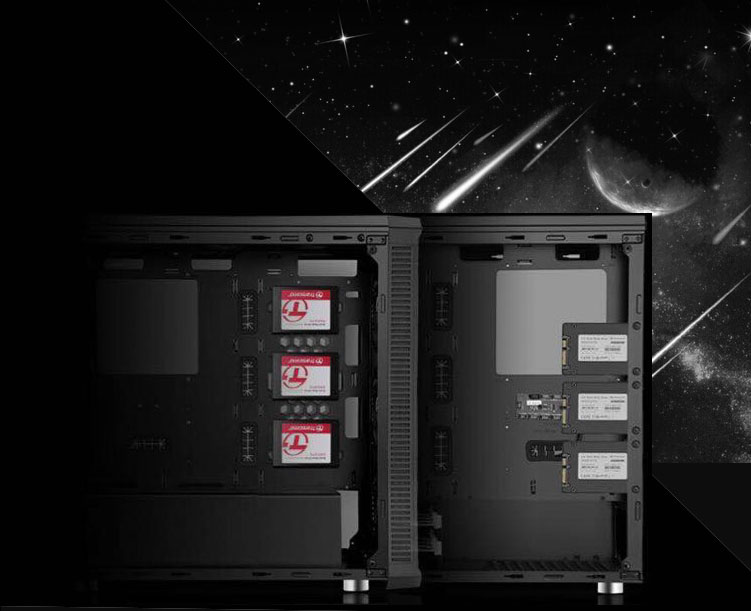

Support 6pcs of SSD Installation

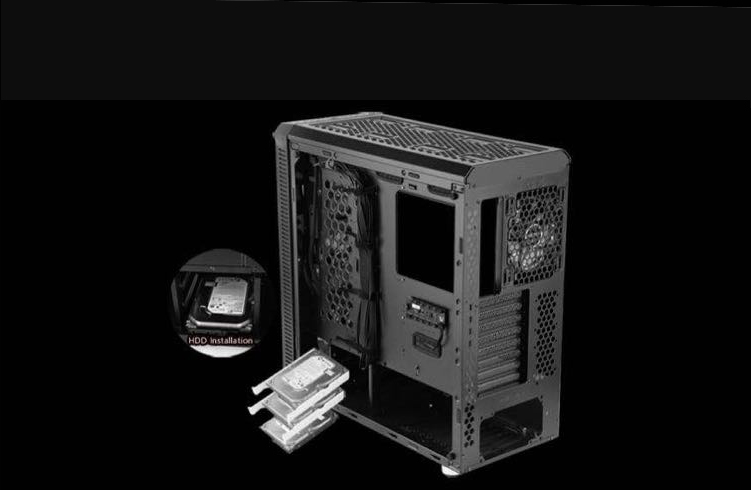

Support 3pcs of HDD Installation

Pull open the HDD plate at first

Install the HDD on the hole

Turn the screw to fix on

The HDD plate also supports SSDs

Type	ATX Mid Tower
Color	Black
Case Material	Steel / Tempered Glass
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Micro ATX / ATX / Mini-ITX
Side Panel Window	Yes
LED	RGB
Dust Filters	Bottom / Top

External 5.25" Drive Bays	No
Internal 3.5" Drive Bays	3
Internal 2.5" Drive Bays	5 (SSD)
Hot-Swap Drive Bays	3
Expansion Slots	8

Fan Options	Front: 3 x 120mm RGB LED Dual Ring Fan (Pre-Installed) Rear: 1 x 120mm RGB LED Dual Ring Fan (Pre-Installed) Top: 2 x 120/140mm Fan (Optional)
Radiator Options	Top - Up to 280mm / Front - Up to 360mm
80mm Fans	No
140mm Fans	2
Side Air duct	Yes

Max GPU Length	440 mm
Max CPU Cooler Height	180 mm
Max PSU Length	238 mm
Dimensions (H x W x D)	20.20" x 9.30" x 19.78"
Weight	20.00 lbs.
