Xigmatek Aquila NVIDIA – GeForce GTX Black Steel Micro-ATX Cube Chassis Special Edition EN5520
- Steel / Plastic MicroATX Mini Tower
- USB 3.0 x 2, HD Audio in/out jacks Front Ports
- 2 compatible with 2.5” Internal 3.5" Drive Bays
Overview
Specs
Reviews (8)
See all Q & A
Any questions? Our AI mode will help you find out quickly.
Try me now
Xigmatek Aquila NVIDIA GeForce GTX EN5520 Black MicroATX Mini Tower Computer Case Special Edition
Combined with the efforts of NVidia's GeForce team and Gaming Fans, Xigmatek now brings you one of their most well thought out Micro-ATX chassis, packed full of great new innovative features.
The GeForce GTX Aquila is made with exceptional build quality and covered with a powdered deep matte finish for a dark and dramatic look. The windowed panel comes with an innovative, no cable, light up GeForce GTX logo as well as a matching green LED front fan and a pair of LED strips for you to create that classic NVidia GeForce scheme.
From dust filters to the rubber stands for the PSU, all the features you want in a gaming chassis now come in a compact Micro-ATX design. On top of great cooling and ingenious cable management options, this Micro-ATX can house full desktop parts comfortably and with great ease.
NVidia – The Way It's Meant to be Played!
- Cable-free light-up GeForce GTX logo on windowed panel.
- Includes a set of GeForce-green LED strips.
- Includes pre-installed rear 120mm high performance silent Xigmatek XOF black fan with FCB (Fluid Circulative Bearing).
- Includes pre-installed 200mm transparent Xigmatek fan with green LED on front
- PSU placement under the motherboard allowing for horizontal motherboard layout.
- Anti-vibration rubber stands for PSU.
- Can mount up to 12.9" (330mm) full-length Gaming Graphic cards
- Sturdy non-flex and tool-less side panels.
- Quick release magnetic top mesh cover for easy access of top fans / radiator
- Add-on card slot x 4 allows SLI / Crossfire.
- Pre-drilled water tubing holes.
- Powdered deep matte finish.
- Heavy duty handles for easy relocation.
- Easy innovative cable routing and management options.
- Front, top and bottom dust filter.
I/O: USB 3.0 x 2, HD Audio jacks
Strong bars provides a stable system
High quality slick power button
Water tube holes x 2 for water cooling solutions
Anti-vibration PSU stands
Brackets for full size ATX power supplies
Tool-less Add-on card slots x 4 capable for SLI / Crossfire
Innovative mix and match 3.5 " or 2.5 " Internal HDD/SSD x 2 (tool-less hard drive tray)
Cable-Free Side Panel Connector

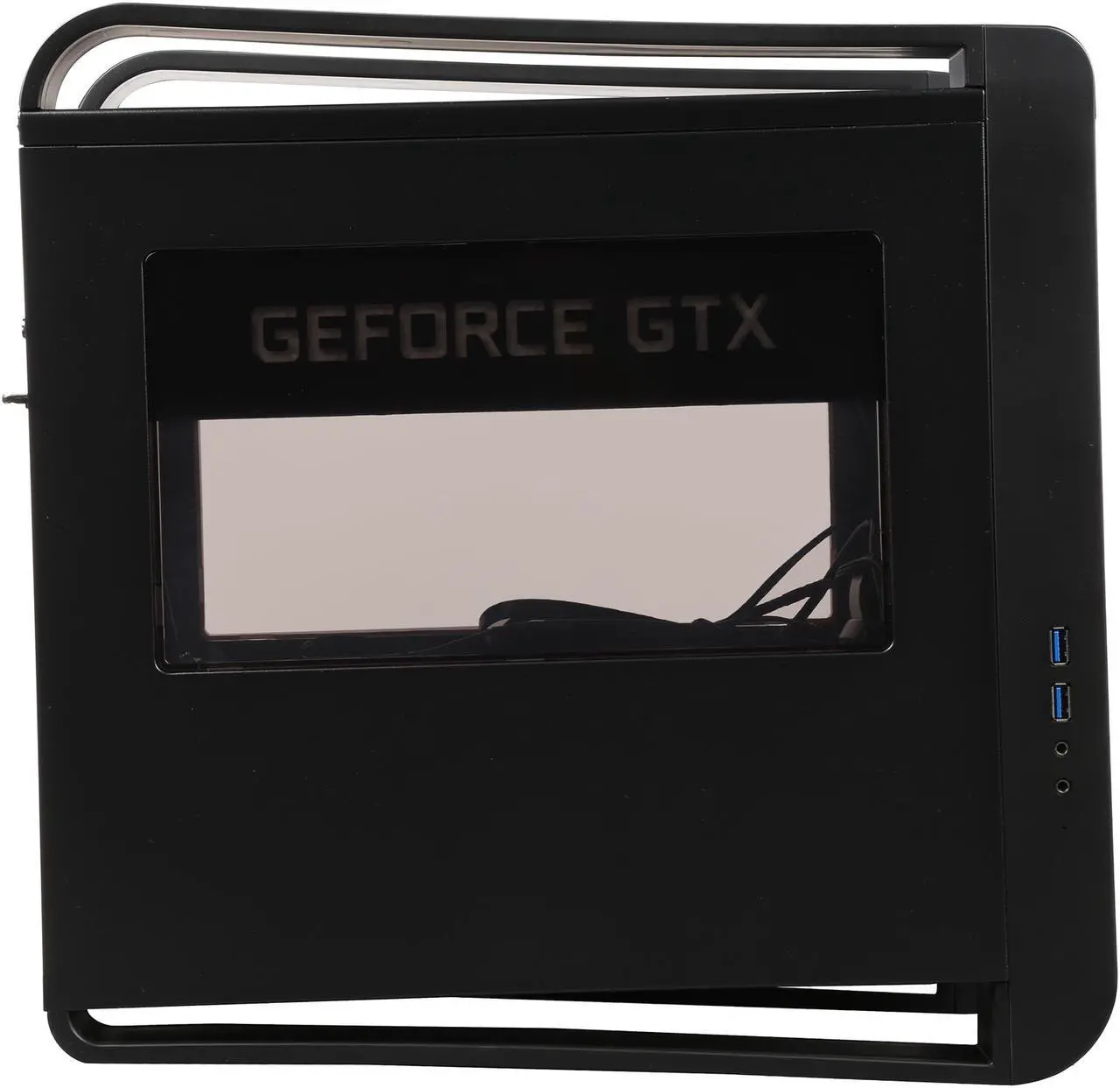

A special feature of this case is the GeForce GTX logo found built into the windowed side-panel. This side panel is cable-free and the logo light's circuit connection is completed and activated when the panel is attached. The advantage of this cable-free panel is easier removal of the side-panel and access to the interior as well as better aesthetics with the lack of extra cables.
A unique feature by NVidia GeForce.
Specifications
| Product Name | GeForce GTX Aquila | |
| Dimensions (L x H x W) | 15.3 x 15.8 x 10.4 in. (390 x 403 x 265mm) | |
| Drive Bays | 3.5"/2.5" Internal x 2 (tool-free retainers) + 2.5" Internal x 2 (tool-free retainers) | |
| Expansion Slots | 4 slots, tool-free PCI slot covers (330mm support) | |
| Motherboard Support | Micro-ATX, Mini-ITX | |
| Power Supply | Standard PS/2 ATX or EPS | |
| Cooling System |
|
|
| I/O Panel | USB 3.0 x 2, HD Audio In/Out Jacks | |
| Max. Graphics Card Length | 12.9" (330mm) | |

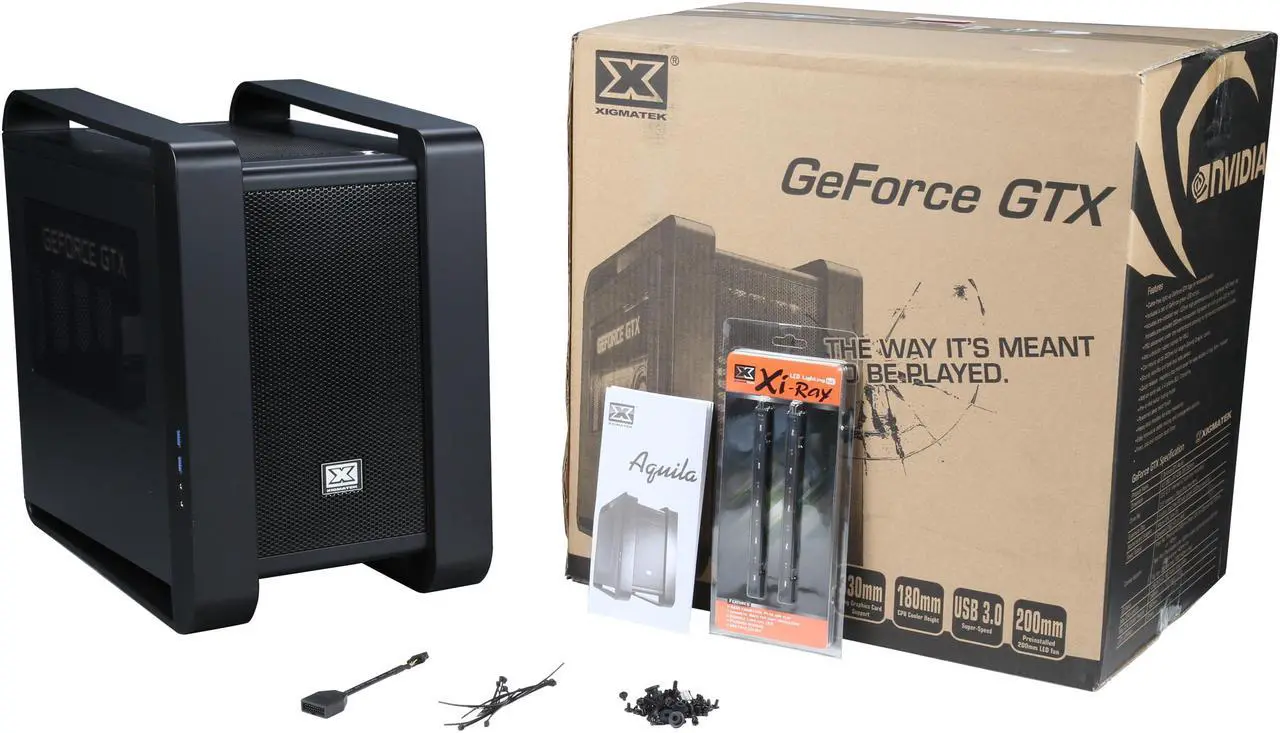

What's in the Box
