Diablotek CPA-0170 Black SGCC Steel Diamond ATX Mid Tower Computer Case 400W Power Supply
- SGCC Steel ATX Mid Tower
- 2 X USB2.0 Ports AUDIO IN/OUT (AC97, HD) Front Ports
- 400W Power Supply
- 2 External 5.25" Drive Bays
- 2 Internal 3.5" Drive Bays
Overview
Specs
Reviews (29)
Any questions? Our AI beta will help you find out quickly.
Try me now
Features
400W Power Supply Included
With power of 400W, it delivers more than enough power for entry-level computer systems with entry-level graphics cards.
Best Airflow
The clean mesh design front panel and the 120mm fan offer great amount of airflow. No more worries for overheating.
SGCC Steel Case Material
The Diablotek CPA-0170 is made out of the highest-grade and most durable SGCC steel materials.
Easy Assembly
The Diablotek CPA-0170's tool-less design enables easy assembly with minimal use of screws.
ATX and Micro ATX Compatible
Designed to be compatible with both ATX and Micro ATX motherboards.
5.25" and 3.5" Drive Bays
The Diablotek CPA-0170 case provides space for two internal 5.25" drive bays, for two internal 3.5" drive bays, and one external 3.5" drive bay.
Optional Fan Expansions
With the possible side and rear fan expansions, it allows the machine to cool faster and runs smoother.
Slot Expansions
The seven possible expansion slots allow the machine to improve graphics performance, expand data storage space, and add features and ports

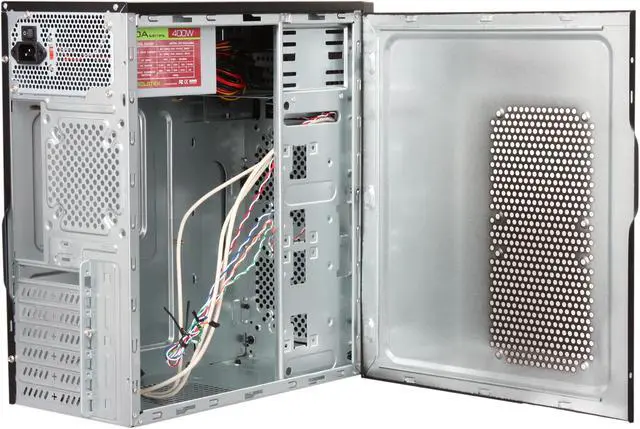

Top Mounted Power Supply
The top mounted power supply draws and extracts the heat generated from the CPU and graphics card below to keep better cooling and airflow.
One-Year Warranty
Diablotek provides all their cases with full one-year warranty service.

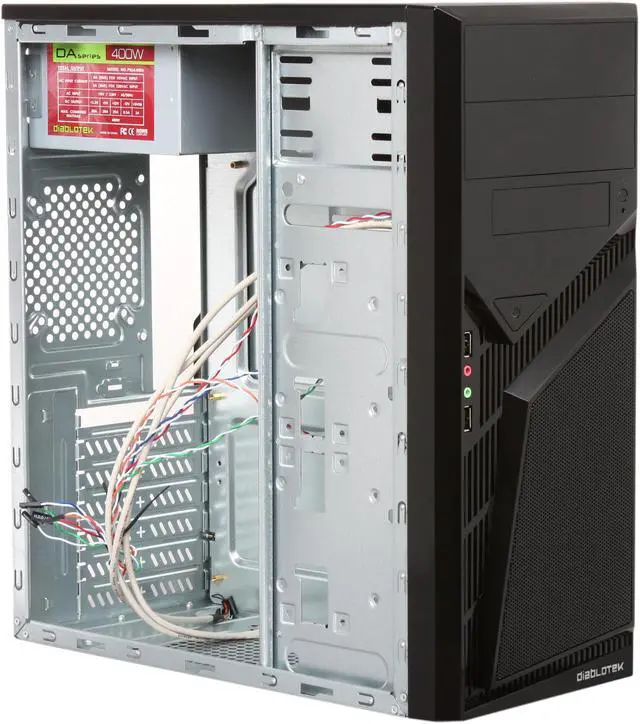

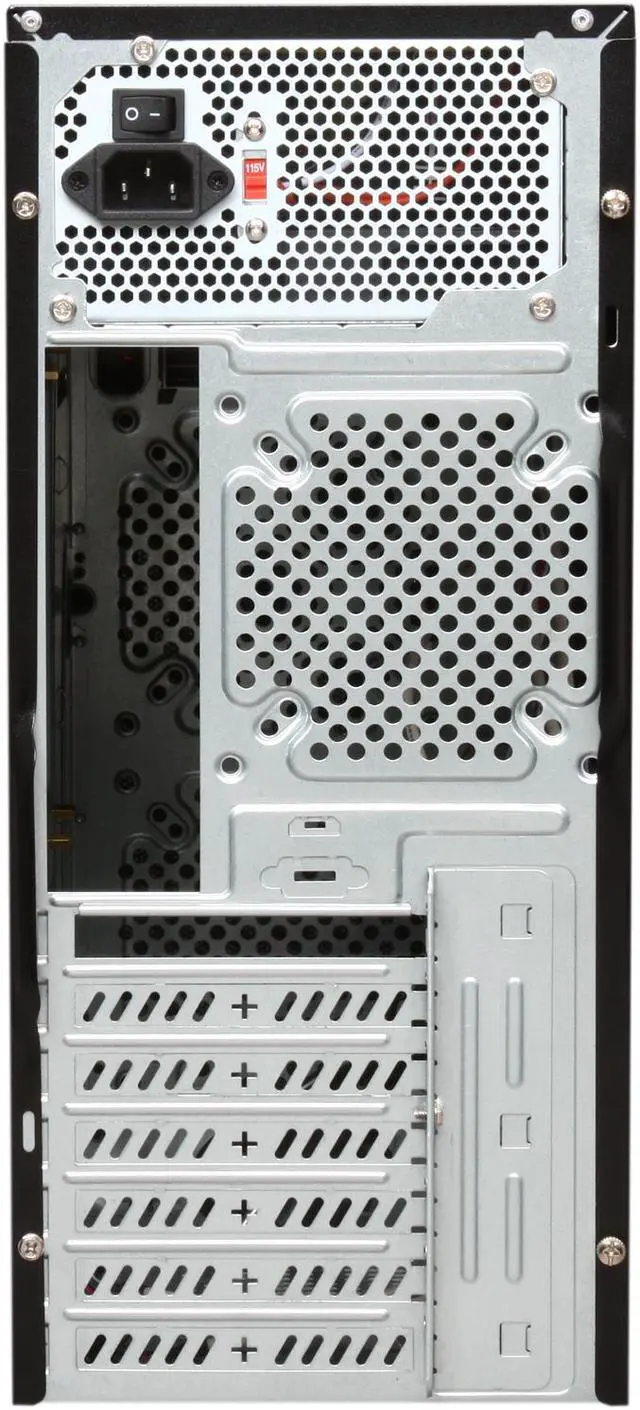

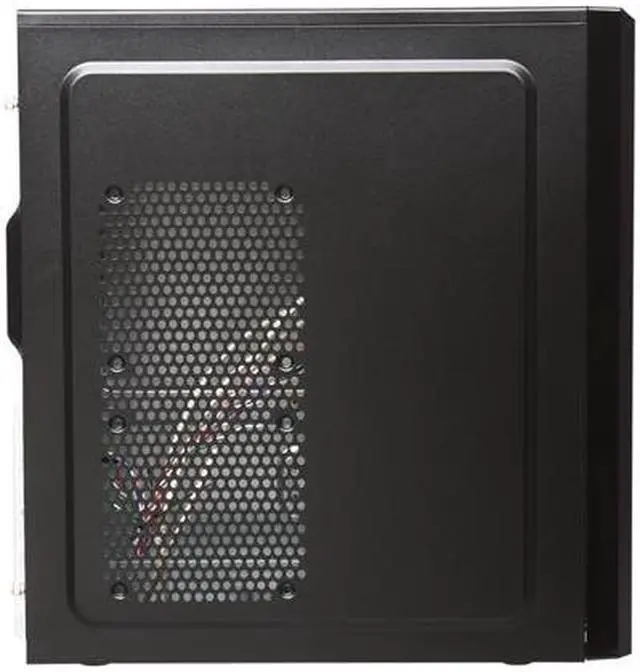

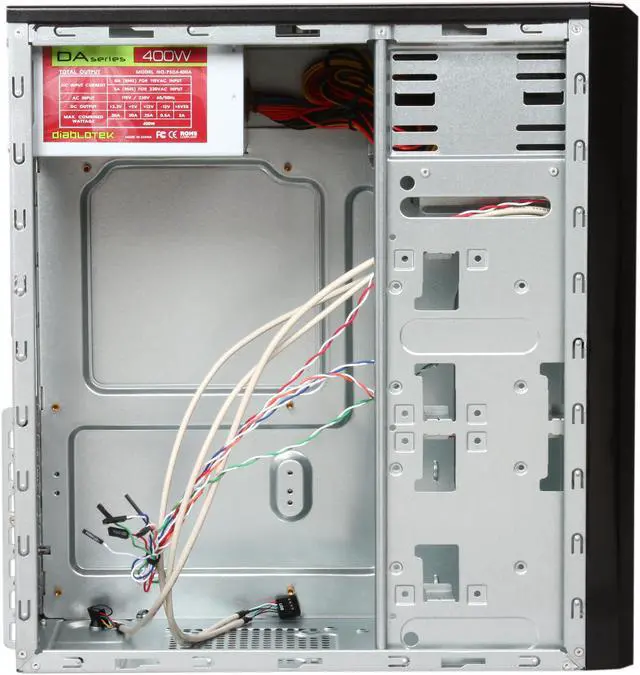

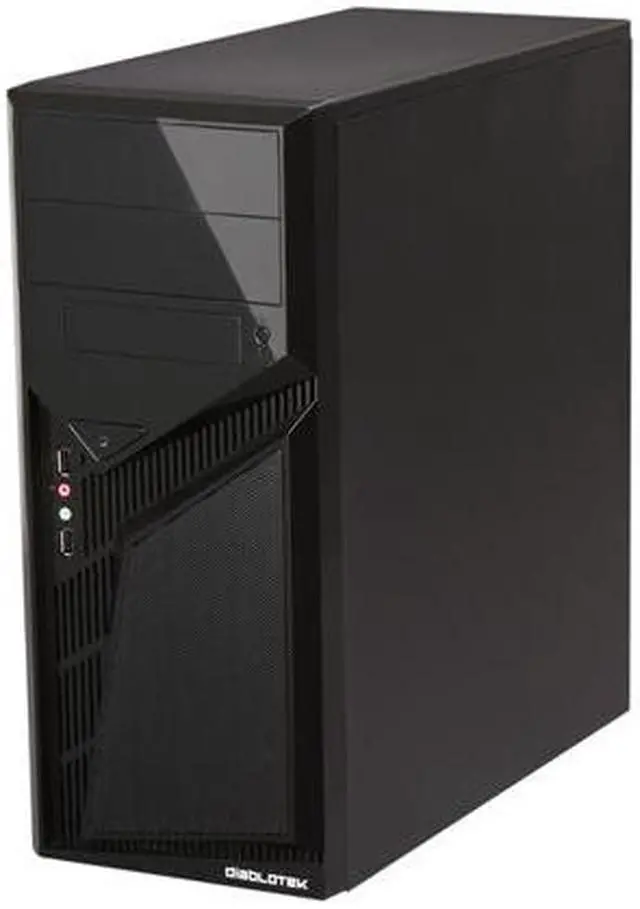

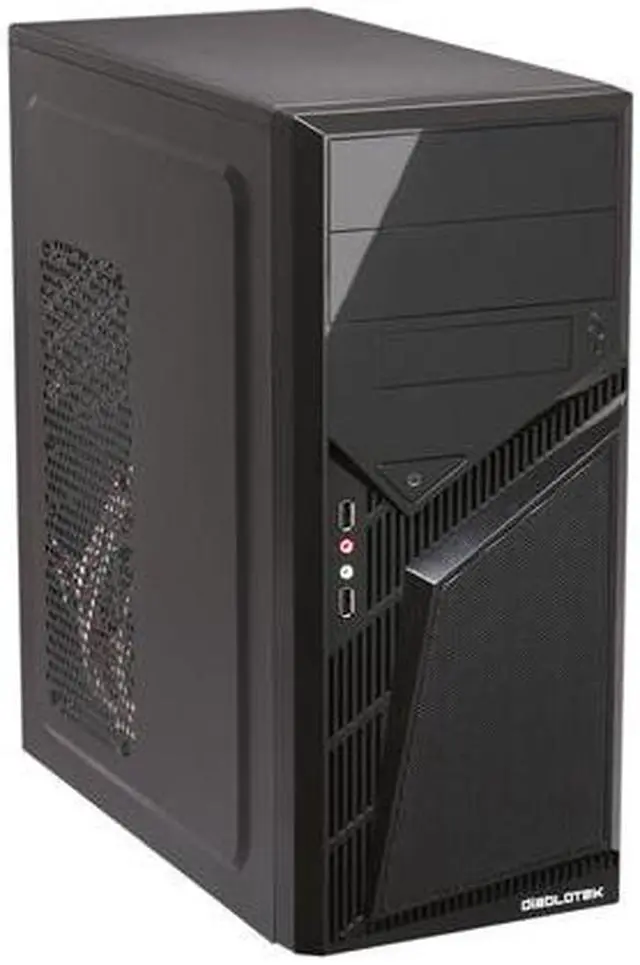

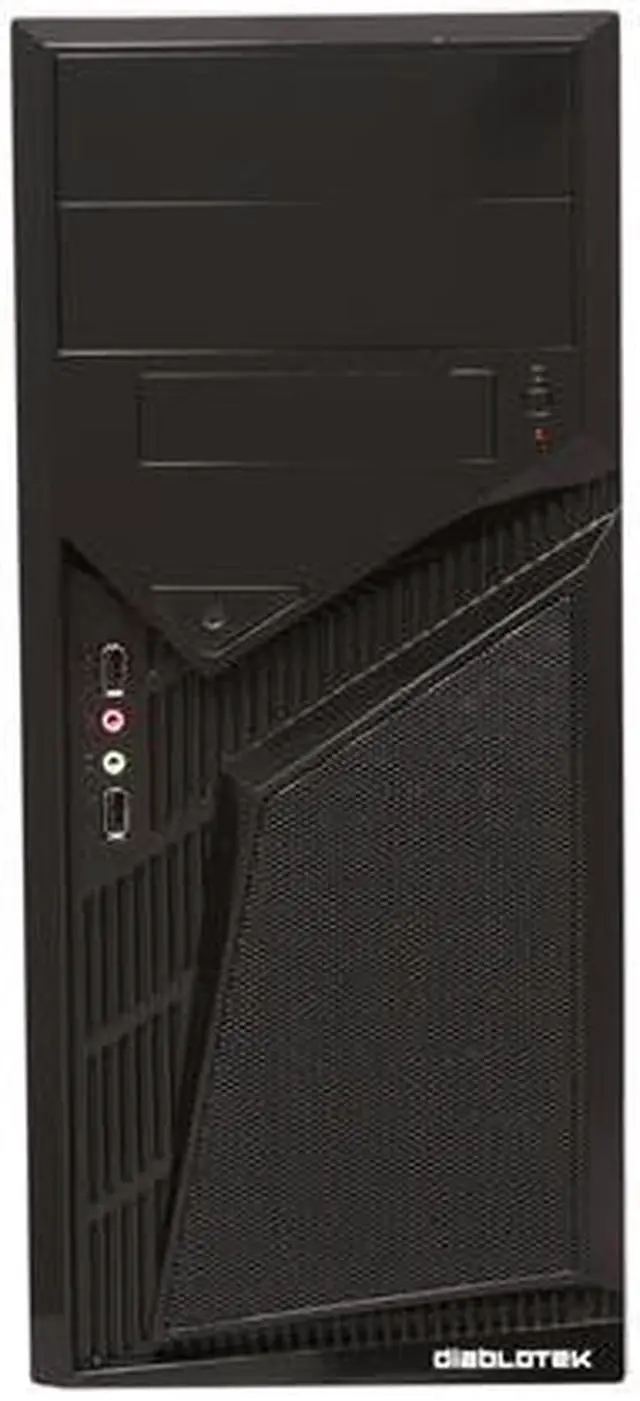

Gallery
Specifications
Case Specifications
| Type | ATX Mid Tower |
|---|---|
| Model | CPA-0170 |
| Color | Black |
| Dimensions | 7.09 x 16.06 x 15" |
| Weight | 9lbs |
| Power Supply Mounted | top |
| With Power Supply | Yes (400W Power Supply) |
| Motherboard Compatibility | Micro ATX, ATX |
| With Side Panel Window | No |
| Cable Routing Holes | No |
| External 5.25" Drive Bays | 2 |
| External 3.5" Drive Bay | 1 |
| Internal 3.5" Drive Bays | 2 |
| Expansion Slots | 7 |
| Front Panel Ports | 2 x USB 2.0 Ports Audio In/Out (AC97, HD) |
| Optional Fan Expansion | 2 x Side 80/90/120mm Fan 1 X Rear 80/90/120mm Fan |
| Water Cooling Capable | No |
| Maximum Supported Video Card Length | 210mm |
Power Supply Specifications
| Model No. | PSDA400A |
|---|---|
| Type | ATX12V V2.2 |
| Maximum Power | 400W |
| Fan | 120mm Fan x 1 |
| +12V Rail | 1 |
| Input Frequency Range | 60 / 50Hz |
| Input Current | 8A @ 115VAC, 5A @ 230VAC |
| Output | +5 @ 20A +3.3V @ 20A +12V @ 25A -12V @ 0.5A +5vsb @ 2.0A |
| Cable Connector | 1 x 20/24-Pin Motherboard Connector 1 x 4-Pin Motherboard Connector +12V 1 x Floppy Power Connector 4 x 4-Pin Molex Connector 4 x SATA Connector |

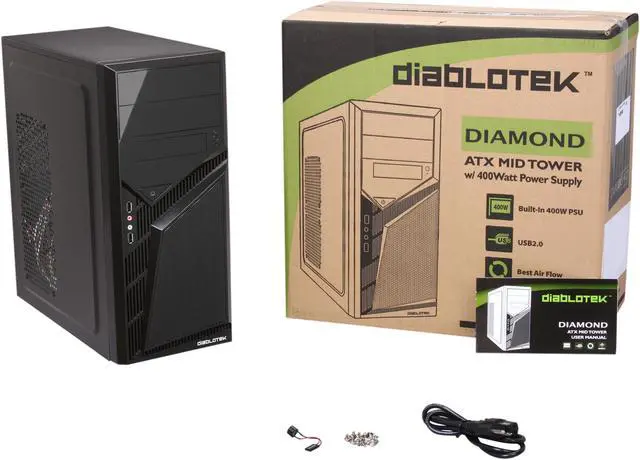

What's in the Box
