How is the airflow in this case?

The case offers high airflow performance, featuring fine mesh, a dust filter, and support for up to 8x 120mm fans.

Does this case come with the 8 fan slots filled, or do I need to buy them sepratly?

You will need to buy your own fans separately and mount them on your own. The top has enough room for a 360mm mounted liquid cooler or you can mount it to the right side as well. 1 fan can fit on the rear of the case, and one on the bottom as well.

Does this come with fans? and how many fans and where are they located?

The product does not specifically mention coming with fans. However, it has positions for 8 fans: 1 on the bottom (120mm), 1 on the rear (120mm), 3 on the side (120mm), and 3 on the top (120mm).

GIGABYTE Gaming Radeon RX 9070 XT 16GB GDDR6 PCI Express 5.0 x16 ATX Graphics Card GV-R9070XTGAMING OC-16GD

(232)

$739^.99 –

$99^.99

$109.99

$89^.99 after $10.00 rebatePrint Rebate Form
Free 30-day Returns

Limit 20 per customer.

Add to PC build list

Sold by Newegg

Shipped by Newegg

Price alert

Add to Wish List

Best Sellers

Phanteks

Top Rated

4.6 (23 total ratings)

$109^.99
+ $20.99 Shipping

Receive a $10 mail-in rebate check from PHANTEKS! Offer expires on 8/2/26. Limit 1 per household Print Rebate Form

Get Educated

Make informed decisions with expert advice. Learn More

More Resources

ATX Mid-Tower PC Cases

Computer Case Size Buying Guide

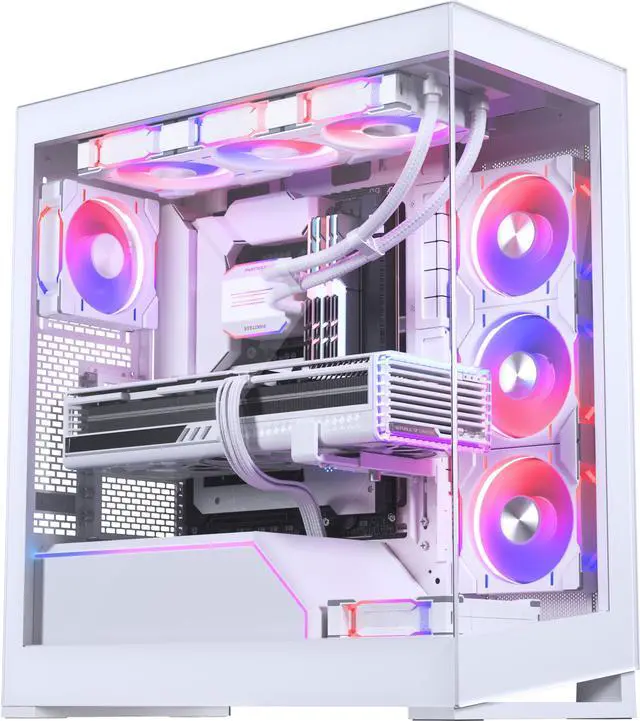

Phanteks NV5 MK2, Showcase Mid-Tower Chassis, Rear-Connect MB Support, Integrated D/A-RGB Lighting, Seamless Tempered Glass Design, 8x Fan Positions, Matte White

Name: Phanteks NV5 MK2, Showcase Mid-Tower Chassis, Rear-Connect MB Support, Integrated D/A-RGB Lighting, Seamless Tempered Glass Design, 8x Fan Positions, Matte White
Uploaded: 2026-07-21
Description: Phanteks NV5 MK2, Showcase Mid-Tower Chassis, Rear-Connect MB Support, Integrated D/A-RGB Lighting, Seamless Tempered Glass Design, 8x Fan Positions, Matte White

(219)(102) Write a Review

Options: NV5 MKII (White)

NV7 Series (White)
NV9 MKII (Black)
NV5 MKII (Black)
NV5 MKII (White)
X2 Series (Black)
NV9 MKII (White)
PH-ES524XM (Black)
PH-ES524XM (White)

Create a picture-perfect PC with a seamless glass design.
Support for the new Rear-Connect Mainboards for a zero-cable build.
Increased chassis width to support wider GPUs and PCIe cables.
Premium build quality throughout the strong and reinforced outer frame.
High Airflow Performance with fine mesh, dust filter and 8x 120mm fan positions.
Ready for ultimate water-cooling configurations with dual 360 radiator support.
Integrated D-RGB lighting in the PSU Cover with built-in D-RGB Controller that works out of the box and can sync with the mainboard.

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (219)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Phanteks NV5 MK2

Model
Brand	Phanteks
Model	NV5 MK2
Part Number	PH-NV523TG_DMW02

Details
Type	ATX Mid Tower
Color	Matte White
Case Material	Steel / Tempered Glass
With Power Supply	No
Motherboard Compatibility	ATX, Rear-Connect ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm without GPU Support Bracket)
Side Panel	Front and Side Tempered Glass
LED	RGB

Expansion
Internal 3.5" Drive Bays	3
Internal 2.5" Drive Bays	4
Expansion Slots	7

Front Panel Ports
Front Ports	2 x USB 3.0, USB-C Gen2, Microphone/Headphone Combo

Cooling System
Fan Options	Bottom - 1 x 120mm / Rear - 1 x 120mm / Side - 3 x 120mm / Top - 3 x 120mm
Pre-installed Fans	No Fan Installed
Radiator Options	Rear - Up to 120mm / Side - Up to 360mm / Top - Up to 360mm

Dimensions & Weight
Max GPU Length	440 mm Length, 170 mm Width
Max CPU Cooler Height	180 mm
Max PSU Length	230 mm
Dimensions	239 x 477 x 528 mm / 9.4 x 18.8 x 20.8 in
Weight	11.28 kg / 24.9 lbs.

Additional Info
Package Content	NV5 Chassis 1 x D-RGB Controller 1 x Storage Door 1 x GPU Support Bracket Accessory Box 6 x Zip ties 22 x MB/SSD Screw 4 x Thumb Screw 12 x HDD+Case Screw 1 x Standoff Removal Tool 1 x MB stand-off 4 x PSU Screw

Additional Information
First Listed on Newegg	January 20, 2025
