What are the dimensions of the Tripp Lite PDU3MV6H50?

The dimensions of the Tripp Lite PDU3MV6H50 are 70" x 2.65" x 2.2" (H x W x D).

What is the maximum input current for the Tripp Lite PDU3MV6H50?

The maximum input current for the Tripp Lite PDU3MV6H50 is 35A.

$870^.00

Limit 99999 per customer.

Price alert

Add to wish list

Sold by Newegg

Shipped by Newegg

Main image of Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Alt view image 2 of 5 - Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Alt view image 3 of 5 - Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Alt view image 4 of 5 - Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Alt view image 5 of 5 - Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Shop All Tripp Lite Products

Tripp Lite PDU3MV6H50 Metered 0U 35A 6 ft 3-Phase Metered PDU, 12.6 kW, 45 208V Outlets (36 C13, 9 C19)

Be the first to review this product...

35A
6 ft

This item is covered under the Manufacturer Only Return Policy.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Tripp Lite 3 phase Metered PDU / Power Distribution Units offer real-time local reporting of current levels in amps via set of 3 built-in digital meters. Enables visual monitoring of PDU current levels to preserve proper loading balance and prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.

Model
Brand	Tripp Lite
Model	PDU3MV6H50

Details
Type	Metered
Rack Size	0U
Style	Vertical rackmount
Certifications	Tested to UL60950-1 (USA, Canada), NOM (Mexico), Class A (Emissions), ROHS

Input
Input Voltage	208
Maximum Input Current	35A
Cord Length	6 ft

Output
Output Frequency	60 Hz
Output Watts (VA)	12.6kVA total

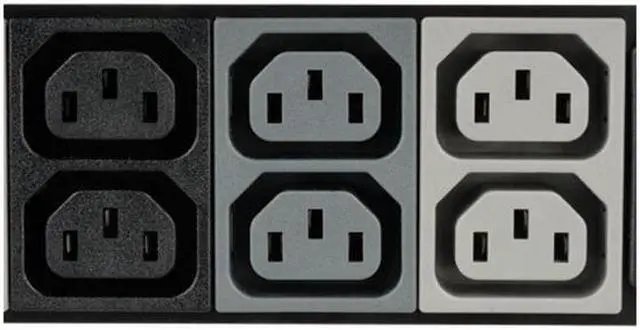

Output Connector(s)	45 total - 36 C13, 9 C19

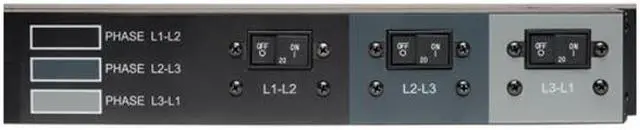

Overload Protection	3 20A double-pole circuit breakers (1 per output phase)

Environmental
Operating Relative Humidity	0 - 95%

Feature

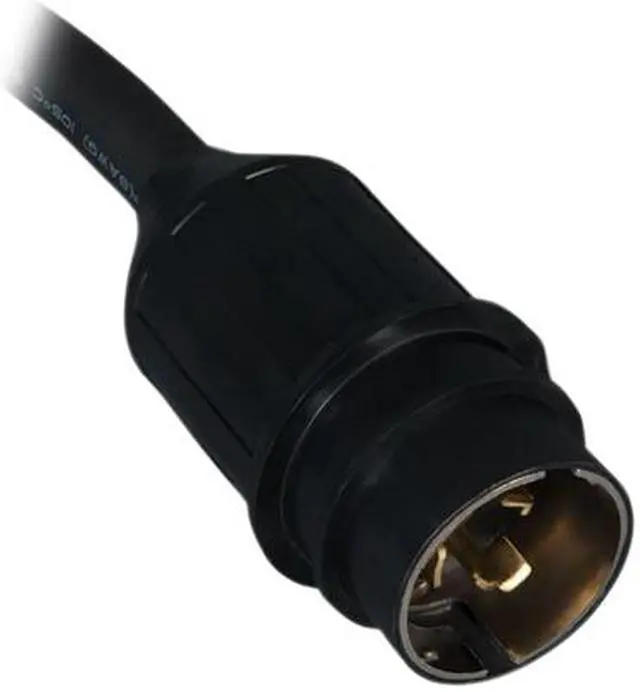

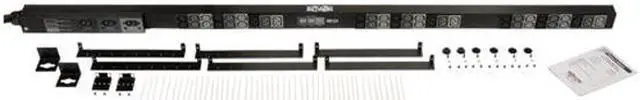

Features	12.6kW 3 phase 208V Metered Power Distribution Unit / PDU Set of 3 built-in current meters continuously report load current in amps for all 3 output phases Attached Hubbell CS8365C 50A (3P+E) 208V 3 phase input plug with 6 ft. / 1.8m cord 0U, 70 in. / 178cm vertical form factor supports installation in 2 or 4 post equipment racks 45 total 208V outlets (36 C13, 9 C19) arranged in three breakered single phase output load banks Included cord retention brackets keep vital network equipment plugged in and continuously powered Toolless mounting supported in button-mount compatible racks, plus nut-and-bolt mounting brackets for other mounting applications Package Includes - Metered PDU with pre-installed mounting buttons - Cord retention brackets - Rack mounting brackets - Owner's manual

Dimensions & Weight
Dimensions	70" x 2.65" x 2.2" (H x W x D)
Weight	14.5 lbs.

Additional Information
First Listed on Newegg	February 27, 2013
