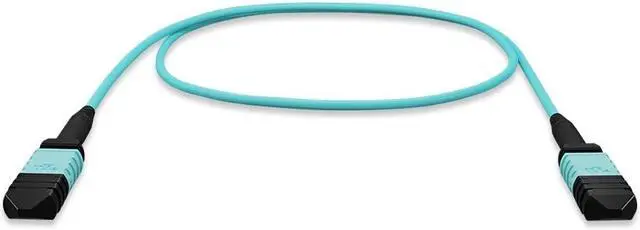

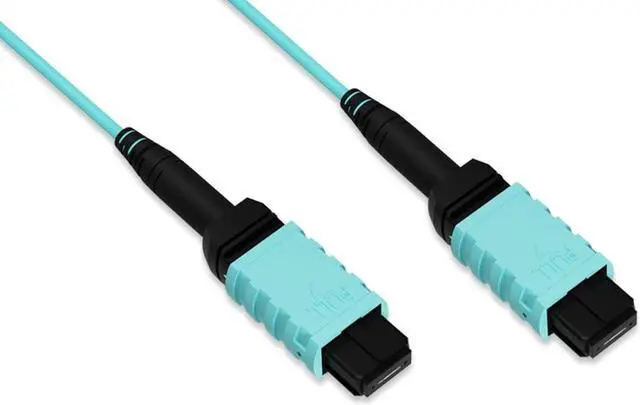

Nippon Labs 30FP-12MPO-4BFF12-01 30FP-12MPO-4BFF12-01 Female to Female

OM4 MPO F/UPC to MPO F/UPC 12 Fibers patch fiber trunk cable is a great cost-effective connection solution for high-density networking in places like telecom and data center.
The MPO trunk cable serves as the multi-fiber push on connection solution to connect fiber transceivers, optical fiber adapter panels, and MPO cassettes.
OM4 fiber cable features higher bandwidth and transmission rates than OM3 cable.
With an Effective Modal Bandwidth (EMB) of 4700 MHz/km at 850nm.
Support 10Gb up to 550 meters, 40Gb, and 100Gb up to 150 meters.
OFNR (Riser) rated fiber cable is ideal for use in the plenum space of commercial/residential buildings.
Compatible with SFP+, QSFP, and QSFP+ transceivers for 10G/40G/100G network
Connection type B (Reversed), key up to key up.
Use LED and VCSEL laser light sources.
Corning® glass 50µm core and 125µm cladding.
100% Tested with report included in each cable package.
Dust protective cap included
UL listed

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Details
Connector Detail	MPO Female Low-Loss
Terminal Gender	Female to Female
Specifications	Fiber Mode: OM4, Multimode, 50 / 125 Fiber Count: 12 Fibers Polish Type: UPC to UPC Wave length: 850nm/1300nm Insertion Loss: = 0.35 dB Return Loss: = 20dB Type (Method): Type B Jacket OD: 3.0 mm Jacket Material: OFNR (Riser) Jacket Color: Aqua

Additional Information
First Listed on Newegg	November 23, 2022

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days
