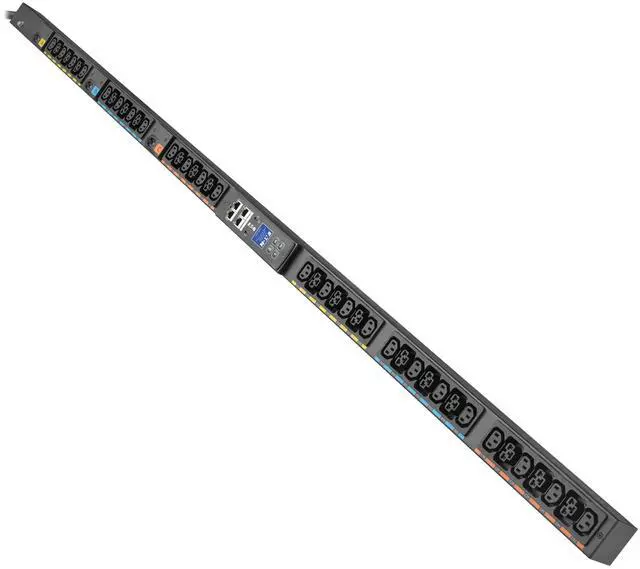

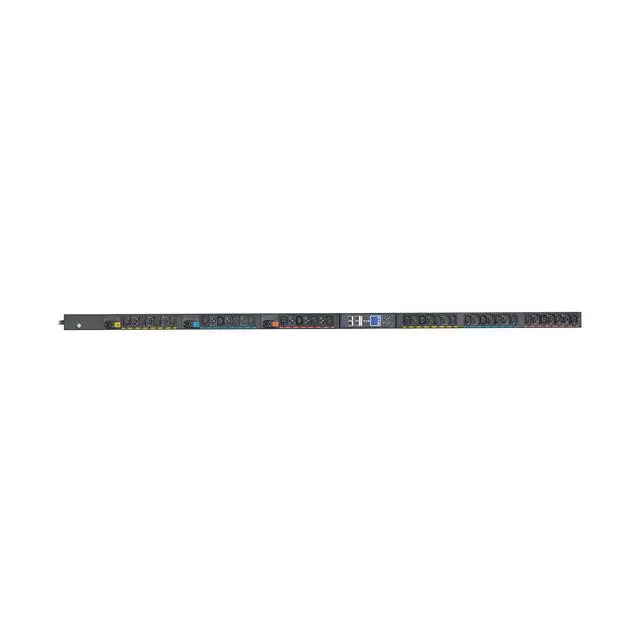

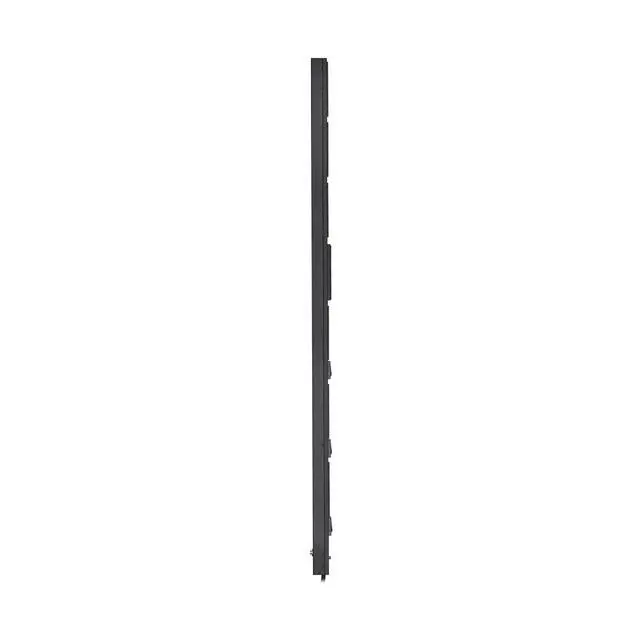

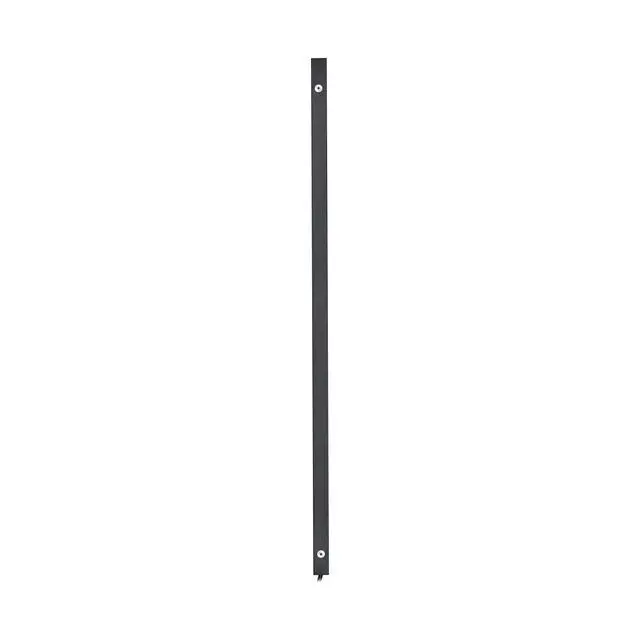

Eaton EVMAL630X Single-Phase Managed Rack PDU G4, 208V, 42 Outlets, 24A, 5.8kW, L6-30 Input, 10 ft. Cord, 0U Vertical
- PDU Type Managed
- Input Phase Single-Phase
- PDU Input Voltage 208
- Nominal Input Voltage Description 1P: 208V
- Recommended Electrical Service Single-phase 200-240V service
- Maximum Input Amps 30
- Input Connection Type NEMA L6-30P
- PDU Plug Type NEMA L6-30P
- Voltage Compatibility (VAC) 1-Phase; 200-240
- Input Plug Type NEMA L6-30P
- Input Cord Details NEMA L6-30P

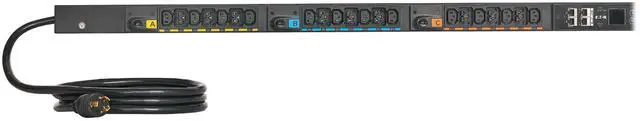

- Input Cord Length (ft.) 10
- Output Capacity (kVA) 5.8
- Output Capacity (Watts) 5800
- Output Capacity (kW) 5
- Output Capacity Details 5.8kW (208V) total capacity; 24A max per output phase
- Frequency Compatibility 50 / 60 Hz
- Output Receptacle Details C39 Compatible with P-Lock Power Cords

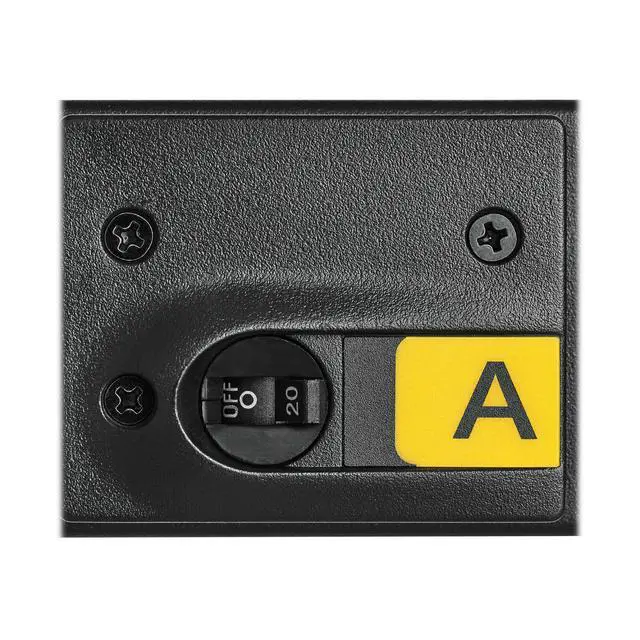

- Output Circuit Breakers (3) low-profile circuit breakers. 20A (US). One circuit breaker per two outlet banks.
- Nominal Output Voltage(s) Supported 208V

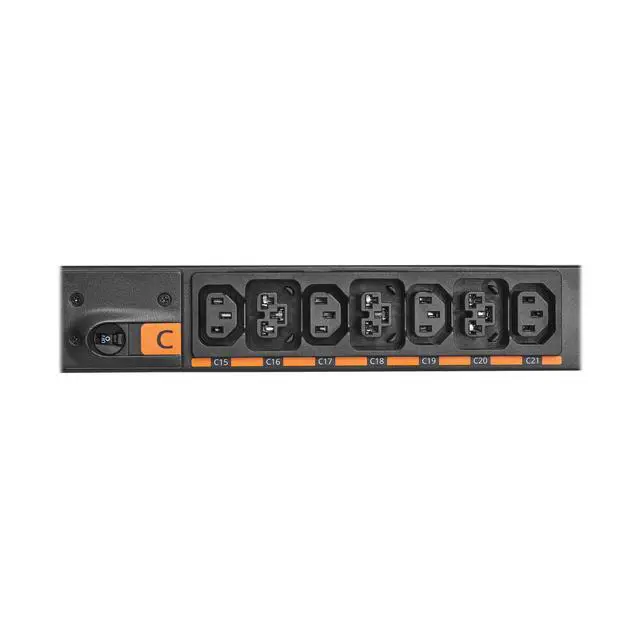

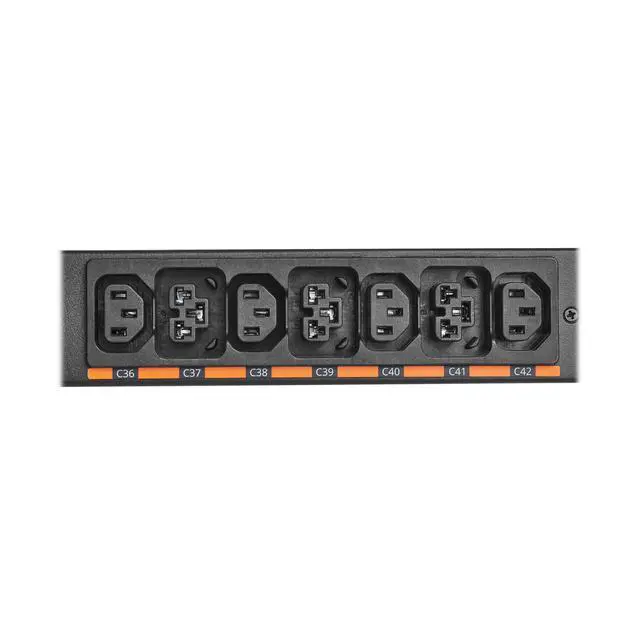

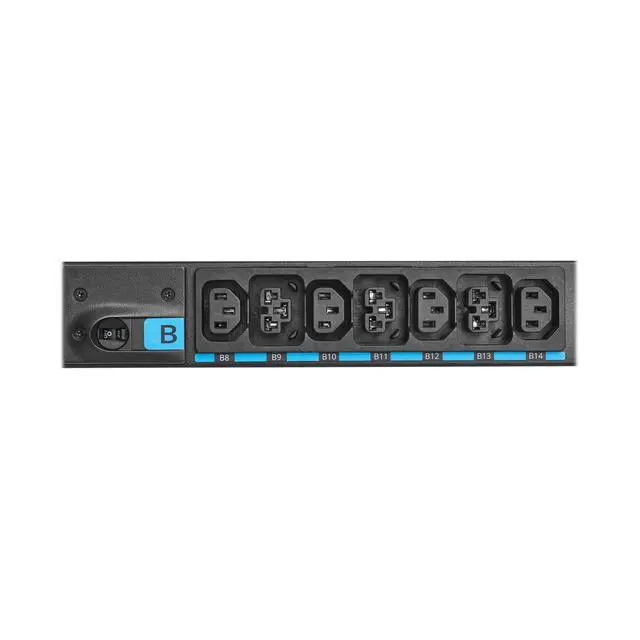

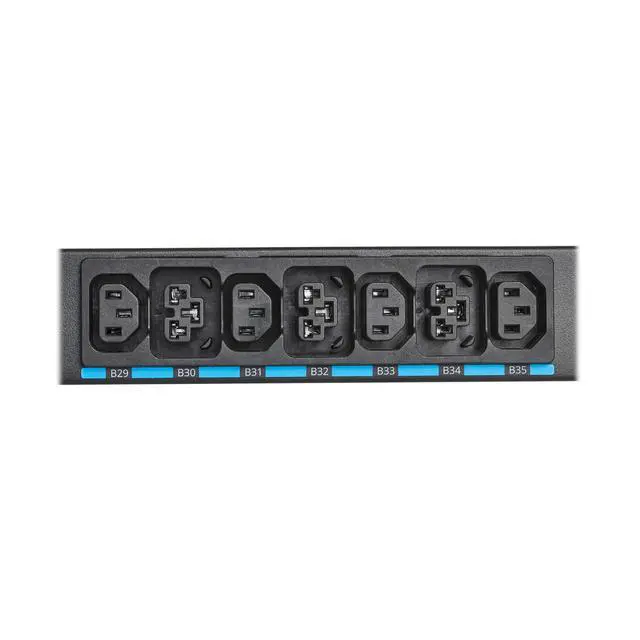

- Output Receptacles (24) C13; (18) C39
- Overload Protection (3) 2-pole 20A circuit breakers

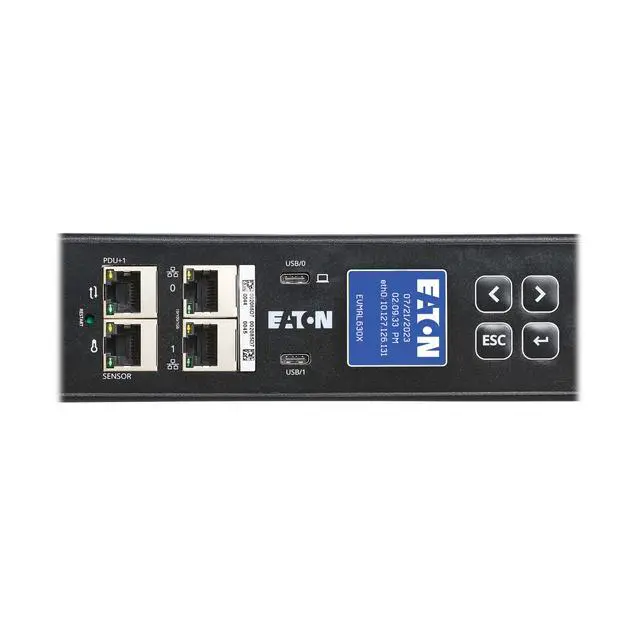

- Ethernet Interface Yes
- Serial Interface Yes
- Daisy-chainable / Cascadable Yes
- Daisy-chainable / Cascadable Details Cascade up to 40 PDUs
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
EATON SINGLE-PHASE MANAGED RACK PDU G4, 208V, 42 OUTLETS, 24A, 5.8KW, L6-30 INPU
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-386-1911
- Support Website
- View other products from Eaton
LOADING...
The Eaton EVMAL630X is a managed 0U vertical rack PDU for data centers and server racks with single-phase 200–240V service and a NEMA L6-30P connection. It provides 42 outlets, Ethernet and serial interfaces, and a stated 5.8kW capacity at 208V.
Recommended For
- Data-center and colocation teams managing many rack devices remotely; outlet-level metering, monitoring, switching, and alerts support troubleshooting without visiting the rack.
- Operators fitting out enterprise, colocation, or distributed-IT racks with compatible 208V L6-30 service; Eaton positions this model for deployment in a 42U rack.
- Rack builders powering a dense mix of servers and network equipment: its 42 outlets include C13 and C39 receptacles, with C39 accepting C14 or C20 plugs.
- IT teams that want to track and control individual rack loads, balance connections across load banks, or remotely respond to power events through management software.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Rack-based power distribution to connected equipment |
| Product Identity | Eaton power distribution unit |
| Power And Input | 5,000-watt rating, 30-amp current rating, and 230V AC input with a NEMA cable connector |
| Cooling And Construction | Air cooling, no fans, and an aluminum enclosure |
| Dimensions And Weight | 2 × 2 × 68 inches; 19.4 pounds |
| Color | Black |
| Model Identifiers | EVMAL630X; model name also includes 25384455 |
