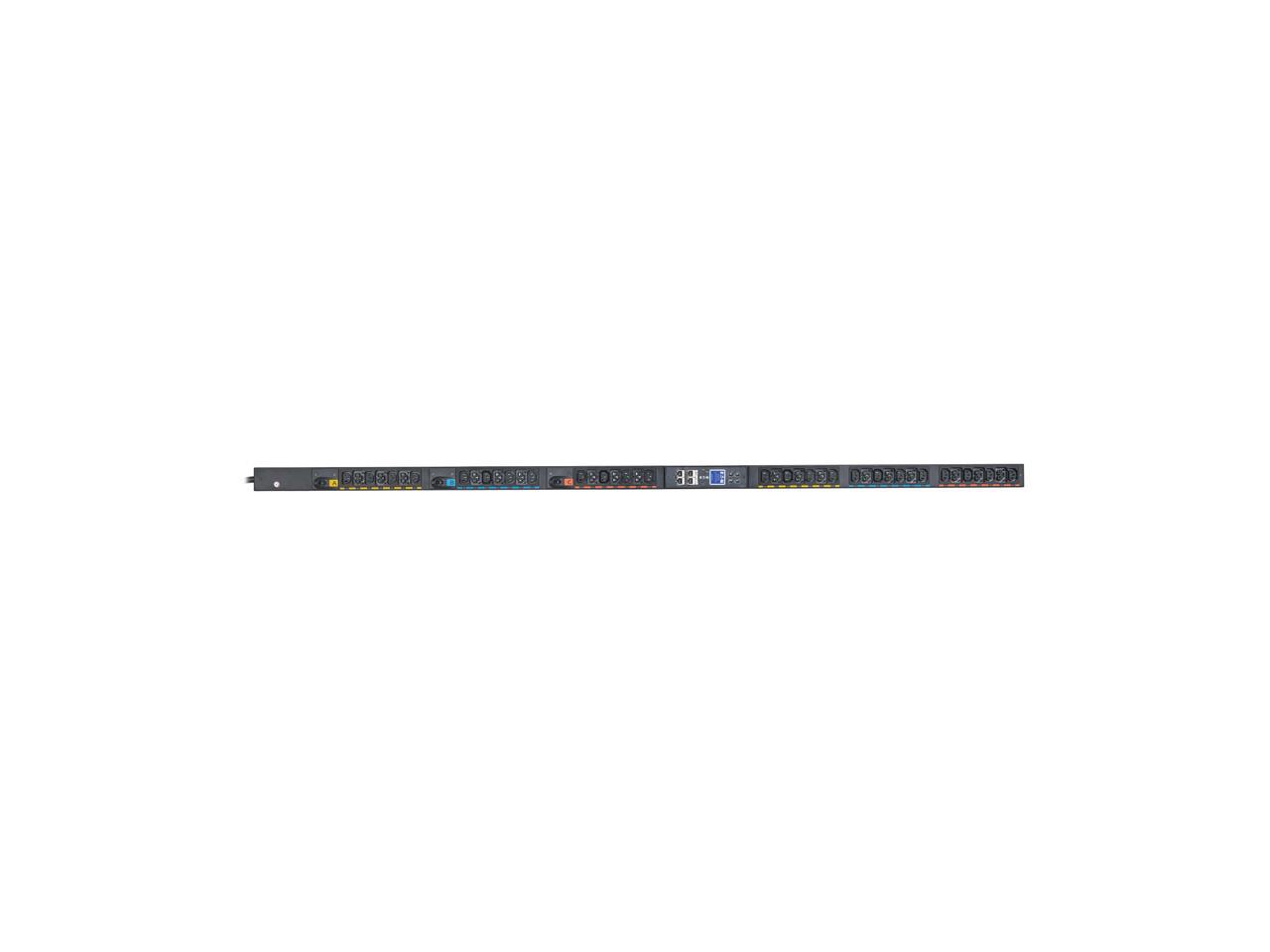

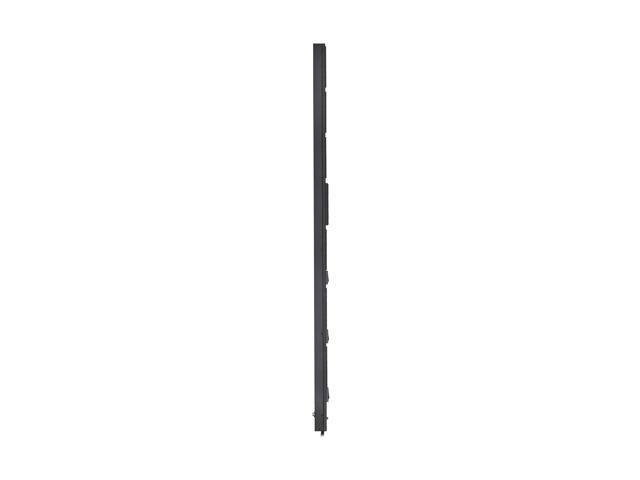

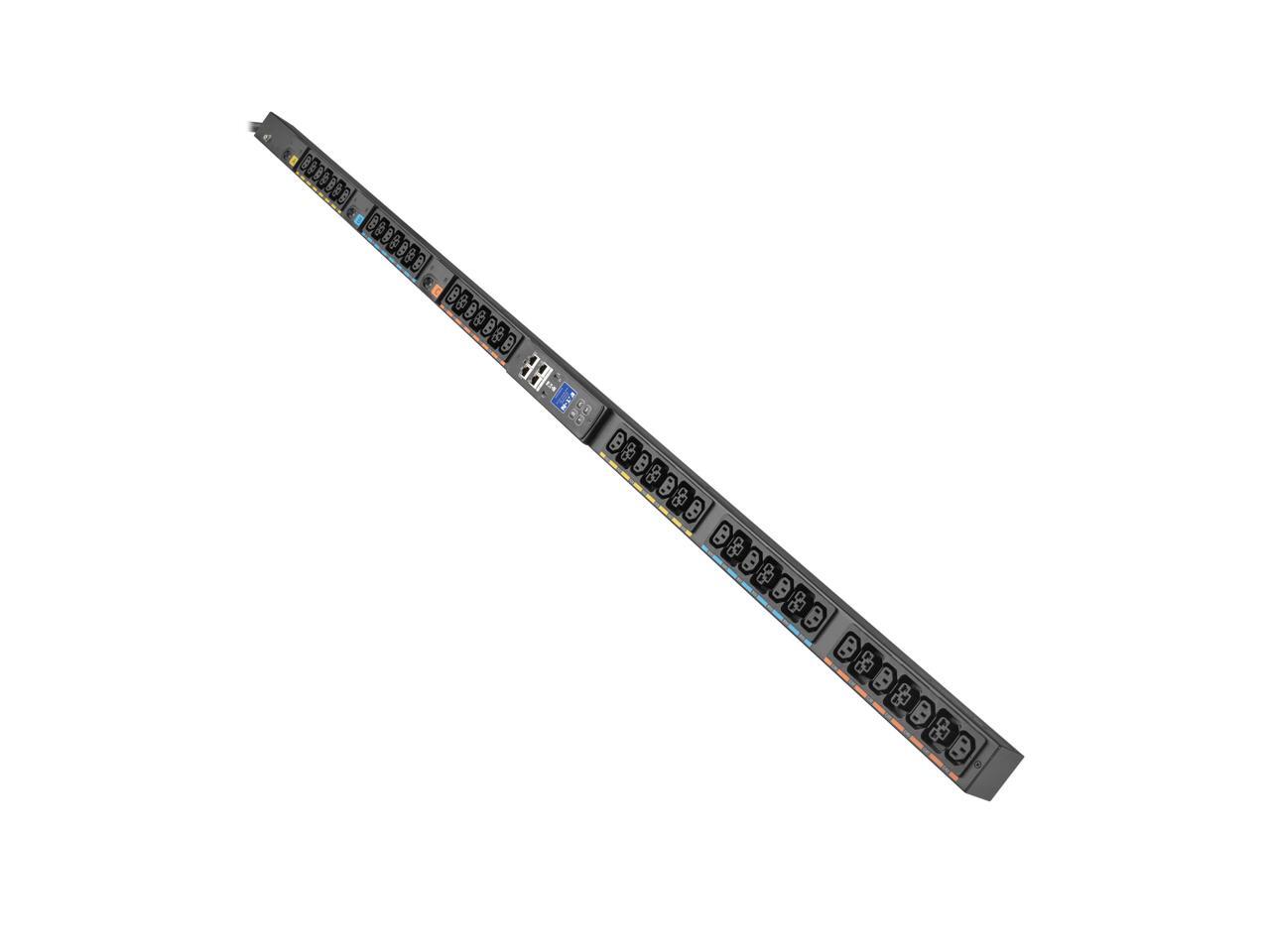

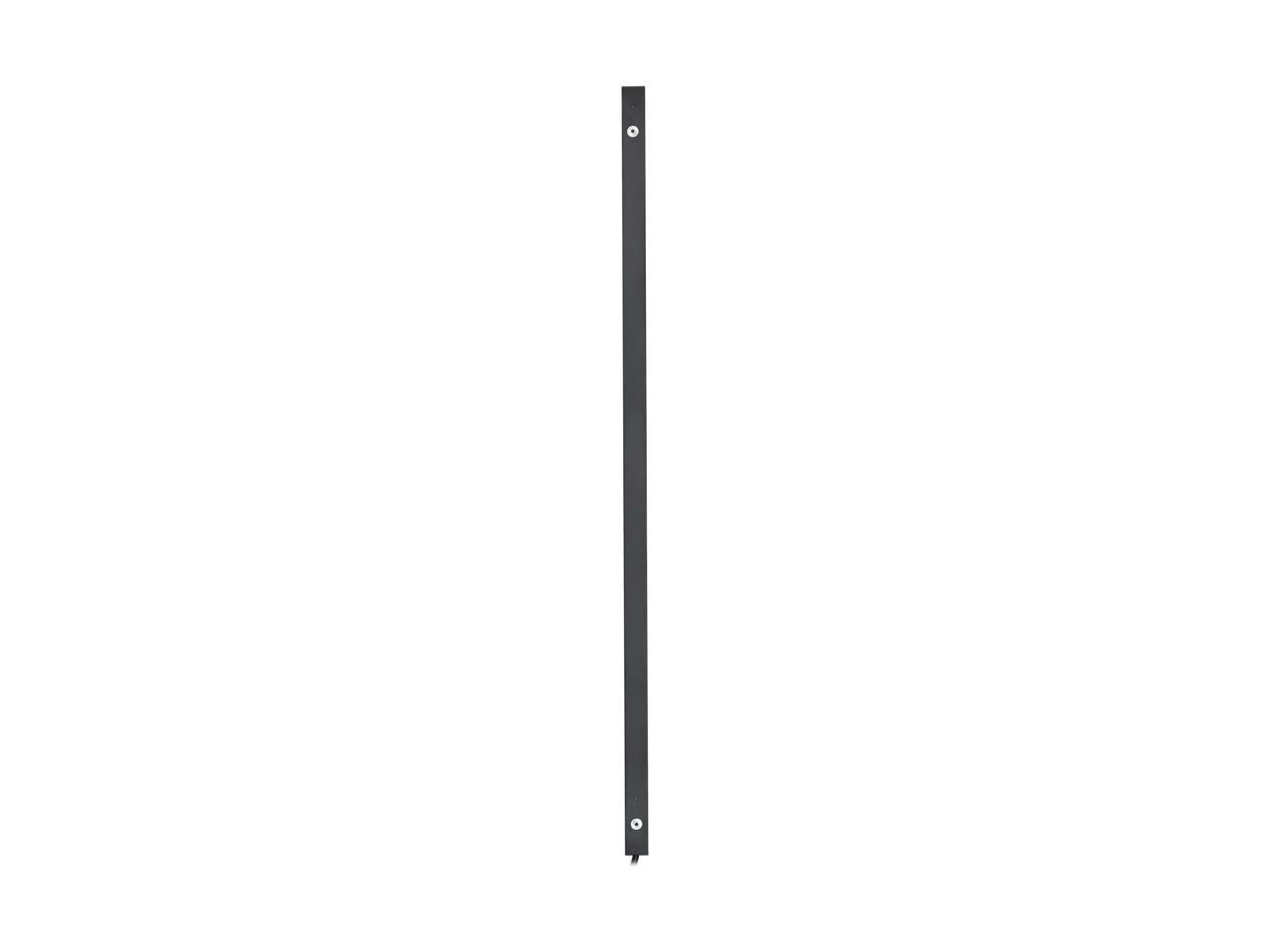

Eaton EVMAL630X Single-Phase Managed Rack PDU G4, 208V, 42 Outlets, 24A, 5.8kW, L6-30 Input, 10 ft. Cord, 0U Vertical
  • PDU Type Managed
  • Input Phase Single-Phase
  • PDU Input Voltage 208
  • Nominal Input Voltage Description 1P: 208V
  • Recommended Electrical Service Single-phase 200-240V service
  • Maximum Input Amps 30
  • Input Connection Type NEMA L6-30P
  • PDU Plug Type NEMA L6-30P
  • Voltage Compatibility (VAC) 1-Phase; 200-240
  • Input Plug Type NEMA L6-30P

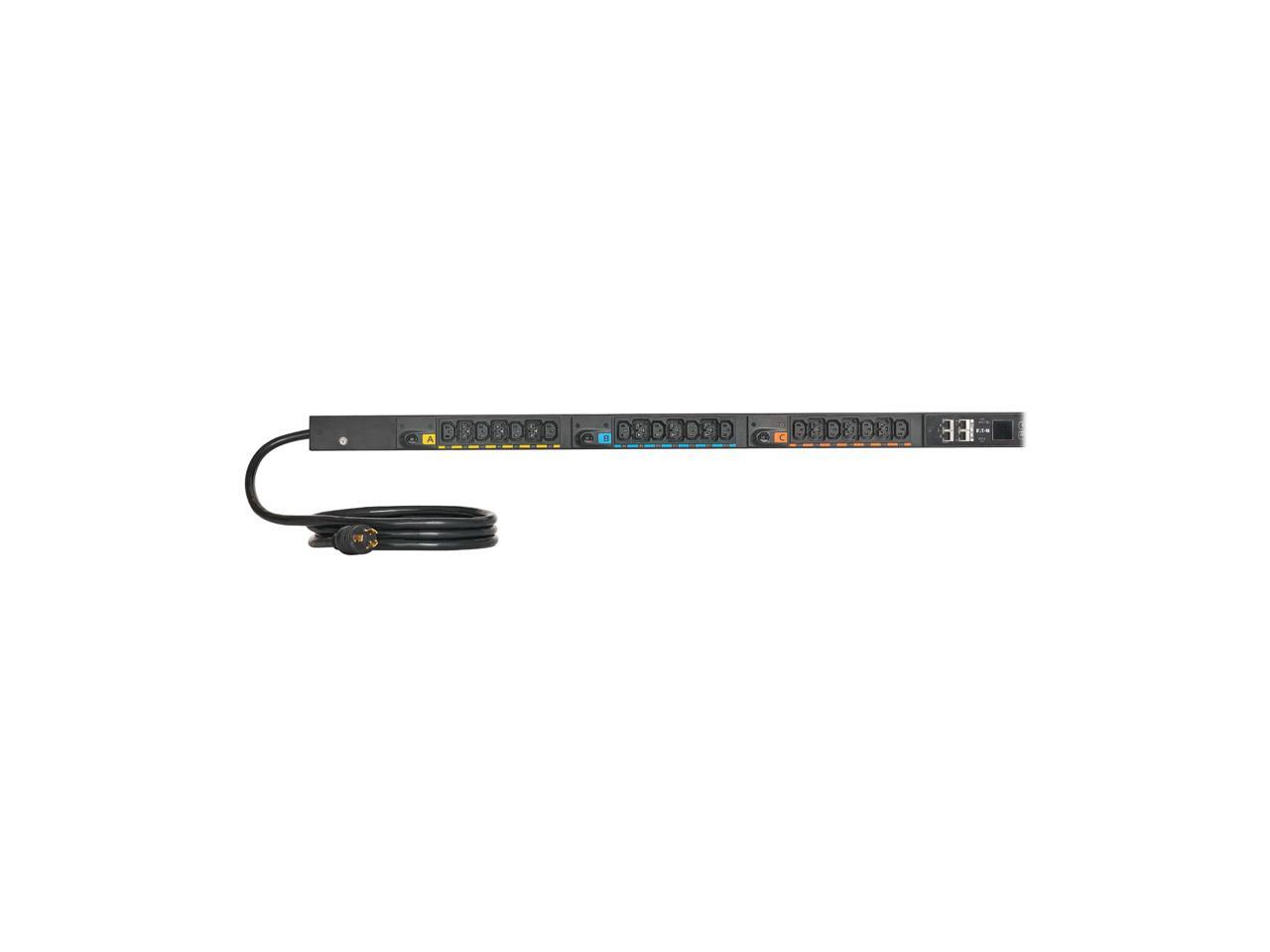

  • Input Cord Details NEMA L6-30P
  • Input Cord Length (ft.) 10
  • Output Capacity (kVA) 5.8
  • Output Capacity (Watts) 5800
  • Output Capacity (kW) 5
  • Output Capacity Details 5.8kW (208V) total capacity; 24A max per output phase
  • Frequency Compatibility 50 / 60 Hz
  • Output Receptacle Details C39 Compatible with P-Lock Power Cords

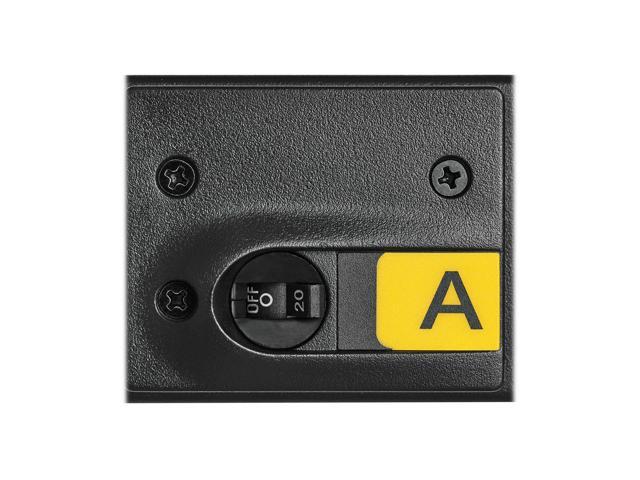

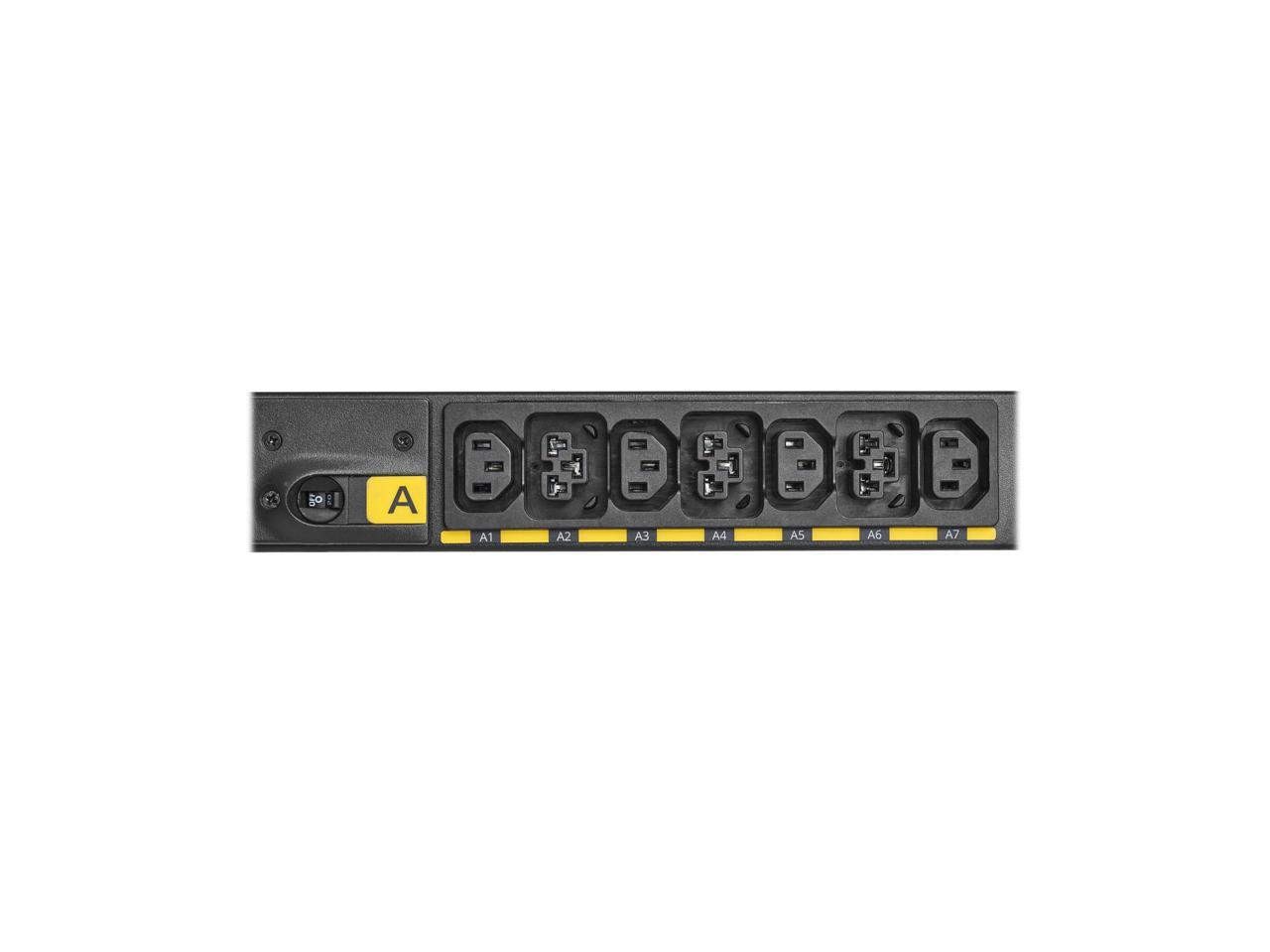

  • Output Circuit Breakers (3) low-profile circuit breakers. 20A (US). One circuit breaker per two outlet banks.
  • Nominal Output Voltage(s) Supported 208V

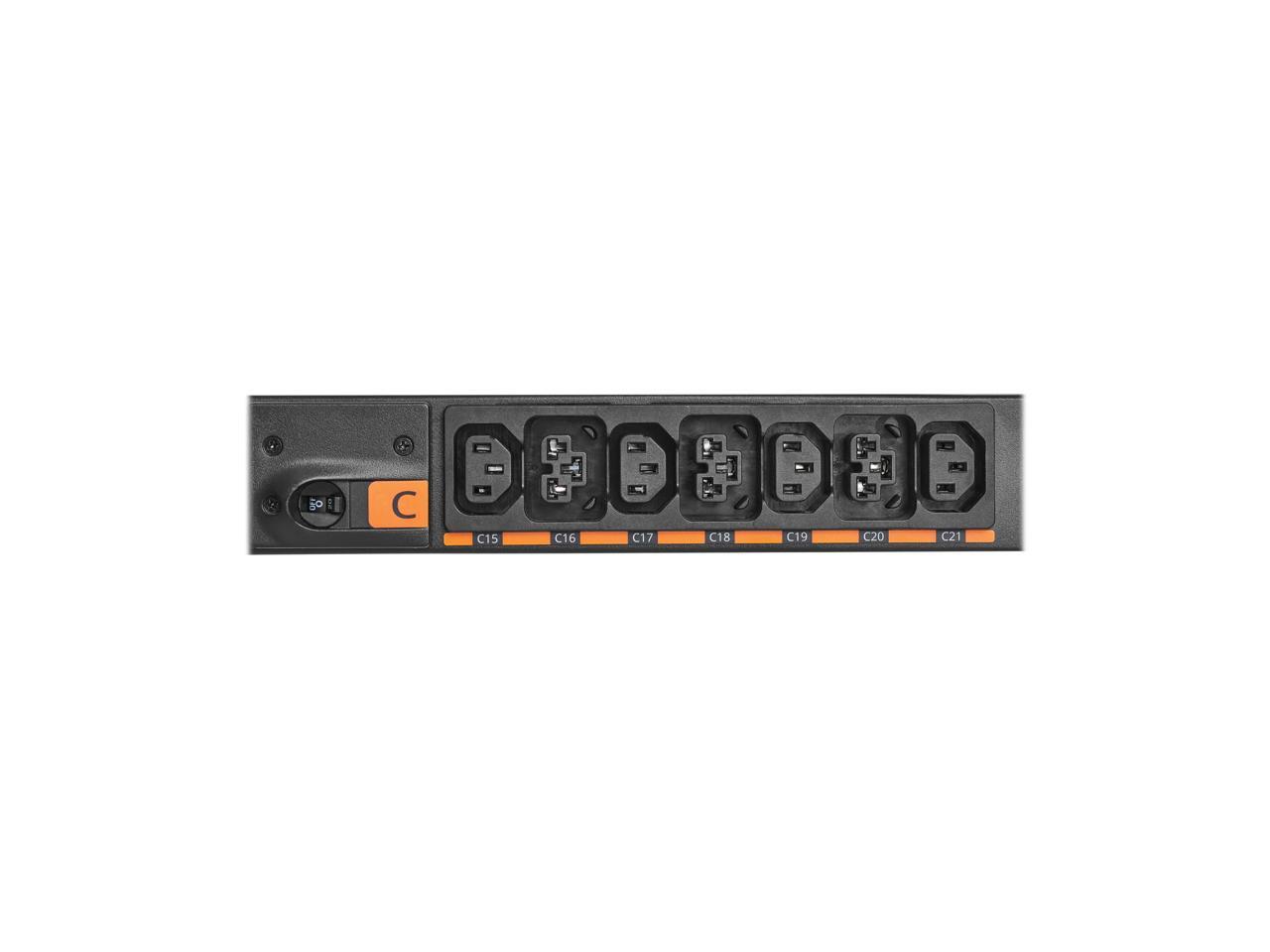

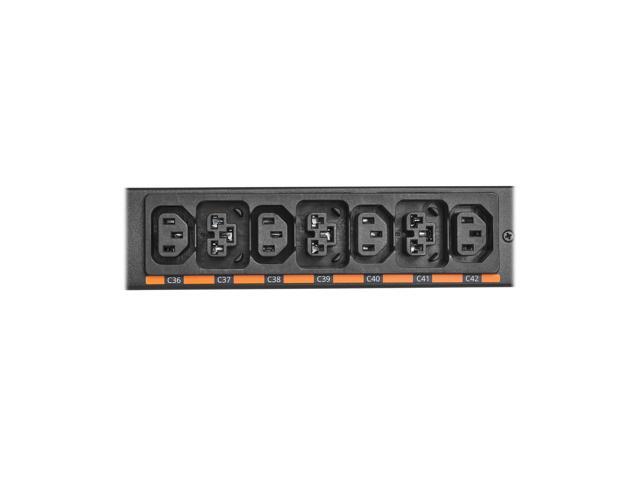

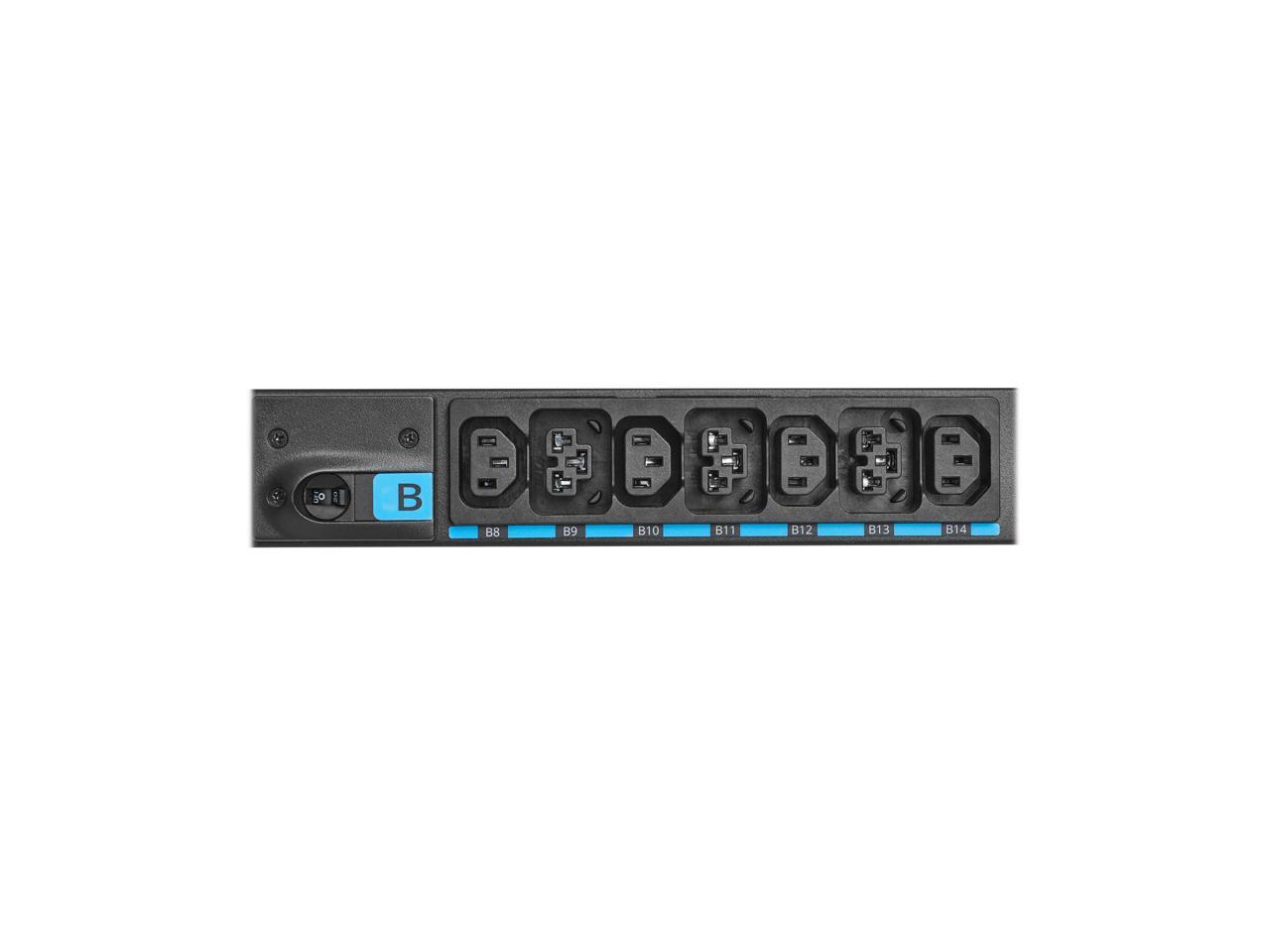

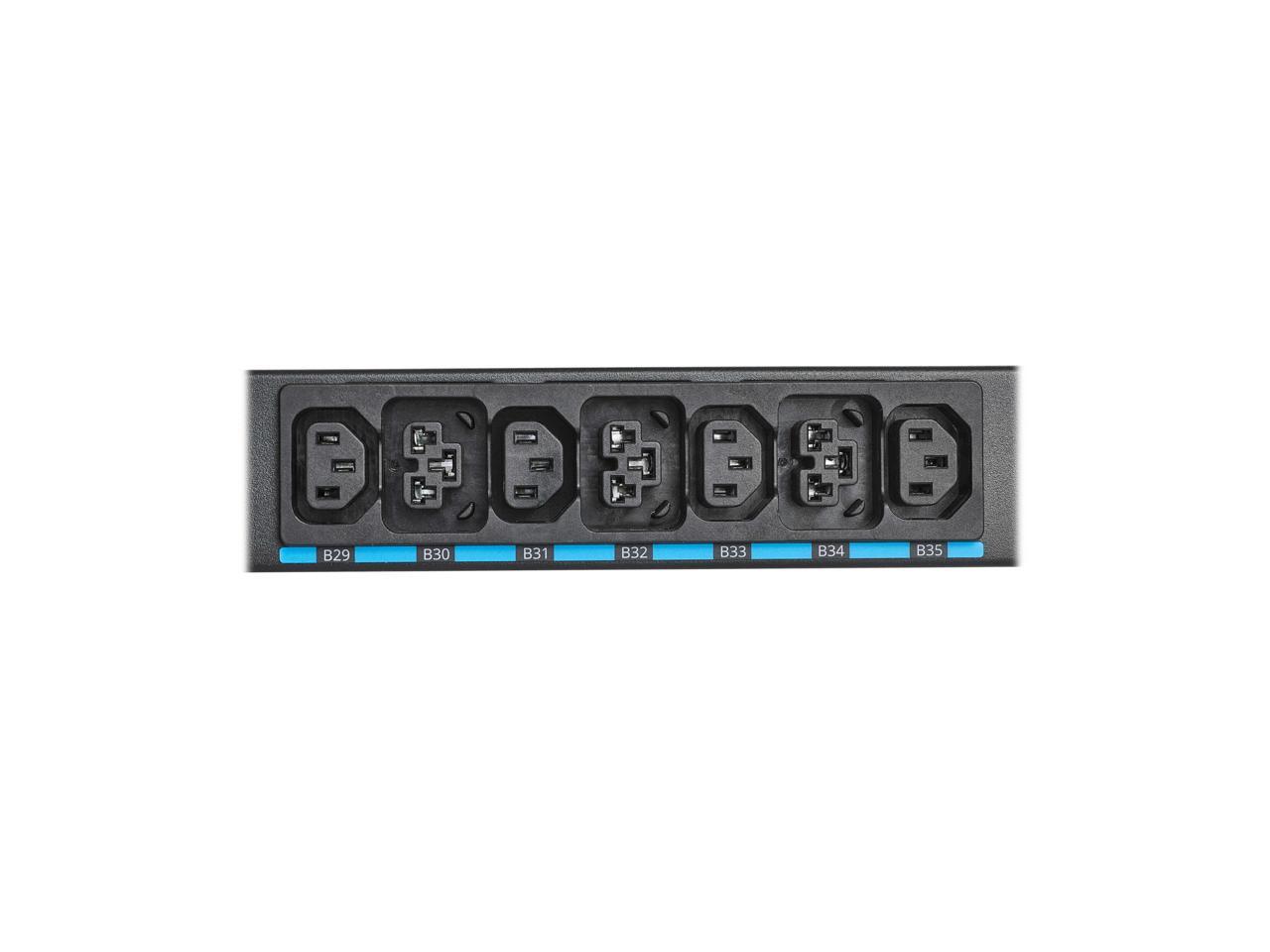

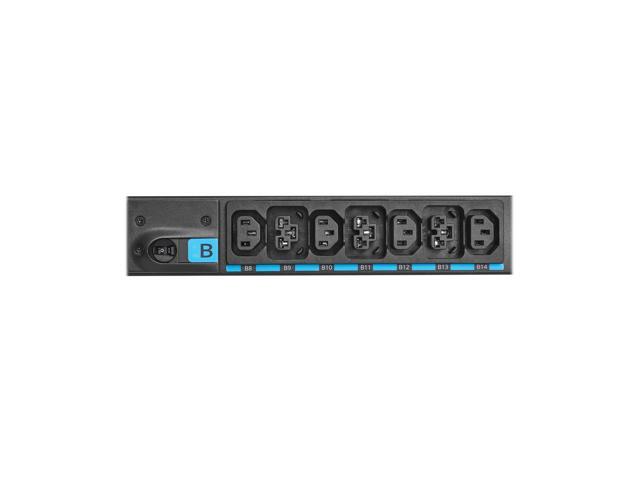

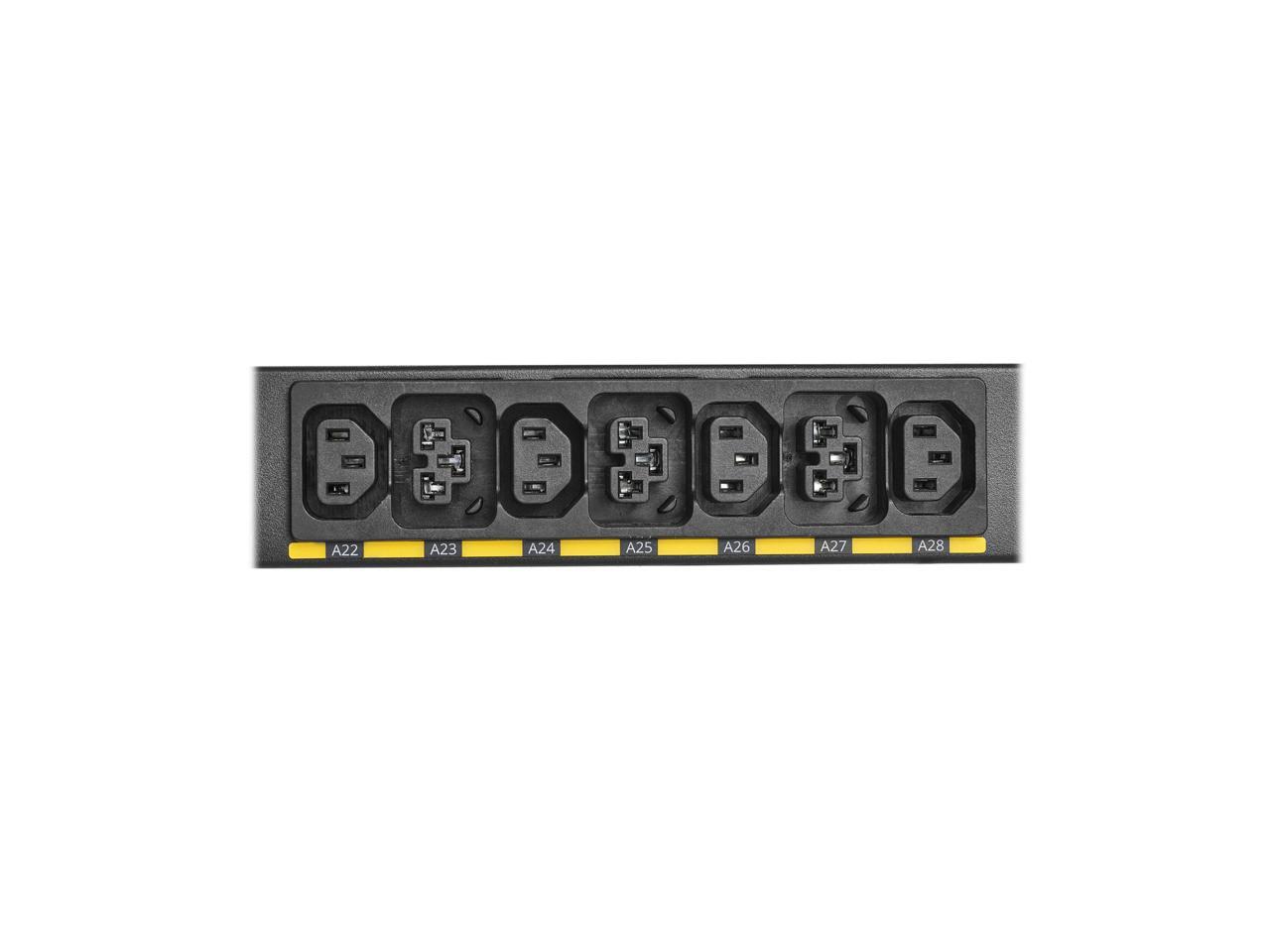

  • Output Receptacles (24) C13; (18) C39
  • Overload Protection (3) 2-pole 20A circuit breakers

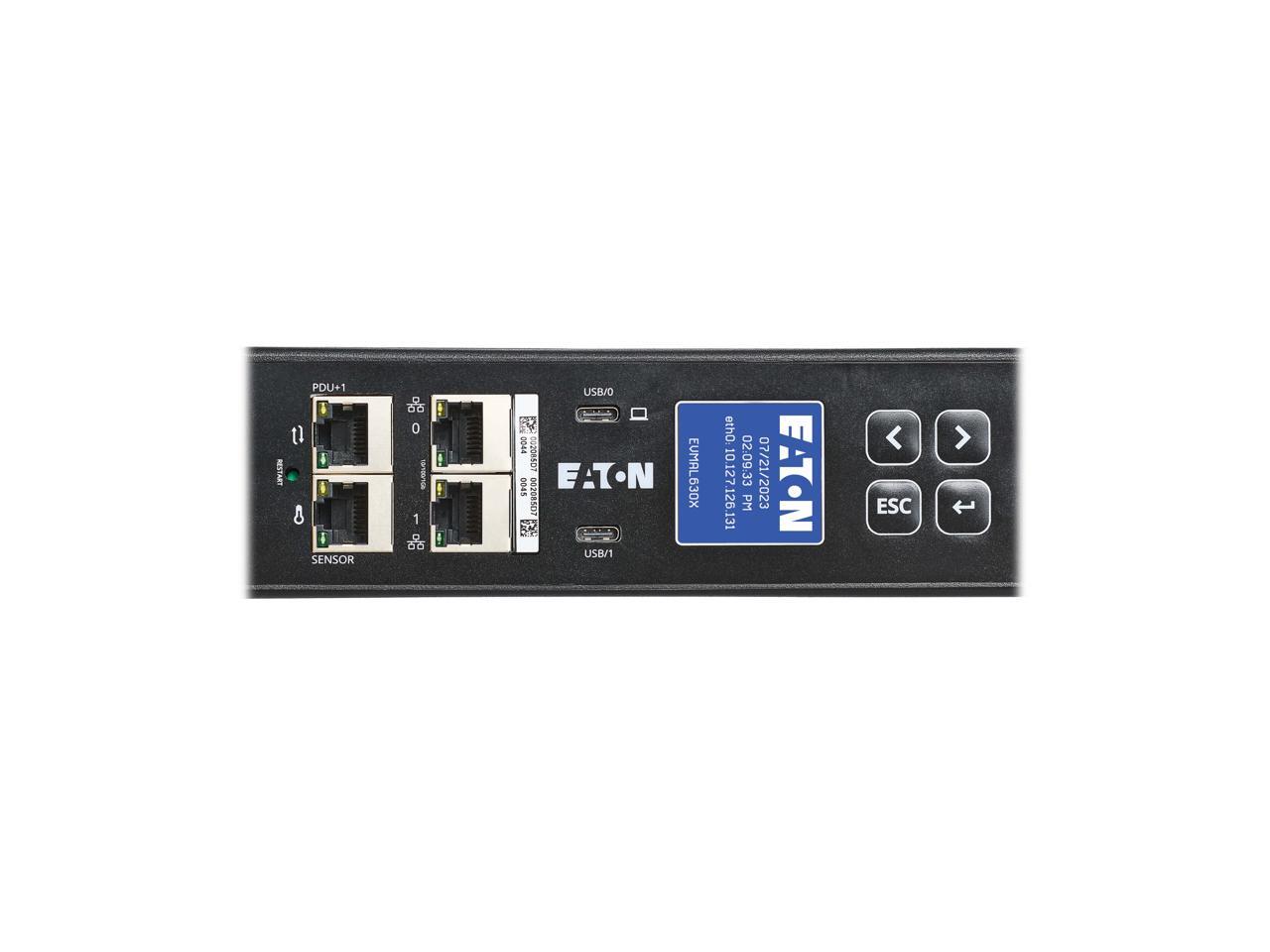

  • Ethernet Interface Yes
  • Serial Interface Yes
  • Daisy-chainable / Cascadable Yes
  • Daisy-chainable / Cascadable Details Cascade up to 40 PDUs
  • $2,199.99 –
