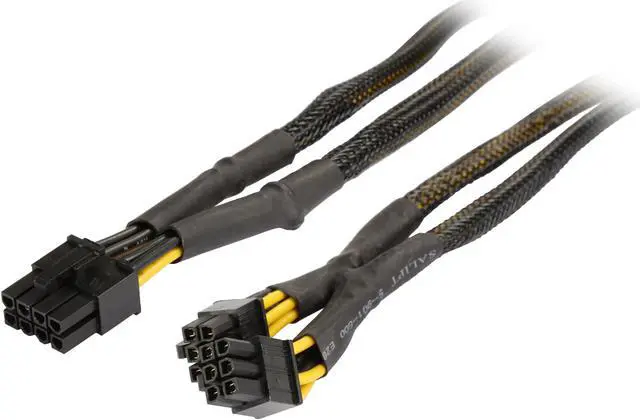

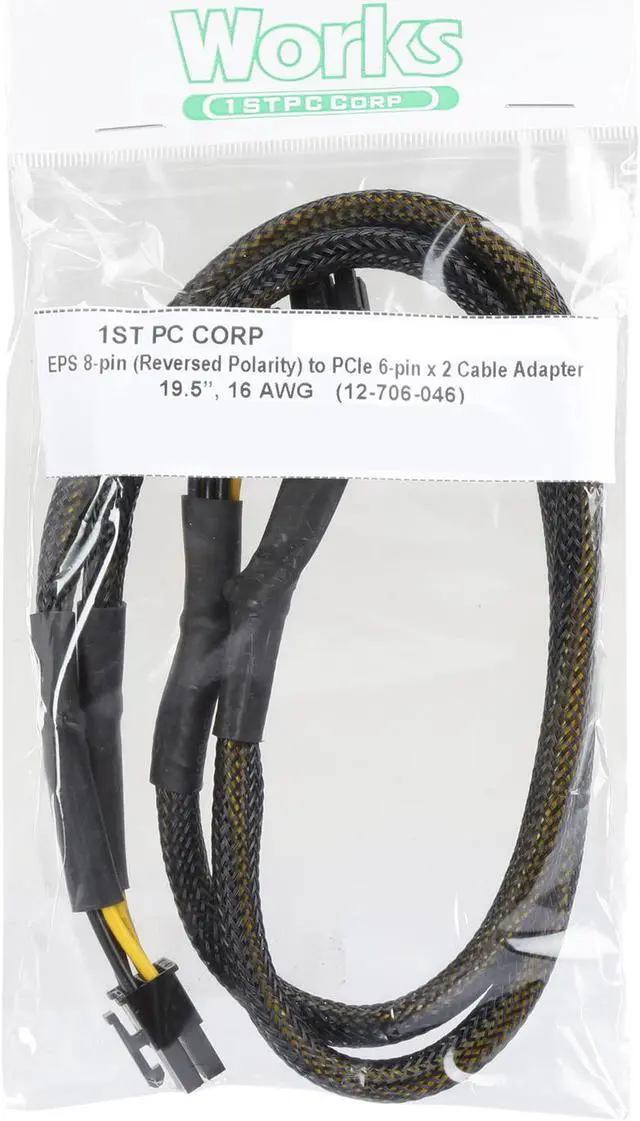

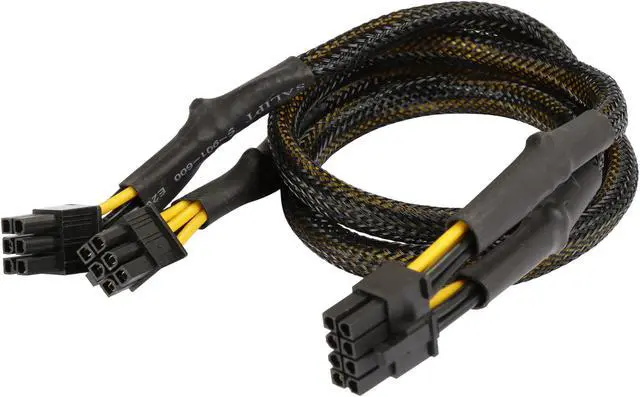

1ST PC CORP. CB-E8FX-P6F2 Extra Heavy Duty 16 AWG Y Splitter Cable for PCI Express 6-pin Graphic Cards, compatible to select Modular Power Supplies, great for Industrial Computing or Bitcoin mining
- Extra heavy duty cable adapter made with 16 AWG cable wires, great for heavy duty computing such as Bitcoin mining or data centers. Compatible to select modular power supplies with ATX EPS 8-pin modular ports with reverse polarity pinouts. Compatible to graphic cards with standard PCI Express 6-pin power port.

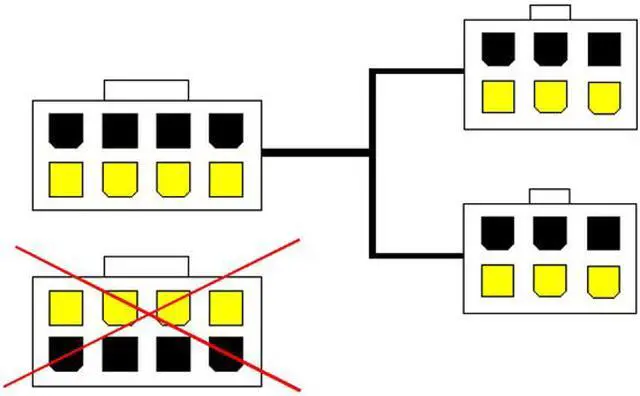

- One side of this cable is a EPS ATX 8-pin connector that may go into the modular side of a regular modular power supply. Four ground wires on the side where the connector clip is, and four hot wires (yellow) on the other side of the connector.
- Two PCI Express 6-pin connectors on the other side of the cable, compatible to regular PCI Express graphic cards with 6-pin power port. Three ground wires on the side where the connector clip is, and three hot wires (yellow) on the other side of the connector.
- Approximately 19.5 inches in length overall and sleeved in black mesh tubing, this extra heavy duty cable will be able to handle tons of power with less heat loss while giving you
Learn more about the 1ST PC CORP. CB-E8FX-P6F2
| Brand | 1ST PC CORP. |
|---|---|
| Model | CB-E8FX-P6F2 |
| Type | PCI-E |
| Length | 19.25" |
|---|---|
| Cable Length | 1.6 ft. |
| Connector Number | 3 |
|---|---|
| Connector Detail | EPS 8-pin female (reversed polarity) to 2 x PCI Express 6-pin female |
| Features | This extra heavy duty PCI Experss 6-pin cable adapter is perfect for heavy duty computing environment such as Bitcoin mining or data centers. Made with 16 AWG cable wires that contain genuine, new copper cores, this cable can handle a lot more power than regular cables, and it will give you much higher conductivity with much less heat loss. Mainly designed for high output modular power supplies, the EPS ATX 8-pin on one side of this cable may go into the modular power port (EPS ATX 8-pin with reverse polarity pinouts with the ground wires on the side where the connector clip is), and the two PCI Express 6-pin connectors will connect to regular PCI Express graphic cards with 6-pin power port. Approximately 19.5 inches in overall length and sleeved in black mesh tubing, this extra heavy duty cable is a premium quality cable with the highest level of performance you can rely on. |
|---|
| First Listed on Newegg | June 08, 2017 |
|---|
