Is this compatible with a thermaltake Tough Power DPS G 860 modular power supply? I am looking to replace the PCI-E graphics power cable to support a GPU.

I can't speak directly about the thermaltake, but it was fine on an ocz and corsair full modulars. Assuming they haven't broken the standard at thermaltake, you'll be fine!

Questions & Answers: 1ST PC CORP. CB-E8FX-P6F2 Extra Heavy Duty 16 AWG Y Splitter Cable for PCI Express 6-pin Graphic Cards, compatible to select Modular Power Supplies, great for Industrial Computing or Bitcoin mining

(1)

double click image to zoom in

Shop All 1ST PC CORP. Products

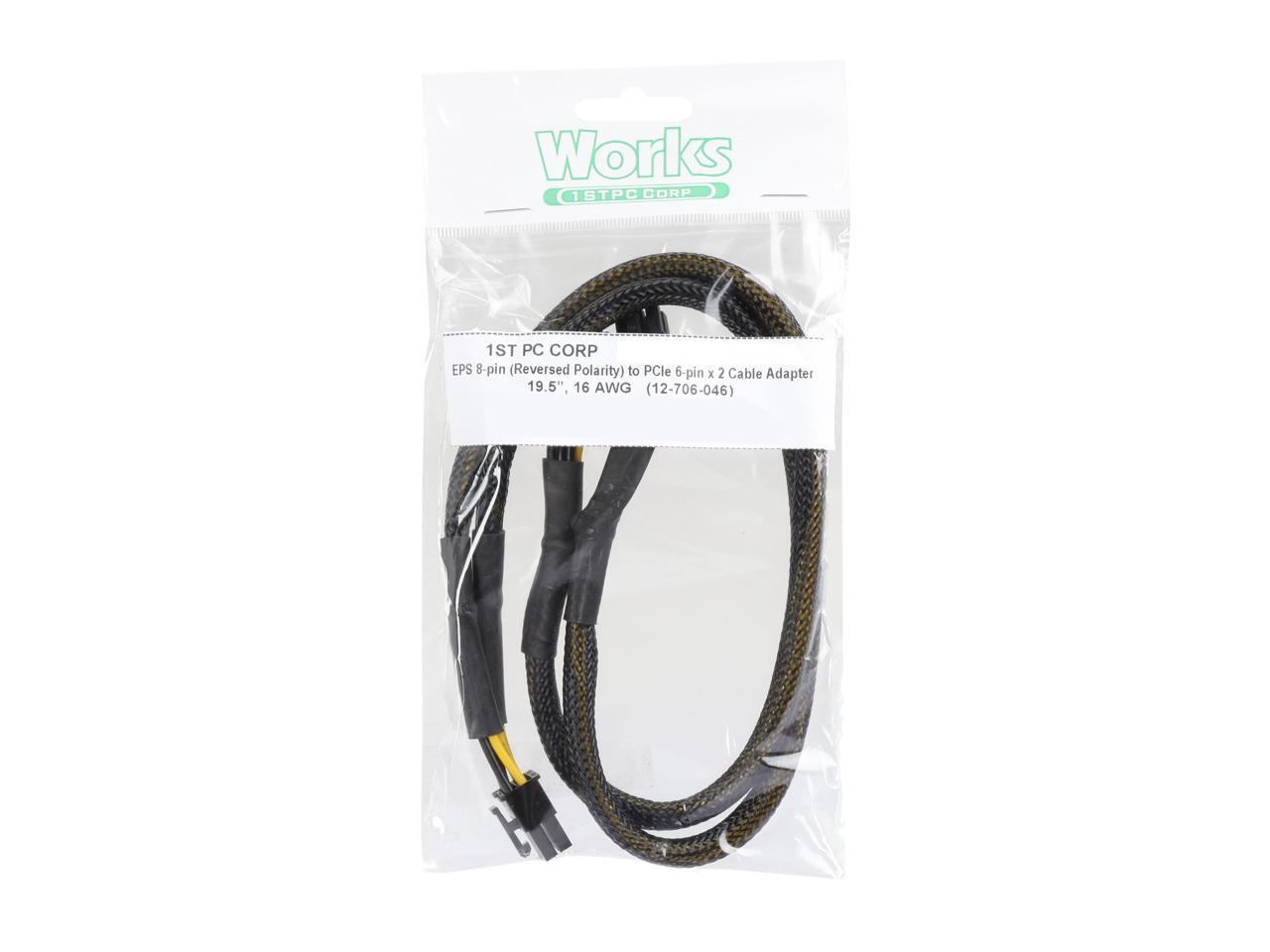

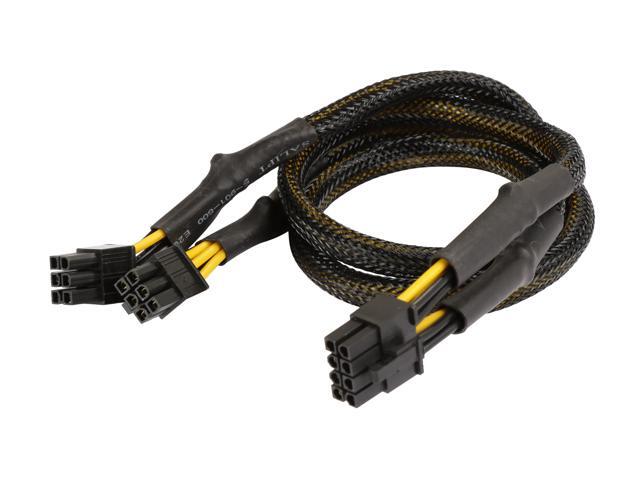

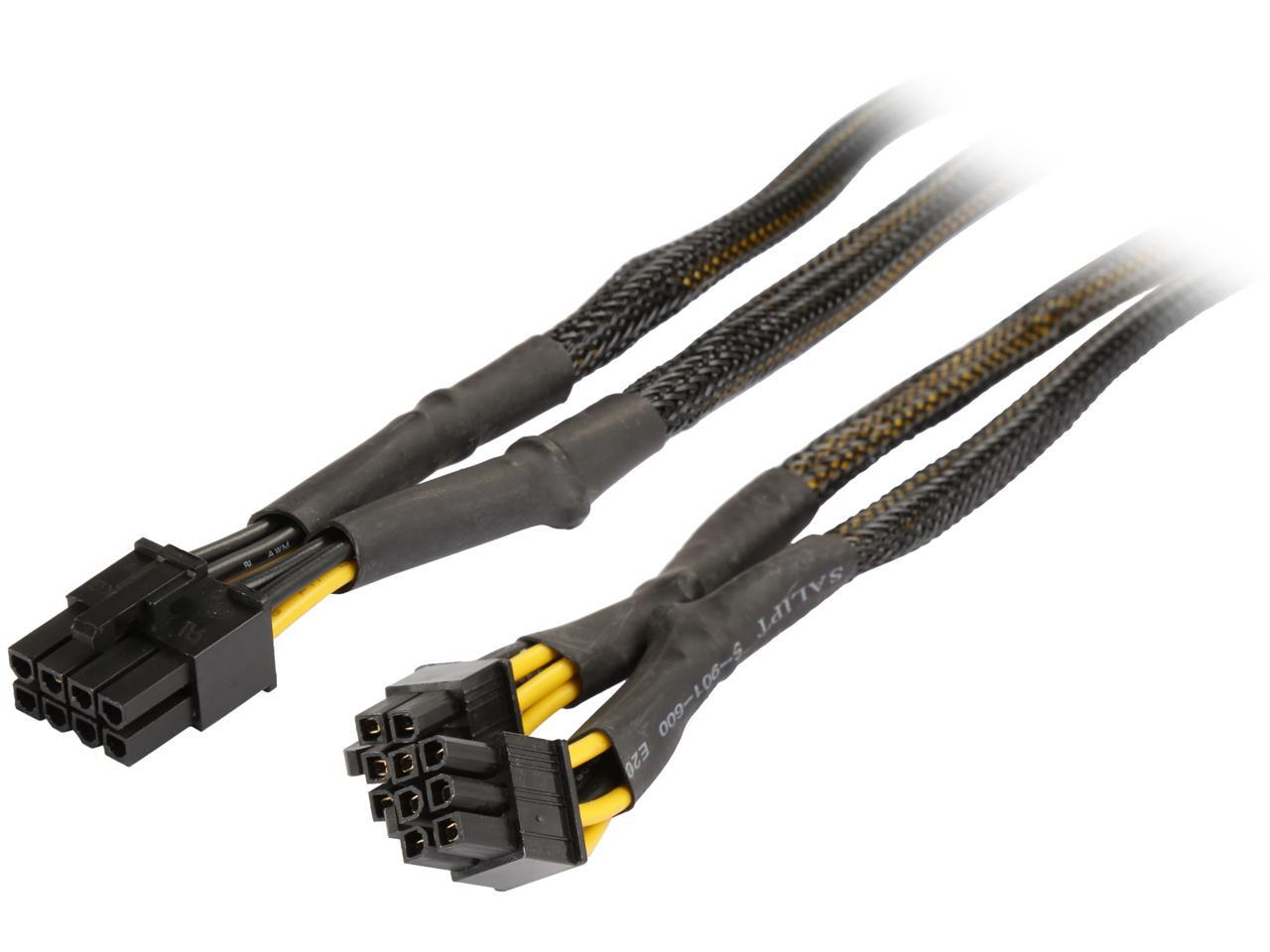

1ST PC CORP. CB-E8FX-P6F2 Extra Heavy Duty 16 AWG Y Splitter Cable for PCI Express 6-pin Graphic Cards, compatible to select Modular Power Supplies, great for Industrial Computing or Bitcoin mining

Extra heavy duty cable adapter made with 16 AWG cable wires, great for heavy duty computing such as Bitcoin mining or data centers. Compatible to select modular power supplies with ATX EPS 8-pin modular ports with reverse polarity pinouts. Compatible to graphic cards with standard PCI Express 6-pin power port.

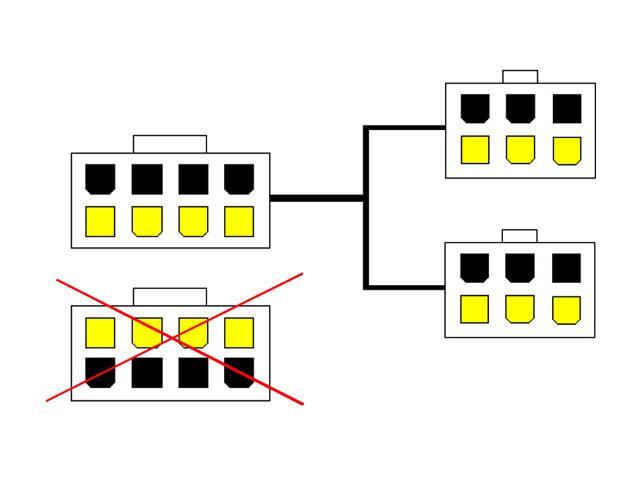

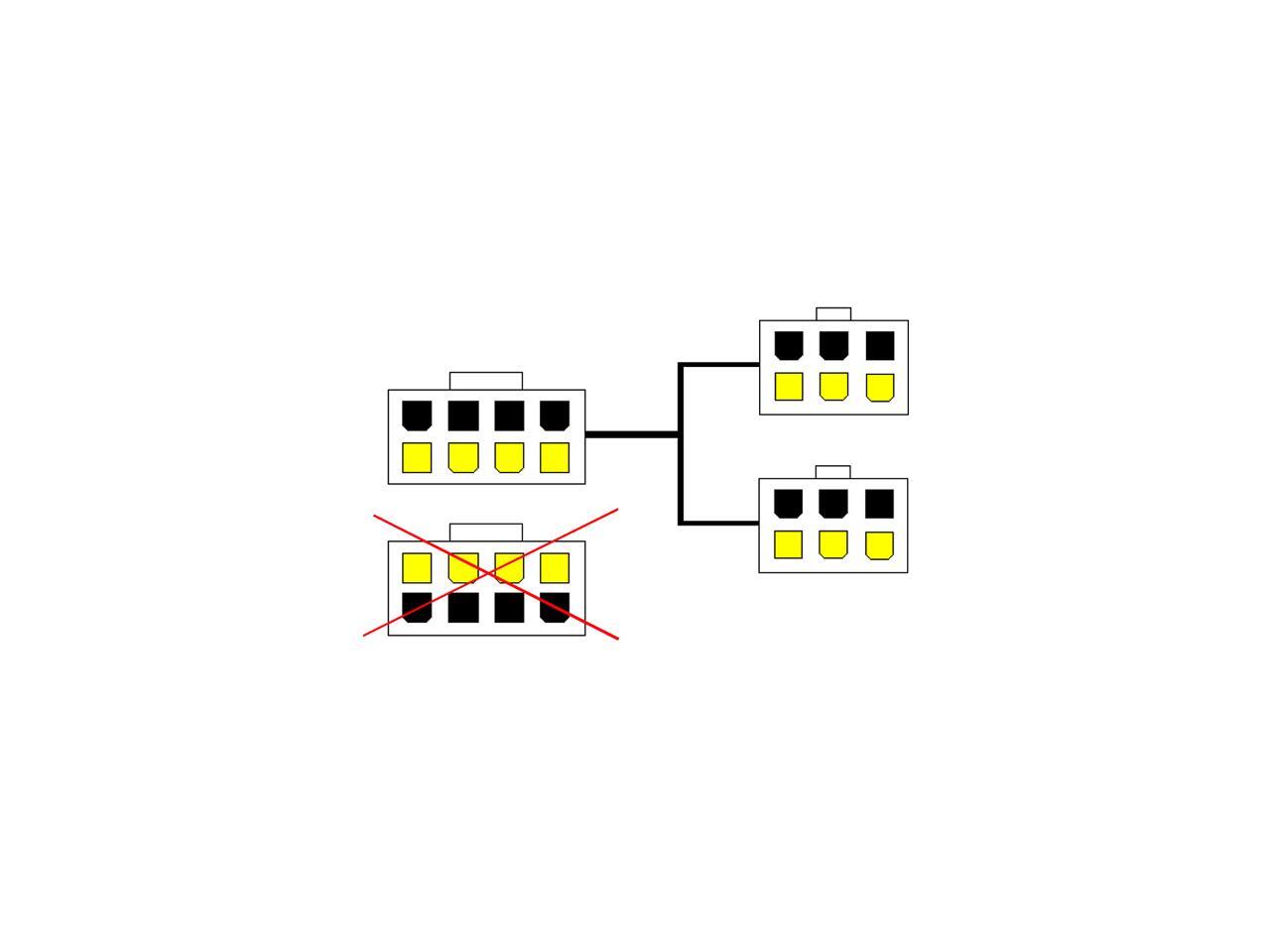

One side of this cable is a EPS ATX 8-pin connector that may go into the modular side of a regular modular power supply. Four ground wires on the side where the connector clip is, and four hot wires (yellow) on the other side of the connector.
Two PCI Express 6-pin connectors on the other side of the cable, compatible to regular PCI Express graphic cards with 6-pin power port. Three ground wires on the side where the connector clip is, and three hot wires (yellow) on the other side of the connector.
Approximately 19.5 inches in length overall and sleeved in black mesh tubing, this extra heavy duty cable will be able to handle tons of power with less heat loss while giving you

Out of Stock
