The ASUS TUF B360M-PLUS GAMING motherboard supports LGA 1151 socket for 8th Generation Intel Core i7/i5/i3 processors, which includes the i9 8700. However, it is noted that it is not backward compatible with older generation LGA 1151 CPUs.

Yes, the ASUS TUF B360M-PLUS GAMING motherboard supports LGA 1151 socket for 8th Generation Intel Core i7 processors, including the i7 8700.

The product is not compatible with the i9-9900 as it specifically mentions that it supports LGA 1151 socket for 8th Generation Intel Core i7/i5/i3 Pentium and Celeron processors, and is not backward compatible with older generation of LGA 1151 CPUs.

is this mother board compatable with Intel Core i7-8700 Coffee Lake Desktop Processor i7 8th Gen, Core 6 Cores up to 4.6 GHz LGA 1151 (300 Series) 65W

Yes, this motherboard is compatible with the Intel Core i7-8700 Coffee Lake Desktop Processor, as it supports LGA 1151 socket for 8th Generation Intel Core processors.

What M.2 ssd can be installed on this motherboard

The motherboard supports M.2 storage devices with type 2242/2260/2280 in both SATA and PCIe 3.0 x4 modes.

Is this Motherboard compatible with a RTX 3060ti 8gig GPU?? I have a 1060 currently. MY CPU is a intel i7 9700k. Thanks for anyone who can help! I dont know tech stuff very well.

Yes, this motherboard is compatible with an RTX 3060 Ti 8GB GPU. It has a PCI Express 3.0 x16 slot, which is suitable for modern GPUs, including the RTX 3060 Ti.

Will this work with a 3060 Ti RTX gigabte GPU? im upgrading from a 1060. My Current CPU is a Intel i7 9700k Wll the Gpu im upgrading to work with MB? OR will the pins not match up? im not a tech guy.

Yes, the ASUS TUF B360M-PLUS GAMING motherboard will work with a 3060 Ti RTX Gigabyte GPU. The motherboard has a PCI Express 3.0 x16 slot which is compatible with the 3060 Ti RTX. Your current CPU, Intel i7 9700k, is also supported by this motherboard.

$89^.99

$94.72

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by roboshine

Hot Seller

4.5 (246 seller ratings)

Shipped by roboshine

Meet Your Seller

roboshine

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS TUF B360M-PLUS GAMING LGA 1151 (300 Series) Intel B360 HDMI USB 3.1 Micro ATX Intel Motherboard

Alt view image 2 of 3 - ASUS TUF B360M-PLUS GAMING LGA 1151 (300 Series) Intel B360 HDMI USB 3.1 Micro ATX Intel Motherboard

Alt view image 3 of 3 - ASUS TUF B360M-PLUS GAMING LGA 1151 (300 Series) Intel B360 HDMI USB 3.1 Micro ATX Intel Motherboard

Customer images

Shop All ASUS Products | Visit Roboshine Store

ASUS TUF B360M-PLUS GAMING LGA 1151 (300 Series) Intel B360 HDMI USB 3.1 Micro ATX Intel Motherboard

(77)(5) Write a Review

Option: TUF B360M-PLUS GAMING

PRIME B360-PLUS
PRIME B360M-A
PRIME B360M-K
STRIX B360-F GAMING
STRIX B360-H GAMING
STRIX B360-I GAMING
TUF B360-PLUS GAMING
TUF B360M-E GAMING
TUF B360M-PLUS GAMING

Designed exclusively for 8th generation Intel Core processors to maximize connectivity and speed with Dual M.2, Gigabit LAN, USB 3.1 Gen2, and Intel Optane Memory compatibility
Military-grade TUF components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
Fan Xpert 2+ provides advanced fan and liquid cooling controls for dynamic system cooling and management
Aura Sync RGB lighting with additional 4-pin RGB header features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
Guaranteed reliability built on military-grade engineering

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (77)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES:

Chipset Manufacturer: Intel
Total Processor Supported: 1
Processor Socket: Socket H4 LGA-1151
Processor Supported: Core i3,Core i5,Core i7,Pentium,Celeron
Number of Memory Slots: 4
Memory Form Factor: DIMM,UDIMM
Maximum Memory: 64 GB
Memory Speed Supported: 2.67 GHz,2.40 GHz,2.13 GHz
Memory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
Controller Type: Serial ATA/600
Onboard Video: CPU Dependent Video
Audio Channels: 7.1
Gigabit Ethernet: Yes
Number of Total Expansion Slots: 3
Total Number of PCI Express Slots: 3
Number of PCI Express x1 Slots: 2
Number of PCI Express x16 Slots: 1
Total Number of USB Ports: 5
Number of USB 3.1 Ports: 3
HDMI: Yes
DVI: Yes
Number of SATA Interfaces: 6
Number of M.2 Interfaces: 2
Total Number of Onboard USB Ports: 6
Number of Onboard USB 3.1 Ports: 2
Onboard S/PDIF Header: Yes
Form Factor: Micro ATX
Width: 9.60" (243.84 mm)
Depth: 9.10" (231.14 mm)
Package Contents:
- B360M-PLUS GAMING Desktop Motherboard
- User's Manual
- I/O Shield
- 2 x SATA 6Gb/s cable(s)
- 2 x M.2 screws
- 1 x Supporting DVD
- 1 x TUF GAMING Sticker
- 1 x TUF Certification card(s)
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: China
Limited Warranty: 3 Year

Model
Brand	ASUS
Series	TUF
Model	B360M-PLUS GAMING

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	LGA1151 socket for 8th Generation Intel Core i7/ i5/ i3 Pentium and Celeron processors * Not backward compatible with older generation of LGA 1151 CPUs ** Refer to www.asus.com for Intel CPU support list
Supported CPU Technologies	Turbo Boost Technology 2.0 * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.

Chipsets
Chipset	Intel B360

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support Multi-VGA output support: HDMI, DVI-D ports Supports HDMI 1.4b with max. resolution 4096 x 2160@24Hz / 2560 x 1600@60Hz Supports DVI-D with max. resolution 1920 x 1200@60Hz Maximum shared memory of 1024MB (for iGPU exclusively)

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 2666/ 2400/ 2133 * The maximum memory frequency supported varies by processor. DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel 8th Gen. 6-core or higher processors. * Refer to www.asus.com for the latest Memory QVL (Qualified Vendors List).
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 slot (at x16 mode)
PCI Express x1	2 x PCI Express 3.0 x1 slots

Storage Devices
Serial ATA (SATA)	6 x SATA 6.0Gb/s ports (gray)
M.2	1 x M.2_1 Socket 3 with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE 3.0 x4 mode)* 1 x M.2_2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)** * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used ** Only the M.2_2 supports Intel IRST Technology and Intel Optane memory
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x DVI-D port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	2 x USB 3.1 Gen 2 (up to 10Gbps) ports (Type A, teal blue)
USB 1.1/2.0	2 x USB 2.0
USB Type-C	1 x USB 3.1 Gen 1 (up to 5Gbps) port (Type C)
Audio Ports	3 Audio jacks support 8 channels* * Use a chassis with HD audio module in the front panel to support an 8-channel audio output.

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 (up to 5Gbps) connector support additional 2 USB ports (19-pin) 2 x USB 2.0/1.1 connectors support additional 4 USB ports
Other Connectors	1 x CPU Fan connector 2 x Chassis Fan connectors (4-pin) for both 3-pin (DC mode) and 4-pin (PWM mode) coolers control 1 x Front panel audio connector (AAFP) 1 x system panel connector 1 x Clear CMOS header 1 x S/PDIF out header 1 x COM header 1 x Aura RGB Strip header

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.1"
Power Pin	1 x 24-pin EATX Power connector 1 x 8-pin EATX 12V Power connector

Features

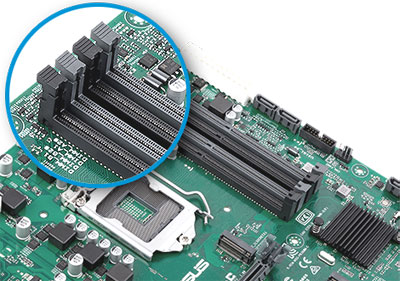

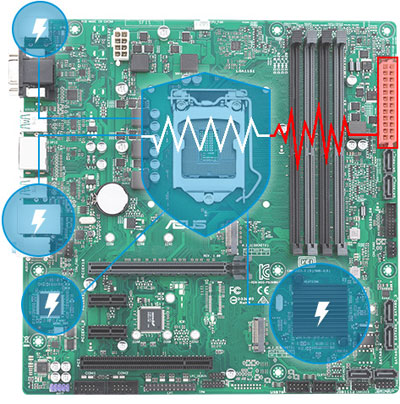

Features	ASUS Special Features: TUF Components (TUF Cap, TUF Chokes, MOSFET & LANGuard; certified by military-standard) ASUS TUF PROTECTION - ASUS SafeSlot - Protect your graphics card investment - ASUS ESD Guard: Enhanced ESD protection - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 5 Phase digital power design Superb Performance ASUS OptiMem - Improved DDR4 stability M.2 onboard - The latest transfer technologies with up to 32Gb/s data transfer speeds ASUS Fan Xpert 2+ - Ultimate cooling and quietness ASUS EPU - EPU UEFI BIOS - Most advanced options with fast response time Gaming Scenario AURA - Bright up your Build Audio Features - Audio that roars on the battlefield ASUS Exclusive Features - ASUS Ai Charger - ASUS AI Suite 3 - ASUS File Transfer - ASUS PC Cleaner EZ DIY UEFI BIOS EZ Mode - featuring friendly graphics user interface - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 Q-Design - ASUS Q-Slot - ASUS Q-DIMM ASUS Quiet Thermal Solution: Quiet Thermal Design - ASUS Fan Xpert 2+ - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F3 My Favorites, Last Modified log, F4 AURA ON/OFF, F6 Qfan Control, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Manageability: WOL by PME, PXE Support DVD: Drivers ASUS Utilities EZ Update Anti-virus software (OEM version) Operating System Support: Windows 10 (64-bit)

Packaging
Package Contents	Accessories: 2 x Serial ATA 6.0Gb/s cable 1 x Support DVD 1 x M.2 Screw package 1 x I/O Shield 1 x TUF GAMING sticker User's manual 1 x TUF Certification Card
