i was maybe gonna build ..intel i7-10700f cpu need motherboard to install gpu and sound blaster card .. i have a tower . will need atx board ?

The ASUS PRIME Z590M-PLUS motherboard is a Micro ATX (mATX) board, not a full ATX board. It supports 10th Gen Intel Core processors like the i7-10700F and has expansion slots for a GPU and additional cards. However, if you specifically need an ATX form factor, this might not meet your requirement, as it is a Micro ATX board.

Does this motherboard have a TPM 2.0 chip?

It must because I am running windows 11 on this board right now. The TPM chip must be present to run win 11.

Can someone help confirm, pcie x16_2 (slot 2) at the corner edge, is that working fine? the specification says only 1 pcie x16 but the board diagram has another pcie x16 slot 2.

The specifications mention that the motherboard has 1 x PCIe 4.0/3.0 x16 slot and 1 x PCI Express 3.0 x16 slot, as well as 2 x PCIe 3.0 x1 slots. Therefore, it does have two PCIe x16 slots as indicated by the board diagram.

will i get 7.1 sound through the HDMI port ?

No, the 7.1 Surround Sound audio output requires a chassis with an HD audio module in the front panel, not the HDMI port.

does this work with an RTX 3070 Ti?

The compatibility with an RTX 3070 Ti is not explicitly mentioned in the provided product information. However, the ASUS PRIME Z590M-PLUS motherboard has a PCIe 4.0/3.0 x16 slot which is generally compatible with modern GPUs including the RTX 3070 Ti.

Does it have a port on the motherboard where i need to power the cpu?

Yes, the motherboard has a 1 x 8-pin +12V Power connector and a 1 x 4-pin +12V Power connector for powering the CPU.

would i be able to put a m.2 wifi card in one of the slots?

I just received this mother board. Seems GREAT so far. Yes you can. For future reference you can find these user guides online, just search the model number.

is this motherboard compatible with the intel core i7 8th gen prossesor ?

Only 10th & 11th gen processors are supported by this board.

Does this support bluetooth?

The product information provided does not mention Bluetooth support.

GIGABYTE B760M GAMING PLUS WIFI DDR4 LGA 1700 Intel B760 M-ATX Motherboard with DDR4, 2* M.2, PCIe 4.0, Front USB 3.2 Gen 1 Type-C, WiFi 6 GbE LAN, Q-Flash Plus, PCIe EZ-Latch

(160)

$139^.99 –
Save: 6%

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

Add to Wish List(Found on 60 wish lists)

Get Educated

Make informed decisions with expert advice. Learn More

Main image of ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Alt view image 2 of 6 - ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Alt view image 3 of 6 - ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Alt view image 4 of 6 - ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Alt view image 5 of 6 - ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Alt view image 6 of 6 - ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

Customer images

Shop All ASUS Products

ASUS PRIME Z590M-PLUS LGA 1200 Intel Z590 Micro ATX Intel Motherboard

(649)(82) Write a Review

Intel Z590
Supports 11th Gen / 10th Gen Intel Core Processors
Supports Intel Pentium Gold and Celeron Processors
DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (649)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	ASUS
Model	PRIME Z590M-PLUS

Supported CPU
CPU Socket Type	LGA 1200
CPU Type	Supports 11th Gen / 10th Gen Intel Core Processors* Supports Intel Pentium Gold and Celeron Processors* * Refer to www.asus.com for CPU support list.
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipsets
Chipset	Intel Z590

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133* * 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	1 x PCIe 4.0/3.0 x16 slot * Actual support may vary by CPU.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x1	2 x PCIe 3.0 x1

Storage Devices
Serial ATA (SATA)	5 x SATA 6Gb/s
M.2	Intel 11th Gen Processors: M.2_1 slot (Key M), type 2242/2260/2280 - Only Intel 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel Z590 Chipset: M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) M.2_3 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode) * When a device in SATA mode is installed on the M.2_2 slot, SATA6G_1 port cannot be used.
Intel Optane Ready	Yes

Onboard Audio
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels* * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Onboard LAN
LAN Chipset	Intel I219-V
Max LAN Speed	1Gbps

Rear Panel Ports

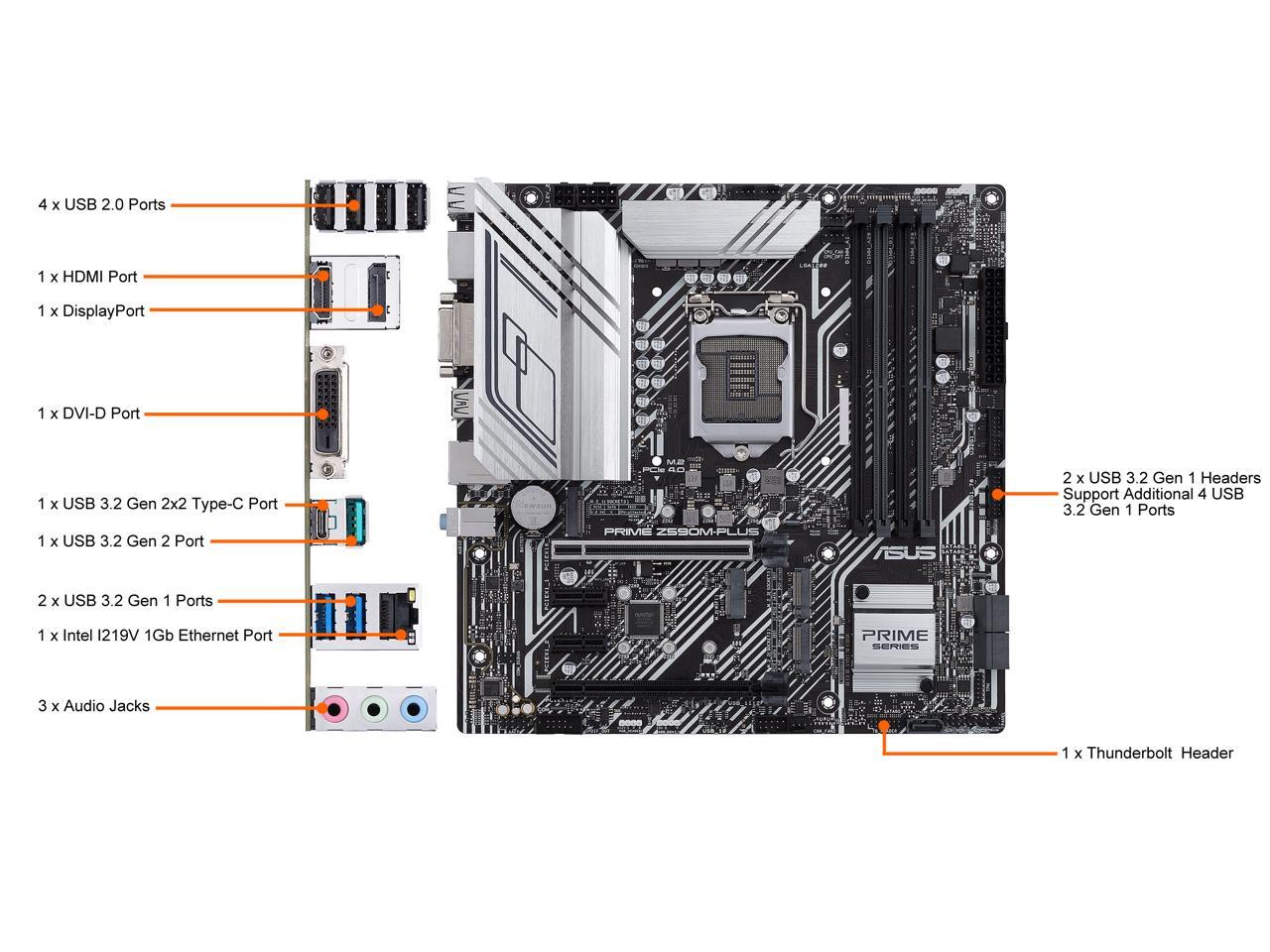

Back I/O Ports	1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x DVI-D port 1 x HDMI port 1 x Intel I219V 1Gb Ethernet 3 x Audio jacks

Internal I/O Connectors
Onboard USB	2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports
Other Connectors	Fan and cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Miscellaneous 2 x AURA Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x M.2 slot (Key E) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt header

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Micro ATX
LED Lighting	RGB
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Features
Features	Special Features: ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - Procool AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers Software Features: ASUS Exclusive Software Armoury Crate - AURA Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 4 - EZ update ASUS CPU-Z AI Charger Norton Anti-virus software (Free Trial version) DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode BIOS: 192 (128+64) MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 - 64-bit

Packaging
Package Contents	Accessories: Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 2 x M.2 SSD screw package Installation Media 1 x Support DVD Documentation 1 x User manual

Additional Information
First Listed on Newegg	February 02, 2021
