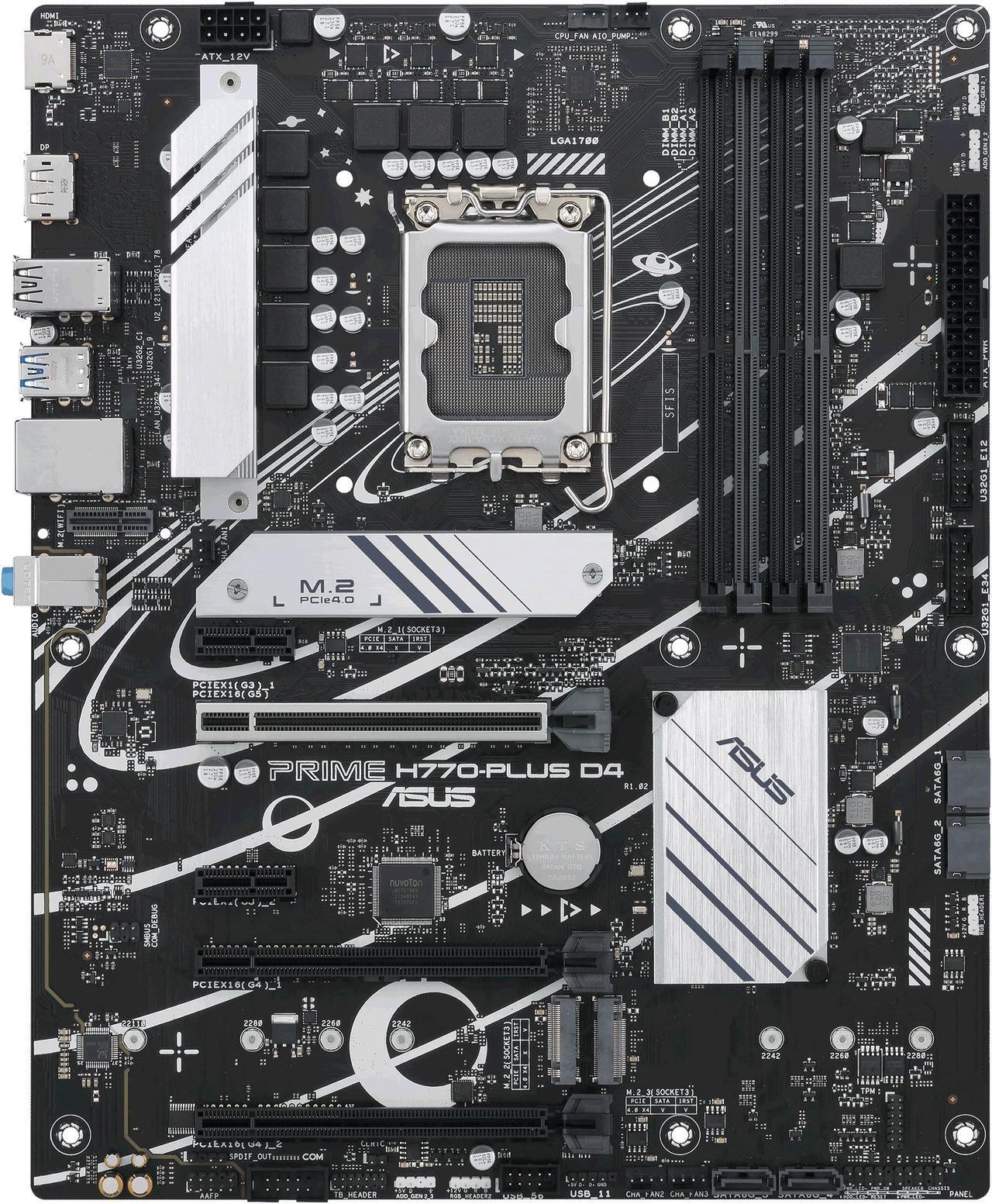

Main image of ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

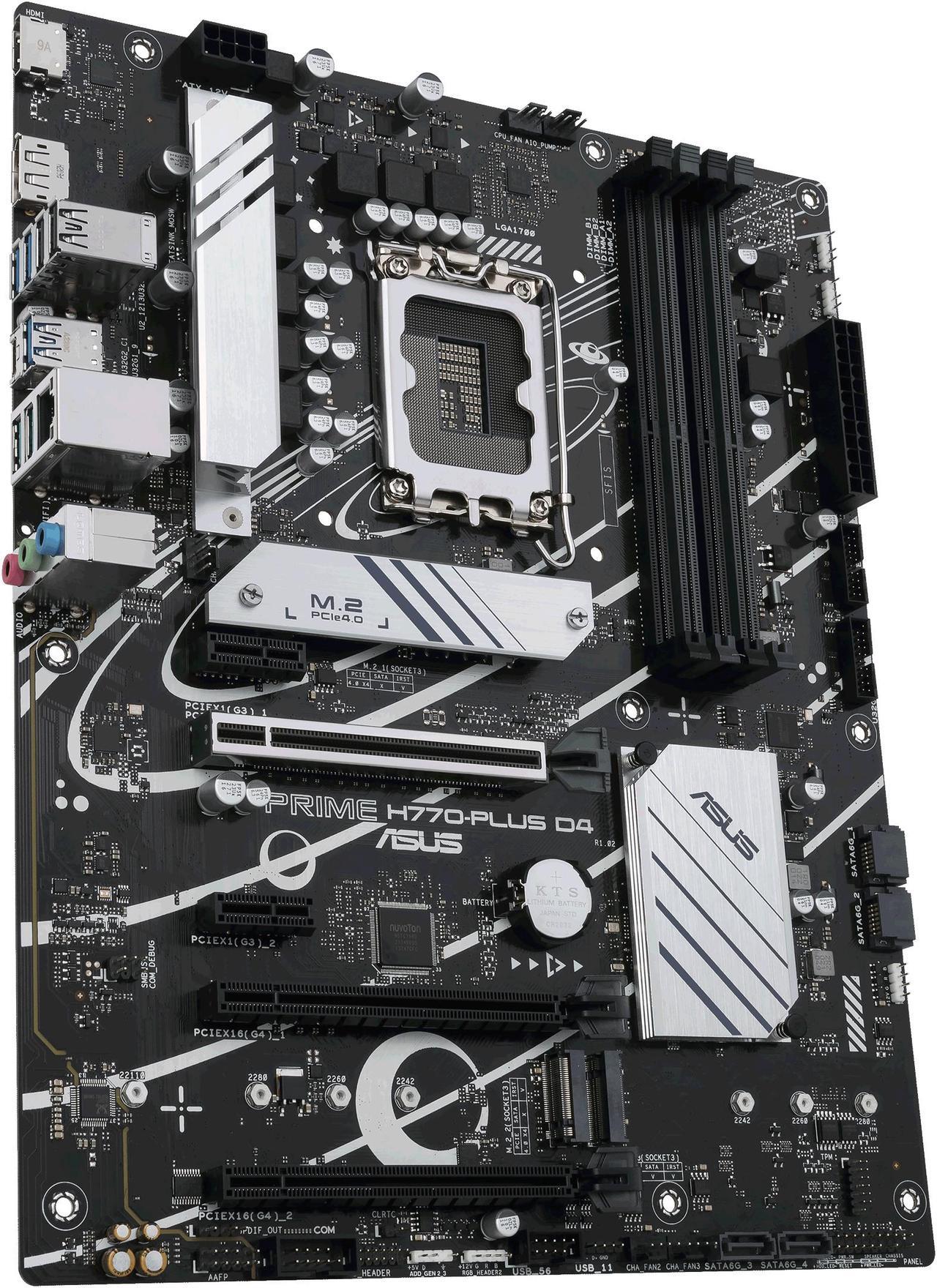

Alt view image 2 of 6 - ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

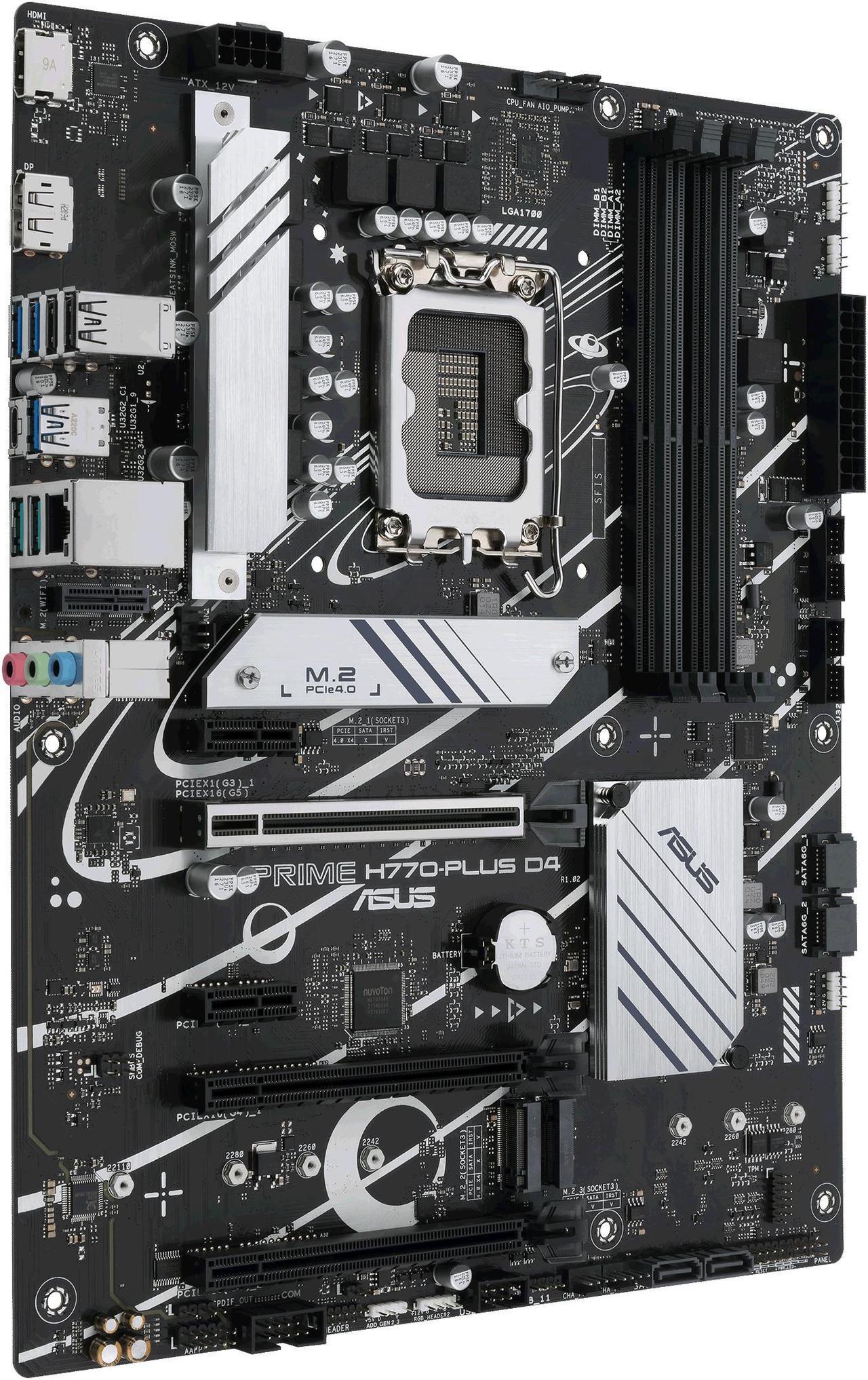

Alt view image 3 of 6 - ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

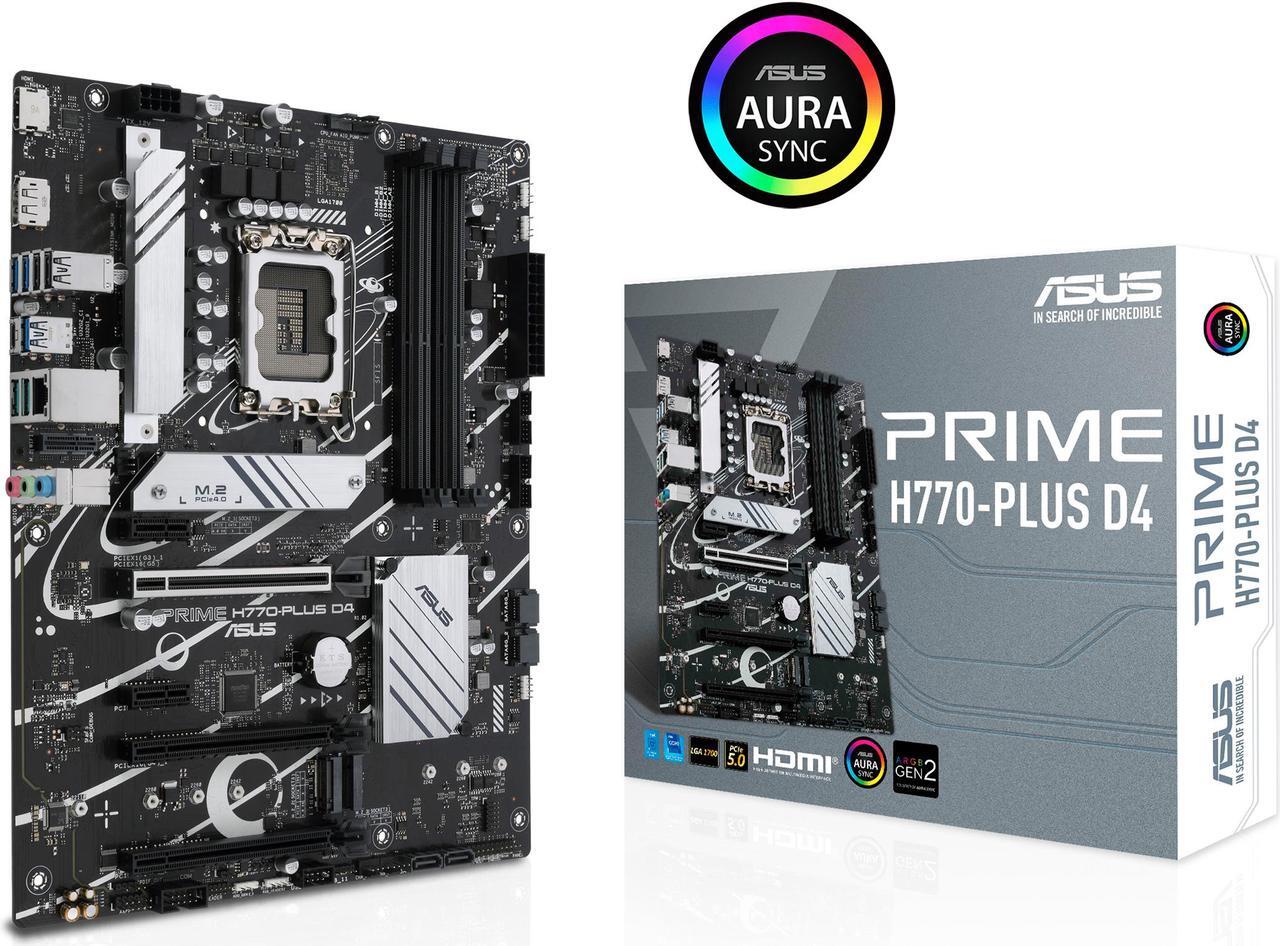

Alt view image 4 of 6 - ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

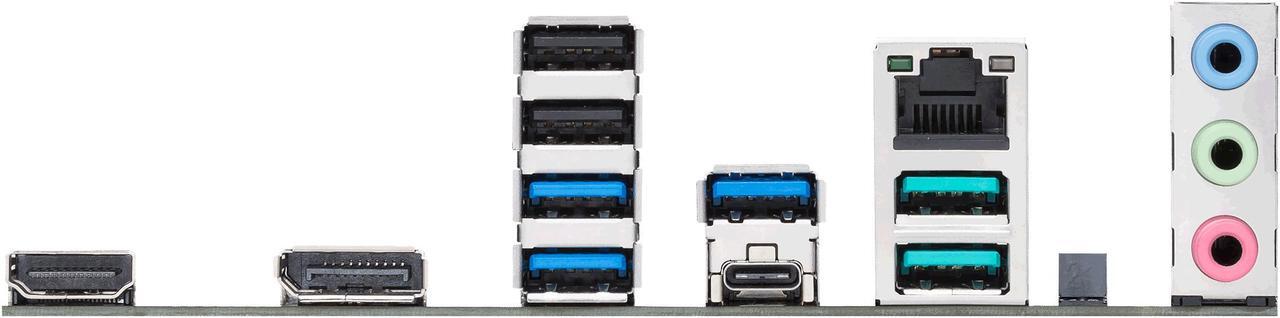

Alt view image 5 of 6 - ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

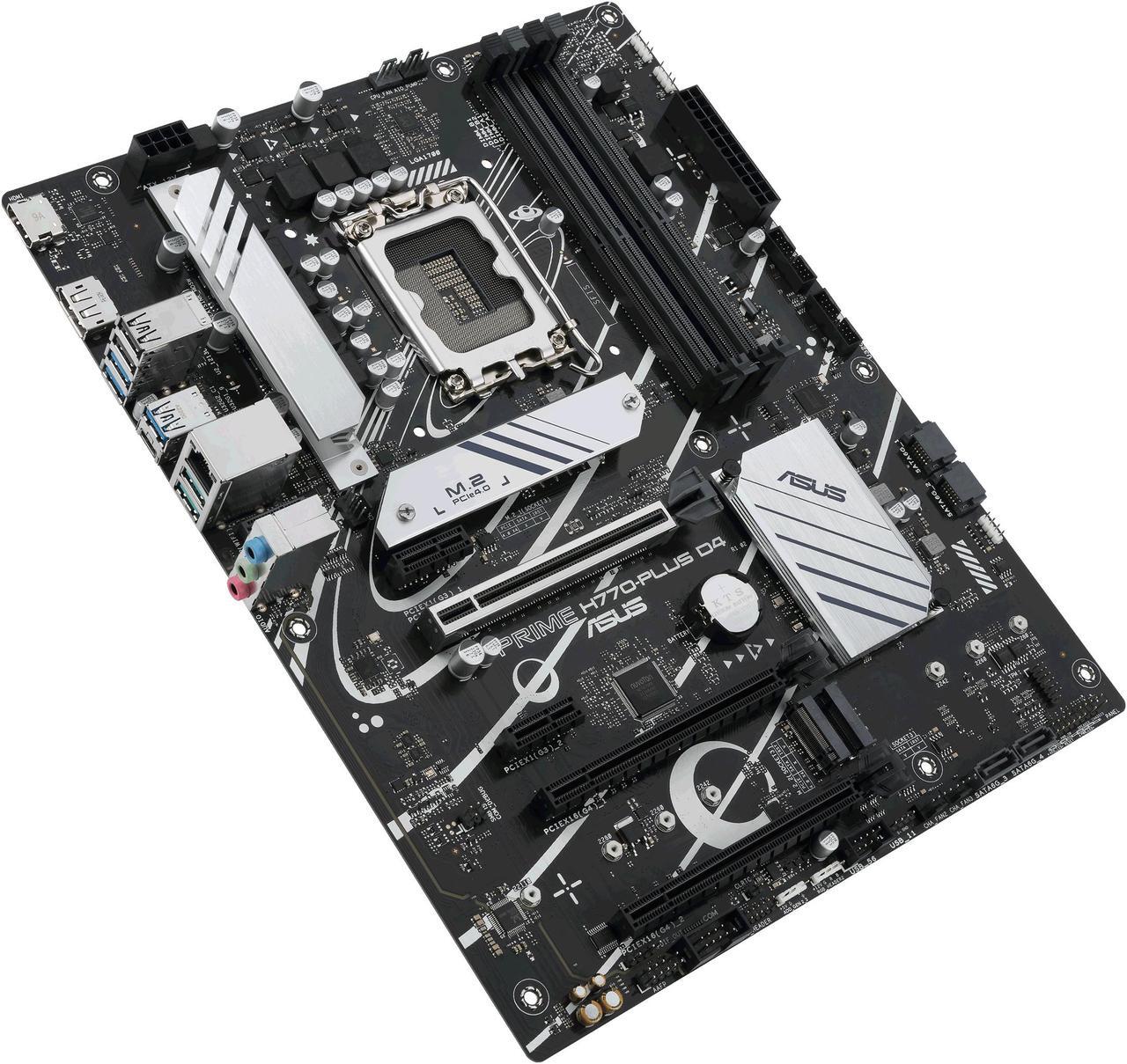

Alt view image 6 of 6 - ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

Shop All ASUS Products

ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

Name: ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort,
Brand: ASUS
SKU: N82E16813119629
Rating: 5 (5 reviews)

(5) Write a Review

Intel LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors.
Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C and Thunderbolt™ (USB4) header support.
Comprehensive Cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+.
ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability.
Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB headers for RGB LED strips, easily synced with Aura Sync-capable hardware.
Memory: DDR4 -5066(OC)/5000(OC)/4800(OC))/4600(OC)/4400(OC)/4266(OC)

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (5)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's Standard Return Policy. Read full return policy for details.

Brand	ASUS
Model	PRIME H770-PLUS D4
Part Number	90MB1CU0-M0AAY0

CPU Socket Type	LGA 1700
CPU Type	Celeron / Intel Core 12th Gen (LGA 1700) / Intel Core 13th Gen (LGA 1700) / Pentium Gold
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 3200
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
Memory Feature	DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.

PCI Express 5.0 x16	Intel 13th & 12th Gen Processors* 1 x PCIe 5.0 x16 slot
PCI Express 4.0 x16	Intel H770 Chipset 2 x PCIe 4.0 x16 slots (support x4 mode)
PCI Express x1	Intel H770 Chipset 2 x PCIe 3.0 x1 slots

SATA 6Gb/s	4 x SATA 6Gb/s
M.2	Intel 13th & 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Intel H770 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

ASUS Prime H770-PLUS D4 Intel H770( 13th and 12th Gen) LGA 1700 ATX motherboard with PCIe 5.0, 3xPCIe 4.0 M.2 slots, DDR4, 2.5Gb LAN, DisplayPort, HDMI, USB 3.2 Gen 2 Type-C, Thunderbolt™ (USB4) support, Aura Sync

Learn more about the ASUS PRIME H770-PLUS D4

Customer Reviews of the ASUS PRIME H770-PLUS D4

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Audio Channels	7.1 Channels

Max LAN Speed	1 x Realtek 2.5Gb Ethernet
Wireless LAN	Vertical M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module is sold separately.

Onboard USB	2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 3 additional USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable Gen 2 headers 2 x Aura RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ (USB4) header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
